Category 5e Cable

Category 5e Cable

Category Category 5e LS Simple™ Cat.5e 4&25 Pair Cable, Solution

■ Supports Fast Ethernet, Gigabit Ethernet, 155 Mb/s, Multimedia
■ All accepted design for global commercial network installation
■ Qualifies for LS 25-Year Extended Product Warranty and Applications Assurance when included as part of a registered LS Category 5e Channel
■ Electrical perfomance complies with ANSI/TIA-586-C.2
■ RoHS Compliant
■ Simplified structured cabling solution preserving long-term network investment

Category 5e Cable

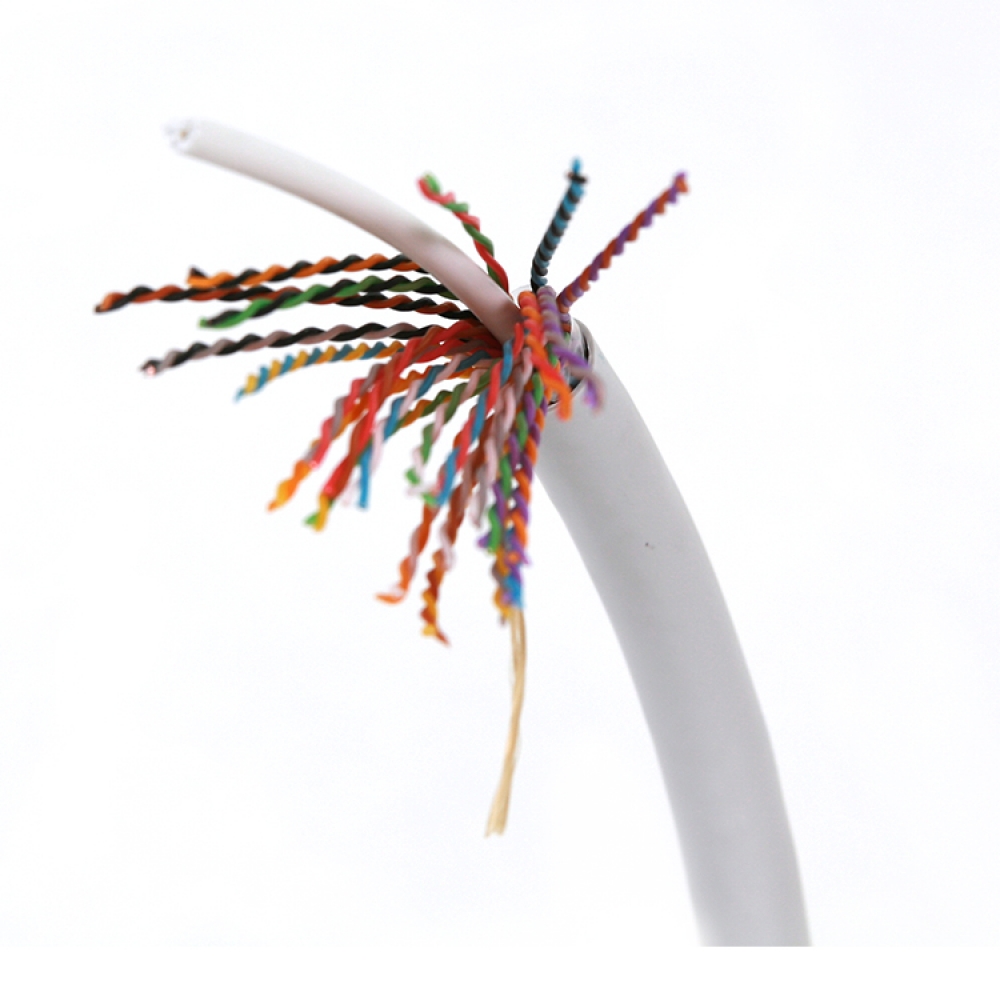

U/UTP Cat.5e 25P

Description: · Cable diameter : 0.5inch (12.7mm)
· UL Listed & Verified
· Supports Fast Ehternet, Gigabit Ethernet, 155 Mb/s, Multimedia
· All accepted design for global commercial network installation
· Simplified structured cabling solution preserving long-term network investment
· Comply with ANSI/TIA-568-C.2
· RoHS compliant
· Qualifies for the LS 25-year extended Product Warranty and Applications Assurance when included as part of a registered LS Category 5e Channel

Part Lists

Description	Part Number

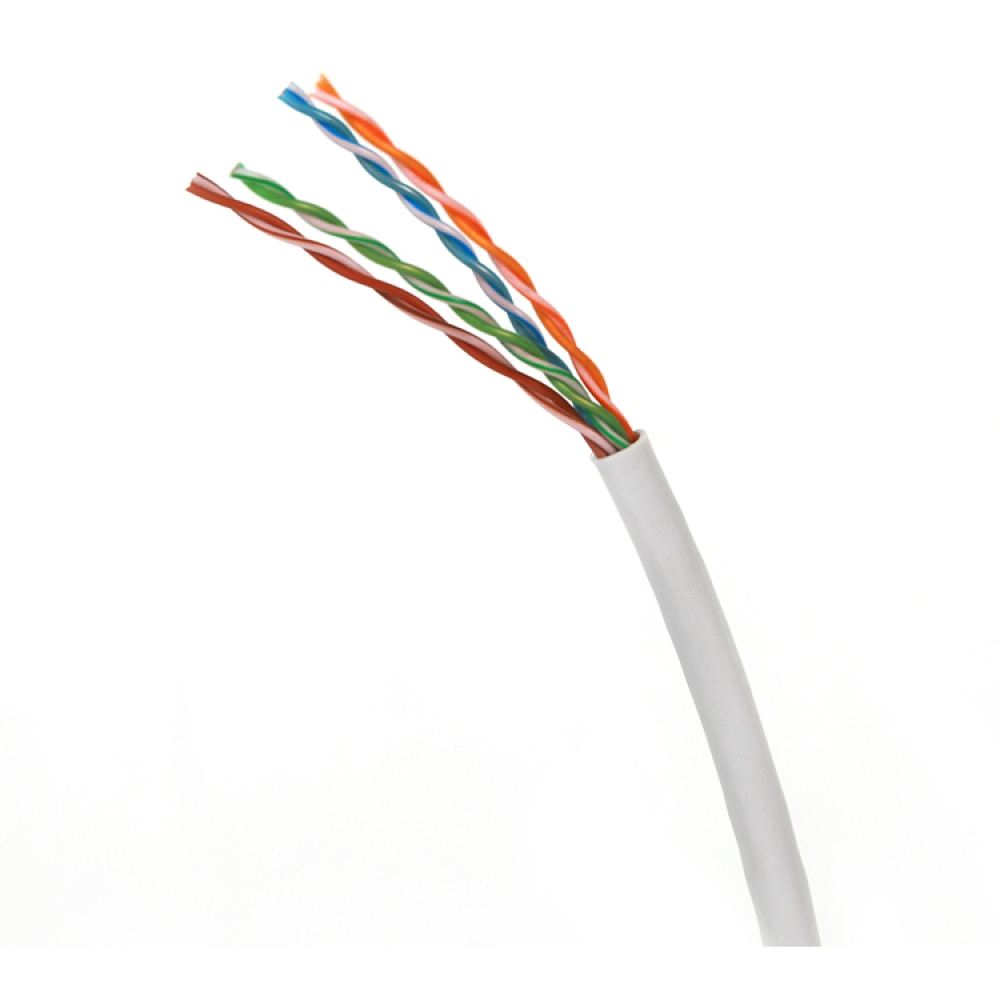

Category 5E U/UTP 4Pair CMX	UTP-E-C5G-E1VN-X 0.5X025P/GY
Category 5E U/UTP 4Pair CM	UTP-E-C5G-E1VN-M 0.5X025P/GY
Category 5E U/UTP 4Pair CMR	UTP-E-C5G-E1VN-R 0.5X025P/GY
Category 5E U/UTP 4Pair LSZH	UTP-E-C5G-E1ZN-X 0.5X025P/GY

Application: · Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL

Technical Details

Characteristics	units	Cat.5E
DC Resistance	Ω/100m	≤ 9.38
DC Resistance Unbalance	%	≤ 5.00
Mutual Capacitance	nF/100m	≤ 5.60
Capacitance Unbalance (Pair to Ground)	pF/100m	≤ 330
Insulation Resistance	MΩ-100m	≥ 500
Dielectric Strength	DC kV/sec	2.5 / 2
Impedance (Characteristic mean)	Ω	100 ± 15% (1 ≤ f ≤ 100MHz)
Propagation Delay Skew	ns/100m	≤ 45

Learn more

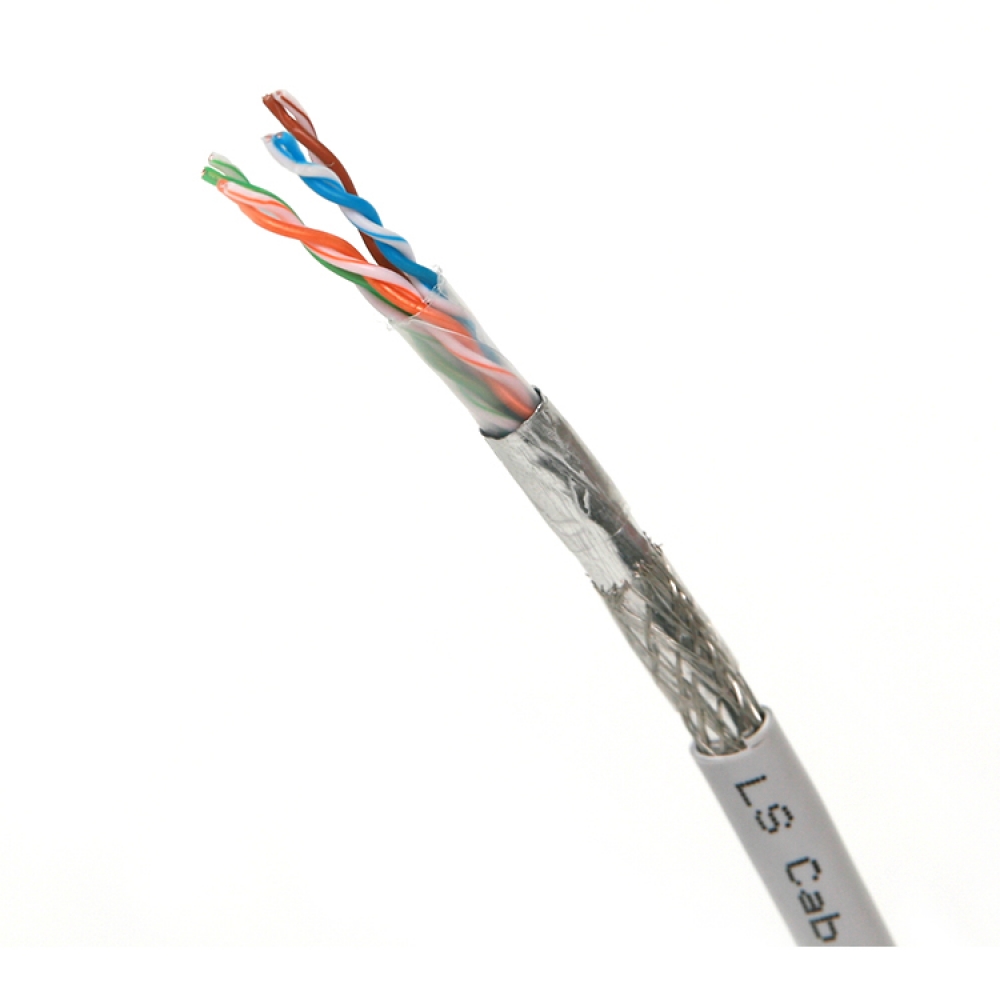

SF/UTP Cat.5e

Description: · Cable diameter : 0.256inch (6.5mm)
· Supports Fast Ehternet, Gigabit Ethernet, 155 Mb/s, Multimedia
· All accepted design for global commercial network installation
· Simplified structured cabling solution preserving long-term network investment
· Comply with ANSI/TIA-568-C.2
· Specialized print legend contains footage or metric or dual marking
· Reel package is standard, so wire pulls through box opening for easy access
· RoHS compliant
· Qualifies for the LS 25-year extended Product Warranty and Applications Assurance when included as part of a registered LS Category 5e Channel

Part Lists

Description	Part Number

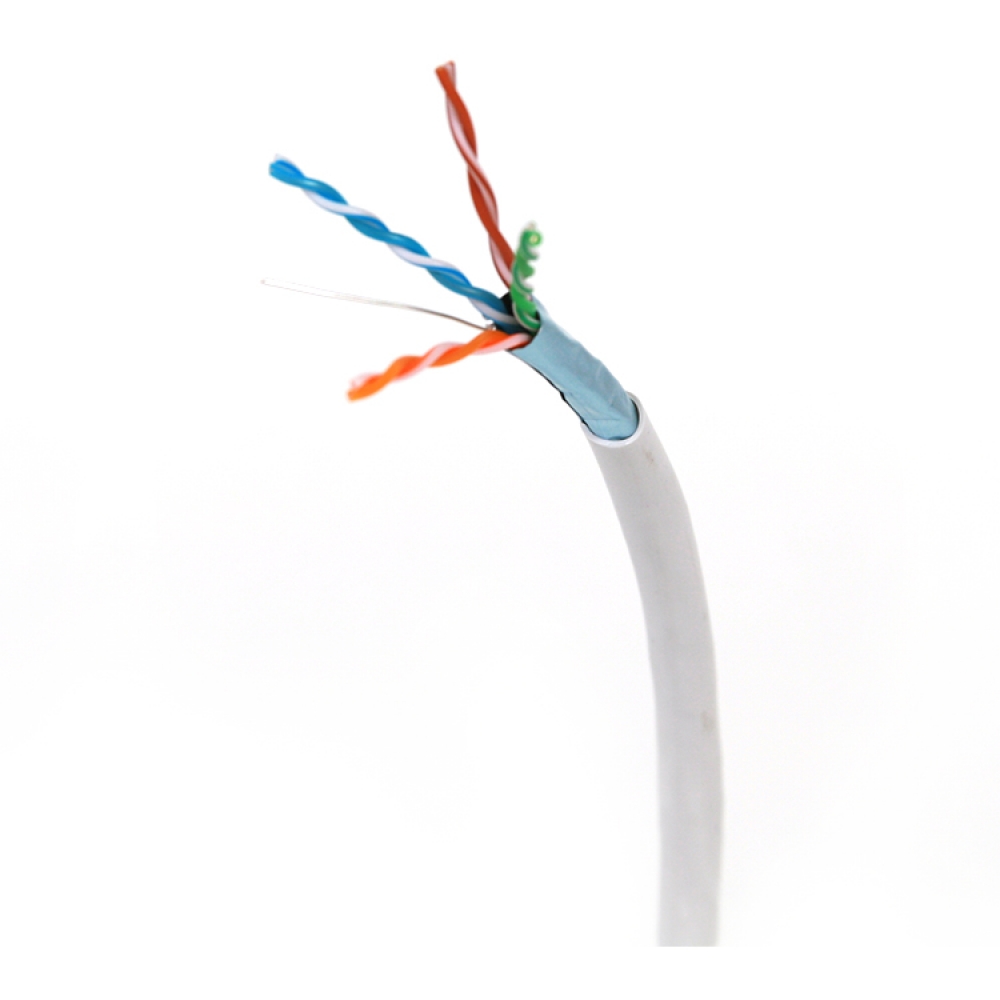

Category 5e SF/UTP 4Pair CMX	SFP-E-C5G-E1VN-X 0.5X004P/xx
Category 5e SF/UTP 4Pair CM	SFP-E-C5G-E1VN-M 0.5X004P/xx
Category 5e SF/UTP 4Pair LSZH 332-1	SFP-E-C5G-E1ZN-X 0.5X004P/xx
Category 5e SF/UTP 4Pair LSZH 332-3	SFP-E-C5G-E1ZN-M 0.5X004P/xx

Application: · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL

Technical Details

Characteristics	units	Specification
DC Resistance	Ω/100m	≤ 9.5
DC Resistance Unbalance	%	≤ 2.00
Capacitance Unbalance (Pair to Ground)	pF/km (800~1000Hz)	≤ 1600
Insulation Resistance	MΩ·m	≥ 5000
Dielectric Strength	DC kV/sec	2.5 / 2
Impedance (Characteristic mean)	Ω	100 ± 5% (at 100MHz)
Return Loss	dB/100m	≥ 20 + 5 * log(freq) , 4 ≤ f ＜ 10MHz ≥ 25 , 10 ≤ f ＜ 20MHz ≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 100MHz
Attenuation (Insertion Loss)	dB/100m	≤ 1.967√(freq) + 0.023(freq) + 0.1/√(freq) , 4 ~ 100 MHz
NEXT Loss	dB/100m	≥ 65.3 – 15*log(freq) ,4 ~ 100MHz
Power sum NEXT Loss	dB/100m	≥ 62.3 – 15*log(freq) ,4 ~ 100MHz
ELFEXT Loss	dB/100m	≥ 64 – 20*log(freq) ,4 ~ 100MHz
Power sum ELFEXT Loss	dB/100m	≥ 61 – 20*log(freq) ,4 ~ 100MHz
Propagation Delay	ns/100m	≤ 534 + 36 / √ (Freq) ,4 ~ 100MHz
Propagation Delay Skew	ns/100m	≤ 45, 4~100MHz

DATA SHEET
Download Copy URL
ORDERING GUIDE
Download Copy URL

Q&A

Welcome to LS Simple Web site. LS Cable & System will become a company always listen to your voice.
If you have any questions regarding this product please leave this place. We will handle as much as possible in a short time.

legend * Mandatory


Subject
writer
E-mail
Phone Number
Mobile Phone
Contents
attach	Attachement

Consent to collect and use personal information.

LS cable & system., Ltd. (the "Company") collects minimum personal information in order to provide accurate and sincere response to your request.

1. Purpose
The Company utilized for the purpose of consultation, the answer replies, inquiries handling personal information collected.
2. Information Collected
The Company has collected personal information as below for consultation.
- Name, email, phone number, cell phone number
3. Processing and Retention Period for Personal Information
The company holds personal information until the processing of personal data to achieve the purpose, and after destroying without purpose has been achieved or exceeded for more than one year delay. However, if there is a need for preservation If you have received a prior agreement or by applicable law, it may be preserved.
4. Right to Refuse Consent/Disadvantages
Customers have the right to refuse to accept the collection and use of personal information. However, there may be a limit to the agreed upon denial of service.

Agree

List

Application: · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL

Technical Details

Characteristics	units	Specification
DC Resistance	Ω/100m	≤ 9.5
DC Resistance Unbalance	%	≤ 2.00
Capacitance Unbalance (Pair to Ground)	pF/km (800~1000Hz)	≤ 1600
Insulation Resistance	MΩ·m	≥ 5000
Dielectric Strength	DC kV/sec	2.5 / 2
Impedance (Characteristic mean)	Ω	100 ± 5% (at 100MHz)
Return Loss	dB/100m	≥ 20 + 5 * log(freq) , 4 ≤ f ＜ 10MHz ≥ 25 , 10 ≤ f ＜ 20MHz ≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 100MHz
Attenuation (Insertion Loss)	dB/100m	≤ 1.967√(freq) + 0.023(freq) + 0.1/√(freq) , 4 ~ 100 MHz
NEXT Loss	dB/100m	≥ 65.3 – 15*log(freq) ,4 ~ 100MHz
Power sum NEXT Loss	dB/100m	≥ 62.3 – 15*log(freq) ,4 ~ 100MHz
ELFEXT Loss	dB/100m	≥ 64 – 20*log(freq) ,4 ~ 100MHz
Power sum ELFEXT Loss	dB/100m	≥ 61 – 20*log(freq) ,4 ~ 100MHz
Propagation Delay	ns/100m	≤ 534 + 36 / √ (Freq) ,4 ~ 100MHz
Propagation Delay Skew	ns/100m	≤ 45, 4~100MHz

DATA SHEET
Download Copy URL
ORDERING GUIDE
Download Copy URL

Learn more

F/UTP Cat.5e

Description: · Cable diameter : 0.236inch (6.0mm)
· Supports Fast Ehternet, Gigabit Ethernet, 155 Mb/s, Multimedia
· All accepted design for global commercial network installation
· Simplified structured cabling solution preserving long-term network investment
· Comply with ANSI/TIA-568-C.2
· Specialized print legend contains footage or metric or dual marking
· Reel in a Box is standard, so wire pulls through box opening for easy access
· RoHS compliant
· Qualifies for the LS 25-year extended Product Warranty and Applications Assurance when included as part of a registered LS Category 5e Channel

Part Lists

Description	Part Number

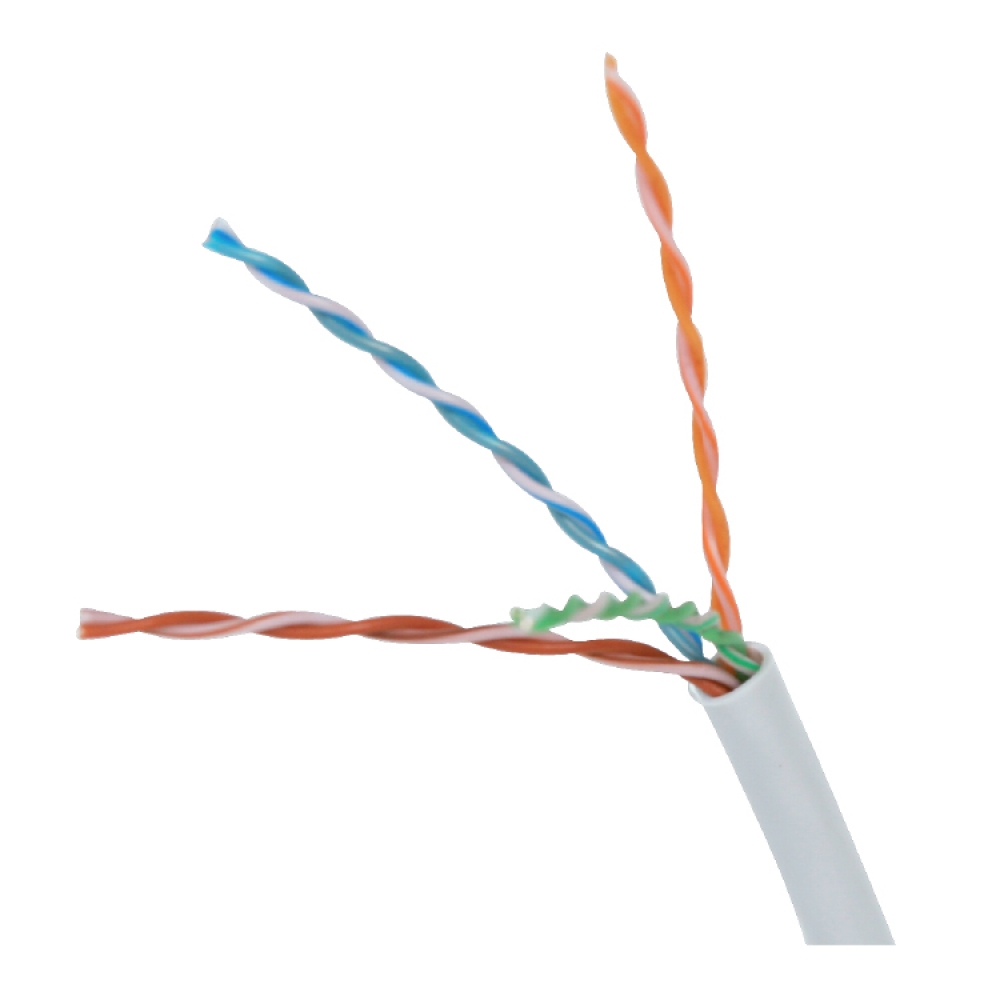

Category 5e F/UTP 4Pair CMX	FTP-E-C5G-E1VN-X 0.5X004P/xx

Category 5e F/UTP 4Pair CM	FTP-E-C5G-E1VN-M 0.5X004P/xx
Category 5e F/UTP 4Pair LSZH 332-1	FTP-E-C5G-E1ZN-X 0.5X004P/xx
Category 5e F/UTP 4Pair LSZH 332-3	FTP-E-C5G-E1ZN-M 0.5X004P/xx

Application: · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL

Technical Details

Characteristics	units	Specification
DC Resistance	Ω/100m	≤ 9.5
DC Resistance Unbalance	%	≤ 2.00
Capacitance Unbalance (Pair to Ground)	pF/km (800~1000Hz)	≤ 1600
Insulation Resistance	MΩ·m	≥ 5000
Dielectric Strength	DC kV/sec	2.5 / 2
Impedance (Characteristic mean)	Ω	100 ± 5% (at 100MHz)
Return Loss	dB/100m	≥ 20 + 5 * log(freq) , 4 ≤ f ＜ 10MHz ≥ 25 , 10 ≤ f ＜ 20MHz ≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 100MHz
Attenuation (Insertion Loss)	dB/100m	≤ 1.967√(freq) + 0.023(freq) + 0.1/√(freq) , 4 ~ 100 MHz
NEXT Loss	dB/100m	≥ 65.3 – 15*log(freq) ,4 ~ 100MHz
Power sum NEXT Loss	dB/100m	≥ 62.3 – 15*log(freq) ,4 ~ 100MHz
ELFEXT Loss	dB/100m	≥ 64 – 20*log(freq) ,4 ~ 100MHz
Power sum ELFEXT Loss	dB/100m	≥ 61 – 20*log(freq) ,4 ~ 100MHz
Propagation Delay	ns/100m	≤ 534 + 36 / √ (Freq) ,4 ~ 100MHz
Propagation Delay Skew	ns/100m	≤ 45, 4~100MHz
