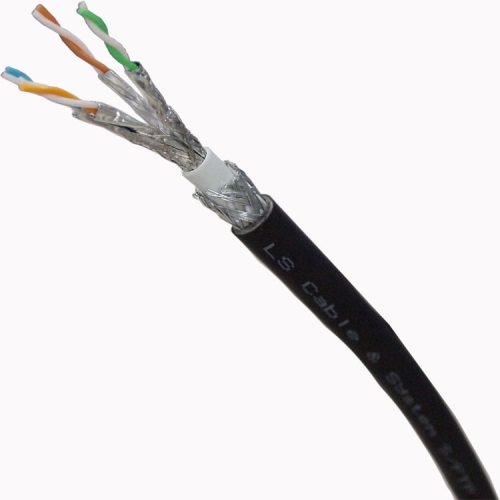

GSWB S/FTP Category 6 Cable
- Description
- • Galvanized Steel Wire Braid S/FTP Category 6 LSZH Cable
• Adequate for industrial use environment such as marine, offshore etc.
• Meet electrical performance based on ISO/IEC 11801, IEC 61156-5
• Meet flame retardant of IEC 60332-1 & 3(Category A)
- Part Lists
Description Part Number Category 6 S/FTP Galvanized Steel Wire Braid Armored Cable, IEC 60332-1 SSP-G-C6G-E2ZG-X 0.5X004P/BK Category 6 S/FTP Galvanized Steel Wire Braid Armored Cable, IEC 60332-3A SSP-G-C6G-E2ZG-M 0.5X004P/BK - Technical Details
- Thickness of sheath and cable diameter
Inner sheath thickness
(mm)
Bedding
diameter
(mm)
Outer sheath
Thickness
(mm)
Cable
diameter
(mm)
0.8 ± 0.1
8.2 ± 0.3
1.5± 0.2
12.5 ± 0.5
Electrical PerformanceCharacteristics
units
Specification
DC Resistance
Ω/100m
≤ 9.5
DC Resistance Unbalance
%
≤ 2.00
Capacitance Unbalance
(Pair to Ground)
pF/km
(800~1000Hz)
≤ 1600
Insulation Resistance
MΩ·m
≥ 5000
Dielectric Strength
DC kV/sec
2.5 / 2
Impedance
(Characteristic mean)
Ω
100 ± 5% (at 100MHz)
Return Loss
dB/100m
≥ 20 + 5 * log(freq) , 4 ≤ f ＜ 10MHz
≥ 25 , 10 ≤ f ＜ 20MHz
≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 250MHz
Attenuation
(Insertion Loss)
dB/100m
≤ 1.82*√(freq) + 0.0169*(freq) + 0.25/√(freq)
, 4 ~ 250 MHz
NEXT Loss
dB/100m
≥ 75.3 – 15*log(freq) ,4 ~ 250MHz
Power sum NEXT Loss
dB/100m
≥ 72.3 – 15*log(freq) ,4 ~ 250MHz
ELFEXT Loss
dB/100m
≥ 68 – 20*log(freq) ,4 ~ 250MHz
Power sum ELFEXT Loss
dB/100m
≥ 65 – 20*log(freq) ,4 ~ 250MHz
Propagation Delay
ns/100m
≤ 534 + 36 / √ (Freq) ,4 ~ 250MHz
Propagation Delay Skew
ns/100m
≤ 45, 4 ~ 250MHz
- DATA SHEET
- ORDERING GUIDE
