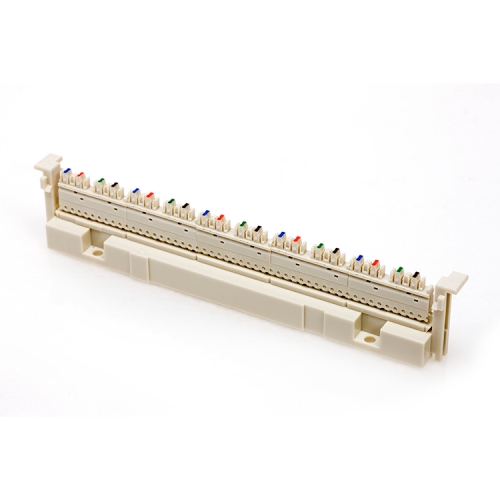

GXC™ 110Block - 80P, 40P, 20P

Main windows

Description
The Simple GXCTM Category 6 Patching Block fully meet the Category 6 requirements set out in ANSI/TIA-568-C.2, ISO/IEC 11801 by coupling-pin technology.
IDCs interval of Category 6 connecting block is generally larger than that of Category 5e to reduce the capacitance coupling and improve the electrical performance, but this block provides convenience for operator to use conventional multi-pin punch down tool with same IDCs interval as Category 5e.
This block is ideal for use in cross connects, consolidation point (CP) and 19” rack mount panel and it’s possible to cover the conventional patch panel owing to superior electrical performance.
Conventional patch panel uses 12 cable connections in 1U space(44mm) but this block is extended up to 20 connections in same space. This compact installation has a definitely lot of benefits for system design.
This block comes with 110 terminal block, wiring base block, wiring label and label holder for T568A/T568B configuration.
Part Lists
LS-110WB-UC6-20P0-W/O
LS-110WB-UC6-40P0-W/O
LS-110WB-UC6-80P0-W/O
Application
· PBX, X21, V11 S0-Point-to-Point, S1/S2, ATM 155
· Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps
· 1.2Gbit/s ATM LAN
· 100Mbps TP-PMD
· ISDN, ADSL
· Analog & digital voice (VoIP) and video
· Full broadband & baseband video
· RoHS compliant
