In/Outdoor Single Unit, Indoor Multi Unit
- Description
- Distribution Cable
1) Single-Unit, Distribution Cable (2~24 Fibers)
Tight buffered fiber, dielectric strength member and PVC / LSZH(Low Smoke Zero Halogen) jacket
2) Multi-Unit, Distribution Cable (18~144 Fibers)
Tight buffered sub-unit cables, dielectric central strength member (CSM), PVC / LSZH(Low Smoke Zero Halogen) jacket
- Cable Construction

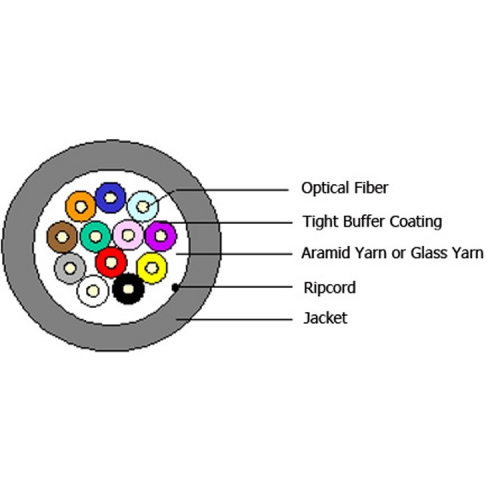

- 1) Single-Unit
ITEMS DESCRIPTION Number of Fibers 2 ~ 24 Type of Fiber Single Mode, 62.5 Multi Mode, 50 Multi Mode Tight Buffer Coating Material: PVC
Outer diameter: 900±50㎛Dielectric Strength Member Aramid Yarn or Glass Yarn Ripcord Ripcord
(For 6 ~ 12 fiber cable)Outer Jacket Material : PVC or LSZH Compound
2) Multi-UnitITEMS DESCRIPTION Number of Fibers 18 ~ 144 Type of Fiber Single Mode, 62.5 Multi Mode, 50 Multi Mode Tight Buffer Coating Material: PVC
Outer diameter: 900±50㎛Sub-unit No. of the Tight
Buffered Fiber6: For 18~24 Fiber Cable
12 : For 36~144 Fiber CableDielectric
Strength MemberAramid Yarn or Glass Yarn Sub-unit Jacket PVC or LSZH Compound Dielectric CSM FRP (Fiberglass Reinforced Plastic) with
PVC or LSZH CoatingRipcord Ripcord Outer Jacket Material : PVC or LSZH Compound
- Application
- Fiber optic telecommunication cable used for indoor/outdoor application
