Intelligent Patch Panel

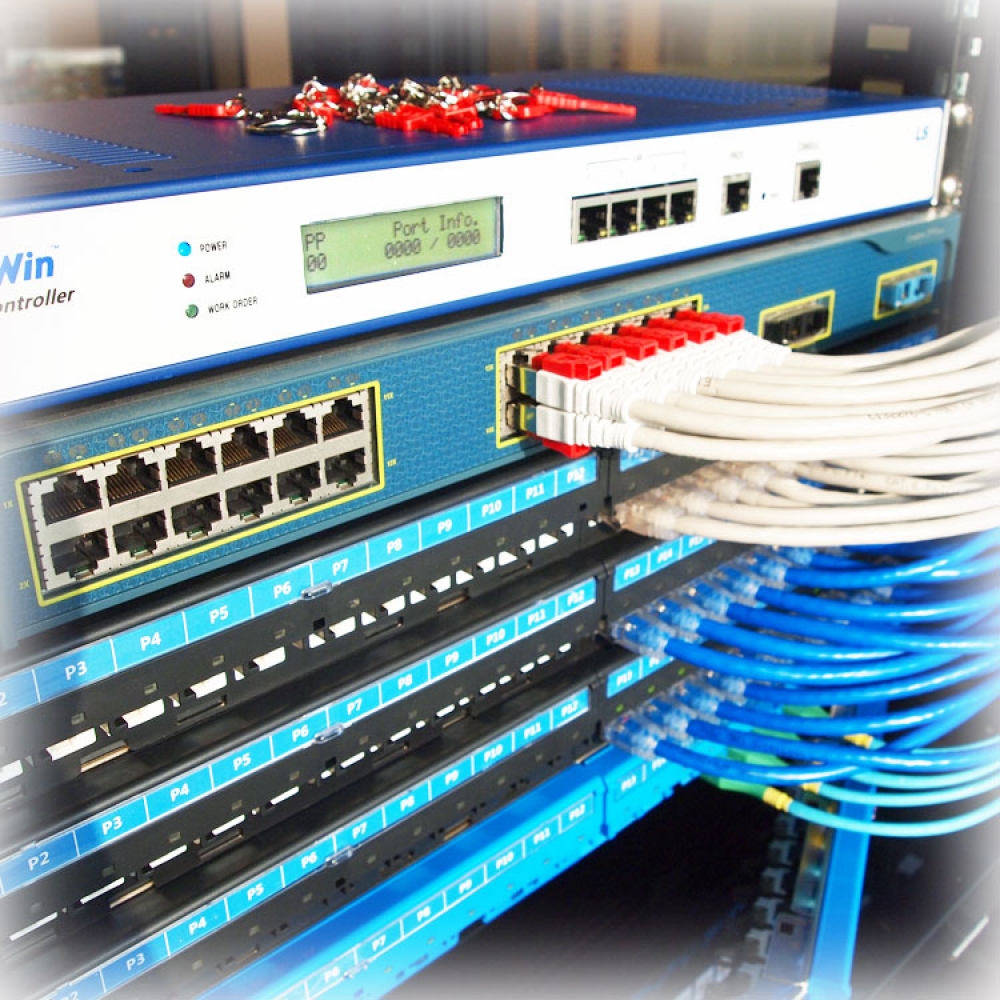

LS SimpleWin™ Intelligent Infrastructure Management System drastically speeds up and simplifies site planning and daily network provisioning, maintenance and security. It also provides comprehensive visibility into datacenter and work space facilities, keeping an accurate inventory of all assets-wherever located across a campus or an ocean.
Intelligent Patch Panel

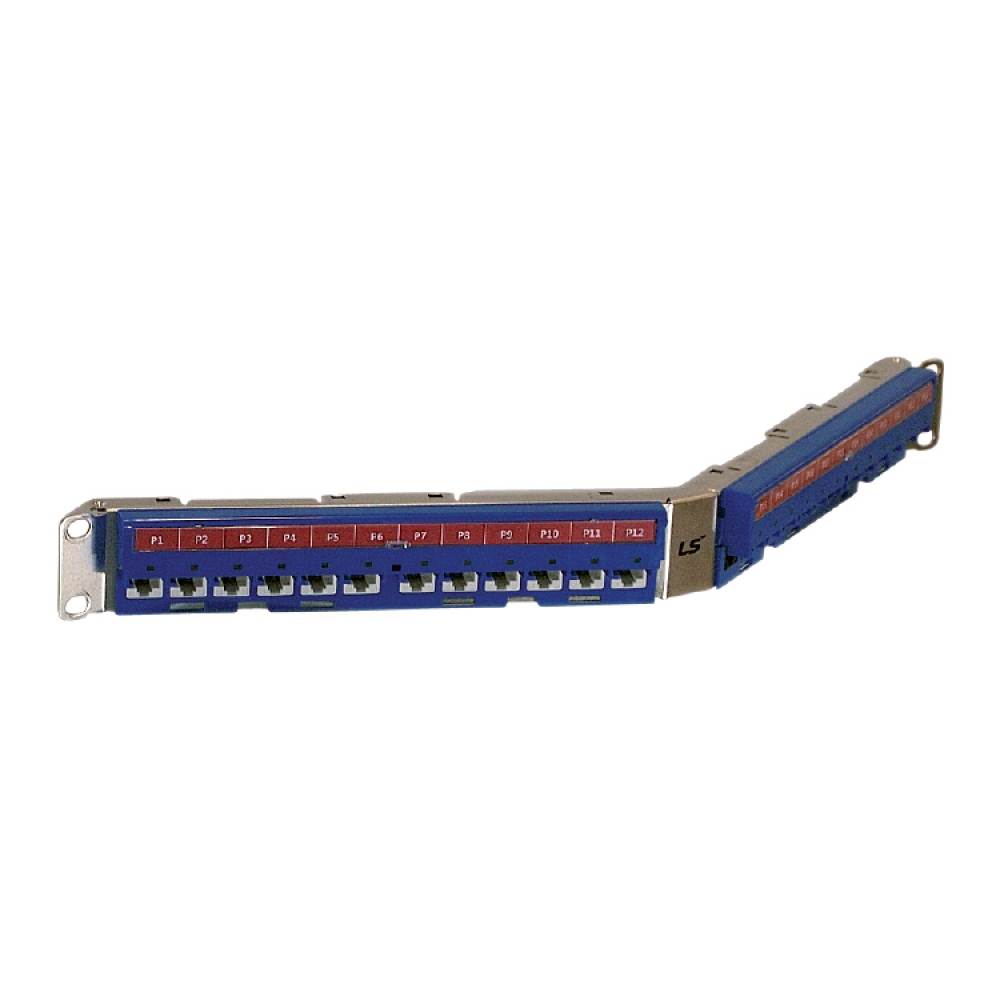

I2MS / Intelligent Cross-C Angled Shielded Patch Panel 24-Port
- Description
- SimpleWinTM 24Ports Intelligent Empty Panel for Cat.6 or Cat.6A (Angled type) shielded
It is available for quick installation cabling by automatic cutting wire tool of individual modular jack.
This 1U panel is used for 19” standard rack with ERI Cat.6, Cat.6A Modular jack and fiber connector.
. Cross-connection setting by dipswitch
. Dual contact point sensor (Patent pending)
. 1-wire communication between ports
. RS-485 communication between panel and controller
. High impact flame retardant plastic module in front of panel
. Easy cable management (Optional)
. Recognize the general patch cord automatically . Support LED having a variety of color (easy work order)
- Part Lists
- . LS-IAPC-SC-24P (Intelligent Shielded Angled Patch Panel, Cross-connection, 19" rack mount(1U), 24-ports without module)
- Application
- . Telecommunication network
. Intelligent cabling system for data center or IBS

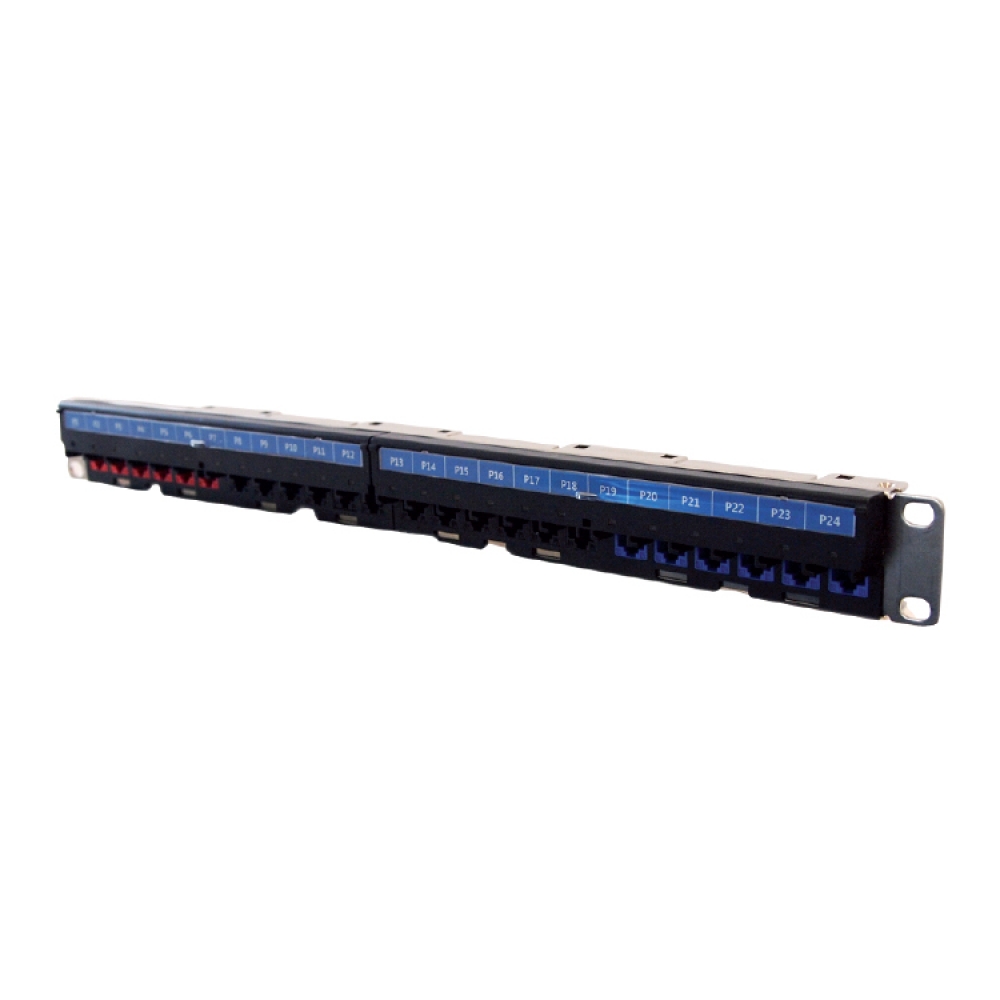

I2MS / Intelligent Cross-C Shielded Patch Panel 24-Port
- Description
- SimpleWin™ 24Ports Intelligent Empty Panel for Cat.6 or Cat.6A (Horizontal type) shielded
It is available for quick installation cabling by automatic cutting wire tool of individual modular jack.
This 1U panel is used for 19” standard rack with ERI Cat.6, Cat.6A Modular jack and fiber connector.
. Cross-connection setting by dipswitch
. Dual contact point sensor (Patent pending)
. 1-wire communication between ports
. RS-485 communication between panel and controller
. High impact flame retardant plastic module in front of panel
. Easy cable management (Optional)
. Recognize the general patch cord automatically
. Support LED having a variety of color (easy work order)
- Part Lists
- . LS-IPPC-SC-24P (Intelligent Shielded Patch Panel, Cross-connection, 19" rack mount(1U), 24-ports without module)
- Application
- . Telecommunication network
. Intelligent cabling system for data center or IBS
I2MS / Intelligent Inter-C Angled Unshielded Patch Panel 24-Port
- Description
- SimpleWin™ 24Ports Intelligent Empty Panel for Cat.6 or Cat.6A (Angled type)
It is available for quick installation cabling by automatic cutting wire tool of individual modular jack.
This 1U panel is used for 19” standard rack with ERI Cat.6, Cat.6A Modular jack and fiber connector.
. Inter-connection setting by dipswitch
. Dual contact point sensor (Patent pending)
. 1-wire communication between ports
. RS-485 communication between panel and controller
. High impact flame retardant plastic module in front of panel
. Easy cable management (Optional)
. Recognize the general patch cord automatically
. Support LED having a variety of color (easy work order)
- Part Lists
- . LS-IAPI-UC-24P (Intelligent Unshielded Angled Patch Panel, Inter-connection, 19" rack mount(1U), 24-ports without module)
- Application
- . Telecommunication network
. Intelligent cabling system for data center or IBS
I2MS / Intelligent Cross-C Angled Unshielded Patch Panel 24-Port
- Description
- SimpleWin™ 24Ports Intelligent Empty Panel for Cat.6 or Cat.6A (Angled type)
It is available for quick installation cabling by automatic cutting wire tool of individual modular jack.
This 1U panel is used for 19” standard rack with ERI Cat.6, Cat.6A Modular jack and fiber connector.
. Cross-connection setting by dipswitch
. Dual contact point sensor (Patent pending)
. 1-wire communication between ports
. RS-485 communication between panel and controller
. High impact flame retardant plastic module in front of panel
. Easy cable management (Optional)
. Recognize the general patch cord automatically
. Support LED having a variety of color (easy work order)
- Part Lists
- . LS-IAPC-UC-24P (Intelligent Unshielded Angled Patch Panel, Cross-connection, 19" rack mount(1U), 24-ports without module)
- Application
- . Telecommunication network
. Intelligent cabling system for data center or IBS
I2MS / Intelligent Inter-C Unshielded Patch Panel 24-Port
- Description
- SimpleWin™ 24Ports Intelligent Empty Panel for Cat.6 or Cat.6A (Horizontal type)
It is available for quick installation cabling by automatic cutting wire tool of individual modular jack.
This 1U panel is used for 19” standard rack with ERI Cat.6, Cat.6A Modular jack and fiber connector.
. Inter-connection setting by dipswitch
. Dual contact point sensor (Patent pending)
. 1-wire communication between ports
. RS-485 communication between panel and controller
. High impact flame retardant plastic module in front of panel
. Easy cable management (Optional)
. Recognize the general patch cord automatically
. Support LED having a variety of color (easy work order)
- Part Lists
- . LS-IPPI-UC-24P (Intelligent Unshielded Patch Panel, Inter-connection, 19" rack mount(1U), 24-ports without module)
- Application
- . Telecommunication network
. Intelligent cabling system for data center or IBS
I2MS / Intelligent Cross-C Unshielded Patch Panel 24-Port
- Description
- SimpleWin™ 24Ports Intelligent Empty Panel for Cat.6 or Cat.6A (Horizontal type)
It is available for quick installation cabling by automatic cutting wire tool of individual modular jack.
This 1U panel is used for 19” standard rack with ERI Cat.6, Cat.6A Modular jack and fiber connector.
. Cross-connection setting by dipswitch
. Dual contact point sensor (Patent pending)
. 1-wire communication between ports
. RS-485 communication between panel and controller
. High impact flame retardant plastic module in front of panel
. Easy cable management (Optional)
. Recognize the general patch cord automatically
. Support LED having a variety of color (easy work order)
- Part Lists
- . LS-IPPC-UC-24P (Intelligent Unshielded Patch Panel, Cross-connection, 19" rack mount(1U), 24-ports without module)
- Application
- . Telecommunication network
. Intelligent cabling system for data center or IBS
