Modular Plug
- Description
- LS Simple™ Modular Plug Solutions ensure the high-reliability and superior transmission performance with 50μ-inch gold coating without degradation of channel performance. Also, They supply the benefit of easy installation for customers with cable wire and pair separator components according to plug type.
- Part Lists
- . LS-MP-UC5E-RJ45 (8P8C Category 5e unshielded modular plug for suitable stranded & solid wire, 50μ-inch gold coating)
. LS-MP-UC6-RJ45 (8P8C Category 6 unshielded modular plug for suitable stranded & solid wire, 50μ-inch gold coating with boot of transparent white color, separator of pairs)

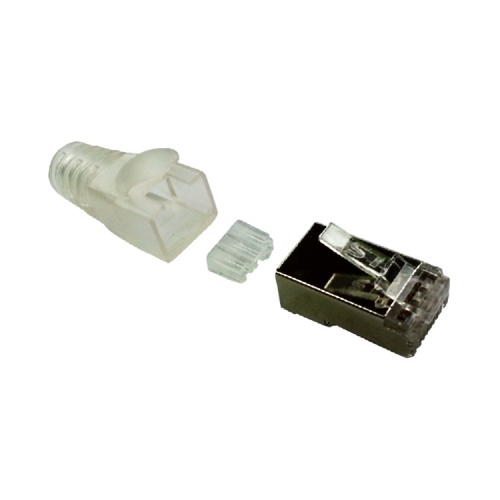

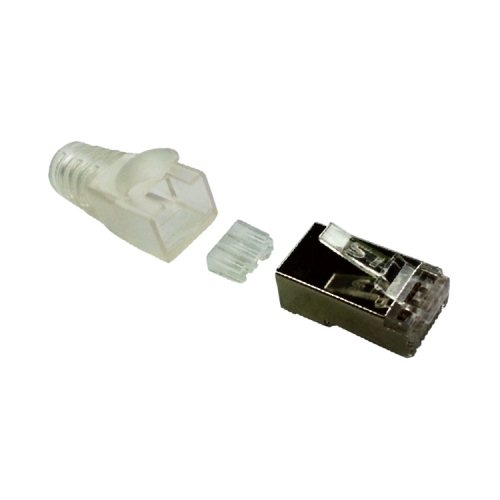

. LS-MP-SC5E-RJ45-TRBOOT (8P8C Category 5e shielded modular plug suitable stranded & solid wire, 50μ-inch gold coating with transparent boot)
. LS-MP-SC6-RJ45-TRBOOT-A (8P8C Category 6 above shielded modular plug suitable stranded & solid wire, 50μ-inch gold coating with transparent boot)
. LS-MP-6P6C-R (6P6C Unshielded modular plug, suitable for stranded wire, 50μ-inch gold coating, round type cable)
. LS-MP-6P4C-F (6P4C Unshielded modular plug, suitable for stranded wire, 50μ-inch gold coating, flat type cable)
. LS-MP-4P4C-R (4P4C Unshielded modular plug, suitable for stranded wire, 50μ-inch gold coating, round type cable)
. LS-MP-4P4C-F (4P4C Unshielded modular plug, suitable for stranded wire, 50μ-inch gold coating, flat type cable)
- Technical
- Electrical / Mechnical Characteristics
. Rating Voltage & Current : 30Vac at 1.5A
. Contact Resistance : 20 milli-ohm Max.
. Dielectric Strength : 1000Vac (RMS)
. Insulation Resistance : 500 Mega-ohm min.
. Cable-to-Plug, Tensile Strength : 20lbs (89N) min.
. Durability : 750 mating cycle min.
. Temperature : -20℃~80℃ (-4℉~176℉)
Materials
. Housing : Polycarbonate (PC)
. Contacts : Copper Alloy Selective Gold over Nickel plating
Compliance
. Meet FCC CFR 47 Part 68 and IEC 60603-7
