Multi-Connection module type FDF

Description

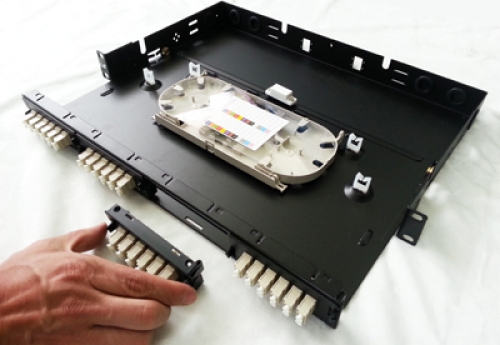

LS Simple™ Multi-connection module type FDFs fully comply with the requirements set out TIA 19" rack type.
It holds the 4 FDM (Fiber Distribution adaptor Module) or 4 MCF (Multi-Connection fiber Frame) or
4 MCM (Multi-Connection MPO/MTP Cassettes) which are configured with fiber optic adaptors or blank.
It's possible to configure the system according to needs and special site environments with LS dedicated slim module.

☞ Manageable & Flexible
4 module type configuration in 1RU
Customized system configuration by either FDM or MCF
☞ Easy Install
Detachable structure in front of rack
Slim design for easy handling
☞ High Density
Possible to splice Max. LC 36-core by using Splicing Fixture in Cassette
High-Density system configuration in Data Center etc.
☞ Reliable
- Support pre-terminated solution with low-loss MTP (Max. 0.35dB) for quality assurance

Part Lists

Empty Closure		Front Panel	Module	Splicing Tray	Gland (Optional)
Outer type LS-FDF-1U-EP-O LS-FDF-2U-EP-O LS-FDF-3U-EP-O LS-FDF-4U-EP-O	Individual Adaptor type	LS-FDP-BK-012-SCSP-W LS-FDP-BK-024-SCSP-W	LS-FA-SC-MM-C-1-BG-W LS-FA-SC-SM-C-1-BL-W	LS-SPTR-024 LS-SPTR-048	LS-GLAND-D13.5 LS-GLAND-D16
		LS-FDP-BK-024-SCDP-W LS-FDP-BK-048-SCDP-W	LS-FA-SC-MM-C-2-BG-W LS-FA-SC-SM-C-2-BL-W
		LS-FDP-BK-024-LCDP-WO LS-FDP-BK-048-LCDP-WO	LS-FA-LC-MM-C-2-BG-WO LS-FA-LC-SM-C-2-BL-WO
		LS-FDP-BK-012-STSP-W LS-FDP-BK-024-STSP-W	LS-FA-ST-MM-C-1 LS-FA-ST-SM-C-1
	Module Adaptor type	LS-FDP-BK-4M	LS-FDM-SC-SP-06-xx LS-FDM-SC-DP-12-xx LS-FDM-SC-DP-18-xx LS-FDM-LC-DP-12-xx LS-FDM-LC-4M-24-xx LS-FDM-LC-4M-36-xx LS-FDM-BLK	LS-SPTR-024 LS-SPTR-048	LS-GLAND-D13.5 LS-GLAND-D16
	Cassette Module type	LS-FDP-BK-4M	LS-MCF-SC-SP-06-xx LS-MCF-SC-DP-12-xx LS-MCF-SC-DP-18-xx LS-MCF-LC-DP-12-xx LS-MCF-LC-4M-24-xx LS-MCF-LC-4M-36-xx LS-MCF-BLK	No needed	No needed

Closure		Module	Splicing Tray	Gland (Optional)
Drawer type LS-FDF-MC1U-EP4M-D (Closure + Front Panel All-in-one type)	Module Adaptor type	LS-FDM-SC-SP-06-xx LS-FDM-SC-DP-12-xx LS-FDM-SC-DP-18-xx LS-FDM-LC-DP-12-xx LS-FDM-LC-4M-24-xx LS-FDM-LC-4M-36-xx LS-FDM-BLK	LS-SPTR-024 LS-SPTR-048	LS-GLAND-D13.5 LS-GLAND-D16
	Cassette Module type	LS-MCF-SC-SP-06-xx LS-MCF-SC-DP-12-xx LS-MCF-SC-DP-18-xx LS-MCF-LC-DP-12-xx LS-MCF-LC-4M-24-xx LS-MCF-LC-4M-36-xx LS-MCF-BLK	No needed	No needed

System Configuration

Technical Detail & Application

. Multi-connection module type FDF
. LC, SC, ST Connector Insertion Loss ≤ 0.5dB
. Material : Steel (SCP-1 1.2T) & PC
. 19-inch rack mountable 1U~4U etc.
. Telecommunication network
. Data center systems
. LAN and WAN (IEEE 802.3ba, 100 BASE-FX, 10G BASE-LX4, 10G BASE-ER/EW, 40G BASE-LR4, 100G BASE-ER4 etc.)
