PRODUCT & SOLUTION

Raceway Solution

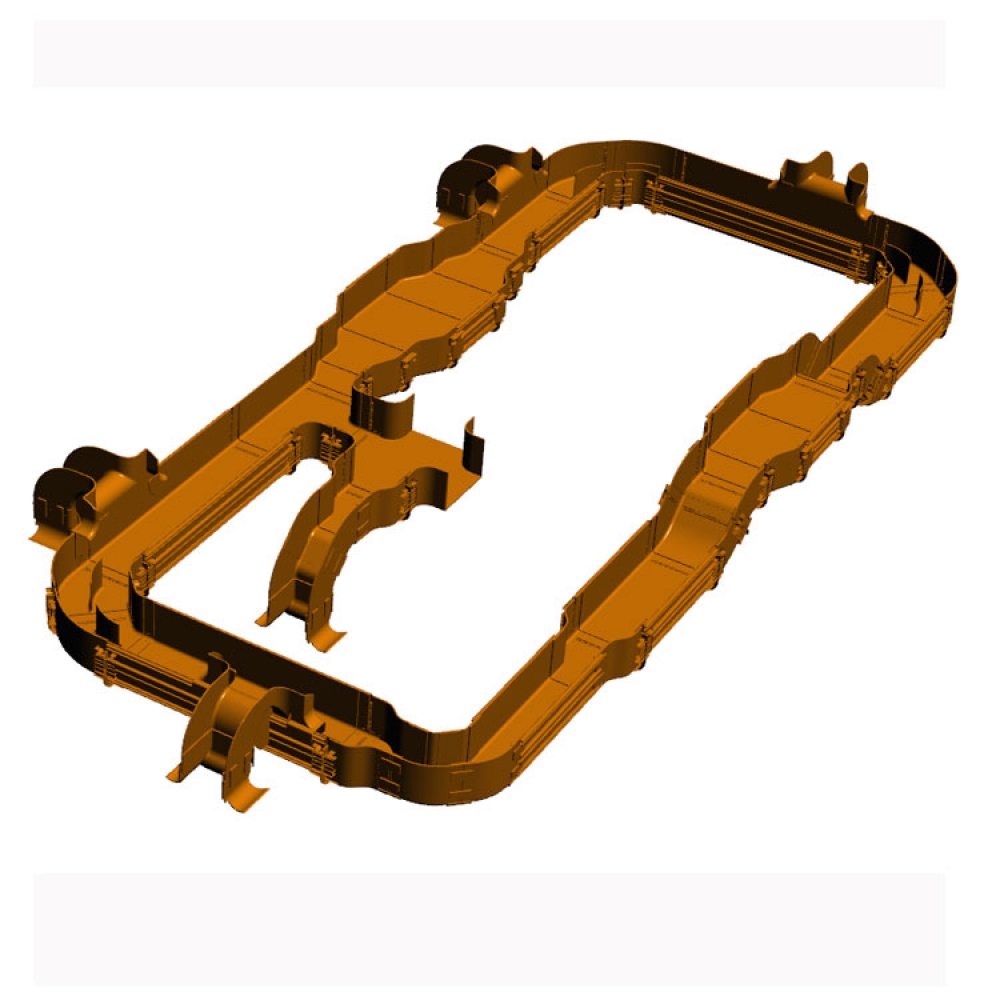

LS Simple path™ fiber optic raceway system is designed perfectly that routes, isolates and protects fiber optic jumper cords, optical cables from the point of building entry to fiber distribution frames, fiber optic terminal device in safety as well as fiber optic raceway system made of PC/ABS that provides excellent heat stability, weather resistance, halogen free, heat resistance, dimensional stability and flame retardant for environmentally safe products Also , UL Recognized material, and the raceway system contains better impact strength and tensile strength.
LS Simple path™ fiber optic raceway system adopts snap-fit connecting way that provide simple easily, compact and quick installation for a various applications without special tools, so it guarantee to save a time, expense and working force of installers.
The drop system is not required an additional cutting of straight cable trough for installing a drop on the sidewall of trough. It guarantees much speedy installation.

  • Connectivity.jpg
Raceway Solution

Fiber Pathway

Description
LS Simple path™ fiber optic raceway system is designed perfectly that routes, isolates and protects fiber optic jumper cords, optical cables from the point of building entry to fiber distribution frames, fiber optic terminal device in safety as well as fiber optic raceway system made of PC/ABS that provides excellent heat stability, weather resistance, halogen free, heat resistance, dimensional stability and flame retardant for environmentally safe products Also , UL Recognized material, and the raceway system contains better impact strength and tensile strength.
LS Simple path™ fiber optic raceway system adopts snap-fit connecting way that provide simple easily, compact and quick installation for a various applications without special tools, so it guarantee to save a time, expense and working force of installers.
The drop system is not required an additional cutting of straight cable trough for installing a drop on the sidewall of trough. It guarantees much speedy installation.
LS simple patc™ give a lot of benefits that are
1st Easy and speedy installation
Snap-fitting raceway system that provide installation easily, simply and quickly can make all kind of applications installer creates with less installation time.
2nd no need a special tools
Coupler can be connected with any straight or curved ducting line by hand only, no need a special tools. It can save a time, expense and working force of installers.
3rd Excellent Materials,
PC/ABS UL 2024 Recognized The fiber optic raceway system made of PC/ABS that provides excellent durability, heat stability, weather resistance, halogen free, heat resistance, dimensional stability and flame retardant for environmentally safe products.
PC/ABS, featuring the favorable characteristics of ABS such as mold-ability, better impact strength at low temperatures, and metal plating, is a remarkable engineering plastic with the essential properties needed for engineering plastics. PC/ABS explicitly shows character by combining the excellent mechanical and electrical properties, heat resistance, dimensional stability of polycarbonate, and the high qualities of ABS such as workability, and secondary processability. Moreover, the heat stability, weather resistance, and flame retardant promote the plastic's usefulness as a material in automobiles, electric and electronic goods.

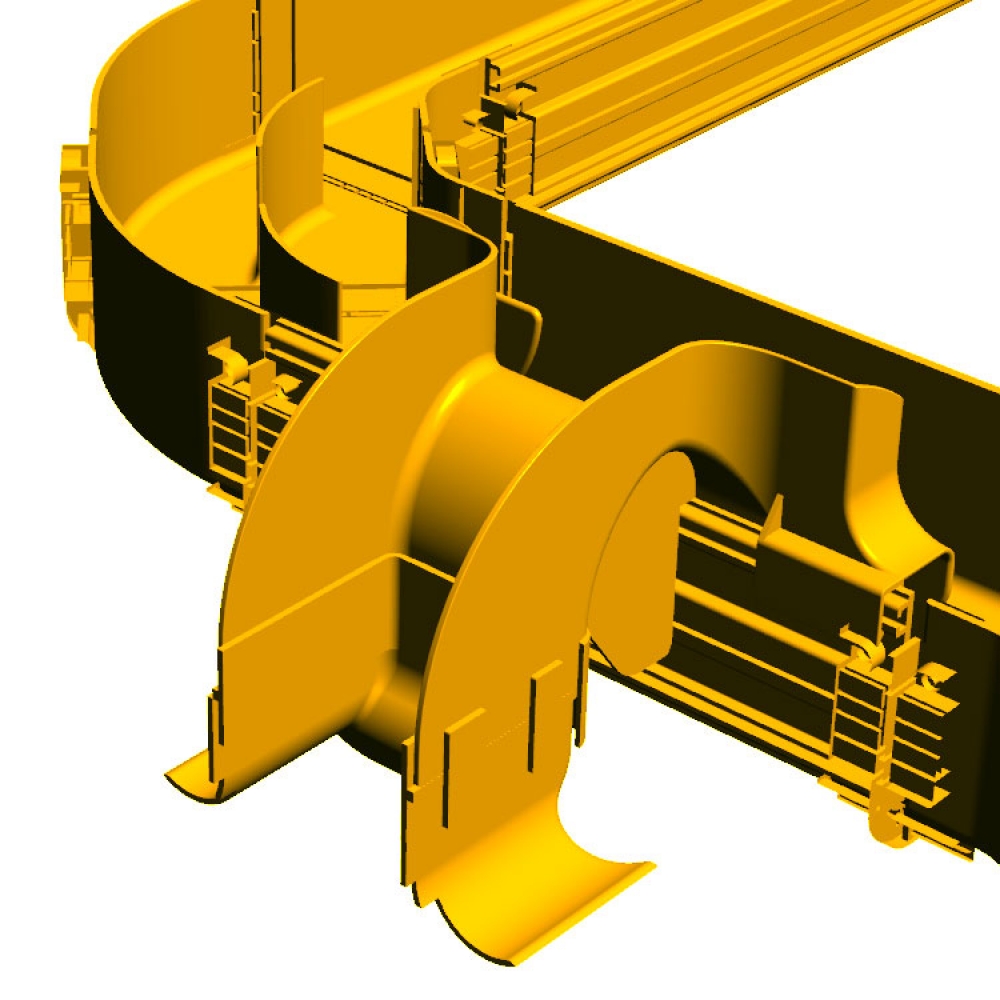

4th Easy drop arrangement
The fiber optic drop system can install and remove everyplace on the raceway without any cutting, tools.
5th Compatibility with other brand
ducting system has been designed considering that It can be compatible with other brand ducting system pre-installed. Those compatible designs will allow the end user to reduce the extra cost and make a simple installation where other brand ducting was already installed.
