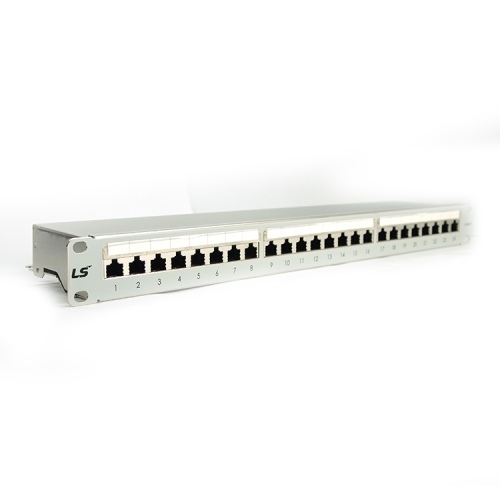

Shielded Patch Panel (LS-PP-SC5E-24P)
- Description
- · UL Listed
· Architectural design and flexibility - Support max. 4-connection channels
· Individually terminated using 90-degree IDC (Insulation Displacement Connectors)
· Easy cable routing and bundling through improved rear cable management
· Electrical performances comply with ANSI/TIA-568-C.2 (Category 5e / Class E)
· Qualifies for the LS 25-Year Extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6 Channel
· Mounting on 19inch standard rack (EIA-310-D)
- Part Lists
- LS-PP-SC5E-24P
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16 Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
