Single-Armored, Double Jacket PE
- Description
- Fiber Optic Cable

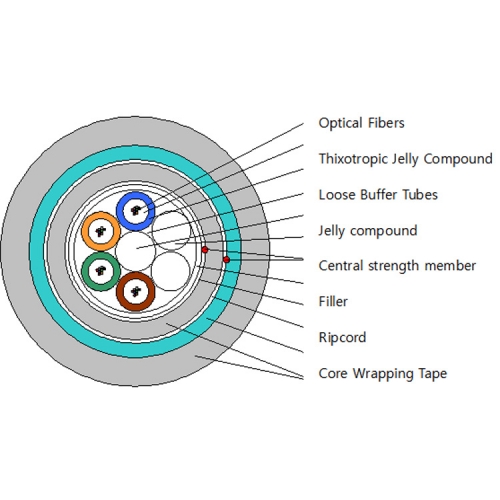

. Loose Tube / Jelly Filled Core / Single-Armored / Double Jacket PE
- Performance
- Performance of the single mode fiber (ITU-T G.652D)
ITEMS UNITS SPECIFICATION Attenuation dB/km ≤ 0.36 at 1310nm
≤ 0.35 at 1383nm
≤ 0.22at 1550nmChromatic Dispersion ps/nm.km ≤ 3.5 at 1285nm ~ 1330nm
≤ 18 at 1550nmZero Dispersion Wavelength nm 1300 ~ 1322 Zero Dispersion Slope ps/nm2.km ≤ 0.092 Cable PMD (PMDQ) ps/√km ≤ 0.2 (20 section link) Cut-off Wavelength
(λcc, Cabled fiber)nm ≤ 1260 Attenuation vs. Bending
(30mm radius x 100turns)dB ≤ 0.1 at 1625nm Mode Field Diameter mm 9.2 ± 0.4 at 1310nm
10.4 ± 1.0 at 1550nmCore/Cladding
Concentricity Errormm ≤ 0.6 Cladding Diameter mm 125 ± 1 Cladding Non-circularity % ≤ 1.0 Coating Diameter mm 245 ± 10 Proof Test Gpa ≥ 0.69
- Cable Construction
ITEMS DESCRIPTION Number of fibers 32 No. of fibers per tube 8 Loose buffer tube PBT (Polybutylene terephthalate) Filling compound
in loose buffer tubeThixotropic jelly compound Filler Polyethylene rod Water blocking material Jelly compound Central strength member FRP (Fiberglass reinforced plastic) Core wrapping tape Plastic tape Outer strength member Glass yarns Ripcord 1 ripcord Inner jacket Material Black HDPE Thickness Nominal 1.0mm Water Blocking Material Water blocking tape Ripcord 1 ripcord Armor Material Corrugated steel tape with plastic coating Thickness Nom. 0.15mm (Steel tape)
Nom. 0.05mm (Plastic coating on each side)Outer jacket Material Black HDPE Thickness Nominal 1.5mm
- Application
- Fiber optic telecommunication cables used for outdoor applications
