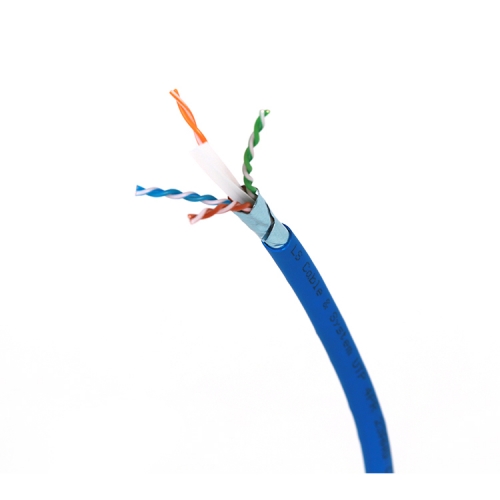

Super Slim Category 6A (6.8mm)
- Description
- · Cable diameter: 6.8mm, World-smallest Category 6A cable diameter
· UL Listed(CMR) & ETL 6-connection Channel Verified
· Capable of handling full broadband and baseband video signals
· High flame retardant grade of the cable (Riser Cable)
· Comply with ANSI/TIA-568-C.2
· Specialized print legend contains footage or metric or dual marking
· Wooden reel packaging, so wire pulls through reel for easy access
· Superior alien crosstalk performance
· RoHS compliant
· Qualifies for the LS 25-year extended Product Warranty and Applications Assurance
when included as part of a registered LS Category 6A Channel
- Part Lists
Description
Part Number
Category 6A U/UTP 4Pair CMX
UTP-A-C6G-E1VF-X 0.5X004P/xx
Category 6 A U/UTP 4Pair CM
UTP-A-C6G-E1VF-M 0.5X004P/xx
Category 6 A U/UTP 4Pair CMR
UTP-A-C6G-E1VF-R 0.5X004P/xx
Category 6 A U/UTP 4Pair LSZH 60332-1
UTP-A-C6G-E1ZF-X 0.5X004P/xx
Category 6 A U/UTP 4Pair LSZH 60332-3-22 & 24
UTP-A-C6G-E1ZF-M 0.5X004P/xx
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000/10G BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
· ATM LAN 1.2G
- Technical Details
Characteristics
units
Specification
DC Resistance
Ω/100m
≤ 9.38
DC Resistance Unbalance
%
≤ 5.00
Mutual Capacitance
nF/100m
≤ 5.60
Capacitance Unbalance
(Pair to Ground)
pF/100m
≤ 330
Insulation Resistance
MΩ-100m
≥ 500
Dielectric Strength
DC kV/sec
2.5 / 2
Impedance
(Characteristic mean)
Ω
100 ± 15% (1 ≤ f ≤ 500MHz)
Return Loss
dB/100m
≥ 20 + 5 * log(freq) , 1 ≤ f ＜ 10MHz
≥ 25 , 10 ≤ f ＜ 20MHz
≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 500MHz
Attenuation
(Insertion Loss)
dB/100m
≤ 1.82*√(freq) + 0.0091*(freq) + 0.25/√(freq)
, 1 ~ 500 MHz
NEXT Loss
dB/100m
≥ 44.3 – 15*log(freq/100) , 1 ~ 500MHz
Power sum NEXT Loss
dB/100m
≥ 42.3 – 15*log(freq/100) , 1 ~ 500MHz
ELFEXT Loss
dB/100m
≥ 27.8 – 20*log(freq/100) , 1 ~ 500MHz
Power sum ELFEXT Loss
dB/100m
≥ 24.8 – 20*log(freq/100) , 1 ~ 500MHz
Power sum Alien NEXT Loss
dB/100m
≥ 62.5 – 15*log(freq/100) , Max. 67, 1 ~ 500MHz
Power sum Alien ELFEXT Loss
dB/100m
≥ 38.2 – 20*log(freq/100) , Max. 67, 1 ~ 500MHz
Propagation Delay
ns/100m
≤ 534 + 36 / √ (Freq) , 1 ~ 500MHz
Propagation Delay Skew
ns/100m
≤ 45 , 1 ~ 500MHz
