Category 6 Cable

Category 6 Cable

Category 6 LS Simple™ Cat.6Plus & Cat.6 Cable 4 Pair
■Support maximum 1Gbit TX and high performance Category 6
■Transmit full broadband and baseband video signals ANSI/TIA-586-C.2
■Provides 1.2Gbit high performance transmiss

Category 6 Cable

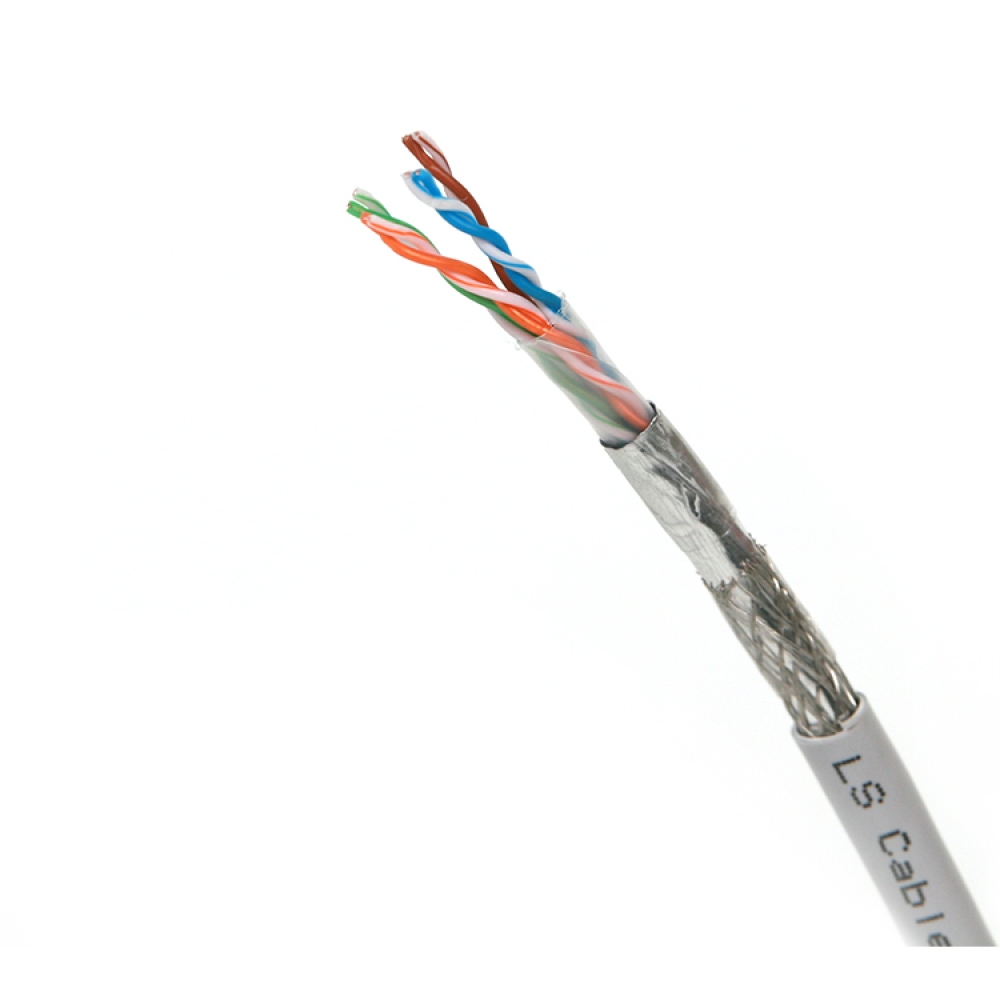

SF/UTP Cat.6

Description: · Cable diameter: 0.295in. (7.5mm)
· Capable of handling full broadband and baseband video signals
· High flame retardant grade of the cable is protected propagation of fire
· Comply with ANSI/TIA-568-C.2
· Specialized print legend contains footage or metric or dual marking
· Wooden reel is standard, so wire pulls through reel for easy access
· RoHS compliant
· Qualifies for the LS 25-year extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6 Channel
· Copper cable design & process technology electrical performance simulation by using internal coding program based on transmission line theory process improvement and facility maintain with internal production technology R&D center.

Part Lists

Description	Part Number
Category 6 SF/UTP 4Pair CMX	SFP-G-C6G-E1VN-X 0.5X004P/xx
Category 6 SF/UTP 4Pair CM	SFP-G-C6G-E1VN-M 0.5X004P/xx
Category 6 SF/UTP 4Pair LSZH 332-1	SFP-G-C6G-E1ZN-X 0.5X004P/xx
Category 6 SF/UTP 4Pair LSZH 332-3	SFP-G-C6G-E1ZN-M 0.5X004P/xx

Application: · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL

Technical Details

Characteristics	units	Specification
DC Resistance	Ω/100m	≤ 9.5
DC Resistance Unbalance	%	≤ 2.00
Capacitance Unbalance (Pair to Ground)	pF/km (800~1000Hz)	≤ 1600
Insulation Resistance	MΩ·m	≥ 5000
Dielectric Strength	DC kV/sec	2.5 / 2
Impedance (Characteristic mean)	Ω	100 ± 5% (at 100MHz)
Return Loss	dB/100m	≥ 20 + 5 * log(freq) , 4 ≤ f ＜ 10MHz ≥ 25 , 10 ≤ f ＜ 20MHz ≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 250MHz
Attenuation (Insertion Loss)	dB/100m	≤ 1.82√(freq) + 0.0169(freq) + 0.25/√(freq) , 4 ~ 250 MHz
NEXT Loss	dB/100m	≥ 75.3 – 15*log(freq) ,4 ~ 250MHz
Power sum NEXT Loss	dB/100m	≥ 72.3 – 15*log(freq) ,4 ~ 250MHz
ELFEXT Loss	dB/100m	≥ 68 – 20*log(freq) ,4 ~ 250MHz
Power sum ELFEXT Loss	dB/100m	≥ 65 – 20*log(freq) ,4 ~ 250MHz
Propagation Delay	ns/100m	≤ 534 + 36 / √ (Freq) ,4 ~ 250MHz
Propagation Delay Skew	ns/100m	≤ 45, 4 ~ 250MHz

DATA SHEET
Download Copy URL
ORDERING GUIDE
Download Copy URL

Q&A

Welcome to LS Simple Web site. LS Cable & System will become a company always listen to your voice.
If you have any questions regarding this product please leave this place. We will handle as much as possible in a short time.

legend * Mandatory


Subject
writer
E-mail
Phone Number
Mobile Phone
Contents
attach	Attachement

Consent to collect and use personal information.

LS cable & system., Ltd. (the "Company") collects minimum personal information in order to provide accurate and sincere response to your request.

1. Purpose
The Company utilized for the purpose of consultation, the answer replies, inquiries handling personal information collected.
2. Information Collected
The Company has collected personal information as below for consultation.
- Name, email, phone number, cell phone number
3. Processing and Retention Period for Personal Information
The company holds personal information until the processing of personal data to achieve the purpose, and after destroying without purpose has been achieved or exceeded for more than one year delay. However, if there is a need for preservation If you have received a prior agreement or by applicable law, it may be preserved.
4. Right to Refuse Consent/Disadvantages
Customers have the right to refuse to accept the collection and use of personal information. However, there may be a limit to the agreed upon denial of service.

Agree

List

Application: · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL

Technical Details

Characteristics	units	Specification
DC Resistance	Ω/100m	≤ 9.5
DC Resistance Unbalance	%	≤ 2.00
Capacitance Unbalance (Pair to Ground)	pF/km (800~1000Hz)	≤ 1600
Insulation Resistance	MΩ·m	≥ 5000
Dielectric Strength	DC kV/sec	2.5 / 2
Impedance (Characteristic mean)	Ω	100 ± 5% (at 100MHz)
Return Loss	dB/100m	≥ 20 + 5 * log(freq) , 4 ≤ f ＜ 10MHz ≥ 25 , 10 ≤ f ＜ 20MHz ≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 250MHz
Attenuation (Insertion Loss)	dB/100m	≤ 1.82√(freq) + 0.0169(freq) + 0.25/√(freq) , 4 ~ 250 MHz
NEXT Loss	dB/100m	≥ 75.3 – 15*log(freq) ,4 ~ 250MHz
Power sum NEXT Loss	dB/100m	≥ 72.3 – 15*log(freq) ,4 ~ 250MHz
ELFEXT Loss	dB/100m	≥ 68 – 20*log(freq) ,4 ~ 250MHz
Power sum ELFEXT Loss	dB/100m	≥ 65 – 20*log(freq) ,4 ~ 250MHz
Propagation Delay	ns/100m	≤ 534 + 36 / √ (Freq) ,4 ~ 250MHz
Propagation Delay Skew	ns/100m	≤ 45, 4 ~ 250MHz

DATA SHEET
Download Copy URL
ORDERING GUIDE
Download Copy URL

Learn more

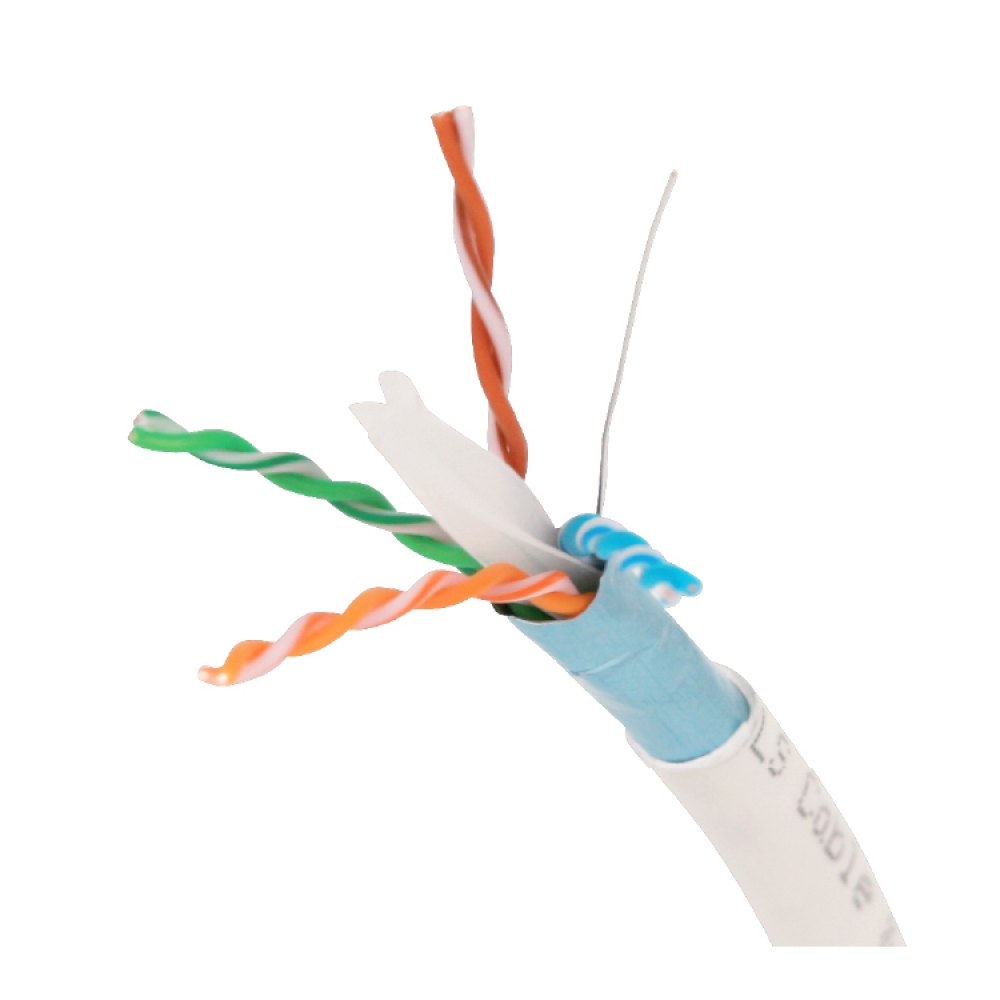

F/UTP Cat.6

Description: · Cable diameter: 0.283in. (7.2mm)
· Capable of handling full broadband and baseband video signals
· Comply with ANSI/TIA-568-C.2
· Specialized print legend contains footage or metric or dual marking
· Wooden reel is standard, so wire pulls through reel for easy access
· RoHS compliant
· Qualifies for the LS 25-year extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6 Channel
· Copper cable design & process technology electrical performance simulation by using internal coding program based on transmission line theory process improvement and facility maintain with internal production technology R&D center.

Part Lists

Description	Part Number
Category 6 F/UTP 4Pair CMX	FTP-G-C6G-E1VN-X 0.5X004P/xx
Category 6 F/UTP 4Pair CM	FTP-G-C6G-E1VN-M 0.5X004P/xx
Category 6 F/UTP 4Pair LSZH 332-1	FTP-G-C6G-E1ZN-X 0.5X004P/xx
Category 6 F/UTP 4Pair LSZH 332-3	FTP-G-C6G-E1ZN-M 0.5X004P/xx

Application: · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
· ATM LAN 1.2G

Technical Details

Characteristics	units	Specification
DC Resistance	Ω/100m	≤ 9.5
DC Resistance Unbalance	%	≤ 2.00
Capacitance Unbalance (Pair to Ground)	pF/km (800~1000Hz)	≤ 1600
Insulation Resistance	MΩ·m	≥ 5000
Dielectric Strength	DC kV/sec	2.5 / 2
Impedance (Characteristic mean)	Ω	100 ± 5% (at 100MHz)
Return Loss	dB/100m	≥ 20 + 5 * log(freq) , 4 ≤ f ＜ 10MHz ≥ 25 , 10 ≤ f ＜ 20MHz ≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 250MHz
Attenuation (Insertion Loss)	dB/100m	≤ 1.82√(freq) + 0.0169(freq) + 0.25/√(freq) , 4 ~ 250 MHz
NEXT Loss	dB/100m	≥ 75.3 – 15*log(freq) ,4 ~ 250MHz
Power sum NEXT Loss	dB/100m	≥ 72.3 – 15*log(freq) ,4 ~ 250MHz
ELFEXT Loss	dB/100m	≥ 68 – 20*log(freq) ,4 ~ 250MHz
Power sum ELFEXT Loss	dB/100m	≥ 65 – 20*log(freq) ,4 ~ 250MHz
Propagation Delay	ns/100m	≤ 534 + 36 / √ (Freq) ,4 ~ 250MHz
Propagation Delay Skew	ns/100m	≤ 45, 4 ~ 250MHz

Learn more

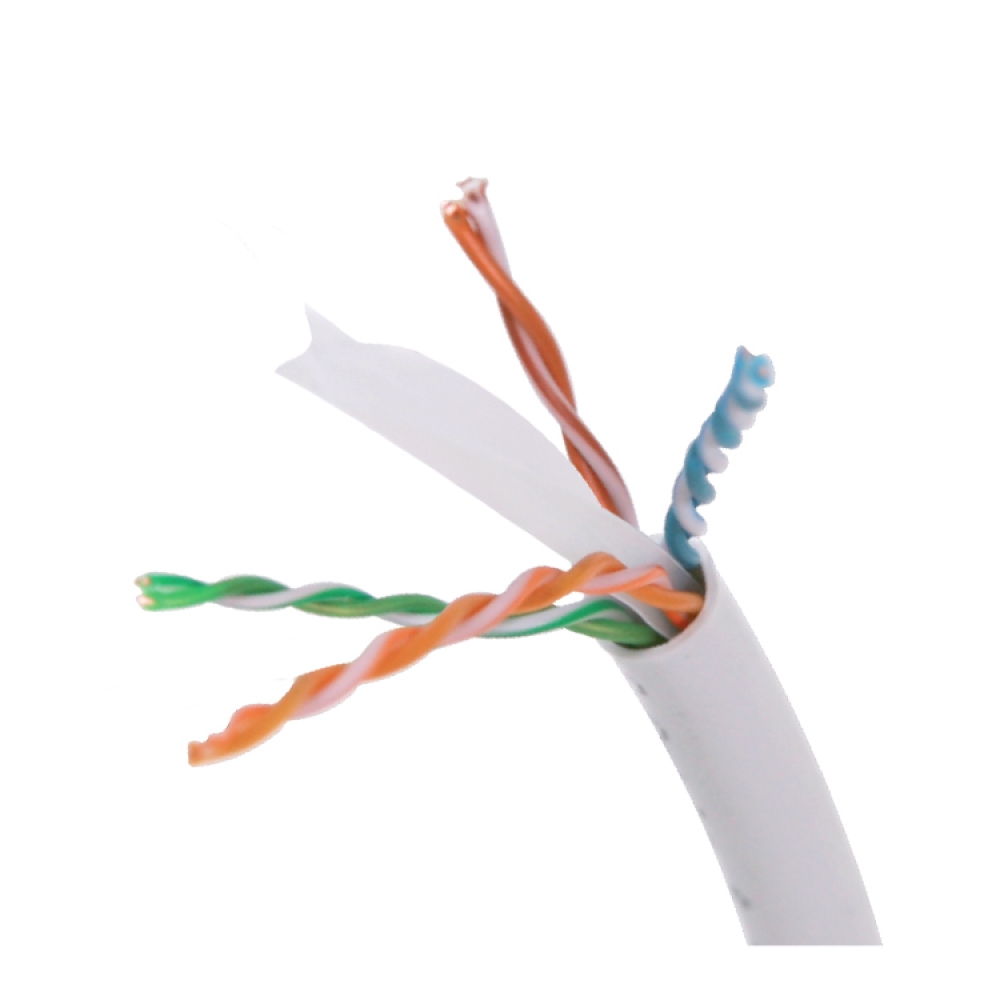

U/UTP Cat.6

Description: · ETL, EC Verified, UL Listed
· Capable of handling full broadband and baseband video signals
· High flame retardant grade of the cable (Plenum Cable)
· Comply with ANSI/TIA-568-C.2
· Specialized print legend contains footage or metric or dual marking
· Reelex & Reel in a Box is standard, so wire pulls through box opening for easy access
· RoHS compliant
· Qualifies for the LS 25-year extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6 Channel

Part Lists

Description	Part Number
Category 6 U/UTP 4Pair CMX	UTP-G-C6G-E1VN-X 0.5X004P/xx
Category 6 U/UTP 4Pair CM	UTP-G-C6G-E1VN-M 0.5X004P/xx
Category 6 U/UTP 4Pair CMR	UTP-G-C6G-E1VN-R 0.5X004P/xx
Category 6 U/UTP 4Pair CMP	UTP-G-C6G-F1VN-P 0.5X004P/xx
Category 6 U/UTP 4Pair LSZH 332-1	UTP-G-C6G-E1ZN-X 0.5X004P/xx
Category 6 U/UTP 4Pair LSZH 332-3	UTP-G-C6G-E1ZN-M 0.5X004P/xx

Application: · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
· ATM LAN 1.2G

Technical Details

Characteristics	units	Cat.6
DC Resistance	Ω/100m	≤ 9.38
DC Resistance Unbalance	%	≤ 5.00
Mutual Capacitance	nF/100m	≤ 5.60
Capacitance Unbalance (Pair to Ground)	pF/100m	≤ 330
Insulation Resistance	MΩ-100m	≥ 500
Dielectric Strength	DC kV/sec	2.5 / 2
Impedance (Characteristic mean)	Ω	100 ± 15% (1 ≤ f ≤ 250MHz)
Return Loss	dB/100m	≥ 20 + 5 * log(freq) , 1 ≤ f ＜ 10MHz ≥ 25 , 10 ≤ f ＜ 20MHz ≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 250MHz
Attenuation (Insertion Loss)	dB/100m	≤ 1.808√(freq) + 0.017(freq) + 0.20/√(freq) , 1 ~ 250 MHz
NEXT Loss	dB/100m	≥ 44.3 – 15*log(freq/100) , 1 ~ 250MHz
Power sum NEXT Loss	dB/100m	≥ 42.3 – 15*log(freq/100) , 1 ~ 250MHz
ELFEXT Loss	dB/100m	≥ 27.8 – 20*log(freq/100) , 1 ~ 250MHz
Power sum ELFEXT Loss	dB/100m	≥ 24.8 – 20*log(freq/100) , 1 ~ 250MHz
Propagation Delay	ns/100m	≤ 534 + 36 / √(Freq) , 1 ~ 250MHz
Propagation Delay Skew	ns/100m	≤ 45

Learn more
