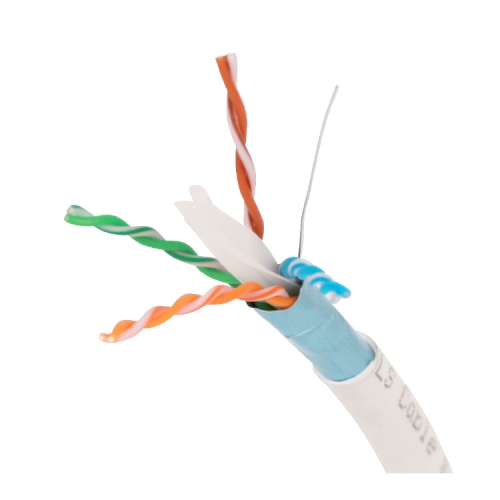

F/UTP Cat.6
- Description
- · Cable diameter: 0.283in. (7.2mm)
· Capable of handling full broadband and baseband video signals
· Comply with ANSI/TIA-568-C.2
· Specialized print legend contains footage or metric or dual marking
· Wooden reel is standard, so wire pulls through reel for easy access
· RoHS compliant
· Qualifies for the LS 25-year extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6 Channel
· Copper cable design & process technology electrical performance simulation by using internal coding program based on transmission line theory process improvement and facility maintain with internal production technology R&D center.
- Part Lists
Description
Part Number
Category 6 F/UTP 4Pair CMX
FTP-G-C6G-E1VN-X 0.5X004P/xx
Category 6 F/UTP 4Pair CM
FTP-G-C6G-E1VN-M 0.5X004P/xx
Category 6 F/UTP 4Pair LSZH 332-1
FTP-G-C6G-E1ZN-X 0.5X004P/xx
Category 6 F/UTP 4Pair LSZH 332-3
FTP-G-C6G-E1ZN-M 0.5X004P/xx
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
· ATM LAN 1.2G
- Technical Details
Characteristics
units
Specification
DC Resistance
Ω/100m
≤ 9.5
DC Resistance Unbalance
%
≤ 2.00
Capacitance Unbalance
(Pair to Ground)
pF/km
(800~1000Hz)
≤ 1600
Insulation Resistance
MΩ·m
≥ 5000
Dielectric Strength
DC kV/sec
2.5 / 2
Impedance
(Characteristic mean)
Ω
100 ± 5% (at 100MHz)
Return Loss
dB/100m
≥ 20 + 5 * log(freq) , 4 ≤ f ＜ 10MHz
≥ 25 , 10 ≤ f ＜ 20MHz
≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 250MHz
Attenuation
(Insertion Loss)
dB/100m
≤ 1.82*√(freq) + 0.0169*(freq) + 0.25/√(freq)
, 4 ~ 250 MHz
NEXT Loss
dB/100m
≥ 75.3 – 15*log(freq) ,4 ~ 250MHz
Power sum NEXT Loss
dB/100m
≥ 72.3 – 15*log(freq) ,4 ~ 250MHz
ELFEXT Loss
dB/100m
≥ 68 – 20*log(freq) ,4 ~ 250MHz
Power sum ELFEXT Loss
dB/100m
≥ 65 – 20*log(freq) ,4 ~ 250MHz
Propagation Delay
ns/100m
≤ 534 + 36 / √ (Freq) ,4 ~ 250MHz
Propagation Delay Skew
ns/100m
≤ 45, 4 ~ 250MHz
