Category 7 & 7A Cable
■ Up to 10Gb/s and Beyond Shielded/Unshielded
■ Capable of handling full broadband and baseband video signals
■ Qualifies for LS 25-Year Extended Product Warranty and Applications Assurance Meets and exceed

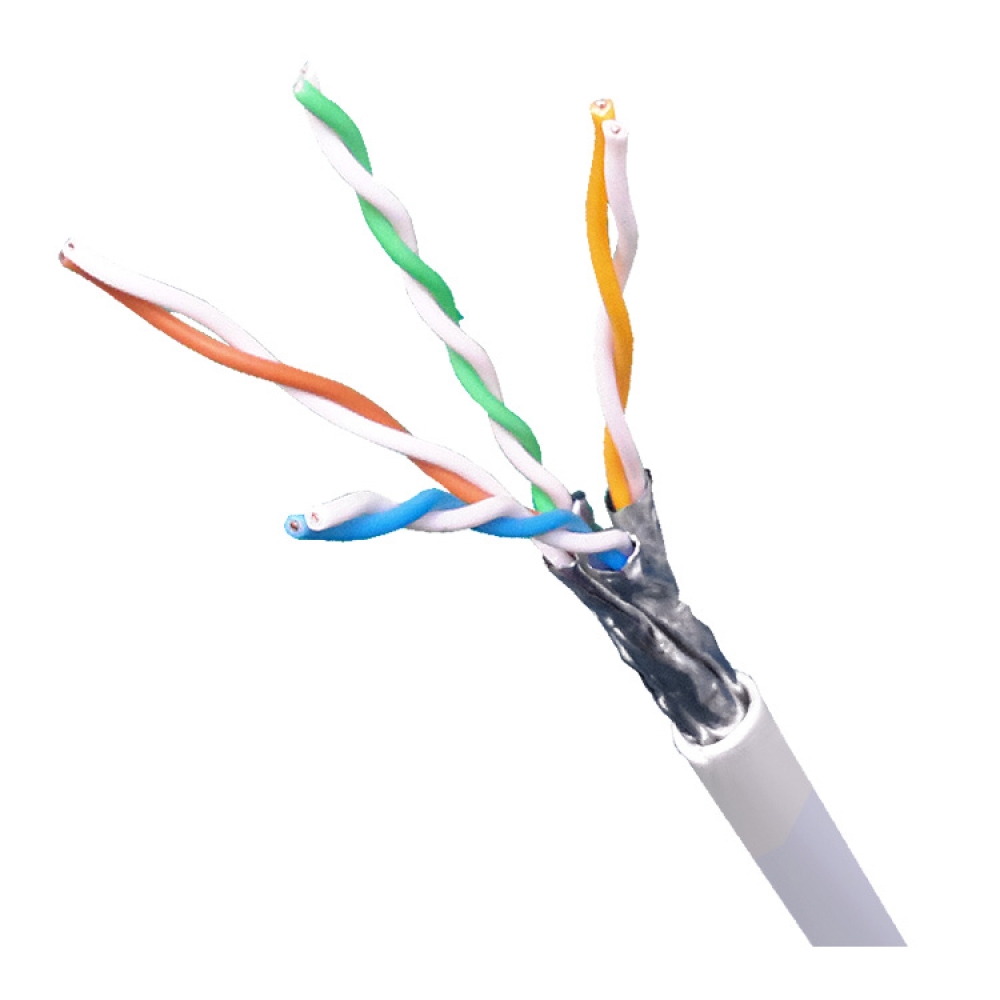

U/FTP Cat.7
- Description
- LS Simple™ U/FTP, individual foil shielded twisted pair(PiMF), Category 7 cable is adequate for data center system & special application such as offshore or marine telecommunication environment.
It's capable of 10Gbps above transmission rate up to 600MHz and handling full broadband & baseband video signals. Basically this cable meets the international standard (ISO/IEC 11801, IEC 61156-5 etc.) and sufficient immunity for EMI noise and attenuation performance.
- Part Lists
Description
Part Number
Category 7 U/FTP 4Pair CMX
USP-G-C7G-E1VN-X 0.5X004P/xx
Category 7 U/FTP 4Pair CM
USP-G-C7G-E1VN-M 0.5X004P/xx
Category 7 U/FTP 4Pair LSZH 332-1
USP-G-C7G-E1ZN-X 0.5X004P/xx
Category 7 U/FTP 4Pair LSZH 332-3
USP-G-C7G-E1ZN-M 0.5X004P/xx
- Application
- . Data Center System
. Horizontal Distribution & Backbone Cabling
. 4/16Mbps Token Ring (IEEE 802.5)
. 10/100/1000/10G BASE-T (IEEE 802.3)
. 155 Mbps ATM
. 100 Mbps TP-PMD
. ISDN, ADSL
. ATM LAN 1.2G
- Electrical Performance
Characteristics
units
Specification
DC Resistance
Ω/100m
≤ 9.5
DC Resistance Unbalance
%
≤ 2.00
Capacitance Unbalance
(Pair to Ground)
pF/km
(800~1000Hz)
≤ 1600
Insulation Resistance
MΩ·m
≥ 5000
Dielectric Strength
DC kV/sec
2.5 / 2
Impedance
(Characteristic mean)
Ω
100 ± 5% (at 100MHz)
Return Loss
dB/100m
≥ 20 + 5 * log(freq) , 4 ≤ f ＜ 10MHz
≥ 25 , 10 ≤ f ＜ 20MHz
≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 600MHz (min. 17.3dB)
Attenuation
(Insertion Loss)
dB/100m
≤ 1.8*√(freq) + 0.01*(freq) + 0.2/√(freq)
, 4 ~ 600 MHz
NEXT Loss
dB/100m
≥ 102.4 – 15*log(freq), Max. 78dB, 4~600MHz
Power sum NEXT Loss
dB/100m
≥ 99.4 – 15*log(freq), Max. 75dB, 4~600MHz
ELFEXT Loss
dB/100m
≥ 94–20*log(freq), Max. 78dB, 4~600MHz
Power sum ELFEXT Loss
dB/100m
≥ 91–20*log(freq), Max. 75dB, 4~600MHz
Propagation Delay
ns/100m
≤ 534 + 36 / √ (Freq), 4~600MHz
Propagation Delay Skew
ns/100m
≤ 25, 4~600MHz
Freq.
(MHz)
Attenuation
(dB/100m)
Max.
NEXT
(dB/100m)
Min.
PSNEXT
(dB/100m)
Min.
ELFEXT
(dB/100m)
Min.
PSELFEXT
(dB/100m)
Min.
RL
(dB/100m)
Min.
P.Delay
(ns/100m)
Max.
4
3.7
78.0*
75.0*
78.0*
75.0*
23.0
552
8
5.2
78.0*
75.0*
75.9
72.9
24.5
547
10
5.9
78.0*
75.0*
74.0
71.0
25.0
545
16
7.4
78.0*
75.0*
69.9
66.9
25.0
543
20
8.3
78.0*
75.0*
68.0
65.0
25.0
542
25
9.3
78.0*
75.0*
66.0
63.0
24.3
541
31.25
10.4
78.0*
75.0*
64.1
61.1
23.6
540
62.5
14.9
75.5
72.5
58.1
55.1
21.5
539
100
19.0
72.4
69.4
54.0
51.0
20.1
538
200
27.5
67.9
64.9
48.0
45.0
18.0
537
400
40.0
63.4
60.4
42.0
39.0
17.3
536
600
50.1
60.7
57.7
38.4
35.4
17.3
535

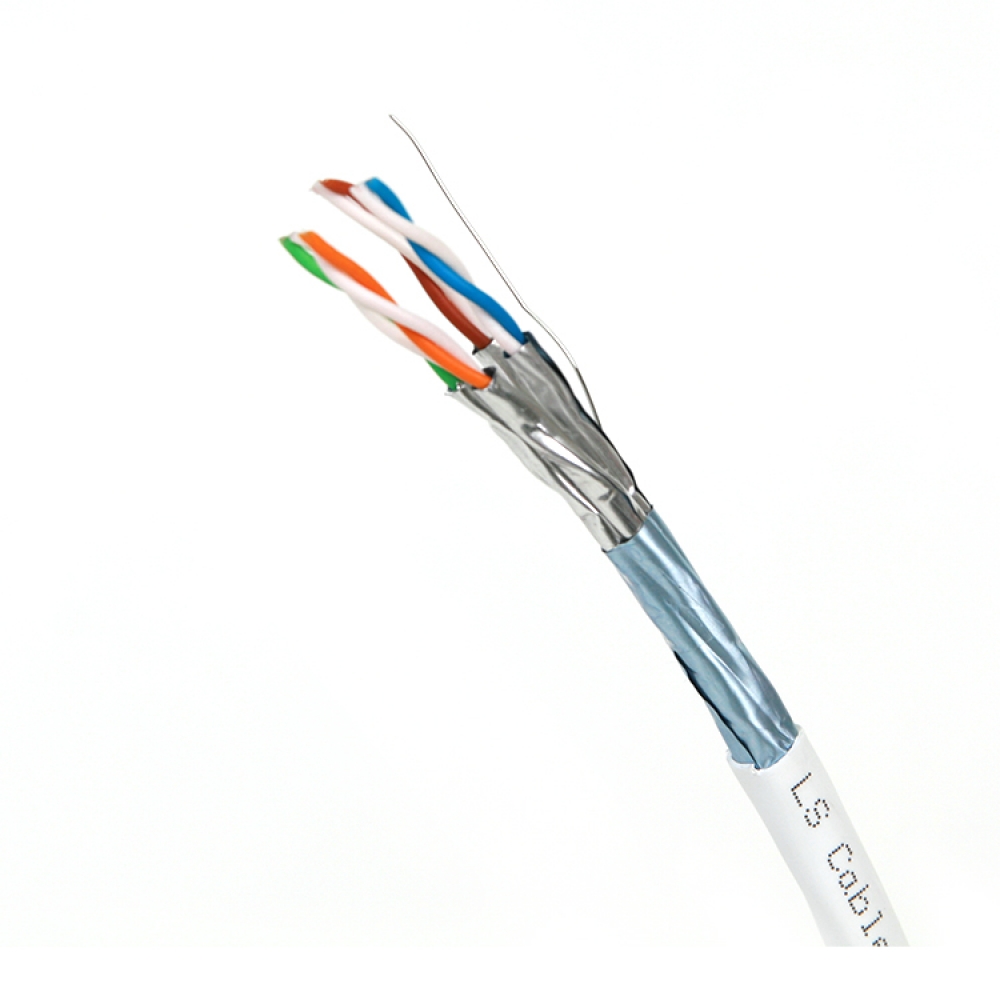

F/FTP Cat.7
- Description
- LS Simple™ F/FTP, overall and individual pair foil shielded, Category 7 cable is adequate for data center system & special application such as offshore or marine telecommunication environment.
(Delta Certified) It's capable of 10Gbps above transmission rate up to 600GHz and handling full broadband & baseband video signals. Basically this cable meets the international standard (ISO/IEC 11801, IEC 61156-5 etc.) and sufficient immunity for EMI noise and attenuation performance.
- Part Lists
Description
Part Number
Category 7 F/FTP 4Pair CMX
FSP-G-C7G-E1VN-X 0.5X004P/xx
Category 7 F/FTP 4Pair CM
FSP-G-C7G-E1VN-M 0.5X004P/xx
Category 7 F/FTP 4Pair LSZH 332-1
FSP-G-C7G-E1ZN-X 0.5X004P/xx
Category 7 F/FTP 4Pair LSZH 332-3
FSP-G-C7G-E1ZN-M 0.5X004P/xx
- Application
- . Data Center System
. Horizontal Distribution & Backbone Cabling
. 4/16Mbps Token Ring (IEEE 802.5)
. 10/100/1000/10G BASE-T (IEEE 802.3)
. 155 Mbps ATM
. 100 Mbps TP-PMD
. ISDN, ADSL
. ATM LAN 1.2G
- Electrical Performance
Characteristics
units
Specification
DC Resistance
Ω/100m
≤ 9.5
DC Resistance Unbalance
%
≤ 2.00
Capacitance Unbalance
(Pair to Ground)
pF/km
(800~1000Hz)
≤ 1600
Insulation Resistance
MΩ·m
≥ 5000
Dielectric Strength
DC kV/sec
2.5 / 2
Impedance
(Characteristic mean)
Ω
100 ± 5% (at 100MHz)
Return Loss
dB/100m
≥ 20 + 5 * log(freq) , 4 ≤ f ＜ 10MHz
≥ 25 , 10 ≤ f ＜ 20MHz
≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 600MHz (min. 17.3dB)
Attenuation
(Insertion Loss)
dB/100m
≤ 1.8*√(freq) + 0.01*(freq) + 0.2/√(freq)
, 4 ~ 600 MHz
NEXT Loss
dB/100m
≥ 102.4 – 15*log(freq), Max. 78dB, 4~600MHz
Power sum NEXT Loss
dB/100m
≥ 99.4 – 15*log(freq), Max. 75dB, 4~600MHz
ELFEXT Loss
dB/100m
≥ 94–20*log(freq), Max. 78dB, 4~600MHz
Power sum ELFEXT Loss
dB/100m
≥ 91–20*log(freq), Max. 75dB, 4~600MHz
Propagation Delay
ns/100m
≤ 534 + 36 / √ (Freq), 4~600MHz
Propagation Delay Skew
ns/100m
≤ 25, 4~600MHz
Freq.
(MHz)
Attenuation
(dB/100m)
Max.
NEXT
(dB/100m)
Min.
PSNEXT
(dB/100m)
Min.
ELFEXT
(dB/100m)
Min.
PSELFEXT
(dB/100m)
Min.
RL
(dB/100m)
Min.
P.Delay
(ns/100m)
Max.
4
3.7
78.0*
75.0*
78.0*
75.0*
23.0
552
8
5.2
78.0*
75.0*
75.9
72.9
24.5
547
10
5.9
78.0*
75.0*
74.0
71.0
25.0
545
16
7.4
78.0*
75.0*
69.9
66.9
25.0
543
20
8.3
78.0*
75.0*
68.0
65.0
25.0
542
25
9.3
78.0*
75.0*
66.0
63.0
24.3
541
31.25
10.4
78.0*
75.0*
64.1
61.1
23.6
540
62.5
14.9
75.5
72.5
58.1
55.1
21.5
539
100
19.0
72.4
69.4
54.0
51.0
20.1
538
200
27.5
67.9
64.9
48.0
45.0
18.0
537
400
40.0
63.4
60.4
42.0
39.0
17.3
536
600
50.1
60.7
57.7
38.4
35.4
17.3
535

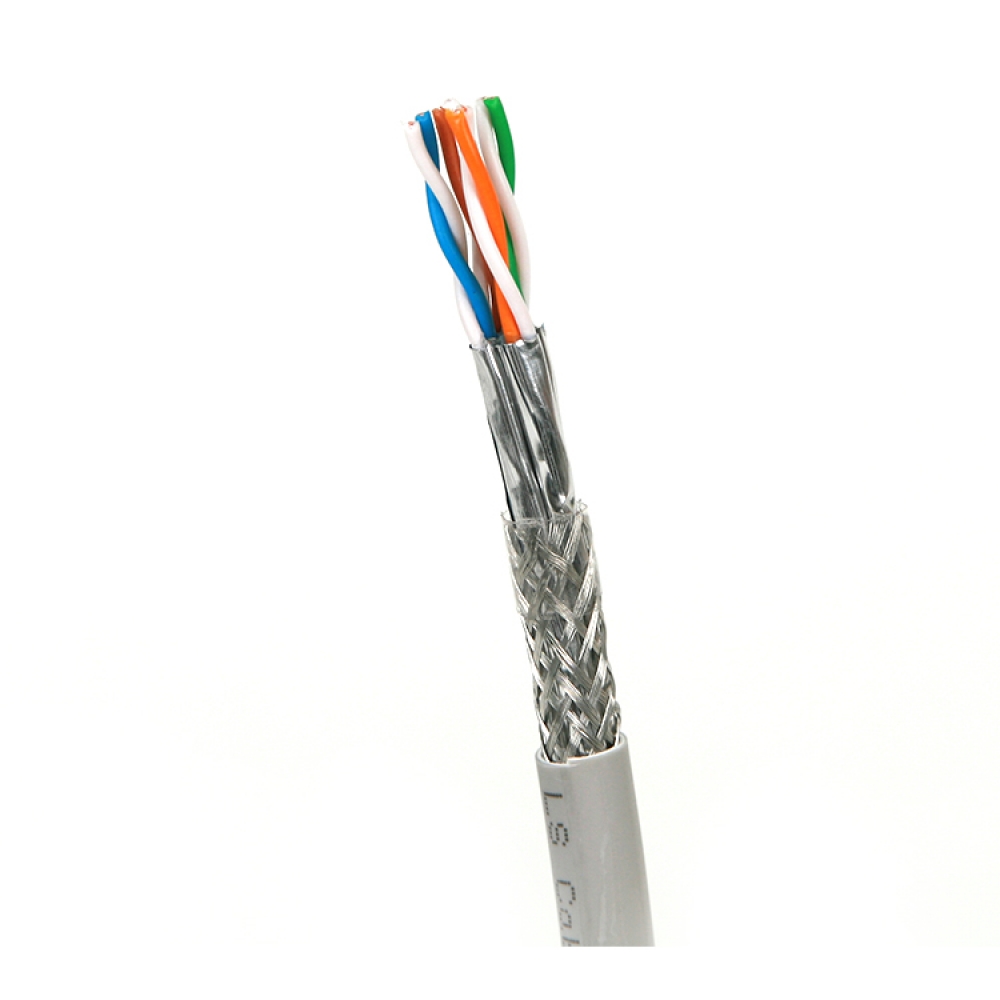

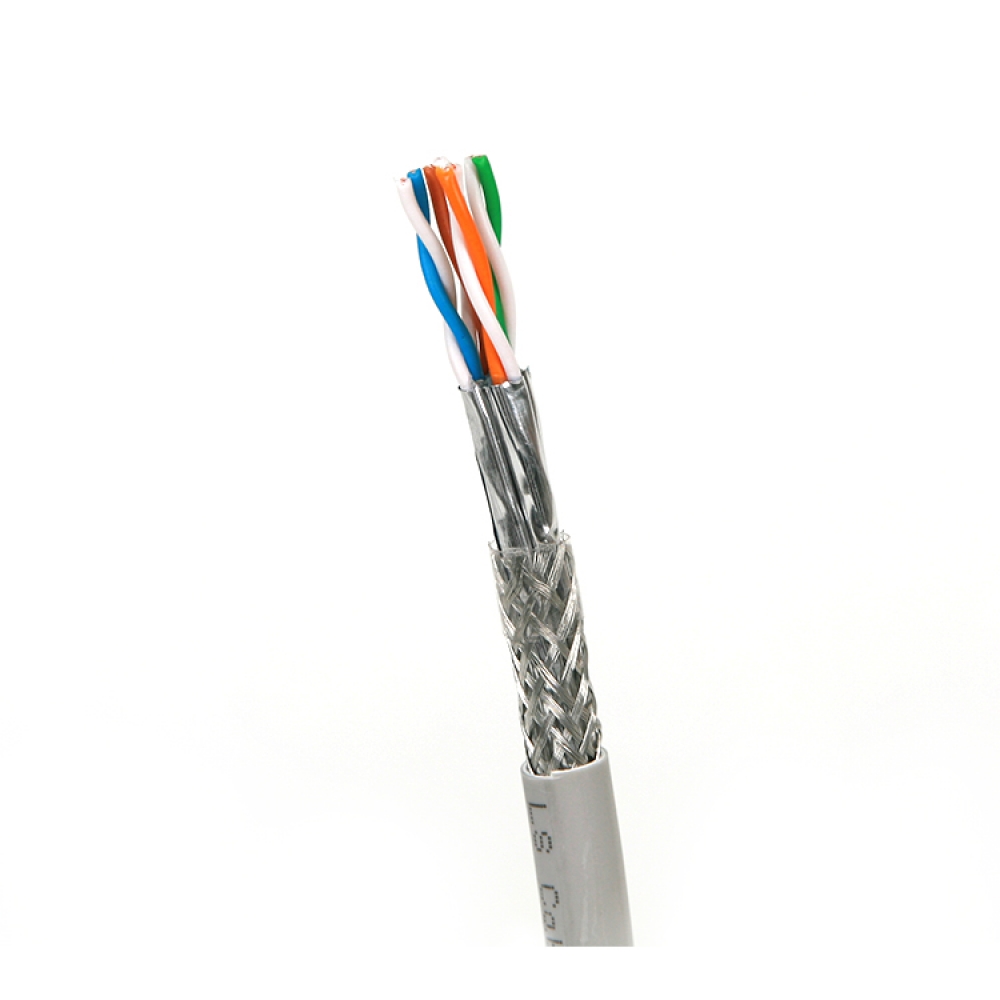

S/FTP Cat.7
- Description
- LS Simple™ S/FTP, overall screened and foil shielded twisted pair(PiMF), Category 7 cable is adequate for data center system & special application such as offshore or marine telecommunication environment. (DNV Certified)
It's capable of 10Gbps above transmission rate up to 600MHz and handling full broadband & baseband video signals. Basically this cable meets the international standard (ISO/IEC 11801, IEC 61156-5 etc.) and has sufficient immunity for EMI noise and attenuation performance.
- Part Lists
Description
Part Number
Category 7 S/FTP 4Pair CMX
SSP-G-C7G-E1VN-X 0.5X004P/xx
Category 7 S/FTP 4Pair CM
SSP-G-C7G-E1VN-M 0.5X004P/xx
Category 7 S/FTP 4Pair LSZH 332-1
SSP-G-C7G-E1ZN-X 0.5X004P/xx
Category 7 S/FTP 4Pair LSZH 332-3
SSP-G-C7G-E1ZN-M 0.5X004P/xx
- Application
- . Data Center System
. Horizontal Distribution & Backbone Cabling
. 4/16Mbps Token Ring (IEEE 802.5)
. 10/100/1000/10G BASE-T (IEEE 802.3)
. 155 Mbps ATM
. 100 Mbps TP-PMD
. ISDN, ADSL
. ATM LAN 1.2G
- Electrical Performance
Characteristics
units
Specification
DC Resistance
Ω/100m
≤ 9.5
DC Resistance Unbalance
%
≤ 2.00
Capacitance Unbalance
(Pair to Ground)
pF/km
(800~1000Hz)
≤ 1600
Insulation Resistance
MΩ·m
≥ 5000
Dielectric Strength
DC kV/sec
2.5 / 2
Impedance
(Characteristic mean)
Ω
100 ± 5% (at 100MHz)
Return Loss
dB/100m
≥ 20 + 5 * log(freq) , 4 ≤ f ＜ 10MHz
≥ 25 , 10 ≤ f ＜ 20MHz
≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 600MHz (min. 17.3dB)
Attenuation
(Insertion Loss)
dB/100m
≤ 1.8*√(freq) + 0.01*(freq) + 0.2/√(freq)
, 4 ~ 600 MHz
NEXT Loss
dB/100m
≥ 102.4 – 15*log(freq), Max. 78dB, 4~600MHz
Power sum NEXT Loss
dB/100m
≥ 99.4 – 15*log(freq), Max. 75dB, 4~600MHz
ELFEXT Loss
dB/100m
≥ 94–20*log(freq), Max. 78dB, 4~600MHz
Power sum ELFEXT Loss
dB/100m
≥ 91–20*log(freq), Max. 75dB, 4~600MHz
Propagation Delay
ns/100m
≤ 534 + 36 / √ (Freq), 4~600MHz
Propagation Delay Skew
ns/100m
≤ 25, 4~600MHz
Freq.
(MHz)
Attenuation
(dB/100m)
Max.
NEXT
(dB/100m)
Min.
PSNEXT
(dB/100m)
Min.
ELFEXT
(dB/100m)
Min.
PSELFEXT
(dB/100m)
Min.
RL
(dB/100m)
Min.
P.Delay
(ns/100m)
Max.
4
3.7
78.0*
75.0*
78.0*
75.0*
23.0
552
8
5.2
78.0*
75.0*
75.9
72.9
24.5
547
10
5.9
78.0*
75.0*
74.0
71.0
25.0
545
16
7.4
78.0*
75.0*
69.9
66.9
25.0
543
20
8.3
78.0*
75.0*
68.0
65.0
25.0
542
25
9.3
78.0*
75.0*
66.0
63.0
24.3
541
31.25
10.4
78.0*
75.0*
64.1
61.1
23.6
540
62.5
14.9
75.5
72.5
58.1
55.1
21.5
539
100
19.0
72.4
69.4
54.0
51.0
20.1
538
200
27.5
67.9
64.9
48.0
45.0
18.0
537
400
40.0
63.4
60.4
42.0
39.0
17.3
536
600
50.1
60.7
57.7
38.4
35.4
17.3
535

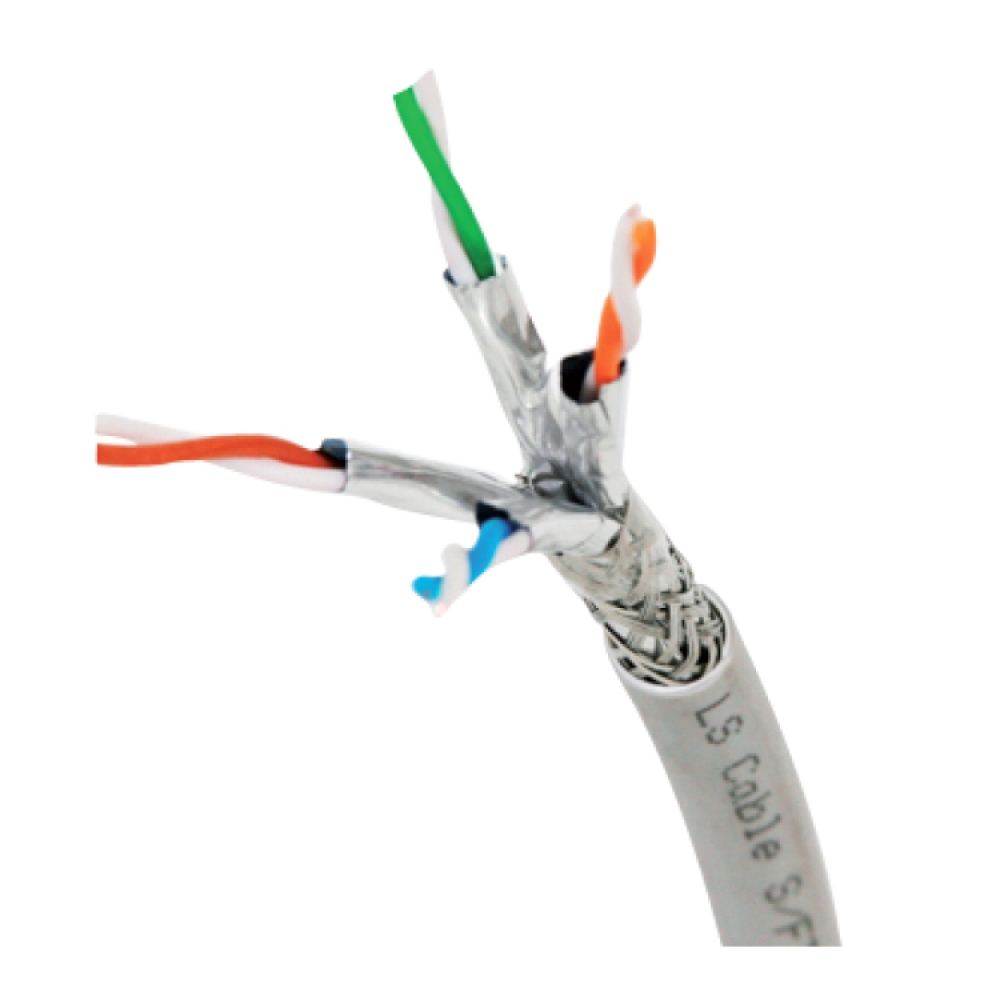

S/FTP Cat.7A
- Description
- LS Simple™ S/FTP, overall screened and foil shielded twisted pair(PiMF), Category 7A cable is adequate for data center system & special application such as offshore or marine telecommunication environment.
It's capable of 10Gbps above transmission rate up to 1GHz and handling full broadband & baseband video signals. Basically this cable meets the international standard (ISO/IEC 11801, IEC 61156-5 etc.) and has the sufficient immunity for EMI noise and attenuation performance.
- Part Lists
Description
Part Number
Category 7A S/FTP 4Pair PVC CMX
SSP-A-C7G-E1VN-X 0.5X004P/xx
Category 7A S/FTP 4Pair PVC CM
SSP-A-C7G-E1VN-M 0.5X004P/xx
Category 7A S/FTP 4Pair LSZH 332-1
SSP-A-C7G-E1ZN-X 0.5X004P/xx
Category 7A S/FTP 4Pair LSZH 332-3
SSP-A-C7G-E1ZN-M 0.5X004P/xx
- Application
- . Data Center System
. Horizontal Distribution & Backbone Cabling
. 4/16Mbps Token Ring (IEEE 802.5)
. 10/100/1000/10G BASE-T (IEEE 802.3)
. 155 Mbps ATM
. 100 Mbps TP-PMD
. ISDN, ADSL
. ATM LAN 1.2G
- Electrical Performance
Characteristics
units
Specification
DC Resistance
Ω/100m
≤ 9.5
DC Resistance Unbalance
%
≤ 2.00
Capacitance Unbalance
(Pair to Ground)
pF/km
(800~1000Hz)
≤ 1600
Insulation Resistance
MΩ·m
≥ 5000
Dielectric Strength
DC kV/sec
2.5 / 2
Impedance
(Characteristic mean)
Ω
100 ± 5% (at 100MHz)
Return Loss
dB/100m
≥ 20 + 5 * log(freq) , 4 ≤ f ＜ 10MHz
≥ 25 , 10 ≤ f ＜ 20MHz
≥ 25 – 7 * log(freq/20) , 20 ≤ f＜ 600MHz (min. 17.3dB)
≥17.3 – 10*log(f/600) , 600 ≤ f ≤ 1000MHz
Attenuation
(Insertion Loss)
dB/100m
≤ 1.8*√(freq) + 0.005*(freq) + 0.25/√(freq)
, 4 ~ 1000 MHz
NEXT
dB/100m
≥ 105.4 – 15*log(freq), Max. 78dB, 4~1000MHz
Power sum NEXT
dB/100m
≥ 102.4 – 15*log(freq), Max. 75dB, 4~1000MHz
ACRF
dB/100m
≥ 95.3–20*log(freq), Max. 78dB, 4~1000MHz
Power sum ACRF
dB/100m
≥ 92.3–20*log(freq), Max. 75dB, 4~1000MHz
Propagation Delay
ns/100m
≤ 534 + 36 / √ (freq), 4~1000MHz
Propagation Delay Skew
ns/100m
≤ 25, 4~1000MHz
Freq.
(MHz)
RL
(dB/100m)
Min.
Att.
(dB/100m)
Max.
NEXT
(dB/100m)
Min.
PSNEXT
(dB/100m)
Min.
ACRF
(dB/100m)
Min.
PSACRF
(dB/100m)
Min.
P.Delay
(ns/100m)
Max.
4
23.0
3.75
78.0
75.0
78.0
75.0
552
8
24.5
5.22
78.0
75.0
77.2
74.2
547
10
25.0
5.82
78.0
75.0
75.3
72.3
545
16
25.0
7.34
78.0
75.0
71.2
68.2
543
20
25.0
8.21
78.0
75.0
69.3
66.3
542
25
24.3
9.18
78.0
75.0
67.3
64.3
541
31.25
23.6
10.26
78.0
75.0
65.4
62.4
540
62.5
21.5
14.57
78.0
75.0
59.4
56.4
539
100
20.1
18.53
75.4
72.4
55.3
52.3
538
200
18.0
26.47
70.9
67.9
49.3
46.3
537
400
17.3
38.01
66.4
63.4
43.3
40.3
536
600
17.3
47.10
63.7
60.7
39.7
36.7
535
800
16.1
54.92
61.9
58.9
37.2
34.2
535
1000
15.1
61.93
60.4
57.4
35.3
32.3
535
