F/FTP Cat.7

Main windows

Description

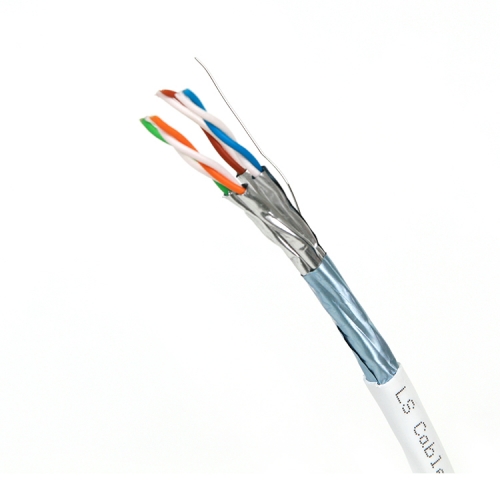

LS Simple™ F/FTP, overall and individual pair foil shielded, Category 7 cable is adequate for data center system & special application such as offshore or marine telecommunication environment.
(Delta Certified) It's capable of 10Gbps above transmission rate up to 600GHz and handling full broadband & baseband video signals. Basically this cable meets the international standard (ISO/IEC 11801, IEC 61156-5 etc.) and sufficient immunity for EMI noise and attenuation performance.
Part Lists

Description

Part Number

Category 7 F/FTP 4Pair CMX

FSP-G-C7G-E1VN-X 0.5X004P/xx

Category 7 F/FTP 4Pair CM

FSP-G-C7G-E1VN-M 0.5X004P/xx

Category 7 F/FTP 4Pair LSZH 332-1

FSP-G-C7G-E1ZN-X 0.5X004P/xx

Category 7 F/FTP 4Pair LSZH 332-3

FSP-G-C7G-E1ZN-M 0.5X004P/xx

Application
. Data Center System
. Horizontal Distribution & Backbone Cabling
. 4/16Mbps Token Ring (IEEE 802.5)
. 10/100/1000/10G BASE-T (IEEE 802.3)
. 155 Mbps ATM
. 100 Mbps TP-PMD
. ISDN, ADSL
. ATM LAN 1.2G
Electrical Performance

Characteristics

units

Specification

DC Resistance

Ω/100m

≤ 9.5

DC Resistance Unbalance

%

≤ 2.00

Capacitance Unbalance

(Pair to Ground)

pF/km

(800~1000Hz)

≤ 1600

Insulation Resistance

MΩ·m

≥ 5000

Dielectric Strength

DC kV/sec

2.5 / 2

Impedance

(Characteristic mean)

Ω

100 ± 5%  (at 100MHz)

Return Loss

dB/100m

≥ 20 + 5 * log(freq)      , 4     ≤  f <   10MHz

≥ 25                          , 10   ≤  f <  20MHz

≥ 25 – 7 * log(freq/20)  , 20   ≤  f ≤  600MHz (min. 17.3dB)

Attenuation

(Insertion Loss)

dB/100m

≤ 1.8*√(freq) + 0.01*(freq) + 0.2/√(freq)

    , 4 ~ 600 MHz

NEXT Loss

dB/100m

≥ 102.4 – 15*log(freq), Max. 78dB, 4~600MHz

Power sum NEXT Loss

dB/100m

≥ 99.4 – 15*log(freq), Max. 75dB, 4~600MHz

ELFEXT Loss

dB/100m

≥ 94–20*log(freq), Max. 78dB, 4~600MHz

Power sum ELFEXT Loss

dB/100m

≥ 91–20*log(freq), Max. 75dB, 4~600MHz

Propagation Delay

ns/100m

≤ 534 + 36 / √ (Freq), 4~600MHz

Propagation Delay Skew

ns/100m

≤ 25, 4~600MHz



Freq.

(MHz)

Attenuation

(dB/100m)

Max.

NEXT

(dB/100m)

Min.

PSNEXT

(dB/100m)

Min.

ELFEXT

(dB/100m)

Min.

PSELFEXT

(dB/100m)

Min.

RL

(dB/100m)

Min.

P.Delay

(ns/100m)

Max.

4

3.7

78.0*

75.0*

78.0*

75.0*

23.0

552

8

5.2

78.0*

75.0*

75.9

72.9

24.5

547

10

5.9

78.0*

75.0*

74.0

71.0

25.0

545

16

7.4

78.0*

75.0*

69.9

66.9

25.0

543

20

8.3

78.0*

75.0*

68.0

65.0

25.0

542

25

9.3

78.0*

75.0*

66.0

63.0

24.3

541

31.25

10.4

78.0*

75.0*

64.1

61.1

23.6

540

62.5

14.9

75.5

72.5

58.1

55.1

21.5

539

100

19.0

72.4

69.4

54.0

51.0

20.1

538

200

27.5

67.9

64.9

48.0

45.0

18.0

537

400

40.0

63.4

60.4

42.0

39.0

17.3

536

600

50.1

60.7

57.7

38.4

35.4

17.3

535
