LS Simple™ Fiber Connectivity offers fiber optic connector and adaptor which are available on easy installation in the field without adhesive & polishing. And this provides high performance interconnections with very low insertion loss and perfo
  • Connectivity.jpg
Fiber Connectivity

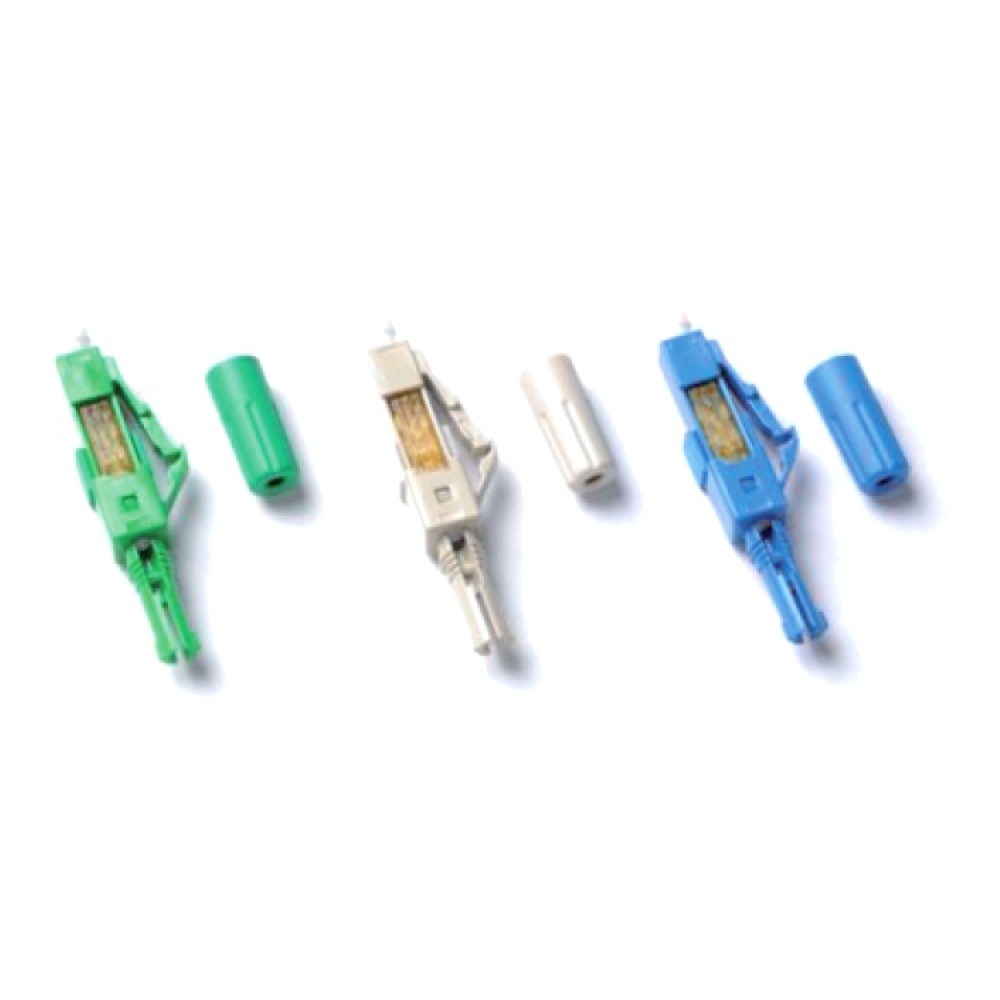

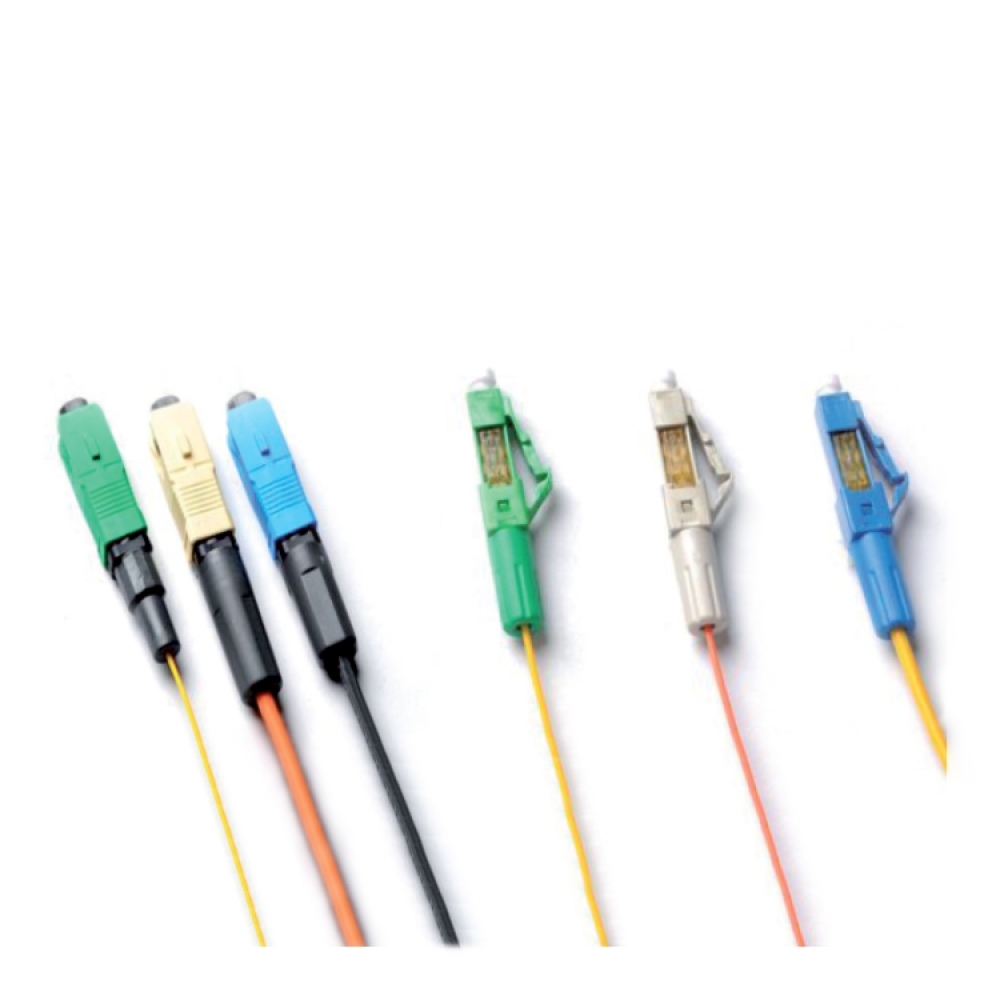

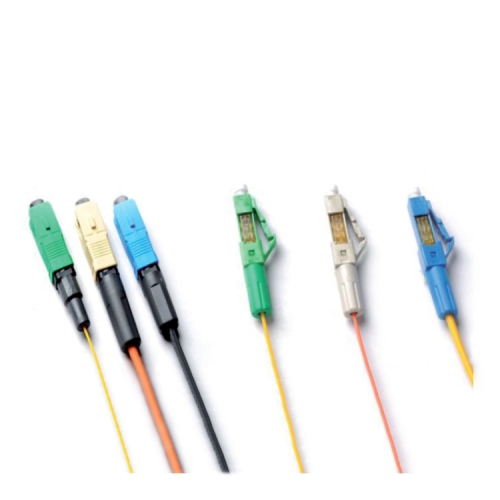

Field Installable Connector

Description
LS Simple™ Field Installable Optical Connector
. Cable connectors without polishing
. Enables fast and on-site installation of connectors
. Using a simple tool and recycled several times
. Telcordia GR-326
. Quick and Easy Fiber Termination
. High success rate of connection
. Superior optical characteristic value
. No failure after opening

Part Lists

Description

Housing
Color

Boot
Color

Fiber core
(Included)

Part Number

SC/PC SM, Cable Φ=3.0mm

Blue

Gray

N/A

LS-FC-SC/PC-SM-BL-FI-30

SC/PC SM, Cable Φ=2.0mm

Blue

Gray

N/A

LS-FC-SC/PC-SM-BL-FI-20

SC/PC SM, Cable Φ=0.9mm

Blue

Gray

N/A

LS-FC-SC/PC-SM-BL-FI-09

SC/PC MM(OM1), Cable Φ=3.0mm

Beige

Gray

N/A

LS-FC-SC/PC-M1-BG-FI-30

SC/PC MM(OM1), Cable Φ=2.0mm

Beige

Gray

N/A

LS-FC-SC/PC-M1-BG-FI-20

SC/PC MM(OM1), Cable Φ=0.9mm

Beige

Gray

N/A

LS-FC-SC/PC-M1-BG-FI-09

SC/PC MM(OM2), Cable Φ=3.0mm

Beige

Gray

N/A

LS-FC-SC/PC-M2-BG-FI-30

SC/PC MM(OM2), Cable Φ=2.0mm

Beige

Gray

N/A

LS-FC-SC/PC-M2-BG-FI-20

SC/PC MM(OM2), Cable Φ=0.9mm

Beige

Gray

N/A

LS-FC-SC/PC-M2-BG-FI-09

SC/PC MM(OM3), Cable Φ=3.0mm

Aqua

Gray

OM3

LS-FC-SC/PC-M3-AQ-FI-30

SC/PC MM(OM3), Cable Φ=2.0mm

Aqua

Gray

OM3

LS-FC-SC/PC-M3-AQ-FI-20

SC/PC MM(OM3), Cable Φ=0.9mm

Aqua

Gray

OM3

LS-FC-SC/PC-M3-AQ-FI-09

SC/PC MM(OM4), Cable Φ=3.0mm

Aqua

Gray

OM4

LS-FC-SC/PC-M4-AQ-FI-30

SC/PC MM(OM4), Cable Φ=2.0mm

Aqua

Gray

OM4

LS-FC-SC/PC-M4-AQ-FI-20

SC/PC MM(OM4), Cable Φ=0.9mm

Aqua

Gray

OM4

LS-FC-SC/PC-M4-AQ-FI-09

LC/PC SM, Cable Φ=2.0mm

Blue

Blue

N/A

LS-FC-LC/PC-SM-BL-FI-20

LC/PC SM, Cable Φ=0.9mm

Blue

Blue

N/A

LS-FC-LC/PC-SM-BL-FI-09

LC/PC MM(OM1), Cable Φ=2.0mm

Beige

Beige

N/A

LS-FC-LC/PC-M1-BG-FI-20

LC/PC MM(OM1), Cable Φ=0.9mm

Beige

Beige

N/A

LS-FC-LC/PC-M1-BG-FI-09

LC/PC MM(OM2), Cable Φ=2.0mm

Beige

Beige

N/A

LS-FC-LC/PC-M2-BG-FI-20

LC/PC MM(OM2), Cable Φ=0.9mm

Beige

Beige

N/A

LS-FC-LC/PC-M2-BG-FI-09

LC/PC MM(OM3), Cable Φ=2.0mm

Beige

Aqua

OM3

LS-FC-LC/PC-M3-AQ-FI-20

LC/PC MM(OM3), Cable Φ=0.9mm

Beige

Aqua

OM3

LS-FC-LC/PC-M3-AQ-FI-09

LC/PC MM(OM4), Cable Φ=2.0mm

Beige

Aqua

OM4

LS-FC-LC/PC-M4-AQ-FI-20

LC/PC MM(OM4), Cable Φ=0.9mm

Beige

Aqua

OM4

LS-FC-LC/PC-M4-AQ-FI-09

ST/PC SM, Cable Φ=2.0mm

Blue

Blue

N/A

LS-FC-ST/PC-SM-BL-FI-20

ST/PC SM, Cable Φ=0.9mm

Blue

Blue

N/A

LS-FC-ST/PC-SM-BL-FI-09

ST/PC MM(OM1), Cable Φ=2.0mm

Beige

Beige

N/A

LS-FC-ST/PC-M1-BG-FI-20

ST/PC MM(OM1), Cable Φ=0.9mm

Beige

Beige

N/A

LS-FC-ST/PC-M1-BG-FI-09

ST/PC MM(OM2), Cable Φ=2.0mm

Beige

Beige

N/A

LS-FC-ST/PC-M2-BG-FI-20

ST/PC MM(OM2), Cable Φ=0.9mm

Beige

Beige

N/A

LS-FC-ST/PC-M2-BG-FI-09

ST/PC MM(OM3), Cable Φ=2.0mm

Beige

Aqua

OM3

LS-FC-ST/PC-M3-AQ-FI-20

ST/PC MM(OM3), Cable Φ=0.9mm

Beige

Aqua

OM3

LS-FC-ST/PC-M3-AQ-FI-09

ST/PC MM(OM4), Cable Φ=2.0mm

Beige

Aqua

OM4

LS-FC-ST/PC-M4-AQ-FI-20

ST/PC MM(OM4), Cable Φ=0.9mm

Beige

Aqua

OM4

LS-FC-ST/PC-M4-AQ-FI-09

Technical

Standard

TIA/EIA-604-3[SC], TIA/EIA-604-10[LC], TIA/EIA-604-2[ST]

Insertion Loss

Typ. 0.3dB / Max. 0.5dB

Return Loss

≥50dB [PC type]

Endurance

≤0.3dB / 500times reconnection

Tension

≤0.2dB change [3.0mm, 2.0mm type] / Max. 2kg

≤0.2dB change [900µm type] / Max. 0.75kg

Vibration

≤0.2dB change / 10-55Hz / 0.75 amplitude

Temperature

≤0.3dB change / -40°C ~ +75°C / 21 times

End Face Geometry [Based on GR-326]

PC type

Ferrule End Face Radius(mm)

7~25

Fiber Undercut(nm)

≤125

Fiber Protrusion(nm)

≤50

Apex Offset(µm)

≤50

Learn more

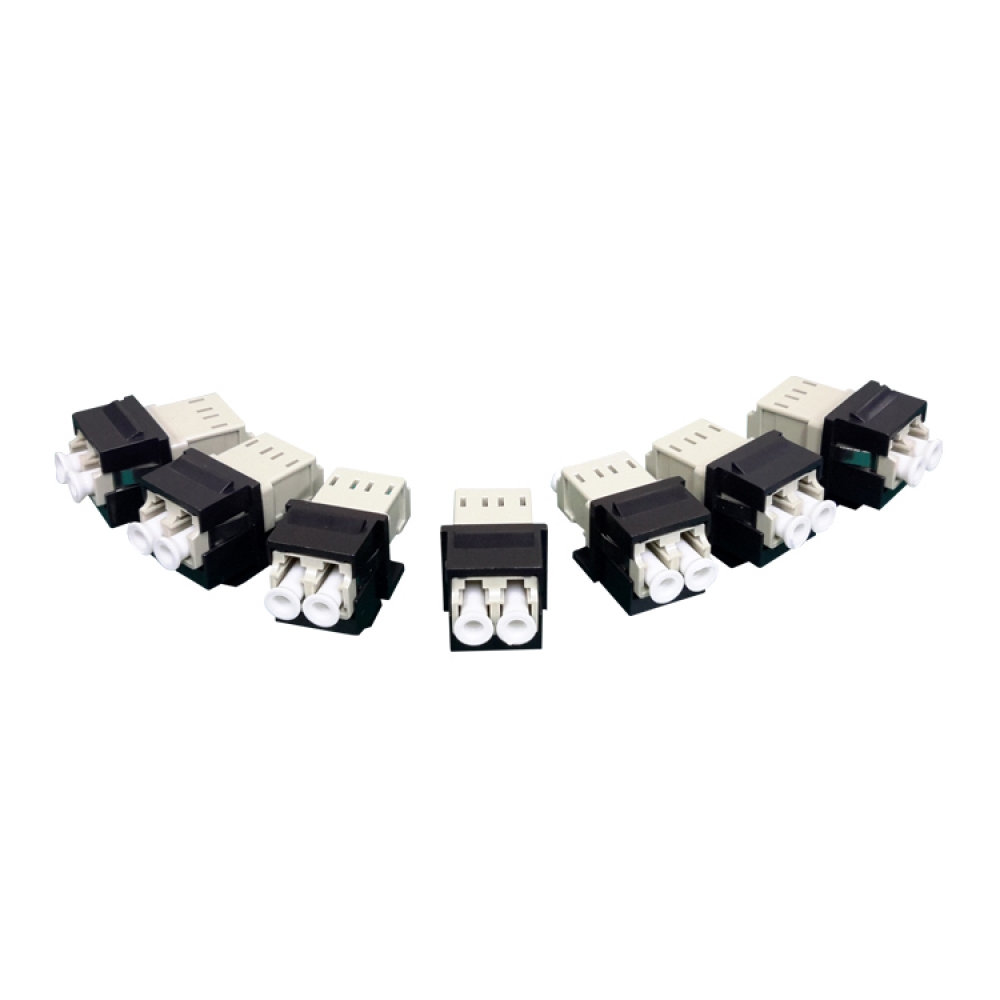

Fiber Connector & Adaptor

Description
LS Simple™ Fiber Adaptor & Connector Solution
. Easy installation in the field without adhesive & polishing
. Performance exceeds ANSI/TIA-568-A
. High-performance interconnections offer very low Insertion Loss
. Telcordia GR-1081-CORE
. Fiber Optic Connector & Adaptor LC, SC, ST
. Adaptors are supplied with dust caps
Part Lists
Adaptor
. LS-FA-LC-xx-C-y-zz-WO (Fiber Adaptor LC type (without Flange))
. LS-FA-LC-xx-C-y-zz-W (Fiber Adaptor LC type (with Flange))
. LS-FA-SC-xx-C-y-zz-WO (Fiber Adaptor SC type (without Flange))
. LS-FA-SC-xx-C-y-zz-W (Fiber Adaptor SC type (with Flange))
. LS-FA-ST-xx-C-y (Fiber Adaptor ST type)
. LS-FA-LC-xx-C-y-zz-WOD (Door Type Fiber Adaptor LC type (without Flange))
Connector
. LS-FC-LC/PC-xx-y-zz (Fiber Connector LC type)
. LS-FC-SC/PC-xx-y-zz (Fiber Connector SC type)
. LS-FC-ST/PC-xx-y-zz (Fiber Connector ST type)
Technical

Electrical / Mechanical Characteristics

Insertion Loss

≤0.3dB

Durability

Max. 0.2dB increase after 500-Cycle

Retention Force

200~600g

Temperature

-20°C ~ 70°C ( -4°F ~ 158°F )

Materials

Ferrule : Ceramic (Zirconia) for Single/Multi mode

Sleeve : Ceramic (Zirconia) for Single/Multi mode, Phosphor Bronze for Multimode

Housing : High Impact Flame Retardant Plastic, UL 94V-0~2 Rated

Learn more
