Field Installable Connector
- Description

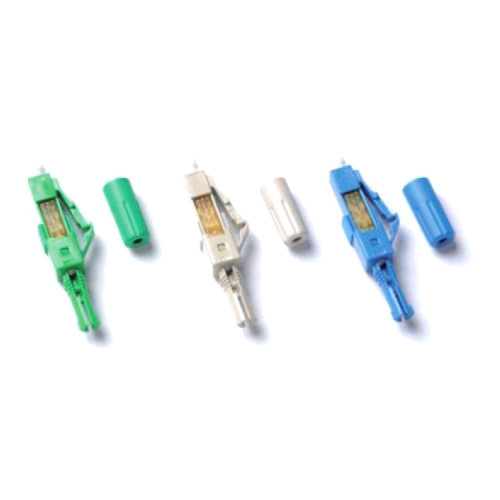

- LS Simple™ Field Installable Optical Connector
. Cable connectors without polishing
. Enables fast and on-site installation of connectors
. Using a simple tool and recycled several times
. Telcordia GR-326
. Quick and Easy Fiber Termination
. High success rate of connection
. Superior optical characteristic value
. No failure after opening
- Part Lists
Description
Housing
ColorBoot
ColorFiber core
(Included)Part Number
SC/PC SM, Cable Φ=3.0mm
Blue
Gray
N/A
LS-FC-SC/PC-SM-BL-FI-30
SC/PC SM, Cable Φ=2.0mm
Blue
Gray
N/A
LS-FC-SC/PC-SM-BL-FI-20
SC/PC SM, Cable Φ=0.9mm
Blue
Gray
N/A
LS-FC-SC/PC-SM-BL-FI-09
SC/PC MM(OM1), Cable Φ=3.0mm
Beige
Gray
N/A
LS-FC-SC/PC-M1-BG-FI-30
SC/PC MM(OM1), Cable Φ=2.0mm
Beige
Gray
N/A
LS-FC-SC/PC-M1-BG-FI-20
SC/PC MM(OM1), Cable Φ=0.9mm
Beige
Gray
N/A
LS-FC-SC/PC-M1-BG-FI-09
SC/PC MM(OM2), Cable Φ=3.0mm
Beige
Gray
N/A
LS-FC-SC/PC-M2-BG-FI-30
SC/PC MM(OM2), Cable Φ=2.0mm
Beige
Gray
N/A
LS-FC-SC/PC-M2-BG-FI-20
SC/PC MM(OM2), Cable Φ=0.9mm
Beige
Gray
N/A
LS-FC-SC/PC-M2-BG-FI-09
SC/PC MM(OM3), Cable Φ=3.0mm
Aqua
Gray
OM3
LS-FC-SC/PC-M3-AQ-FI-30
SC/PC MM(OM3), Cable Φ=2.0mm
Aqua
Gray
OM3
LS-FC-SC/PC-M3-AQ-FI-20
SC/PC MM(OM3), Cable Φ=0.9mm
Aqua
Gray
OM3
LS-FC-SC/PC-M3-AQ-FI-09
SC/PC MM(OM4), Cable Φ=3.0mm
Aqua
Gray
OM4
LS-FC-SC/PC-M4-AQ-FI-30
SC/PC MM(OM4), Cable Φ=2.0mm
Aqua
Gray
OM4
LS-FC-SC/PC-M4-AQ-FI-20
SC/PC MM(OM4), Cable Φ=0.9mm
Aqua
Gray
OM4
LS-FC-SC/PC-M4-AQ-FI-09
LC/PC SM, Cable Φ=2.0mm
Blue
Blue
N/A
LS-FC-LC/PC-SM-BL-FI-20
LC/PC SM, Cable Φ=0.9mm
Blue
Blue
N/A
LS-FC-LC/PC-SM-BL-FI-09
LC/PC MM(OM1), Cable Φ=2.0mm
Beige
Beige
N/A
LS-FC-LC/PC-M1-BG-FI-20
LC/PC MM(OM1), Cable Φ=0.9mm
Beige
Beige
N/A
LS-FC-LC/PC-M1-BG-FI-09
LC/PC MM(OM2), Cable Φ=2.0mm
Beige
Beige
N/A
LS-FC-LC/PC-M2-BG-FI-20
LC/PC MM(OM2), Cable Φ=0.9mm
Beige
Beige
N/A
LS-FC-LC/PC-M2-BG-FI-09
LC/PC MM(OM3), Cable Φ=2.0mm
Beige
Aqua
OM3
LS-FC-LC/PC-M3-AQ-FI-20
LC/PC MM(OM3), Cable Φ=0.9mm
Beige
Aqua
OM3
LS-FC-LC/PC-M3-AQ-FI-09
LC/PC MM(OM4), Cable Φ=2.0mm
Beige
Aqua
OM4
LS-FC-LC/PC-M4-AQ-FI-20
LC/PC MM(OM4), Cable Φ=0.9mm
Beige
Aqua
OM4
LS-FC-LC/PC-M4-AQ-FI-09
ST/PC SM, Cable Φ=2.0mm
Blue
Blue
N/A
LS-FC-ST/PC-SM-BL-FI-20
ST/PC SM, Cable Φ=0.9mm
Blue
Blue
N/A
LS-FC-ST/PC-SM-BL-FI-09
ST/PC MM(OM1), Cable Φ=2.0mm
Beige
Beige
N/A
LS-FC-ST/PC-M1-BG-FI-20
ST/PC MM(OM1), Cable Φ=0.9mm
Beige
Beige
N/A
LS-FC-ST/PC-M1-BG-FI-09
ST/PC MM(OM2), Cable Φ=2.0mm
Beige
Beige
N/A
LS-FC-ST/PC-M2-BG-FI-20
ST/PC MM(OM2), Cable Φ=0.9mm
Beige
Beige
N/A
LS-FC-ST/PC-M2-BG-FI-09
ST/PC MM(OM3), Cable Φ=2.0mm
Beige
Aqua
OM3
LS-FC-ST/PC-M3-AQ-FI-20
ST/PC MM(OM3), Cable Φ=0.9mm
Beige
Aqua
OM3
LS-FC-ST/PC-M3-AQ-FI-09
ST/PC MM(OM4), Cable Φ=2.0mm
Beige
Aqua
OM4
LS-FC-ST/PC-M4-AQ-FI-20
ST/PC MM(OM4), Cable Φ=0.9mm
Beige
Aqua
OM4
LS-FC-ST/PC-M4-AQ-FI-09
- Technical
Standard
TIA/EIA-604-3[SC], TIA/EIA-604-10[LC], TIA/EIA-604-2[ST]
Insertion Loss
Typ. 0.3dB / Max. 0.5dB
Return Loss
≥50dB [PC type]
Endurance
≤0.3dB / 500times reconnection
Tension
≤0.2dB change [3.0mm, 2.0mm type] / Max. 2kg
≤0.2dB change [900µm type] / Max. 0.75kg
Vibration
≤0.2dB change / 10-55Hz / 0.75 amplitude
Temperature
≤0.3dB change / -40°C ~ +75°C / 21 times
End Face Geometry [Based on GR-326]
PC type
Ferrule End Face Radius(mm)
7~25
Fiber Undercut(nm)
≤125
Fiber Protrusion(nm)
≤50
Apex Offset(µm)
≤50
