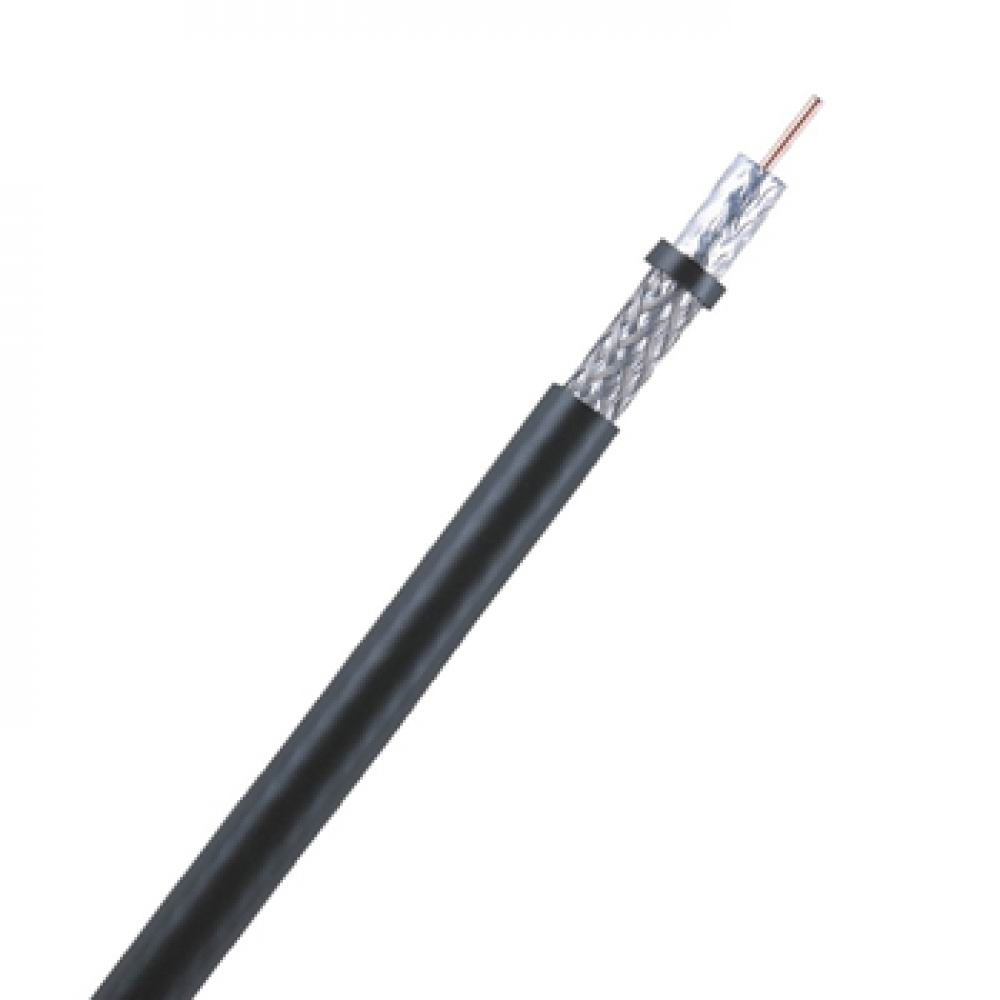

RG 11 Cable

Description: . Flexible braided 75 ohm coaxial drop cable
. Transmission of RF signals and power for voice, data and video applications and CATV/Internet

Lists: . RG-11 60%, 80%, 90%
. RG-11 80%, Tri-shielded with messenger
. RG-11 90%, Tri-shielded with messenger

Cable Construction

ITEM		DESCRIPTION
ITEM		RG11 60%	RG11 80%	RG11 90%	RG11 80% TRI M	RG11 90% TRI M
Inner conductor		CCS	CCS	CCS	CCS	CCS
Diameter[mm]		1.63±0.01	1.63±0.01	1.63±0.01	1.63±0.01	1.63±0.01
Dielectric		Foamed PE	Foamed PE	Foamed PE	Foamed PE	Foamed PE
Diameter[mm]		Nom. 7.11	Nom. 7.11	Nom. 7.11	Nom. 7.11	Nom. 7.11
Outer conductor	1st shield	Bonded Al foil	Bonded Al foil	Bonded Al foil	Bonded Al foil	Bonded Al foil
	Thick[mm]	0.04724~ 0.08128	0.04724~ 0.08128	0.04724~ 0.08128	0.04724~ 0.08128	0.04724~ 0.08128
	Diameter[mm]	7.25±0.13	7.25±0.13	7.25±0.13	7.25±0.13	7.25±0.13
	2nd shield	Aluminum Braid	Aluminum Braid	Aluminum Braid	Aluminum Braid	Aluminum Braid
	Diameter[mm]	0.160±0.01	0.160±0.01	0.160±0.01	0.160±0.01	0.160±0.01
	Coverage	Min. 59%	Min. 79%	Min. 89%	Min. 79%	Min. 89%
	3rd shield	-	-	-	Al foil	-
Jacket		PVC	PVC	PVC	PVC	PVC
Diameter[mm]		10.16±0.20	10.16±0.20	10.16±0.20	10.16±0.20	10.03±0.20
Thickness[mm]		Nom. 1.07	Nom. 1.07	Nom. 1.07	Nom. 1.07	Nom. 1.07
Messenger	Conductor	-	-		Galvanized steel	Galvanized steel
Messenger	Diameter[mm]	-	-		1.30±0.05	1.83±0.05

Characteristics

Electrical Characteristic

ITEM			UNIT	RG11 (Single Tape & Braid)	RG11 (Tri-shield)
DC Resistance		Inner	≤40.4	≤40.4	≤40.4
DC Resistance		DC Loop	≤65.6	≤54.0	≤54.0
Capacitance(pF/m)			pF/m	50±3	50±3
Relative Propagation Velocity			%	≥82	≥82
SRL(dB)	5MHz-1000MHz		20	20	20
SRL(dB)	1000MHz-3000MHz		15	15	15
Impedance			Ω	75±3	75±3

Attenuation

Frequency (MHz)	Max. (dB/100m)
5	1.50
55	3.30
211	6.23
250	6.72
270	7.00
300	7.38
330	7.71
350	7.94
400	8.53
450	9.10
500	9.70
550	10.20
600	10.63
750	12.25
870	13.50
1000	14.40

Mechanical and Environmental Performance

Minimum Braid Wire Tensile Strength ( AL )	43,000 psi
Center Conductor Minimum Break Strength ( CCS )	363 lbf
Corrosion Resistance	No signs of corrosion
Cold Bend Test	No visible damage to jacket
Cold Impact Test	No visible damage to jacket
Maximum Jacket Longitudinal Shrinkage	5% of initial length under test
Minimum Center Conductor Bond to Dielectric	5 lbs
