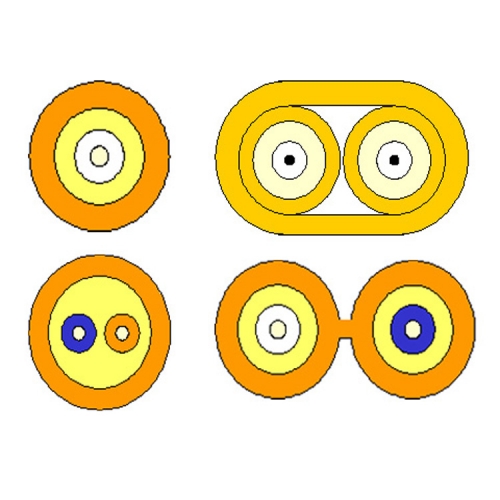

Simplex, Duplex Flat, Duplex Round, Duplex Zip Cord
- Description
- Tight-Buffer/Assembly cables used for indoor application
1) Simplex Cord
Tight buffered fiber, dielectric strength member and PVC/LSZH jacket
2) Duplex Flat Cable (B-series)
Tight buffered fiber, dielectric strength member, PVC jacket, and PVC/LSZH outer jacket
3) Duplex Round Cable (D-series)
Tight buffered fiber, dielectric strength member and PVC/LSZH jacket
4) Duplex Zipcord
Tight buffered fiber, dielectric strength member and PVC/LSZH jacket
- Cable Construction
- 1) Simplex Cord
ITEMS DESCRIPTION Number of Fibers 1 Type of Fiber Single Mode, 62.5 Multi Mode or 50 Multi Mode Tight Buffer
Coating0.6φ Material: PVC or LSZH Compound
Outer diameter: 600±50㎛0.9φ Material: PVC or LSZH Compound
Outer diameter: 900±50㎛Dielectric Strength Member Aramid Yarn Outer Jacket Material PVC or LSZH Compound Diameter 2.9φ 2.9±0.2mm (0.114±0.008 in) 2.4φ 2.4±0.1mm (0.094±0.004 in) 2.0φ 2.0±0.1mm (0.079±0.004 in) 1.6φ 1.6±0.1mm (0.062±0.004 in)
2) Duplex Flat Cable (B-series)ITEMS DESCRIPTION Number of Fibers 2 Type of Fiber Single Mode, 62.5 Multi Mode or 50 Multi Mode Tight Buffer
Coating0.6φ Material: PVC or LSZH Compound
Outer diameter: 600±50㎛0.9φ Material: PVC or LSZH Compound
Outer diameter: 900±50㎛Dielectric Strength Member Aramid Yarn Cord Jacket Material PVC or LSZH Compound Diameter 2.9φ 2.9±0.2mm 2.4φ 2.4±0.1mm 2.0φ 2.0±0.1mm 1.6φ 1.6±0.1mm Outer Jacket Material : PVC or LSZH Compound
3) Duplex Round Cable (D-series)ITEMS DESCRIPTION Number of Fibers 2 Type of Fiber Single Mode, 62.5 Multi Mode or 50 Multi Mode Tight Buffer
Coating0.6φ Material: PVC or LSZH Compound
Outer diameter: 600±50㎛0.9φ Material: PVC or LSZH Compound
Outer diameter: 900±50㎛Dielectric Strength Member Aramid Yarn Outer Jacket Material : PVC or LSZH Compound
4) Duplex ZipcordITEMS DESCRIPTION Number of Fibers 2 Type of Fiber Single Mode, 62.5 Multi Mode or 50 Multi Mode Tight Buffer
Coating0.6φ Material: PVC or LSZH Compound
Outer diameter: 600±50㎛0.9φ Material: PVC or LSZH Compound
Outer diameter: 900±50㎛Dielectric Strength Member Aramid Yarn Outer Jacket Material PVC or LSZH Compound Cross
section2.9φ 5.9±0.3mm 2.4φ 5.0±0.2mm 2.0φ 4.0±0.2mm 1.6φ 3.2±0.2mm
- Application
- Fiber optic telecommunication cables used for indoor application
