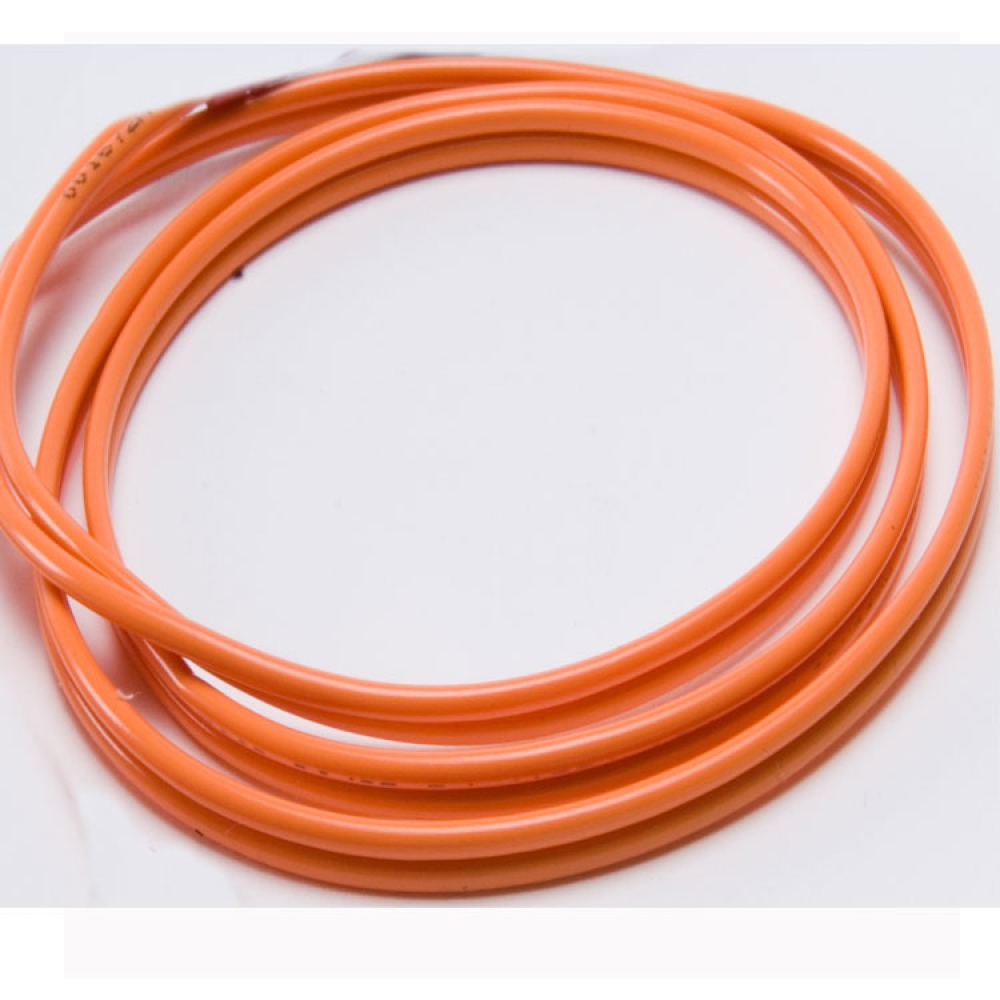

Simplex/Duplex FO Cord Cable

LS Simple™ Fiber Optic Cable is fully designed & developed by LS and can meet variable types of structure and installation requirements based on remarkable Research & Development practices and historic production experiences. LS Fiber Optic Cable can be adopted for variable applications which cover indoor, outdoor, duct and direct burial installation circumstances with essential requirements.

Simplex/Duplex FO Cord Cable

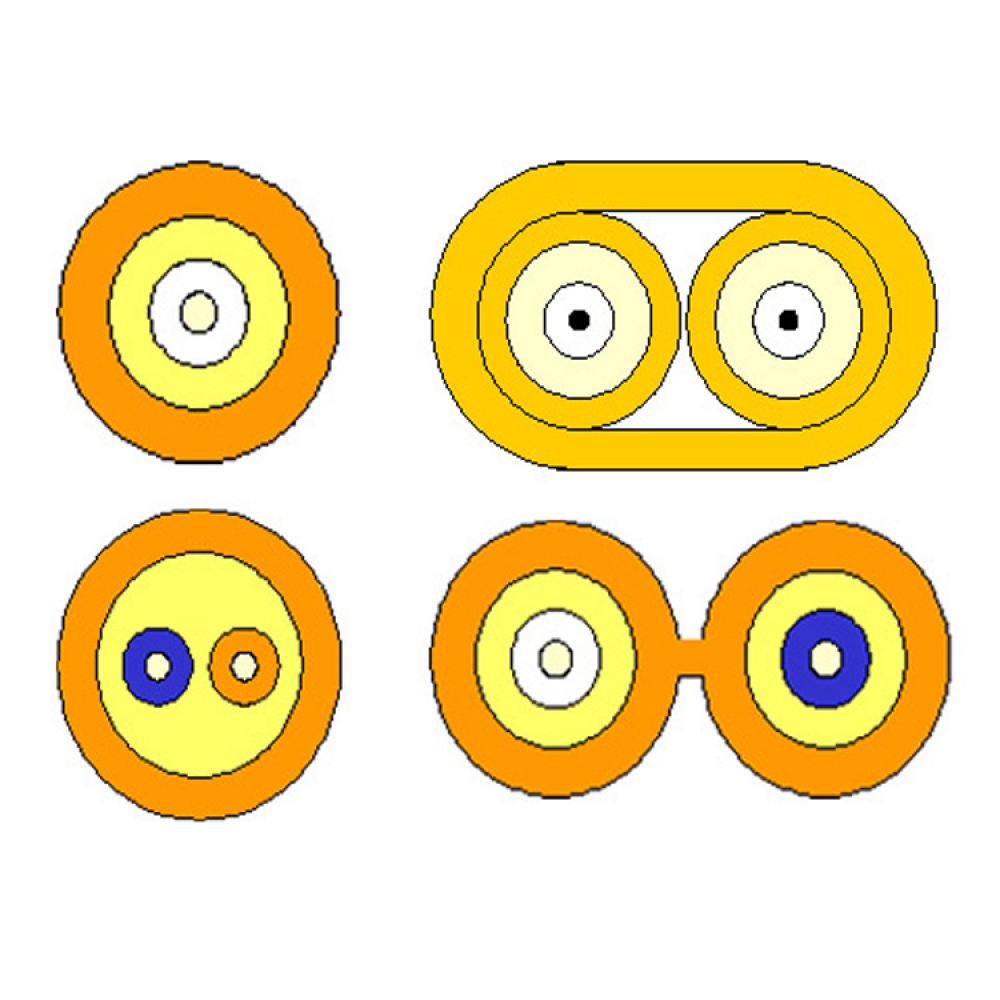

Simplex, Duplex Flat, Duplex Round, Duplex Zip Cord

Description: Tight-Buffer/Assembly cables used for indoor application
1) Simplex Cord
Tight buffered fiber, dielectric strength member and PVC/LSZH jacket
2) Duplex Flat Cable (B-series)
Tight buffered fiber, dielectric strength member, PVC jacket, and PVC/LSZH outer jacket
3) Duplex Round Cable (D-series)
Tight buffered fiber, dielectric strength member and PVC/LSZH jacket
4) Duplex Zipcord
Tight buffered fiber, dielectric strength member and PVC/LSZH jacket

Cable Construction

1) Simplex Cord

ITEMS			DESCRIPTION
Number of Fibers			1
Type of Fiber			Single Mode, 62.5 Multi Mode or 50 Multi Mode
Tight Buffer Coating	0.6φ		Material: PVC or LSZH Compound Outer diameter: 600±50㎛
	0.9φ		Material: PVC or LSZH Compound Outer diameter: 900±50㎛
Dielectric Strength Member			Aramid Yarn
Outer Jacket		Material	PVC or LSZH Compound
		Diameter	2.9φ	2.9±0.2mm (0.114±0.008 in)
			2.4φ	2.4±0.1mm (0.094±0.004 in)
			2.0φ	2.0±0.1mm (0.079±0.004 in)
			1.6φ	1.6±0.1mm (0.062±0.004 in)

2) Duplex Flat Cable (B-series)

ITEMS			DESCRIPTION
Number of Fibers			2
Type of Fiber			Single Mode, 62.5 Multi Mode or 50 Multi Mode
Tight Buffer Coating	0.6φ		Material: PVC or LSZH Compound Outer diameter: 600±50㎛
	0.9φ		Material: PVC or LSZH Compound Outer diameter: 900±50㎛
Dielectric Strength Member			Aramid Yarn
Cord Jacket		Material	PVC or LSZH Compound
		Diameter	2.9φ	2.9±0.2mm
			2.4φ	2.4±0.1mm
			2.0φ	2.0±0.1mm
			1.6φ	1.6±0.1mm
Outer Jacket			Material : PVC or LSZH Compound

3) Duplex Round Cable (D-series)

ITEMS		DESCRIPTION
Number of Fibers		2
Type of Fiber		Single Mode, 62.5 Multi Mode or 50 Multi Mode
Tight Buffer Coating	0.6φ	Material: PVC or LSZH Compound Outer diameter: 600±50㎛
	0.9φ	Material: PVC or LSZH Compound Outer diameter: 900±50㎛
Dielectric Strength Member		Aramid Yarn
Outer Jacket		Material : PVC or LSZH Compound

4) Duplex Zipcord

ITEMS			DESCRIPTION
Number of Fibers			2
Type of Fiber			Single Mode, 62.5 Multi Mode or 50 Multi Mode
Tight Buffer Coating	0.6φ		Material: PVC or LSZH Compound Outer diameter: 600±50㎛
	0.9φ		Material: PVC or LSZH Compound Outer diameter: 900±50㎛
Dielectric Strength Member			Aramid Yarn
Outer Jacket		Material	PVC or LSZH Compound
		Cross section	2.9φ	5.9±0.3mm
			2.4φ	5.0±0.2mm
			2.0φ	4.0±0.2mm
			1.6φ	3.2±0.2mm

Application: Fiber optic telecommunication cables used for indoor application
