110 Block Solution
Category 6 LS Simple™ Cat.6 Plus & Cat.6
■ Support maximum 1Gbit TX and high performance Category 6
■ Transmit full broadband and baseband video signals ANSI/TIA-586-C.2
■ Provides 1.2Gbit high performance transmission that complies with international standards ISO/IEC 11801 and ANSI/TIA-568-C.2 from equipment room to outlet
■ Possible to provide high speed with free extension up to 250MHz Category 6/Class E
■ Connector designed for customer convenience, cabling with high density available at outlet and equipment room
■ Shielded and unshielded solutions are supported
■ All components have high flame retardent properties
■ Support maximum 1Gbit TX and high performance Category 6
■ Transmit full broadband and baseband video signals ANSI/TIA-586-C.2
■ Provides 1.2Gbit high performance transmission that complies with international standards ISO/IEC 11801 and ANSI/TIA-568-C.2 from equipment room to outlet
■ Possible to provide high speed with free extension up to 250MHz Category 6/Class E
■ Connector designed for customer convenience, cabling with high density available at outlet and equipment room
■ Shielded and unshielded solutions are supported
■ All components have high flame retardent properties
110 Block Solution

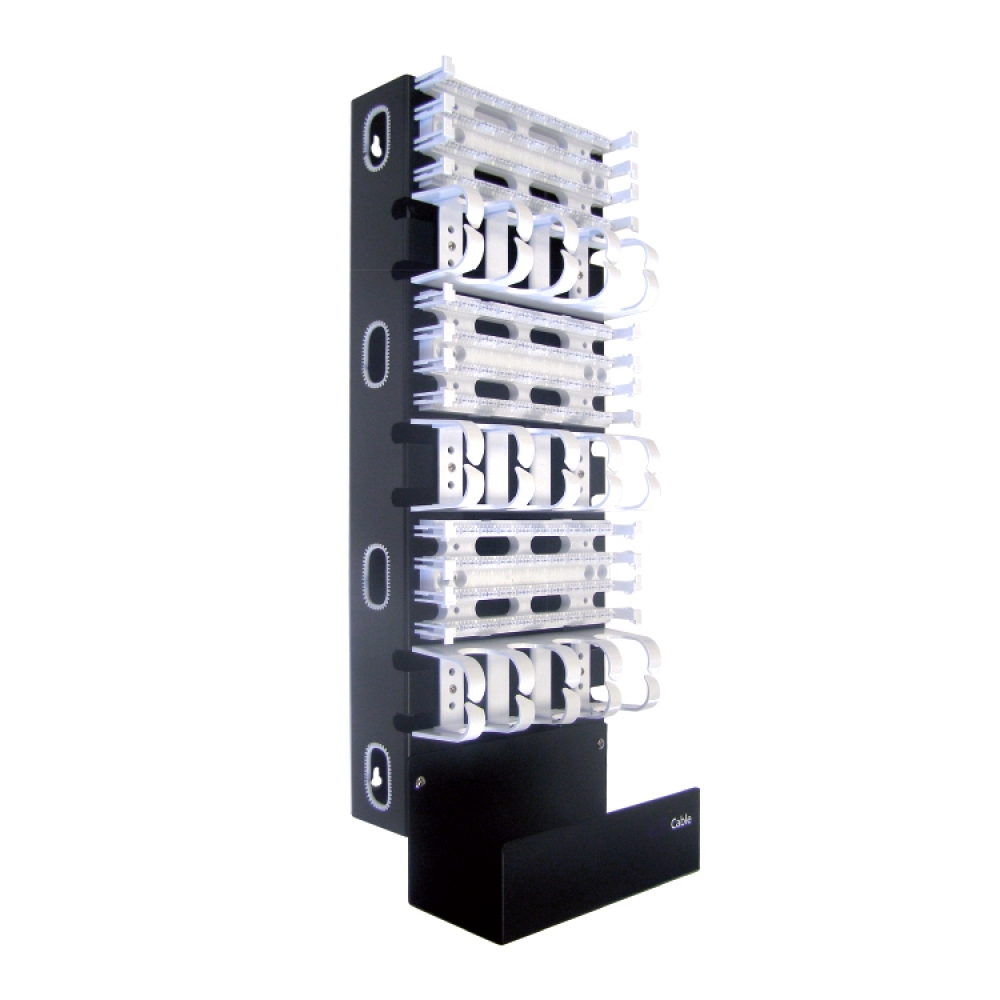

Wall Mounted 110 Block
- Description
- The Simple GXCTM Category 6 Wall Mount Patching Rack fully meet the requirements set out in ANSI/TIA-568-C.2(Category6), ISO/IEC 11801 by coupling-pin technology.
The various size of wall mount rack, 240, 320 and 400-pair etc., is available.
IDCs interval of Category 6 connecting block is generally larger than that of Category 5e to reduce the capacitance coupling and improve the electrical performance, but this block provides convenience for operator to use conventional multi-pin punch down tool with same IDCs interval as Category 5e.
This block is ideal for use in cross connects, consolidation point and it’s possible to cover the conventional patch panel owing to superior electrical performance.
Conventional patch panel use 12 cable connections in 1U space but this block is extended up to 20 connections in same space. This compact installation has a definitely lot of benefits for system design.
This block comes with 110 terminal block, wiring base block, wiring label and label holder for T568A/T568B Configuration.
- Part Lists
- LS-HWMR-PR12-8726-WC6240-WM
(Unshielded Category 6 110 Wiring Block 240-port Wall Mount Rack)
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16 Mbps Token Ring (IEEE 802.5)
· 10/100/1000 1G BASE-T (IEEE 802.3)
· 155 Mbps
· 100Mbps TP-PMD
·1.2G LAN
· ISDN, ADSL
· Analog & digital voice(VOIP) and video
· Full broadband and baseband video
· RoHS Compliant

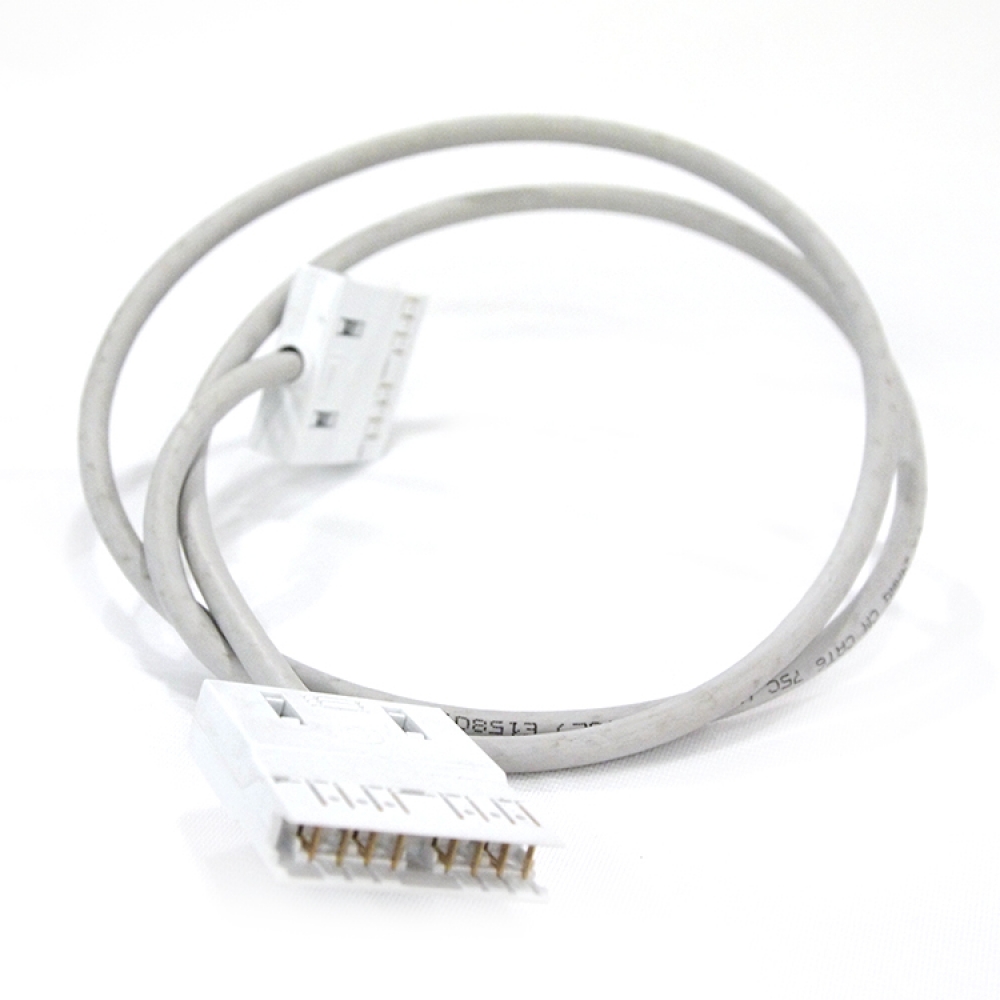

110 Patch Cord
- Description
- The 110 patch cords are utilized for connecting with 110 cross connect system of GXC C6 Patching used as jumper or end-user patch cords
- Part Lists
- LS-110PCC-UC6-4-GY-YYY(110 Patch Cord, 4-Pair, 110 4Pr to 110 4Pr)
LS-110PCR-UC6-4-GY-YYY(110 Patch Cord, 4-Pair,110 4Pr to Modular Plug)
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16 Mbps Token Ring (IEEE 802.5)
· 10/100/1000 1G BASE-T (IEEE 802.3)
· 155 Mbps
· 100Mbps TP-PMD
·1,2G LAN
· ISDN, ADSL
· Analog & digital voice(VOIP) and video
· Full broadband and baseband video
· RoHS Compliant

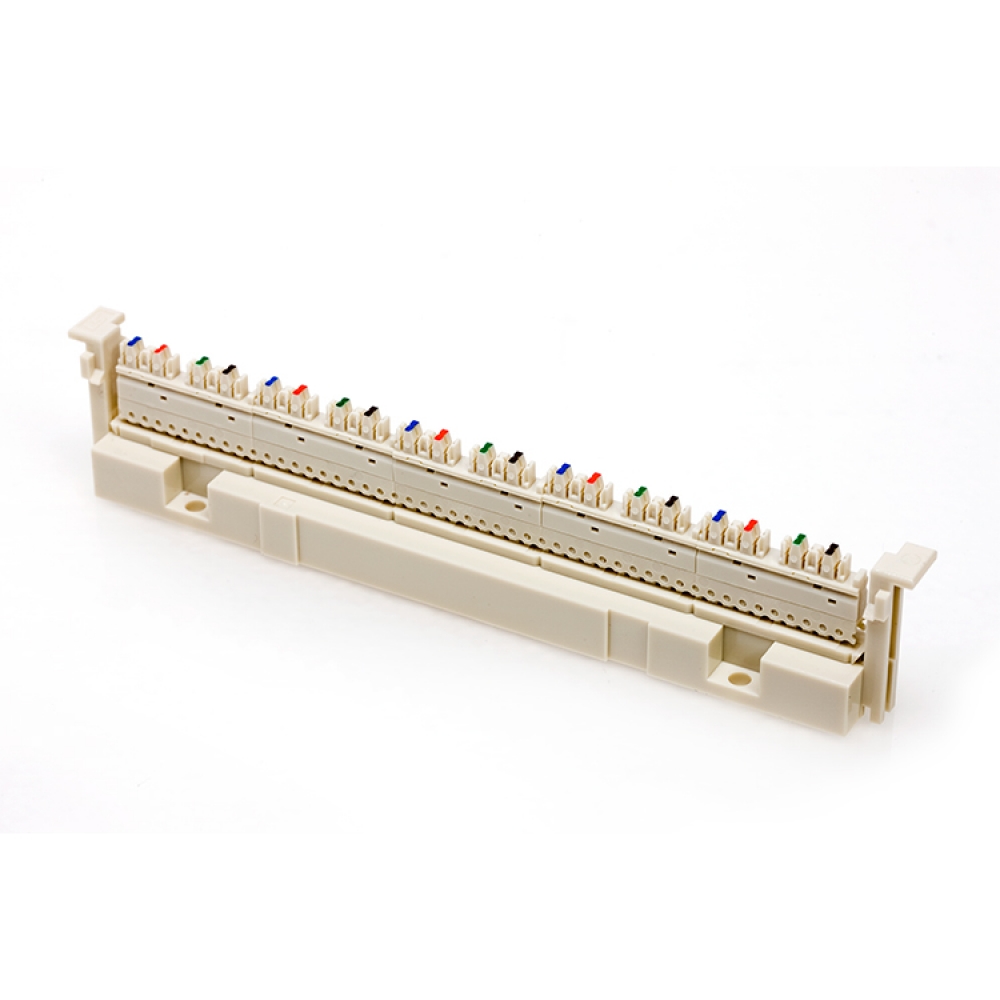

GXC™ 110Block - 80P, 40P, 20P
- Description
- The Simple GXCTM Category 6 Patching Block fully meet the Category 6 requirements set out in ANSI/TIA-568-C.2, ISO/IEC 11801 by coupling-pin technology.
IDCs interval of Category 6 connecting block is generally larger than that of Category 5e to reduce the capacitance coupling and improve the electrical performance, but this block provides convenience for operator to use conventional multi-pin punch down tool with same IDCs interval as Category 5e.
This block is ideal for use in cross connects, consolidation point (CP) and 19” rack mount panel and it’s possible to cover the conventional patch panel owing to superior electrical performance.
Conventional patch panel uses 12 cable connections in 1U space(44mm) but this block is extended up to 20 connections in same space. This compact installation has a definitely lot of benefits for system design.
This block comes with 110 terminal block, wiring base block, wiring label and label holder for T568A/T568B configuration.
- Part Lists
- LS-110WB-UC6-20P0-W/O
LS-110WB-UC6-40P0-W/O
LS-110WB-UC6-80P0-W/O
- Application
- · PBX, X21, V11 S0-Point-to-Point, S1/S2, ATM 155
· Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps
· 1.2Gbit/s ATM LAN
· 100Mbps TP-PMD
· ISDN, ADSL
· Analog & digital voice (VoIP) and video
· Full broadband & baseband video
· RoHS compliant
