110 Block Solution
Category 5e LS Simple™ Cat.5e 4&25 Pair Cable, Solution
■ Supports Fast Ethernet, Gigabit Ethernet, 155 Mb/s, Multimedia
■ All accepted design for global commercial network installation
■ Qualifies for LS 25-Year Extended Product Warranty and Applications Assurance when included as part of a registered LS Category 5e Channel
■ Electrical perfomance complies with ANSI/TIA-586-C.2
■ RoHS Compliant
■ Simplified structured cabling solution preserving long-term network investment
■ Supports Fast Ethernet, Gigabit Ethernet, 155 Mb/s, Multimedia
■ All accepted design for global commercial network installation
■ Qualifies for LS 25-Year Extended Product Warranty and Applications Assurance when included as part of a registered LS Category 5e Channel
■ Electrical perfomance complies with ANSI/TIA-586-C.2
■ RoHS Compliant
■ Simplified structured cabling solution preserving long-term network investment
110 Block Solution
Wall Mounted 110 Block
- Description
- Compliant to ANSI/TIA-568-C.2(Category 5e), ISO/IEC 11801 by coupling-pin technology
• Various size of rack mount patching available
• Ideal for use in cross connects, consolidation point(CP) and 19” rack mount panel
• Possible to cover the conventional patch panel with superior electrical performance
• Extended up to 20 connections in 1U space(44mm)
• It comes with 110 terminal block, wiring base block, wiring label and label holder for T568A/T568B scheme
- Part Lists
- LS-HWMR-PR12-8726-WC5E300-WM
(UnshieldBlock 300Port Wall Mount racked Category 5e 110 Wiring)
- Application
- Horizontal Distribution & Backbone Cabling
· 4/16 Mbps Token Ring (IEEE 802.5)
· 10/100/1000 1G BASE-T (IEEE 802.3)
· 155 Mbps
· 100Mbps TP-PMD
· 1.2Gbit/s ATM LAN
· ISDN, ADSL
· Analog & digital voice(VOIP) and video
· Full broadband and baseband video
· RoHS Compliant

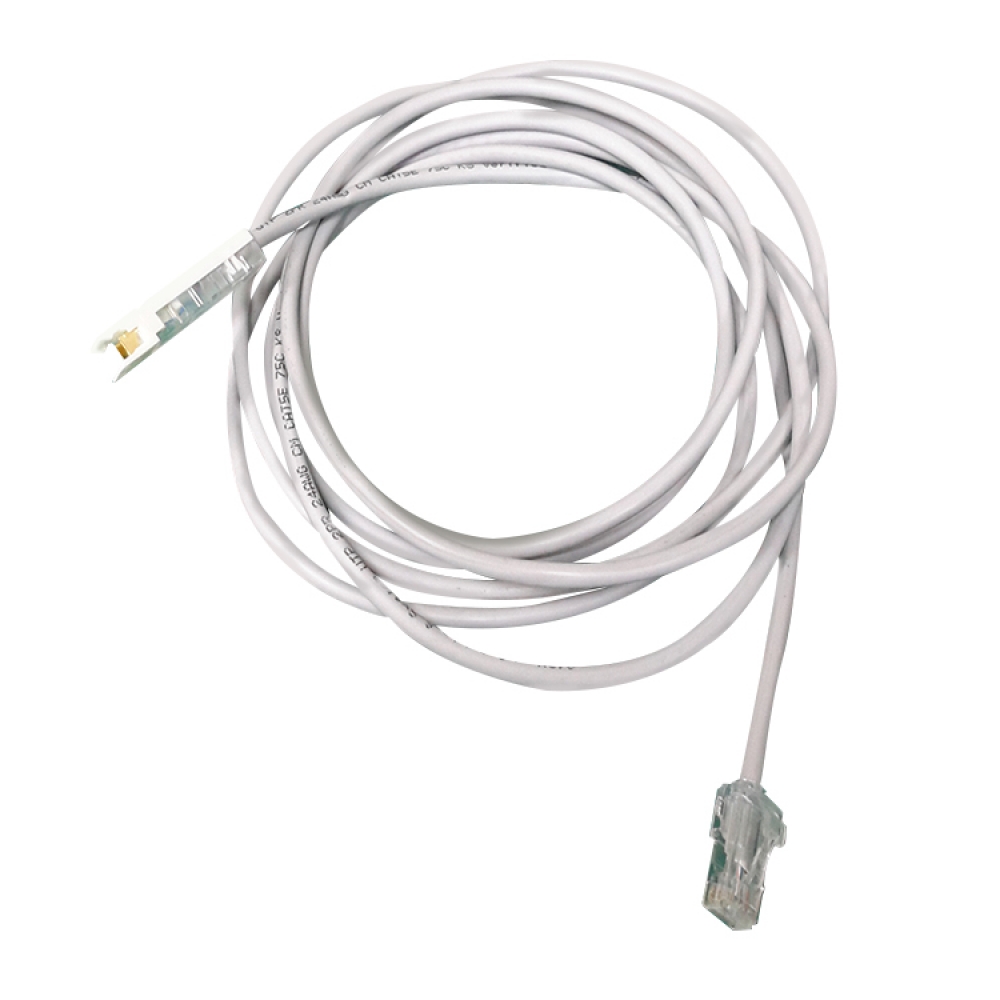

110 Patch Cord
- Description
- • The 110 patch cords are utilized for connecting with 110 cross connect system of CAT5E Patching used as jumper or end-user patch cords.
- Part Lists
- LS-110PCC-UC5E-4-GY-YYY(110 Patch Cord, 4-Pair,(110 4Pr to 110 4Pr) LS-110PCR-UC5E-4-GY-YYY(110 Patch Cord, 4-Pair,110 4Pr to Modular Plug)
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16 Mbps Token Ring (IEEE 802.5)
· 10/100/1000 1G BASE-T (IEEE 802.3)
· 155 Mbps
· 100Mbps TP-PMD
·1,2G LAN
· ISDN, ADSL
· Analog & digital voice(VOIP) and video
· Full broadband and baseband video
· RoHS Compliant

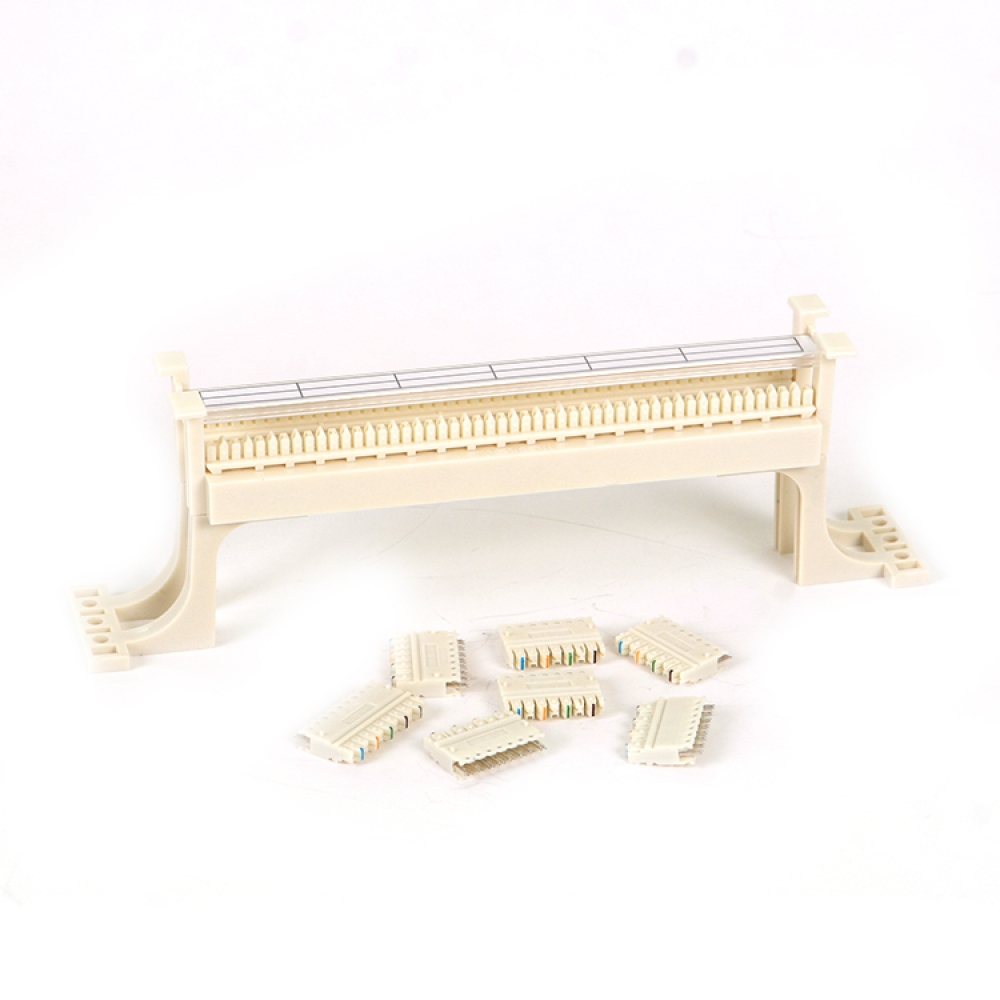

110 Block - 100P, 50P, 25P
- Description
- · Meet the standard of ANSI/TIA-568-C.2 (Category 5e) & ISO/IEC 11801 by coupling-pin technology
· Ideal for use in cross-connects, consolidation point
· Comes with 110 terminal block, wiring base block, wiring label & label holder
- Part Lists
- LS-110WB-UC5ES-25P-W/O (25-pair without leg)
LS-110WB-UC5ES-50P-W/O (50-pair without leg)
LS-110WB-UC5ES-100P-W/O (100-pair without leg)
LS-110WB-UC5ES-50P-W (50-pair with leg)
LS-110WB-UC5ES-100P-W (100-pair with leg)
LS-110PCC-4-GY-yyy (110 Wiring Patch Cord, 4-pair, 110 patch to 110 patch)
LS-110PCR-4-GY-yyy (110 Wiring Patch Cord, 4-pair, 110 patch to 8-pin plug T568B wiring)
LS-JT-T1-W/O (110 Jumper Trough, 5 Wire Hangers without legs)
LS-JT-T2-W (110 Jumper Trough, 5 Wire Hangers with legs)
- Application
- · PBX, X21, V11 S0-Point to Point, S1/S2, ATM 155
· Horizontal Distribution & Backbnoe Cabling
· 4/16 Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155 Mbps
· 100Mbps TP-PMD
· ISDN, ADSL
· Analog & digital voice (VoIP) and video
· Full broadband and baseband video
· SoHo or Consolidation Point box
· RoHS compliant
