Category 6A Cable
LS Cable & System provide highest performance of unshielded and shielded solution, and we offer maximum 6 connection channel performance meets.
■ Up to 10Gb/s and Beyond Shielded/Unshielded
■ Capable of handling full broadband and baseband video signals
■ Qualifies for LS 25-Year Extended Product Warranty and Applications Assurance
■ High flame retardent grade to protect from fire
■ Electrical performance complies with ANSI/TIA-586-C.2
■ Addition of balance requirements to improve cable performance
LS offers superior performance and user friendly installation features to allow for simple and speedy deployment. Electrical parameters stability at high frequencies is the key to allow for comfortable network access.

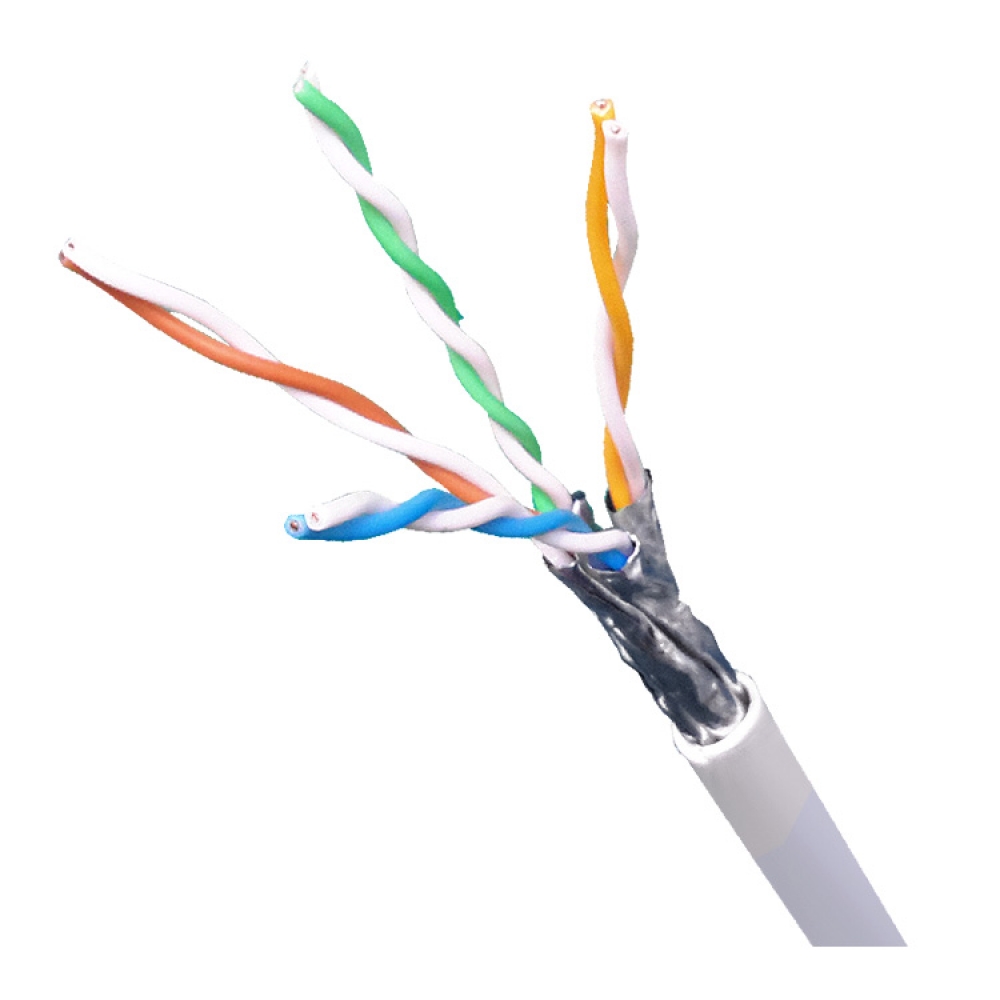

U/FTP Cat.6A
- Description
- · Cable diameter: 7.1±0.2mm
· Capable of handling full broadband and baseband video signals
· Comply with ANSI/TIA-568-C.2
· Specialized print legend contains footage or metric or dual marking
· Wooden reel packaging, so wire pulls through reel for easy access
· RoHS compliant
· Qualifies for the LS 25-year extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6A Channel
- Part Lists
Description
Part Number
Category 6A U/FTP 4Pair CMX
USP-A-C6G-E1VN-X 0.5X004P/xx
Category 6A U/FTP 4Pair CM
USP-A-C6G-E1VN-M 0.5X004P/xx
Category 6A U/FTP 4Pair LSZH 332-1
USP-A-C6G-E1ZN-X 0.5X004P/xx
Category 6A U/FTP 4Pair LSZH 332-3
USP-A-C6G-E1ZN-M 0.5X004P/xx
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000/10G BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
· ATM LAN 1.2G
- Technical Details
Characteristics
units
Specification
DC Resistance
Ω/100m
≤ 9.5
DC Resistance Unbalance
%
≤ 2.00
Capacitance Unbalance
(Pair to Ground)
pF/km
(800~1000Hz)
≤ 1600
Insulation Resistance
MΩ·m
≥ 5000
Dielectric Strength
DC kV/sec
2.5 / 2
Impedance
(Characteristic mean)
Ω
100 ± 5% (at 100MHz)
Return Loss
dB/100m
≥ 20 + 5 * log(freq) , 4 ≤ f ＜ 10MHz
≥ 25 , 10 ≤ f ＜ 20MHz
≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 500MHz (min. 17.3dB)
Attenuation
(Insertion Loss)
dB/100m
≤ 1.82*√(freq) + 0.0091*(freq) + 0.25/√(freq)
, 4 ~ 500 MHz
NEXT Loss
dB/100m
≥ 75.3 – 15*log(freq) , 4 ~ 500MHz
Power sum NEXT Loss
dB/100m
≥ 72.3 – 15*log(freq) , 4 ~ 500MHz
ELFEXT Loss
dB/100m
≥ 68 – 20*log(freq) , 4 ~ 500MHz
Power sum ELFEXT Loss
dB/100m
≥ 65 – 20*log(freq) , 4 ~ 500MHz
Propagation Delay
ns/100m
≤ 534 + 36 / √ (Freq) , 4 ~ 500MHz
Propagation Delay Skew
ns/100m
≤ 45, 4~500MHz

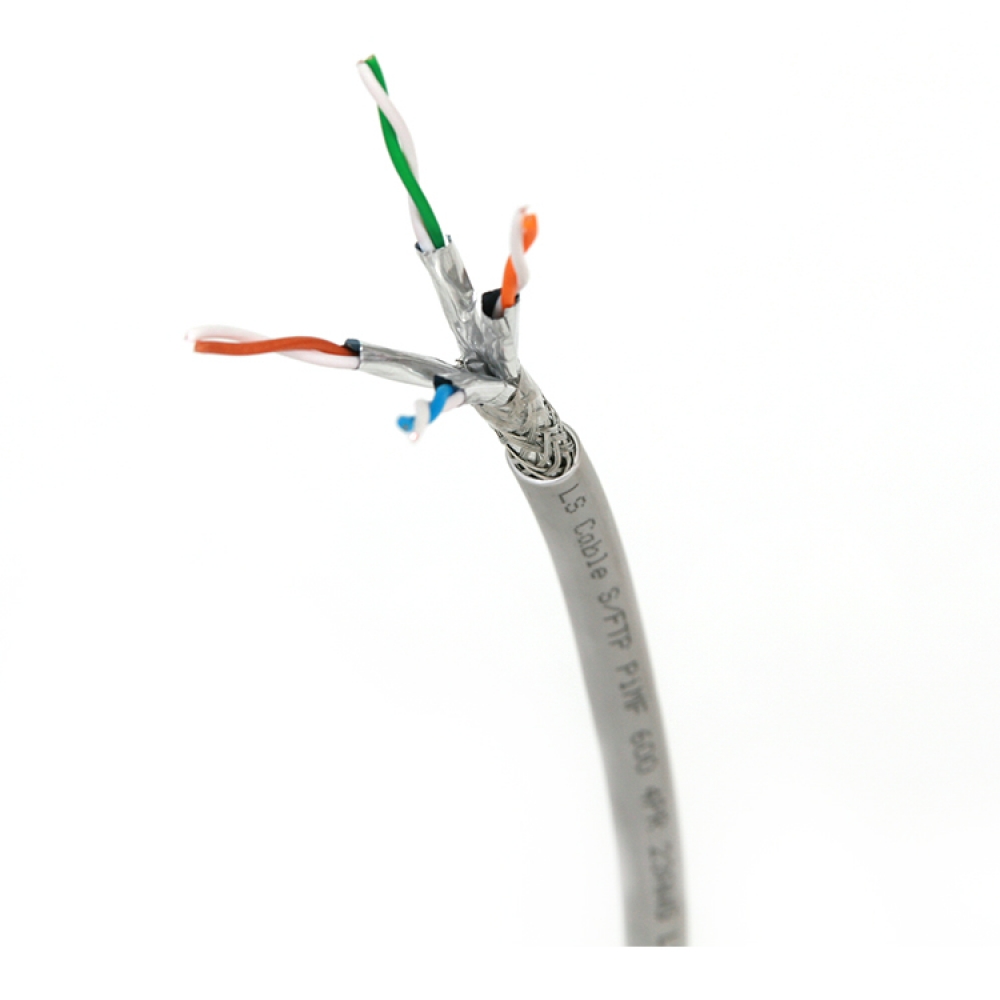

S/FTP Cat.6A
- Description
- · Cable diameter: 7.7±0.3mm
· Capable of handling full broadband and baseband video signals
· Comply with ANSI/TIA-568-C.2
· Specialized print legend contains footage or metric or dual marking
· Wooden reel packaging, so wire pulls through reel for easy access
· RoHS compliant
· Qualifies for the LS 25-year extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6A Channel
- Part Lists
Description
Part Number
Category 6A S/FTP 4Pair CMX
SSP-A-C6G-E1VN-X 0.5X004P/xx
Category 6A S/FTP 4Pair CM
SSP-A-C6G-E1VN-M 0.5X004P/xx
Category 6A S/FTP 4Pair LSZH 332-1
SSP-A-C6G-E1ZN-X 0.5X004P/xx
Category 6A S/FTP 4Pair LSZH 332-3
SSP-A-C6G-E1ZN-M 0.5X004P/xx
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000/10G BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
· ATM LAN 1.2G
- Technical Details
Characteristics
units
Specification
DC Resistance
Ω/100m
≤ 9.5
DC Resistance Unbalance
%
≤ 2.00
Capacitance Unbalance
(Pair to Ground)
pF/km
(800~1000Hz)
≤ 1600
Insulation Resistance
MΩ·m
≥ 5000
Dielectric Strength
DC kV/sec
2.5 / 2
Impedance
(Characteristic mean)
Ω
100 ± 5% (at 100MHz)
Return Loss
dB/100m
≥ 20 + 5 * log(freq) , 4 ≤ f ＜ 10MHz
≥ 25 , 10 ≤ f ＜ 20MHz
≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 500MHz (min. 17.3dB)
Attenuation
(Insertion Loss)
dB/100m
≤ 1.82*√(freq) + 0.0091*(freq) + 0.25/√(freq)
, 4 ~ 500 MHz
NEXT Loss
dB/100m
≥ 75.3 – 15*log(freq) , 4 ~ 500MHz
Power sum NEXT Loss
dB/100m
≥ 72.3 – 15*log(freq) , 4 ~ 500MHz
ELFEXT Loss
dB/100m
≥ 68 – 20*log(freq) , 4 ~ 500MHz
Power sum ELFEXT Loss
dB/100m
≥ 65 – 20*log(freq) , 4 ~ 500MHz
Propagation Delay
ns/100m
≤ 534 + 36 / √ (Freq) , 4 ~ 500MHz
Propagation Delay Skew
ns/100m
≤ 45, 4~500MHz

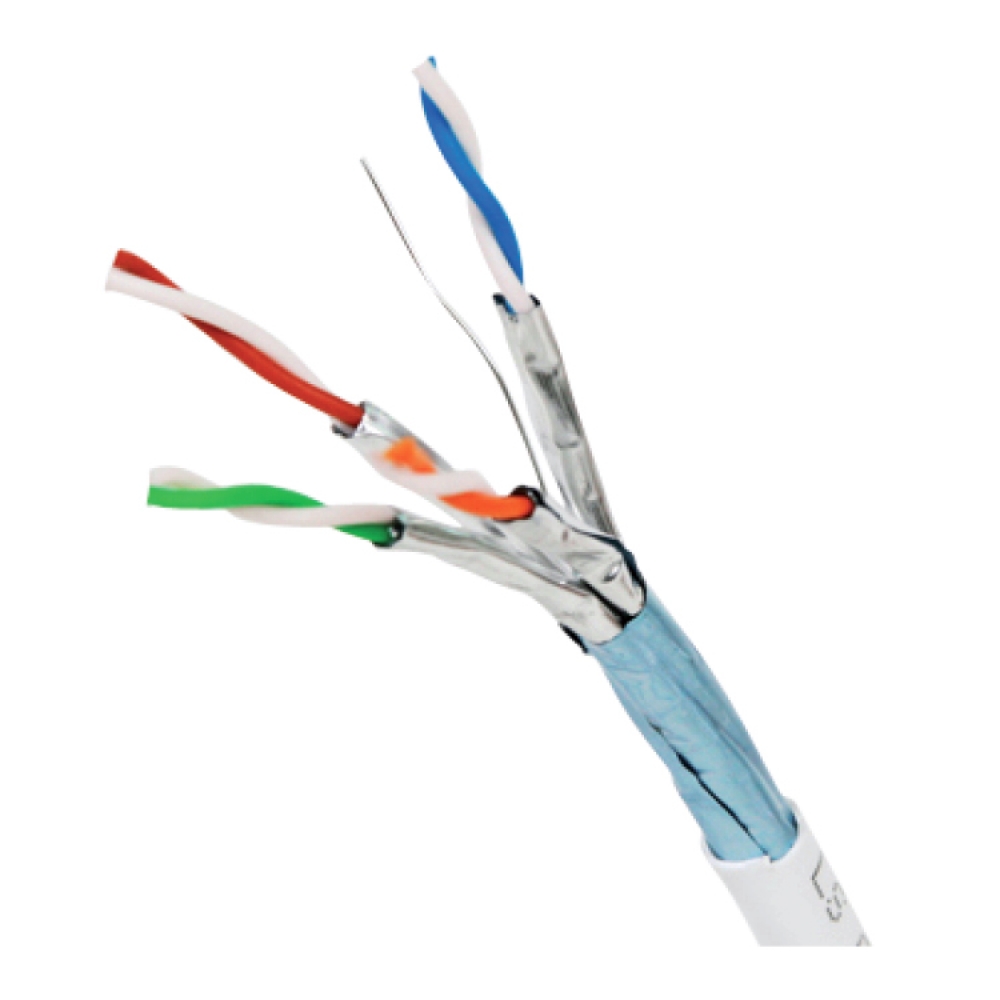

F/FTP Cat.6A
- Description
- · Cable diameter: 7.3±0.2mm
· Capable of handling full broadband and baseband video signals
· Comply with ANSI/TIA-568-C.2
· Specialized print legend contains footage or metric or dual marking
· Wooden reel packaging, so wire pulls through reel for easy access
· RoHS compliant
· Qualifies for the LS 25-year extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6A Channel
- Part Lists
Description
Part Number
Category 6A F/FTP 4Pair CMX
FSP-A-C6G-E1VN-X 0.5X004P/xx
Category 6A F/FTP 4Pair CM
FSP-A-C6G-E1VN-M 0.5X004P/xx
Category 6A F/FTP 4Pair LSZH 332-1
FSP-A-C6G-E1ZN-X 0.5X004P/xx
Category 6A F/FTP 4Pair LSZH 332-3
FSP-A-C6G-E1ZN-M 0.5X004P/xx
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000/10G BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
· ATM LAN 1.2G
- Technical Details
Characteristics
units
Specification
DC Resistance
Ω/100m
≤ 9.5
DC Resistance Unbalance
%
≤ 2.00
Capacitance Unbalance
(Pair to Ground)
pF/km
(800~1000Hz)
≤ 1600
Insulation Resistance
MΩ·m
≥ 5000
Dielectric Strength
DC kV/sec
2.5 / 2
Impedance
(Characteristic mean)
Ω
100 ± 5% (at 100MHz)
Return Loss
dB/100m
≥ 20 + 5 * log(freq) , 4 ≤ f ＜ 10MHz
≥ 25 , 10 ≤ f ＜ 20MHz
≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 600MHz (min. 17.3dB)
Attenuation
(Insertion Loss)
dB/100m
≤ 1.8*√(freq) + 0.01*(freq) + 0.2/√(freq)
, 4 ~ 600 MHz
NEXT Loss
dB/100m
≥ 102.4 – 15*log(freq/100), Max. 78dB, 4~600MHz
Power sum NEXT Loss
dB/100m
≥ 99.4 – 15*log(freq/100), Max. 75dB, 4~600MHz
ELFEXT Loss
dB/100m
≥ 94–20*log(freq/100), Max. 78dB, 4~600MHz
Power sum ELFEXT Loss
dB/100m
≥ 91–20*log(freq/100), Max. 75dB, 4~600MHz
Propagation Delay
ns/100m
≤ 534 + 36 / √ (Freq), 4~600MHz
Propagation Delay Skew
ns/100m
≤ 25, 4~600MHz

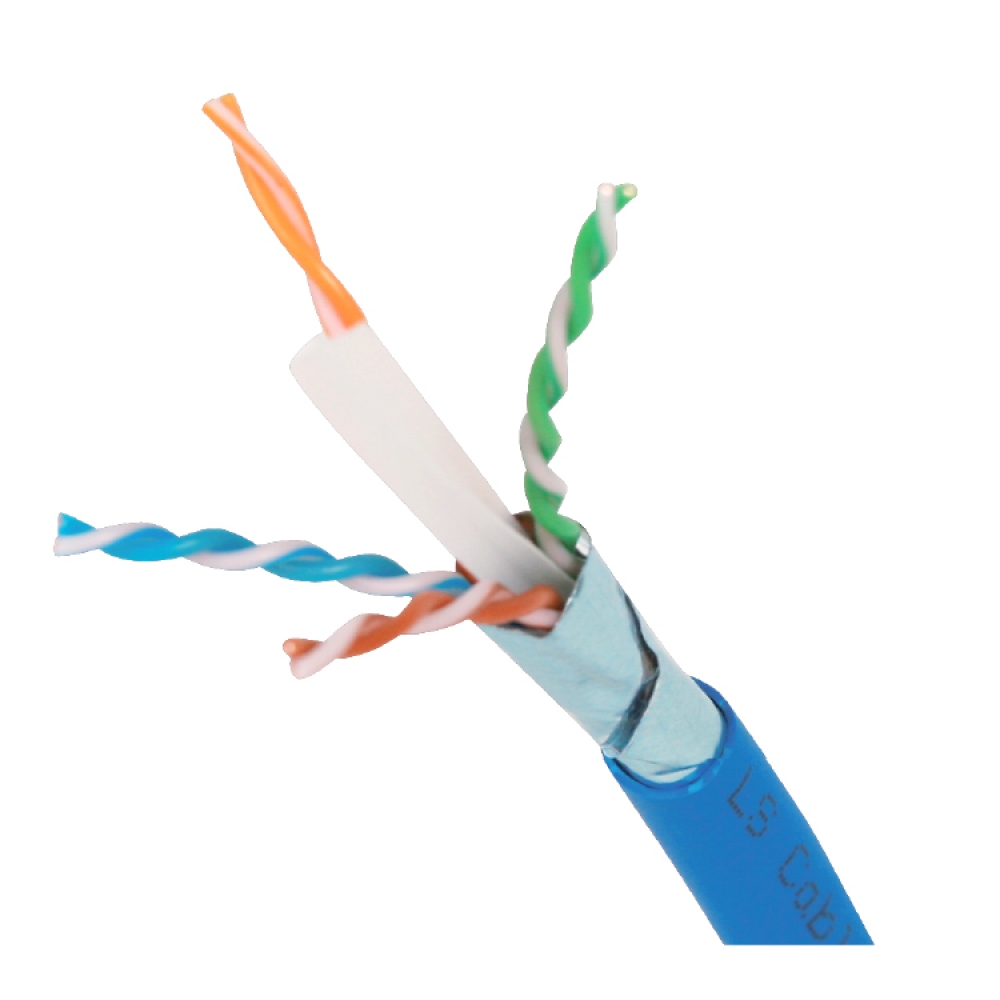

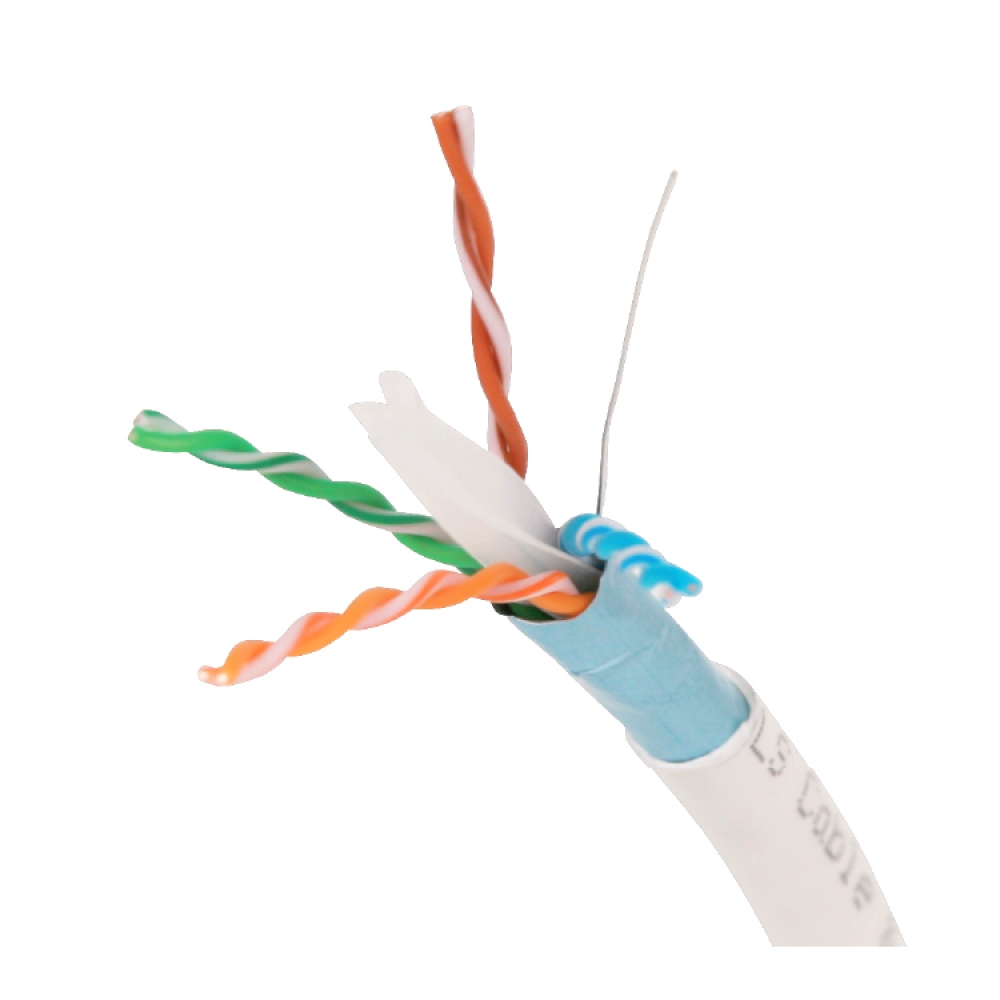

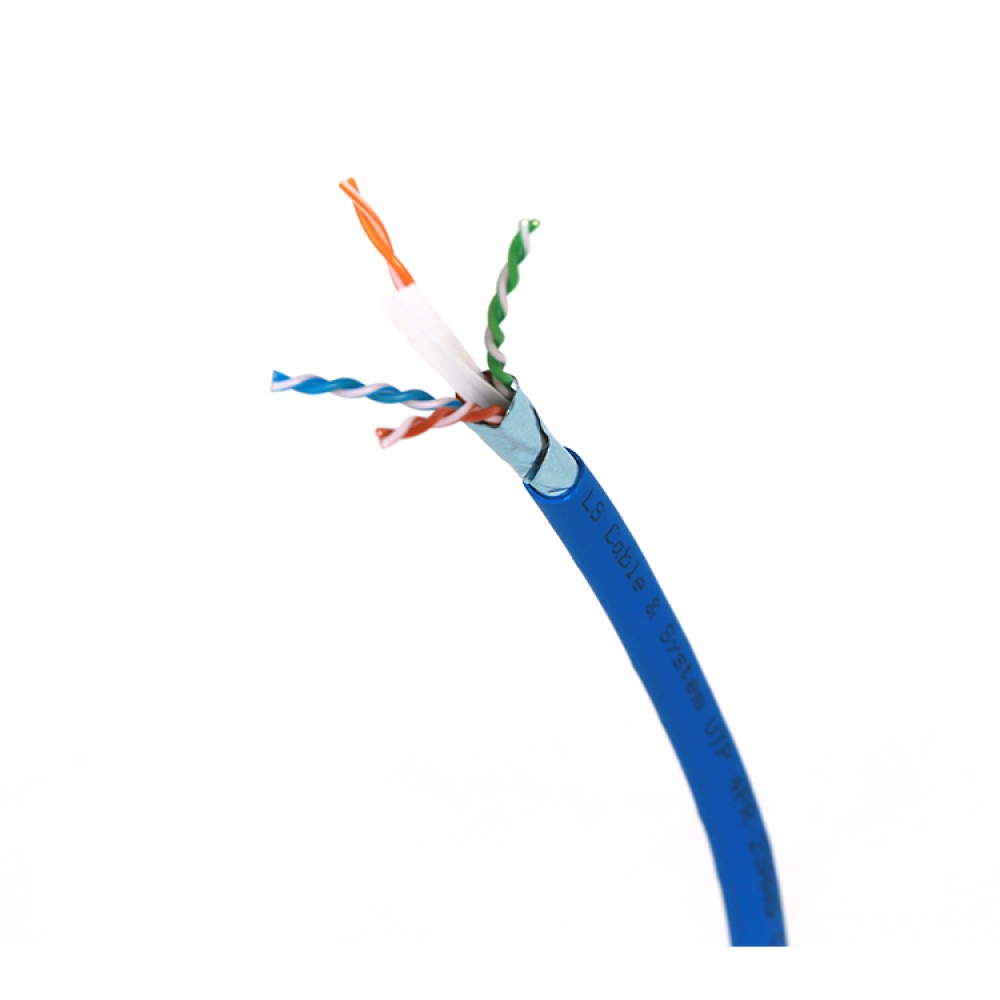

F/UTP Cat.6A
- Description
- · Cable diameter: 7.2±0.3mm
· Capable of handling full broadband and baseband video signals
· High flame retardant grade of the cable (Riser Cable)
· Comply with ANSI/TIA-568-C.2
· Specialized print legend contains footage or metric or dual marking
· Wooden reel packaging, so wire pulls through reel for easy access
· RoHS compliant
· Qualifies for the LS 25-year extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6A Channel
- Part Lists
Description
Part Number
Category 6A F/UTP 4Pair CMX
FTP-A-C6G-E1VN-X 0.5X004P/xx
Category 6A F/UTP 4Pair CM
FTP-A-C6G-E1VN-M 0.5X004P/xx
Category 6A F/UTP 4Pair LSZH 332-1
FTP-A-C6G-E1ZN-X 0.5X004P/xx
Category 6A F/UTP 4Pair LSZH 332-3
FTP-A-C6G-E1ZN-M 0.5X004P/xx
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000/10G BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
· ATM LAN 1.2G
- Technical Details
Characteristics
units
Specification
DC Resistance
Ω/100m
≤ 9.5
DC Resistance Unbalance
%
≤ 2.00
Capacitance Unbalance
(Pair to Ground)
pF/km
(800~1000Hz)
≤ 1600
Insulation Resistance
MΩ·m
≥ 5000
Dielectric Strength
DC kV/sec
2.5 / 2
Impedance
(Characteristic mean)
Ω
100 ± 5% (at 100MHz)
Return Loss
dB/100m
≥ 20 + 5 * log(freq) , 4 ≤ f ＜ 10MHz
≥ 25 , 10 ≤ f ＜ 20MHz
≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 500MHz (min. 17.3dB)
Attenuation
(Insertion Loss)
dB/100m
≤ 1.82*√(freq) + 0.0091*(freq) + 0.25/√(freq)
, 4 ~ 500 MHz
NEXT Loss
dB/100m
≥ 75.3 – 15*log(freq) , 4 ~ 500MHz
Power sum NEXT Loss
dB/100m
≥ 72.3 – 15*log(freq) , 4 ~ 500MHz
ELFEXT Loss
dB/100m
≥ 68 – 20*log(freq) , 4 ~ 500MHz
Power sum ELFEXT Loss
dB/100m
≥ 65 – 20*log(freq) , 4 ~ 500MHz
Propagation Delay
ns/100m
≤ 534 + 36 / √ (Freq) , 4 ~ 500MHz
Propagation Delay Skew
ns/100m
≤ 45, 4~500MHz
Ultra Super Slim Category 6A
- Description
- LS USS-UTP Cat.6A cable a special development to support 10G networking within dense and short length environments such as data center.
It complies to ‘ANSI/TIA-568-C.2’ and ‘ISO/IEC 11801’ for channels of Max 70m or permanent links of max 60m when used in combination with LS Simple Cat.6A connectors and patch cord.
LS USS-UTP Cat.6A cable also complies to ‘Work Area CAT6A wiring performance according to IEC 61156-6 Ed.3’ Data center copper channel usage survey shows 70m channel length covers almost 100% and 60m permanent link lengths covers 99% of today’s 10G applications.
The cable can support max. 60m permanent link and max 70m channel by 26AWG solid copper conductors and smaller cable outer diameter (nominal 5.8mm(0.23in)) allows space saving when installed in bundle.
LS USS-UTP Cat.6A cable’s smaller cable outer diameter meets the customer’s high density installation of cable needs
- Part Lists
Description
Part Number
USS Category 6A U/UTP 4Pair CMX
UTP-A-C6G-E1VL-X 26AWGx004P/xx
USS Category 6 A U/UTP 4Pair CM
UTP-A-C6G-E1VL-M 26AWGx004P/xx
USS Category 6 A U/UTP 4Pair CMR
UTP-A-C6G-E1VL-R 26AWGx004P/xx
USS Category 6 A U/UTP 4Pair LSZH 332-1
UTP-A-C6G-E1ZL-X 26AWGx004P/xx
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16 Mbps Token Ring (IEEE 802.5) up to 70m
· 10/100/1000/10G BASE-T (IEEE 802.3) up to 70m
· 155 Mbps ATM up to 70m
· 100Mbps TP-PMD up to 70m
· ISDN, ADSL
- Technical Details
Characteristics
units
Specification
DC Resistance
Ω/100m
≤ 14.8
DC Resistance Unbalance
%
≤ 2.00
Capacitance Unbalance
(Pair to Ground)
pF/100m
(800~1000Hz)
≤ 1600
Insulation Resistance
MΩ-100m
≥ 5000
Dielectric Strength
DC kV/sec
2.5 / 2
Impedance
(Characteristic mean)
Ω
100 ± 5% (at 100MHz)
Return Loss
dB/100m
≥ 20 + 5 * log(freq) , 4 ≤ f ＜ 10MHz
≥ 25 , 10 ≤ f ＜ 20MHz
≥ 25 – 8.6* log(freq/20) , 20 ≤ f ≤ 500MHz
Attenuation
(Insertion Loss)
dB/100m
≤ 2.73*√(freq) + 0.0136*(freq) + 0.375/√(freq)
, 4 ~ 500 MHz
NEXT Loss
dB/100m
≥ 75.3 – 15*log(freq) , 4 ~ 500MHz
Power sum NEXT Loss
dB/100m
≥ 72.3 – 15*log(freq) , 4 ~ 500MHz
ACRF Loss
dB/100m
≥ 68 – 20*log(freq) , 4 ~ 500MHz
Power sum ACRF Loss
dB/100m
≥ 65 – 20*log(freq) , 4 ~ 500MHz
Power sum Alien NEXT Loss
dB/100m
≥ 92.5 – 15*log(freq) , Max. 67, 4 ~ 500MHz
Power sum Alien ACRF Loss
dB/100m
≥ 78.2 – 20*log(freq) , Max. 67, 4 ~ 500MHz
Propagation Delay
ns/100m
≤ 534 + 36 / √ (Freq) , 4 ~ 500MHz
Propagation Delay Skew
ns/100m
≤ 45 , 4 ~ 500MHz
Super Slim Category 6A (6.8mm)
- Description
- · Cable diameter: 6.8mm, World-smallest Category 6A cable diameter
· UL Listed(CMR) & ETL 6-connection Channel Verified
· Capable of handling full broadband and baseband video signals
· High flame retardant grade of the cable (Riser Cable)
· Comply with ANSI/TIA-568-C.2
· Specialized print legend contains footage or metric or dual marking
· Wooden reel packaging, so wire pulls through reel for easy access
· Superior alien crosstalk performance
· RoHS compliant
· Qualifies for the LS 25-year extended Product Warranty and Applications Assurance
when included as part of a registered LS Category 6A Channel
- Part Lists
Description
Part Number
Category 6A U/UTP 4Pair CMX
UTP-A-C6G-E1VF-X 0.5X004P/xx
Category 6 A U/UTP 4Pair CM
UTP-A-C6G-E1VF-M 0.5X004P/xx
Category 6 A U/UTP 4Pair CMR
UTP-A-C6G-E1VF-R 0.5X004P/xx
Category 6 A U/UTP 4Pair LSZH 60332-1
UTP-A-C6G-E1ZF-X 0.5X004P/xx
Category 6 A U/UTP 4Pair LSZH 60332-3-22 & 24
UTP-A-C6G-E1ZF-M 0.5X004P/xx
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000/10G BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
· ATM LAN 1.2G
- Technical Details
Characteristics
units
Specification
DC Resistance
Ω/100m
≤ 9.38
DC Resistance Unbalance
%
≤ 5.00
Mutual Capacitance
nF/100m
≤ 5.60
Capacitance Unbalance
(Pair to Ground)
pF/100m
≤ 330
Insulation Resistance
MΩ-100m
≥ 500
Dielectric Strength
DC kV/sec
2.5 / 2
Impedance
(Characteristic mean)
Ω
100 ± 15% (1 ≤ f ≤ 500MHz)
Return Loss
dB/100m
≥ 20 + 5 * log(freq) , 1 ≤ f ＜ 10MHz
≥ 25 , 10 ≤ f ＜ 20MHz
≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 500MHz
Attenuation
(Insertion Loss)
dB/100m
≤ 1.82*√(freq) + 0.0091*(freq) + 0.25/√(freq)
, 1 ~ 500 MHz
NEXT Loss
dB/100m
≥ 44.3 – 15*log(freq/100) , 1 ~ 500MHz
Power sum NEXT Loss
dB/100m
≥ 42.3 – 15*log(freq/100) , 1 ~ 500MHz
ELFEXT Loss
dB/100m
≥ 27.8 – 20*log(freq/100) , 1 ~ 500MHz
Power sum ELFEXT Loss
dB/100m
≥ 24.8 – 20*log(freq/100) , 1 ~ 500MHz
Power sum Alien NEXT Loss
dB/100m
≥ 62.5 – 15*log(freq/100) , Max. 67, 1 ~ 500MHz
Power sum Alien ELFEXT Loss
dB/100m
≥ 38.2 – 20*log(freq/100) , Max. 67, 1 ~ 500MHz
Propagation Delay
ns/100m
≤ 534 + 36 / √ (Freq) , 1 ~ 500MHz
Propagation Delay Skew
ns/100m
≤ 45 , 1 ~ 500MHz

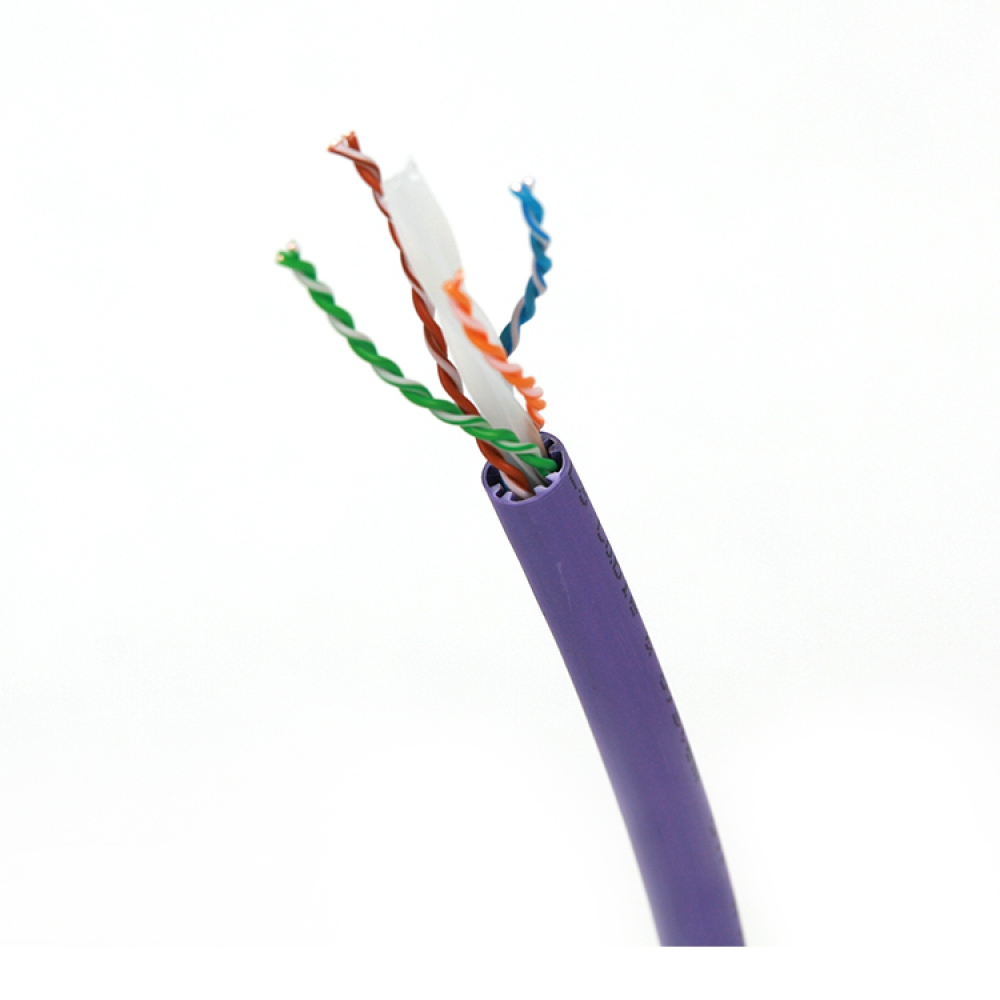

U/UTP Category 6A
- Description
- · Cable diameter: 0.354 in. (9.0mm)
· UL Listed(CMR, CMP)
· Capable of handling full broadband and baseband video signals
· High flame retardant grade of the cable (Plenum Cable)
· Comply with ANSI/TIA-568-C.2
· Specialized print legend contains footage or metric or dual marking
· Wooden reel packaging, so wire pulls through reel for easy access
· Superior alien crosstalk performance
· RoHS compliant
· Qualifies for the LS 25-year extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6A Channel
- Part Lists
Description
Part Number
Category 6A U/UTP 4Pair CMX
UTP-A-C6G-E1VI-X 0.5X004P/xx
Category 6 A U/UTP 4Pair CM
UTP-A-C6G-E1VI-M 0.5X004P/xx
Category 6 A U/UTP 4Pair CMR
UTP-A-C6G-E1VI-R 0.5X004P/xx
Category 6 A U/UTP 4Pair CMP
UTP-A-C6G-F1VI-P 0.5X004P/xx
Category 6 A U/UTP 4Pair LSZH 332-1
UTP-A-C6G-E1ZI-X 0.5X004P/xx
Category 6 A U/UTP 4Pair LSZH 332-3
UTP-A-C6G-E1ZI-M 0.5X004P/xx
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000/10G BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
· ATM LAN 1.2G
- Technical Details
Characteristics units Specification DC Resistance Ω/100m ≤ 9.38 DC Resistance Unbalance % ≤ 4.00 Mutual Capacitance nF/100m ≤ 5.60 Capacitance Unbalance
(Pair to Ground)pF/100m ≤ 330 Insulation Resistance MΩ-305m ≥ 100 Dielectric Strength DC kV/sec 2.5 / 2 Impedance
(Characteristic mean)Ω 100 ± 15% (1 ≤ f ≤ 500MHz) Return Loss dB/100m ≥ 20 + 5 * log(freq) , 1 ≤ f ＜ 10MHz
≥ 25 , 10 ≤ f ＜ 20MHz
≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 500MHzAttenuation
(Insertion Loss)dB/100m ≤ 1.82*√(freq) + 0.0091*(freq) + 0.25/√(freq)
, 1 ~ 500 MHzNEXT Loss dB/100m ≥ 44.3 – 15*log(freq/100) , 1 ~ 500MHz Power sum NEXT Loss dB/100m ≥ 42.3 – 15*log(freq/100) , 1 ~ 500MHz ELFEXT Loss dB/100m ≥ 27.8 – 20*log(freq/100) , 1 ~ 500MHz Power sum ELFEXT Loss dB/100m ≥ 24.8 – 20*log(freq/100) , 1 ~ 500MHz Power sum Alien NEXT Loss dB/100m ≥ 62.5 – 15*log(freq/100) , Max. 67, 1 ~ 500MHz Power sum Alien ELFEXT Loss dB/100m ≥ 38.2 – 20*log(freq/100) , Max. 67, 1 ~ 500MHz Propagation Delay ns/100m ≤ 534 + 36 / √ (Freq) , 1 ~ 500MHz Propagation Delay Skew ns/100m ≤ 45 , 1 ~ 500MHz Nominal Velocity of Propagation % 67
