Connectivity
Category 6 LS Simple™ Cat.6 Plus & Cat.6
■ Support maximum 1Gbit TX and high performance Category 6
■ Transmit full broadband and baseband video signals ANSI/TIA-586-C.2
■ Provides 1.2Gbit high performance transmission that complies with international standards ISO/IEC 11801 and ANSI/TIA-568-C.2 from equipment room to outlet
■ Possible to provide high speed with free extension up to 250MHz Category 6/Class E
■ Connector designed for customer convenience, cabling with high density available at outlet and equipment room
■ Shielded and unshielded solutions are supported
■ All components have high flame retardent properties
■ Support maximum 1Gbit TX and high performance Category 6
■ Transmit full broadband and baseband video signals ANSI/TIA-586-C.2
■ Provides 1.2Gbit high performance transmission that complies with international standards ISO/IEC 11801 and ANSI/TIA-568-C.2 from equipment room to outlet
■ Possible to provide high speed with free extension up to 250MHz Category 6/Class E
■ Connector designed for customer convenience, cabling with high density available at outlet and equipment room
■ Shielded and unshielded solutions are supported
■ All components have high flame retardent properties
Connectivity

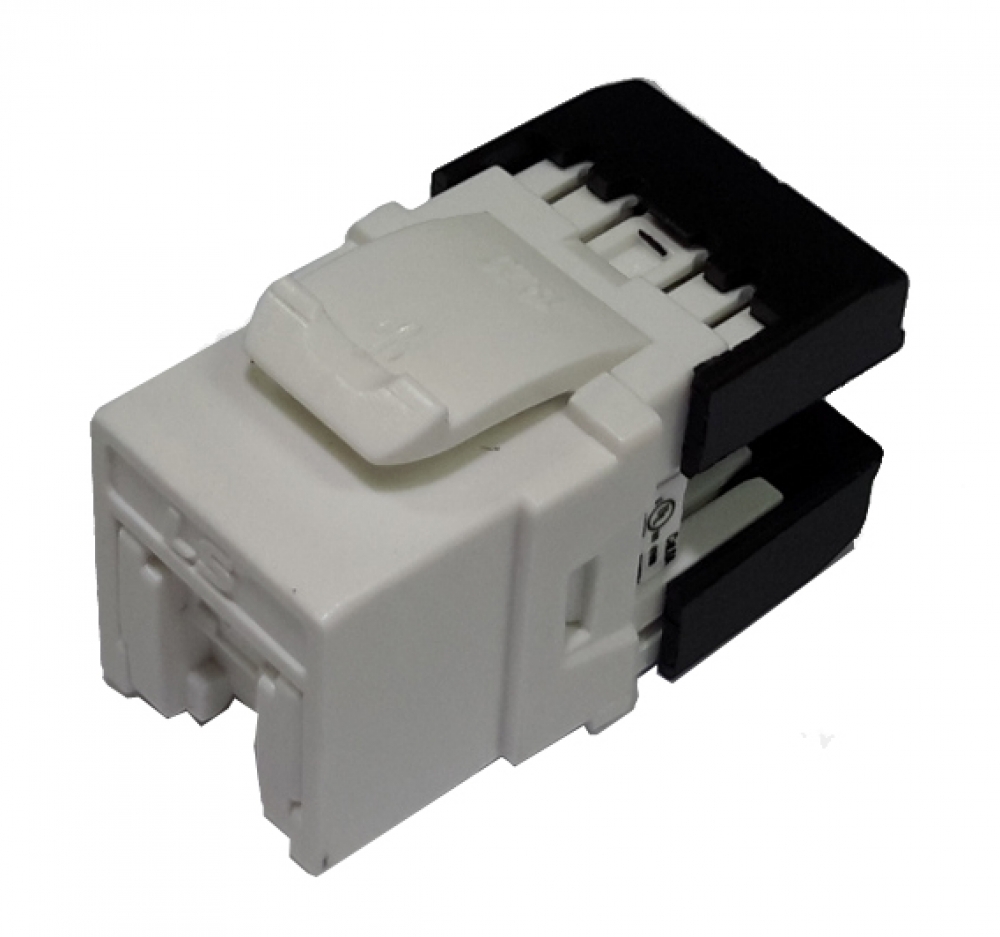

Unshielded ERI Cat.6 Door
- Description
- · LS SimpleTM Unshielded Modular Jack with Shutter door
· User instructions and basic wiring layout for standard configuration are included
· 180º slim Modular Jack
· Designed and manufactured to meet demanding of international standards
· Individually terminated using slim-IDC(Insulation Displacement Connectors)
· T568A or T568B configuration
· 47 CFR part 68 (RJ-45), ANSI/TIA-568-C.2(Category 6) and ISO/IEC 11801 compliant
· High impact flame retardant plastic housing
· Easy installation & smart cabling arrangement by dedicated termination tool
· RoHS compliant
- Part Lists
- LS-MJ-UC6-xx-ERD
- Application
- · Horizontal Distribution & backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps
· ATM LAN 1.2G
· 100Mbps TP-PMD
· ISDN, ADSL
· Analog & digital voice (VoIP) and video
· Full broadband & baseband video

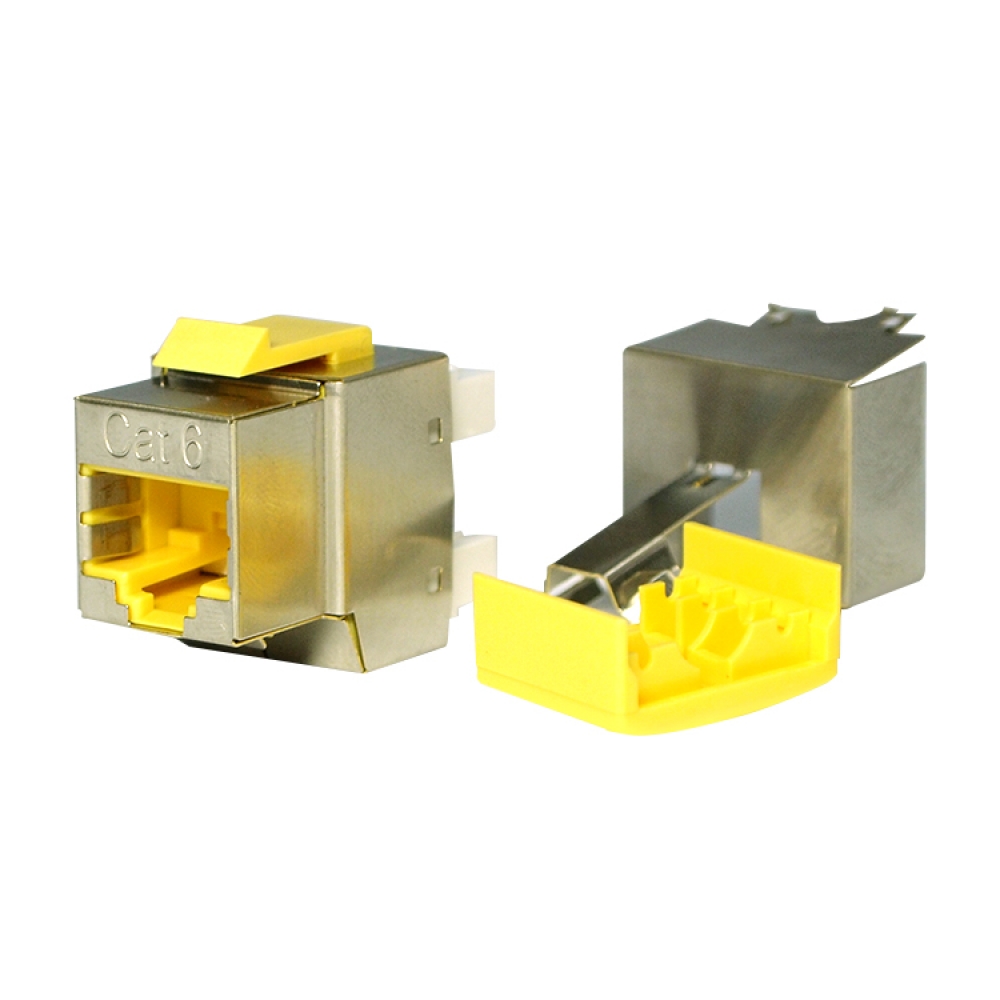

Shielded RIDC Cat.6
- Description
- · LS SimpleTM Shielded Modular Jack, Rear IDC type
· User instructions and basic wiring layout for standard configuration are included
· Designed and manufactured to meet demanding of international standards
· Individually terminated using slim-IDC(Insulation Displacement Connectors)
· T568A or T568B configuration
· 47 CFR part 68 (RJ-45), ANSI/TIA-568-C.2(Category 6) and ISO/IEC 11801 compliant
· High impact flame retardant plastic housing
· Easy installation & smart cabling arrangement by dedicated termination tool
· RoHS compliant
- Part Lists
- LS-MJ-SC6-RIDC
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16 Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps
· 100Mbps TP-PMD
· ATM LAN 1.2G
· ISDN, ADSL
· Analog & Digital voice (VoIP) and video
· Full broadband and baseband video

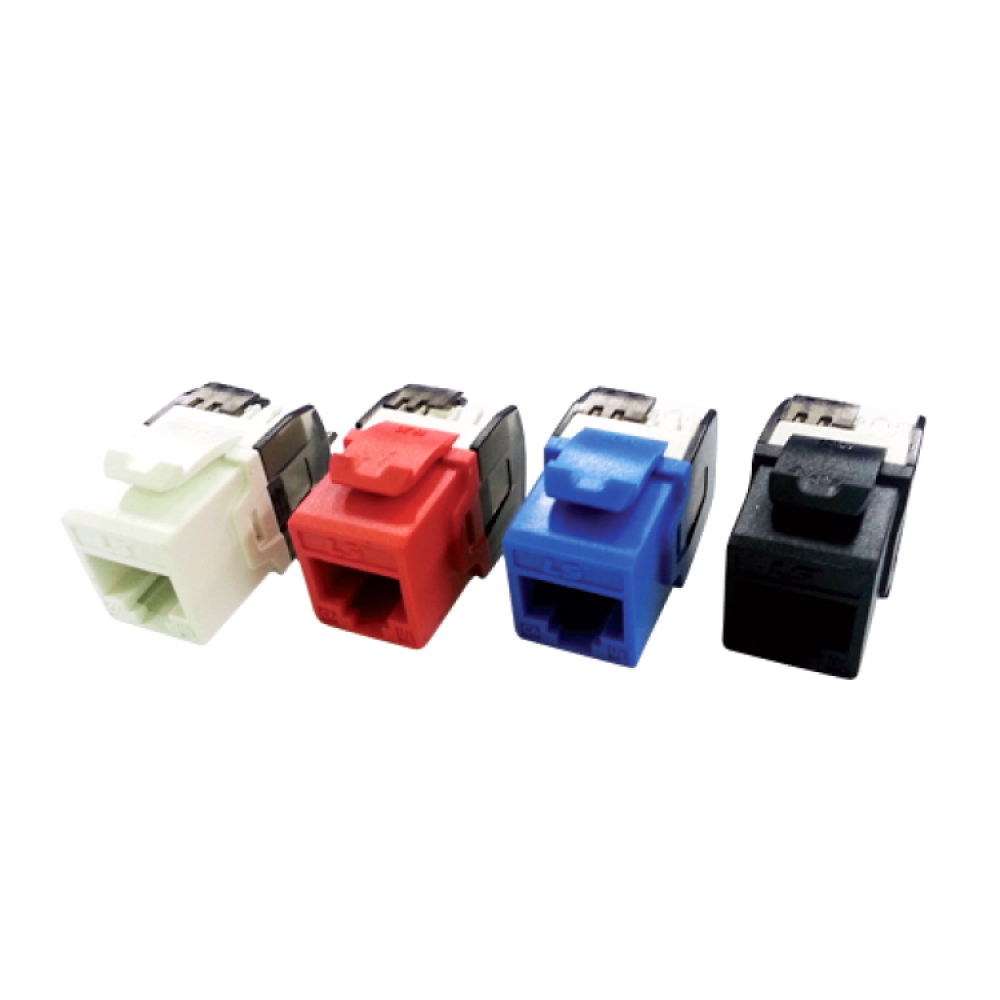

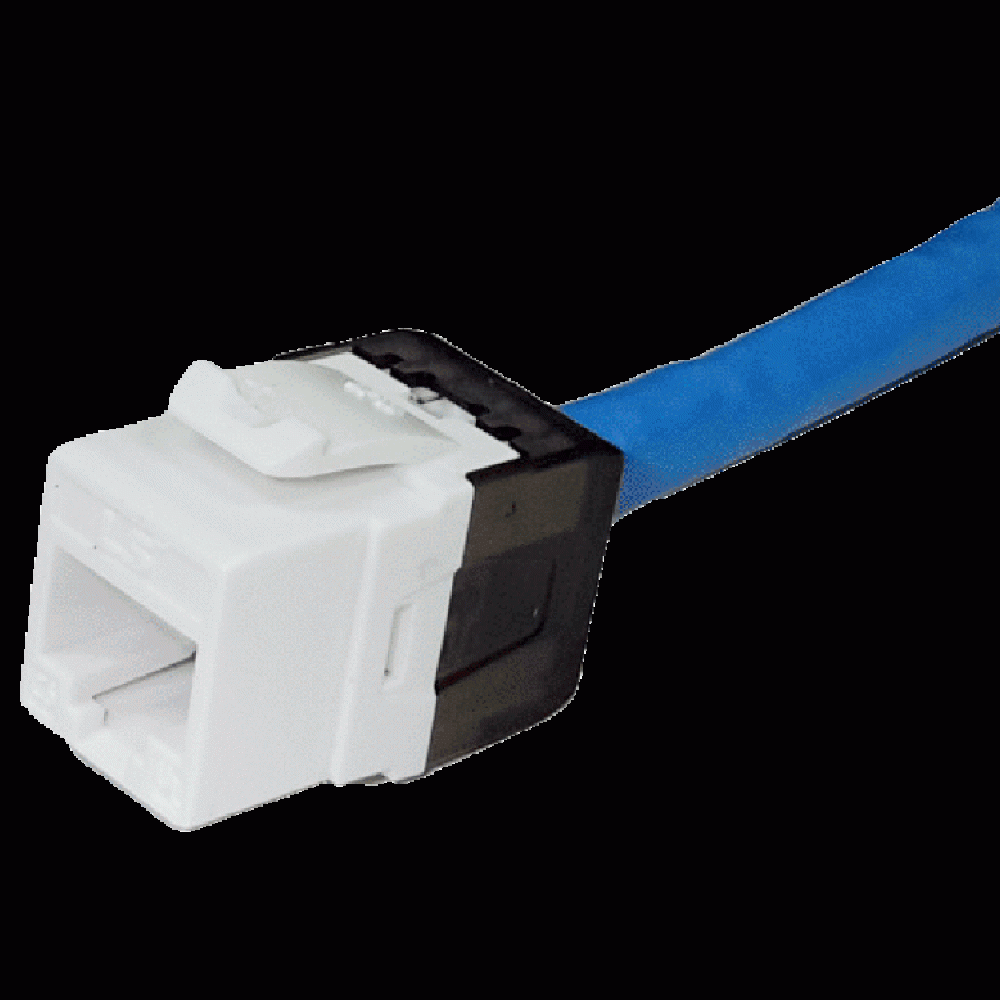

Unshielded ERI Cat.6 Slim
- Description
- · LS SimpleTM Unshielded Modular Jack
· User instructions and basic wiring layout for standard configuration are included
· 180º slim Modular Jack
· Designed and manufactured to meet demanding of international standards
· Individually terminated using slim-IDC(Insulation Displacement Connectors)
· T568A or T568B configuration
· 47 CFR part 68 (RJ-45), ANSI/TIA-568-C.2(Category 6) and ISO/IEC 11801 compliant
· High impact flame retardant plastic housing
· Easy installation & smart cabling arrangement by dedicated termination tool
· RoHS compliant
- Part Lists
- LS-MJ-UC6-xx-ERI
- Application
- · Horizontal Distribution & backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps
· ATM LAN 1.2G
· 100Mbps TP-PMD
· ISDN, ADSL
· Analog & digital voice (VoIP) and video
· Full broadband & baseband video
