Category 5e LS Simple™ Cat.5e 4&25 Pair Cable, Solution
■ Supports Fast Ethernet, Gigabit Ethernet, 155 Mb/s, Multimedia
■ All accepted design for global commercial network installation
■ Qualifies for LS 25-Year Extended Product Warranty and Applications Assurance when included as part of a registered LS Category 5e Channel
■ Electrical perfomance complies with ANSI/TIA-586-C.2
■ RoHS Compliant
■ Simplified structured cabling solution preserving long-term network investment
■ Supports Fast Ethernet, Gigabit Ethernet, 155 Mb/s, Multimedia
■ All accepted design for global commercial network installation
■ Qualifies for LS 25-Year Extended Product Warranty and Applications Assurance when included as part of a registered LS Category 5e Channel
■ Electrical perfomance complies with ANSI/TIA-586-C.2
■ RoHS Compliant
■ Simplified structured cabling solution preserving long-term network investment
Connectivity

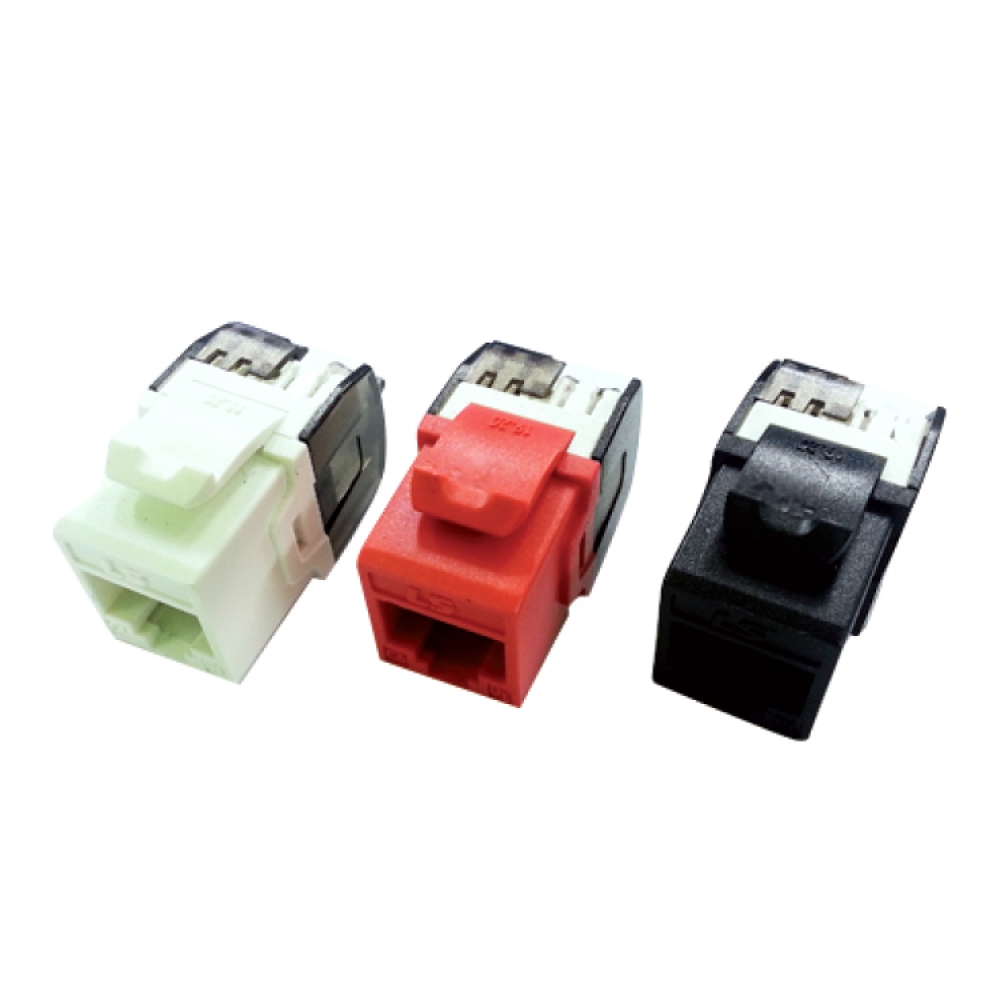

Unshielded ERI Cat.5e Door
- Description
- · LS SimpleTM Unshielded Modular Jack with Shutter door
· User instructions and basic wiring layout for standard configuration are included
· 180º slim Modular Jack
· Designed and manufactured to meet demanding of international standards
· Individually terminated using slim-IDC(Insulation Displacement Connectors)
· T568A or T568B configuration
· 47 CFR part 68 (RJ-45), ANSI/TIA-568-C.2(Category 5E) and ISO/IEC 11801 compliant
· High impact flame retardant plastic housing
· Easy installation & smart cabling arrangement by dedicated termination tool
· RoHS compliant
- Part Lists
- LS-MJ-UC5E-xx-ERD
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16 Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps
· 100Mbps TP-PMD
· ISDN, ADSL
· Analog & Digital voice (VoIP) and video
· Full broadband and baseband video

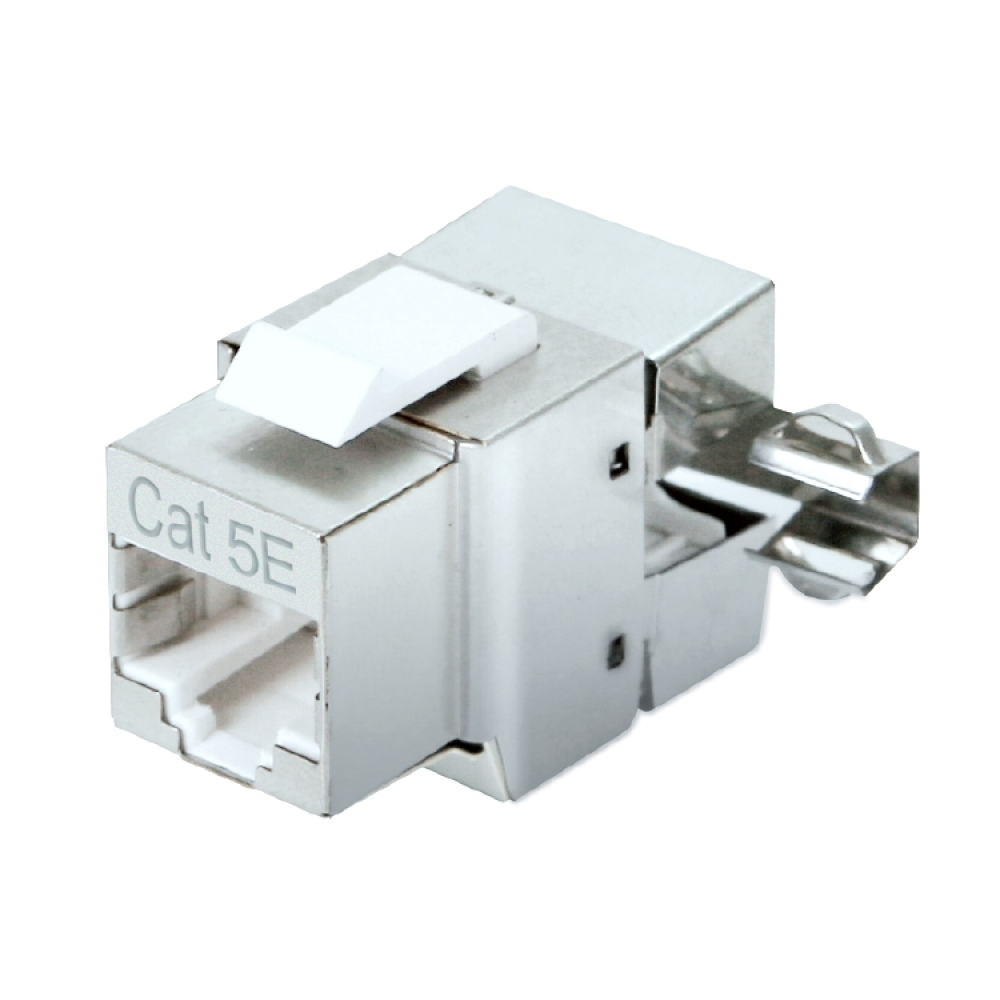

Shielded RIDC Cat.5e
- Description
- · LS SimpleTM Shielded Modular Jack, Rear IDC type
· User instructions and basic wiring layout for standard configuration are included
· Designed and manufactured to meet demanding of international standards
· Individually terminated using slim-IDC(Insulation Displacement Connectors)
· T568A or T568B configuration
· 47 CFR part 68 (RJ-45), ANSI/TIA-568-C.2(Category 5E) and ISO/IEC 11801 compliant
· High impact flame retardant plastic housing
· Easy installation & smart cabling arrangement by dedicated termination tool
· RoHS compliant
- Part Lists
- LS-MJ-SC5E-RIDC
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16 Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps
· 100Mbps TP-PMD
· ISDN, ADSL
· Analog & Digital voice (VoIP) and video
· Full broadband and baseband video

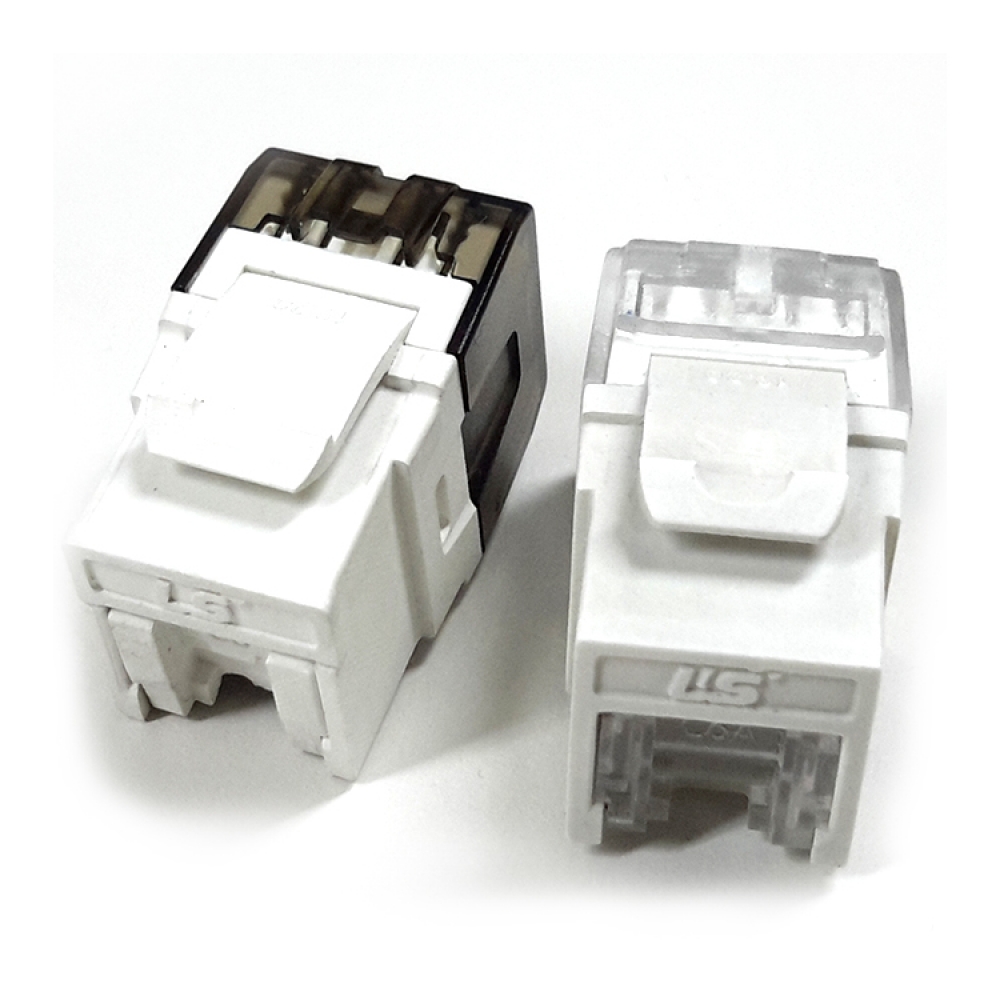

Unshielded ERI Cat.5e Slim
- Description
- · LS SimpleTM Unshielded Modular Jack
· User instructions and basic wiring layout for standard configuration are included
· 180º slim Modular Jack
· Designed and manufactured to meet demanding of international standards
· Individually terminated using slim-IDC(Insulation Displacement Connectors)
· T568A or T568B configuration
· 47 CFR part 68 (RJ-45), ANSI/TIA-568-C.2(Category 5E) and ISO/IEC 11801 compliant
· High impact flame retardant plastic housing
· Easy installation & smart cabling arrangement by dedicated termination tool
· RoHS compliant
- Part Lists
- LS-MJ-UC5E-xx-ERI
- Application
- · Horizontal Distribution & backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps
· 100Mbps TP-PMD
· ISDN, ADSL
· Analog & digital voice (VoIP) and video
· Full broadband & baseband video
