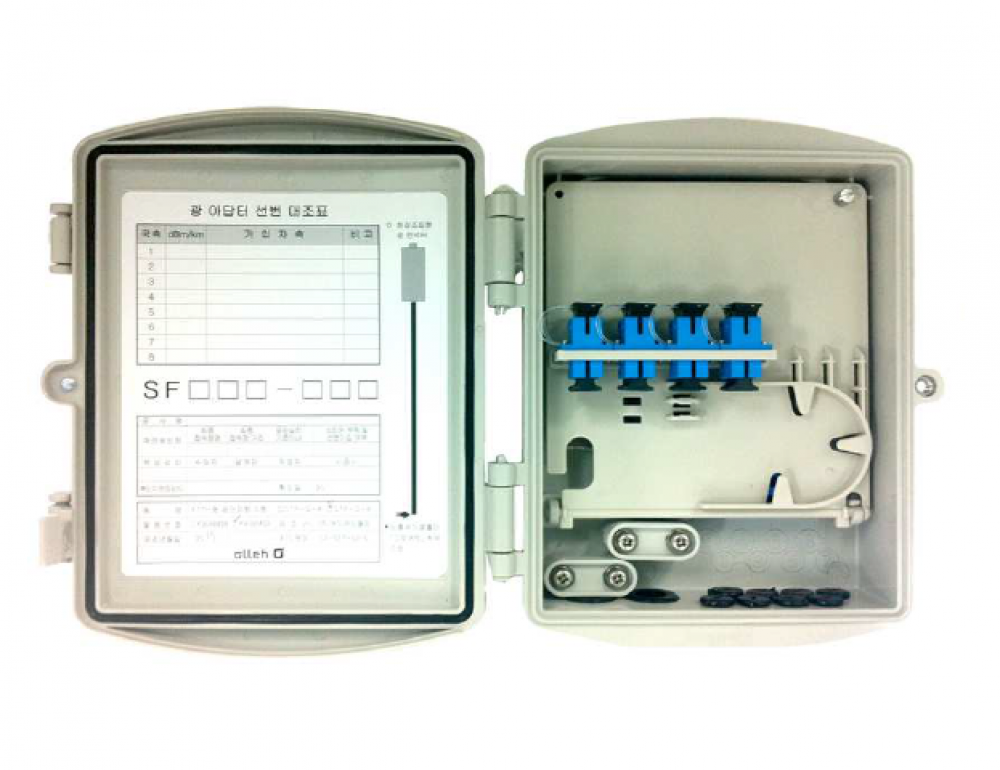

Fiber Termination Box

Description

This product is designed to manage fiber connections and fiber splices with ease of maintenance for installers.
It allows easy expansion of lines for subscribers. It is suited for pole or wall application.


Basic type, Outdoor (Pole, Wall) application, IP 65

Managing up to LC 8-core connections (FO Cable O.D. : Φ3)

Easy expansion of lines and maintenance

Built-in fiber splice tray

Mid-span access option

Allowing both fusion and mechanical splices

Part Number

.LS-FTB-LC-8C

Learn more

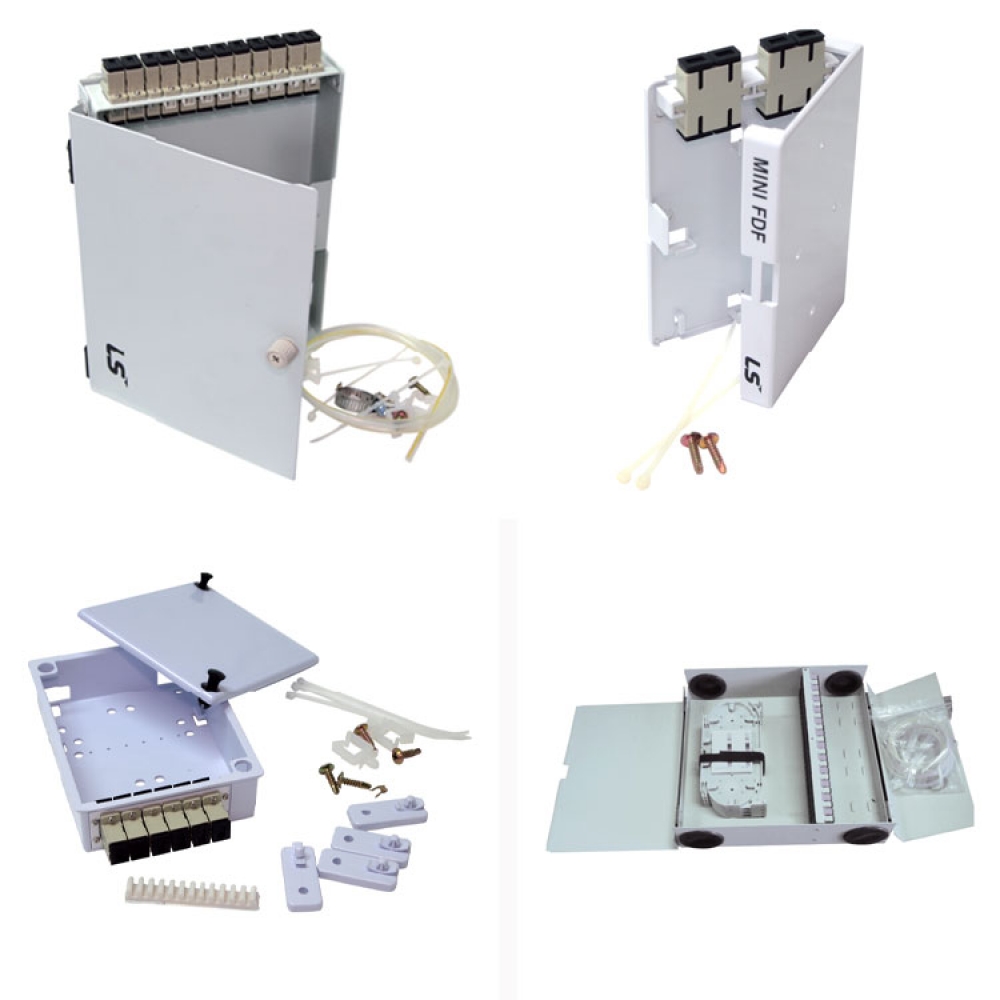

Mini Wall mount FDF

Description

LS Simple™ Mini Wall Mount Fiber Distribution Frame come complete with fiber cable wire management, tray, accessories and fulll installation instructions.
LS Simple™ MW FDF can be installed in narrow space where 19" racks couldn't be placed on.

Part Lists

. LS-FDF-SC-SM(MM)-C-004-DP-MTV (Vertical Mini FDF 4-Cores SC type Duplex)
. LS-FDF-SC-SM(MM)-C-006-SP-MTC (Plate Mini FDF 6-Cores SC type Simplex with cover)
. LS-FDF-LC-SM(MM)-C-008-DP-MTC (Plate Mini FDF 8-Cores LC type Duplex with cover)
. LS-FDF-SC-SM(MM)-C-008-SP-MW (Mini wall mount FDF 8-cores SC type Simplex)
. LS-FDF-SC-SM(MM)-C-012-SP-MW (Mini wall mount FDF 12-cores SC type Simplex)

Application

. Telecommunication network
. Horizontal distribution systems
. Local Area Networks
. CATV systems
. LAN and WAN (IEEE 802.3ba, 100BASE-FX, 10GBASE-LX4, 10GBASE-ER/EW, 40GBASE-LR4, 100GBASE-ER4 etc.)

Learn more

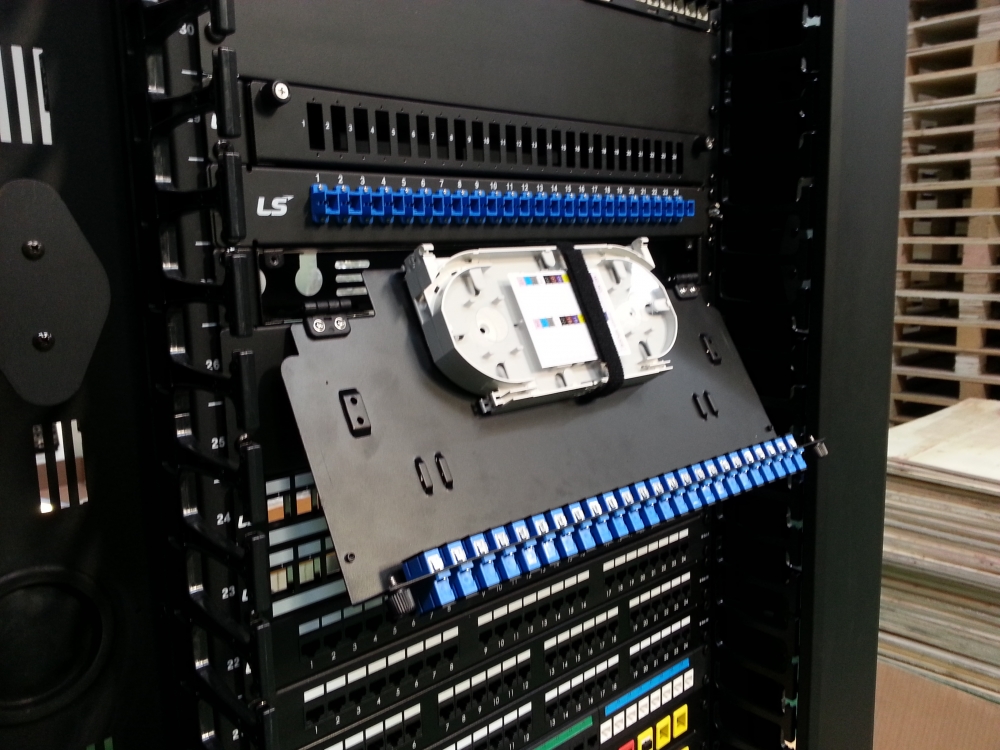

Assembled type FDF

Description

LS Simple™ assembled type FDF
. Included fiber cable wire management, tray, accessories & installation guide
. Mounted in 19" rack
. Outer, Inner & Swing type
. FDF Capacity
- LC Duplex (48-core), SC Simplex (24-core), SC Duplex (48-core), ST Simplex (24-core)

Application

. Telecommunication network
. Data center systems
. LAN and WAN (IEEE 802.3ba, 100 BASE-FX, 10G BASE-LX4, 10G BASE-ER/EW, 40G BASE-LR4, 100G BASE-ER4 etc.)

Technical

. Designed and manufactured to fully meet the below international stadnard
  ANSI/TIA-568-C.1, ANSI/TIA-568-C.3, ANSI/TIA/EIA-604, IEC 61754, IEC 61300
. Connector Insertion Loss ≤ 0.5dB
  (c.f. ANSI/TIA-568-C.3 standard : ≤ 0.75dB)
. Material : Steel (SCP-1 1.2T/1.0T [Inner type])

Learn more

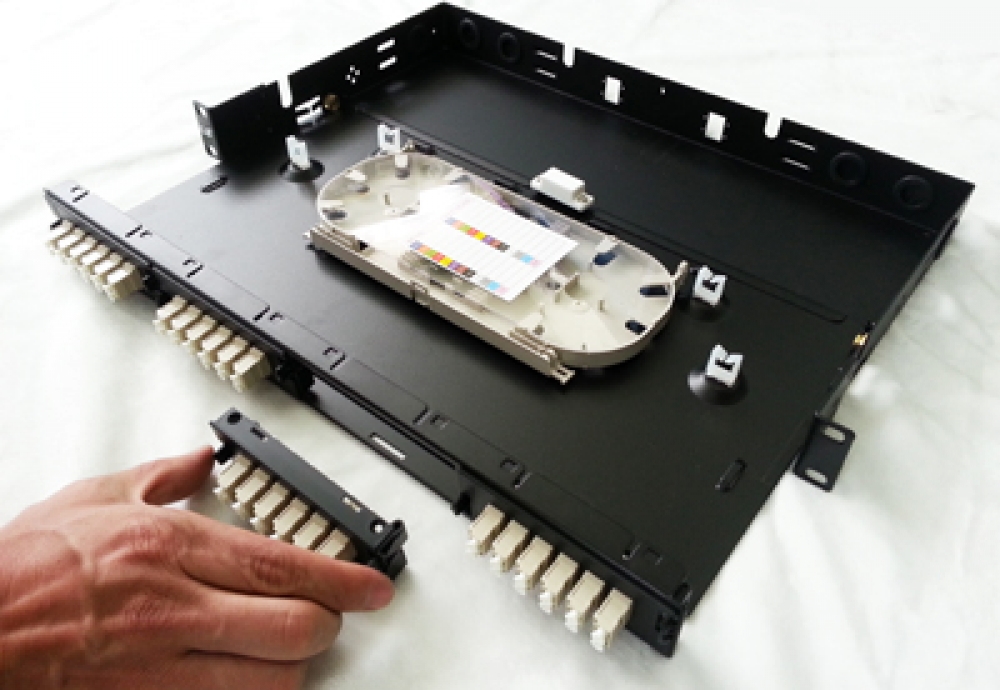

Individual fiber adaptor type Slide FDF

Description

LS Simple™ Individual adaptor type Slide FDF
. 1U Fiber Distribution Frame
. Mountable on 19-inch standard rack
. Empty type FDF for mounting SC, LC, ST adaptor
. Hinged drawer for convenient splicing
. Compatible with gland 13.5mm & 16mm
. Convenient installation & maintenance on rack status

Part Lists

. LS-FDF-LC-EP-048-H (FDF, 1U Empty enclosing body, 24 entry holes for LC Hinged Slide type)
. LS-FDF-SC-EP-048-H (FDF, 1U Empty enclosing body, 24 entry holes for SC Hinged Slide type)
. LS-FDF-ST-EP-024-H (FDF, 1U Empty enclosing body, 24 entry holes for ST Hinged Slide type)
. LS-FDF-LC-EP-048-DI-135160 (FDF 1U, Empty enclosing body, 24 entry holes for LC Slide type)
. LS-FDF-SC-EP-048-DI-135160 (FDF 1U, Empty enclosing body, 24 entry holes for SC Slide type)
. LS-FDF-ST-EP-024-DI-135160 (FDF 1U, Empty enclosing body, 24 entry holes for ST Slide type)

Application

. Telecommunication network
. Data center systems
. LAN and WAN (IEEE 802.3ba, 100 BASE-FX, 10G BASE-LX4, 10G BASE-ER/EW, 40G BASE-LR4, 100G BASE-ER4 etc.)

Learn more

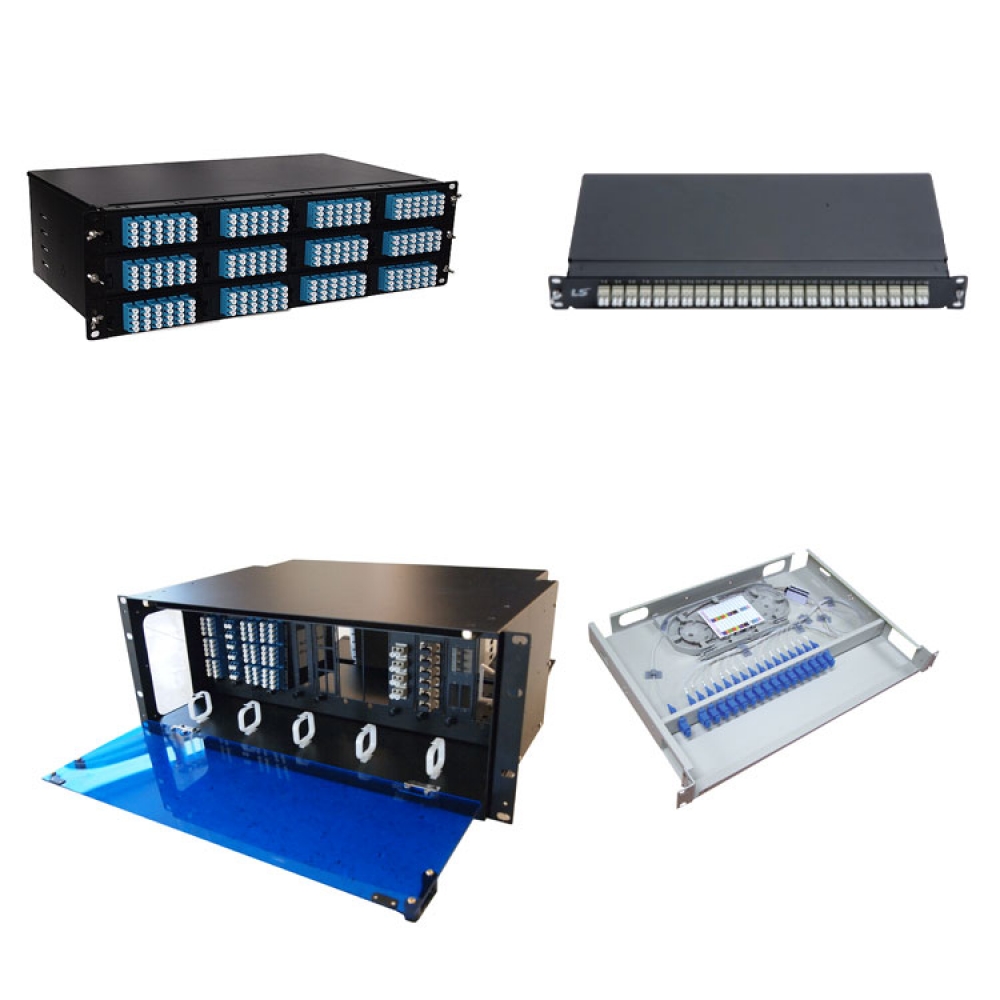

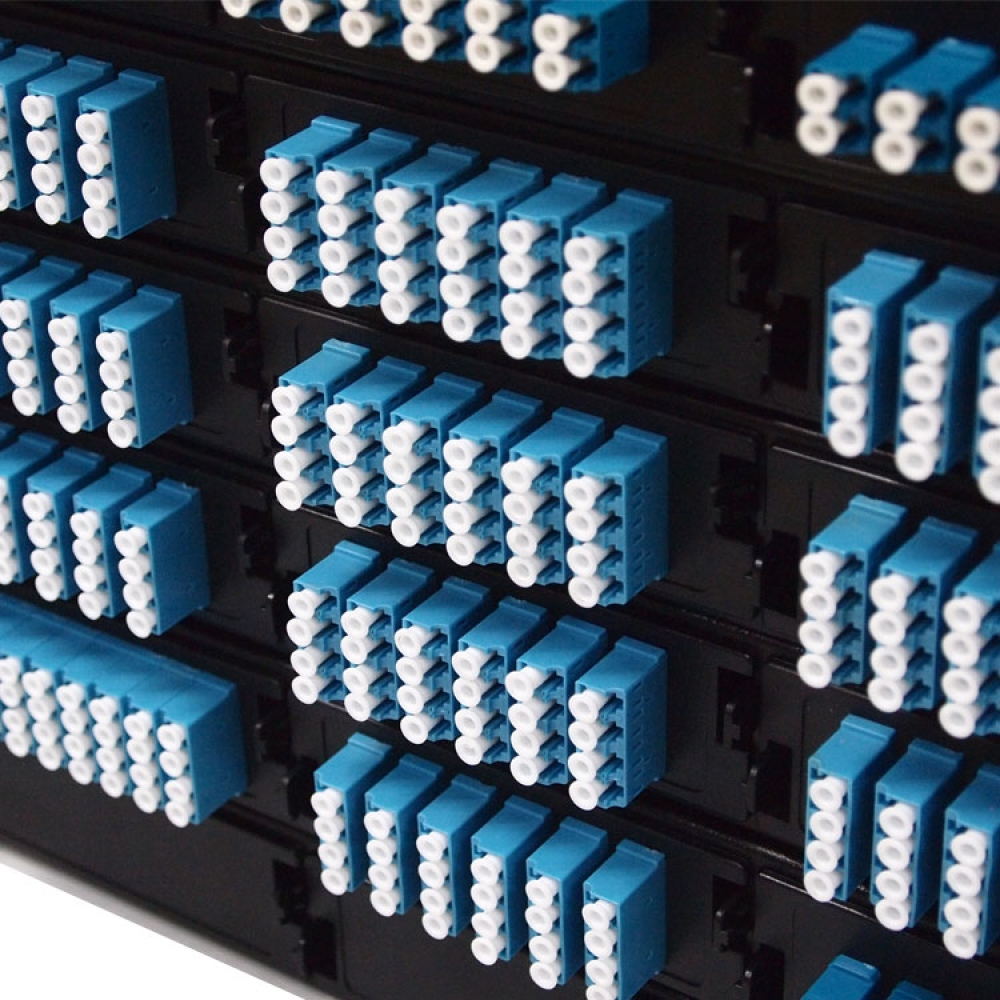

Multi-Connection module type FDF

Description

LS Simple™ Multi-connection module type FDFs fully comply with the requirements set out TIA 19" rack type.
It holds the 4 FDM (Fiber Distribution adaptor Module) or 4 MCF (Multi-Connection fiber Frame) or
4 MCM (Multi-Connection MPO/MTP Cassettes) which are configured with fiber optic adaptors or blank.
It's possible to configure the system according to needs and special site environments with LS dedicated slim module.

☞ Manageable & Flexible
    4 module type configuration in 1RU
    Customized system configuration by either FDM or MCF
☞ Easy Install
    Detachable structure in front of rack
    Slim design for easy handling
☞ High Density
    Possible to splice Max. LC 36-core by using Splicing Fixture in Cassette
    High-Density system configuration in Data Center etc.
☞ Reliable
- Support pre-terminated solution with low-loss MTP (Max. 0.35dB) for quality assurance

Part Lists

Empty Closure		Front Panel	Module	Splicing Tray	Gland (Optional)
Outer type LS-FDF-1U-EP-O LS-FDF-2U-EP-O LS-FDF-3U-EP-O LS-FDF-4U-EP-O	Individual Adaptor type	LS-FDP-BK-012-SCSP-W LS-FDP-BK-024-SCSP-W	LS-FA-SC-MM-C-1-BG-W LS-FA-SC-SM-C-1-BL-W	LS-SPTR-024 LS-SPTR-048	LS-GLAND-D13.5 LS-GLAND-D16
		LS-FDP-BK-024-SCDP-W LS-FDP-BK-048-SCDP-W	LS-FA-SC-MM-C-2-BG-W LS-FA-SC-SM-C-2-BL-W
		LS-FDP-BK-024-LCDP-WO LS-FDP-BK-048-LCDP-WO	LS-FA-LC-MM-C-2-BG-WO LS-FA-LC-SM-C-2-BL-WO
		LS-FDP-BK-012-STSP-W LS-FDP-BK-024-STSP-W	LS-FA-ST-MM-C-1 LS-FA-ST-SM-C-1
	Module Adaptor type	LS-FDP-BK-4M	LS-FDM-SC-SP-06-xx LS-FDM-SC-DP-12-xx LS-FDM-SC-DP-18-xx LS-FDM-LC-DP-12-xx LS-FDM-LC-4M-24-xx LS-FDM-LC-4M-36-xx LS-FDM-BLK	LS-SPTR-024 LS-SPTR-048	LS-GLAND-D13.5 LS-GLAND-D16
	Cassette Module type	LS-FDP-BK-4M	LS-MCF-SC-SP-06-xx LS-MCF-SC-DP-12-xx LS-MCF-SC-DP-18-xx LS-MCF-LC-DP-12-xx LS-MCF-LC-4M-24-xx LS-MCF-LC-4M-36-xx LS-MCF-BLK	No needed	No needed



Closure		Module	Splicing Tray	Gland (Optional)
Drawer type LS-FDF-MC1U-EP4M-D (Closure + Front Panel All-in-one type)	Module Adaptor type	LS-FDM-SC-SP-06-xx LS-FDM-SC-DP-12-xx LS-FDM-SC-DP-18-xx LS-FDM-LC-DP-12-xx LS-FDM-LC-4M-24-xx LS-FDM-LC-4M-36-xx LS-FDM-BLK	LS-SPTR-024 LS-SPTR-048	LS-GLAND-D13.5 LS-GLAND-D16
	Cassette Module type	LS-MCF-SC-SP-06-xx LS-MCF-SC-DP-12-xx LS-MCF-SC-DP-18-xx LS-MCF-LC-DP-12-xx LS-MCF-LC-4M-24-xx LS-MCF-LC-4M-36-xx LS-MCF-BLK	No needed	No needed

System Configuration

Technical Detail & Application

. Multi-connection module type FDF
. LC, SC, ST Connector Insertion Loss ≤ 0.5dB
. Material : Steel (SCP-1 1.2T) & PC
. 19-inch rack mountable 1U~4U etc.
. Telecommunication network
. Data center systems
. LAN and WAN (IEEE 802.3ba, 100 BASE-FX, 10G BASE-LX4, 10G BASE-ER/EW, 40G BASE-LR4, 100G BASE-ER4 etc.)
