Fiber Distribution Frame
LS Simple™ MPO/MTP non-closure type Fiber Distribution Frame is case which is installed for MPO/MTP cassette module and MPO/MTP to MPO/MTP cross-connection adaptor panels.
This is installed on the international standard (ETSI 19*) equipment rack or cabinet rack. also hybrid configuration with copper pre-terminated cabling is possible.
This is installed on the international standard (ETSI 19*) equipment rack or cabinet rack. also hybrid configuration with copper pre-terminated cabling is possible.
Fiber Distribution Frame
Cassette Module (MCM)
- Description

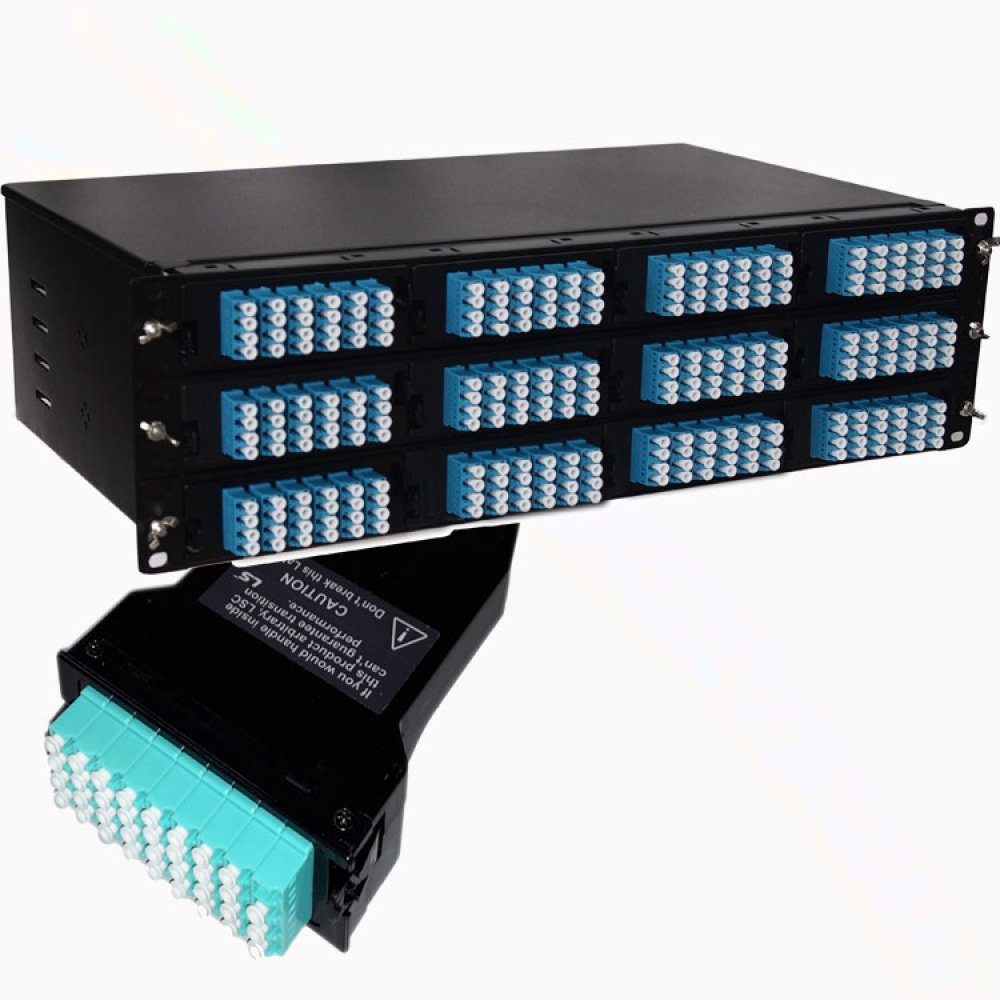

- The MPO/MTP Cassette Modules are installed with terminated MPO/MTP trunk cables and patch cords. The cassette includes the plastic case, adaptor plate, MPO/MTP fan-out cord and other necessary materials for the arrangement of optical fiber cables.
It is installed on LS Simple Fast-NetTM Empty Panel(PPP-) and Modular FDF.
They are pre-terminated and pre-tested in the factory with MPO/MTP fan-out cords, which guarantee the high performances.
- Part Lists
- . LS-MCM-SC-DP-12-xx (SC Duplex 12-core to 1 MTP Pre-term. Cassette)
. LS-MCM-LC-DP-12-xx (LC Duplex 12-core to 1 MTP Pre-term. Cassette)
. LS-MCM-LC-4M-24-xx (LC Quad 24-core to 2 MTP Pre-term. Cassette)
. LS-MCM-LC-4M-36-xx (LC Quad 36-core to 3 MTP Pre-temr. Cassette)
. LS-MCM-MCC6 (MPO/MTP Adaptor Panel, 6-ports, cross-connection)
- Application
- . Telecommunication network, Data Center
. Data Processing Systems
. LAN and WAN (IEEE 802.3ba, 100BASE-FX, 10GBASE-LX4, 10GBASE-ER/EW, 40GBASE-LR4, 100GBASE-ER4 etc.)
. Fiber Optic Test & Measurement System
Non-Closure type FDF - PPP type panel
- Description
- LS Simple™ MPO/MTP non-closure type Fiber Distribution Frame is case which is installed for MPO/MTP cassette module and MPO/MTP to MPO/MTP cross-connection adaptor panels.
This is installed on the international standard (ETSI 19*) equipment rack or cabinet rack. also hybrid configuration with copper pre-terminated cabling is possible.
- Part Lists
- . LS-PPP-UC-24P-EP4-WM-C (Fast-Net™ Unshielded 24-port 4-entry Patch Panel without plastic module)
. LS-PPP-SC-24P-EP4-WM-C (Fast-Net™ Shielded 24-port 4-entry Patch Panel without plastic module)
. LS-APP-UC-24P-EP4-WM-C (Fast-Net™ Angled Unshielded 24-port 4-entry Patch Panel without plastic module)
. LS-APP-SC-24P-EP4-WM-C (Fast-Net™ Angled Shielded 24-port 4-entry Patch Panel without plastic module)
. LS-MCM-SC-DP-12-xx (SC Duplex 12-core to 1 MTP Pre-term. Cassette)
. LS-MCM-LC-DP-12-xx (LC Duplex 12-core to 1 MTP Pre-term. Cassette)
. LS-MCM-LC-4M-24-xx (LC Quad 24-core to 2 MTP Pre-term. Cassette)
. LS-MCM-LC-4M-36-xx (LC Quad 36-core to 3 MTP Pre-temr. Cassette)
. LS-MCM-MCC6 (MPO/MTP Adaptor Panel, 6-ports, cross-connection)
- Application
- . Telecommunication network, Data Center
. Data Processing Systems
. LAN and WAN (IEEE 802.3ba, 100BASE-FX, 10GBASE-LX4, 10GBASE-ER/EW, 40GBASE-LR4, 100GBASE-ER4 etc.)
. Fiber Optic Test & Measurement System
Closure type FDF
- Description

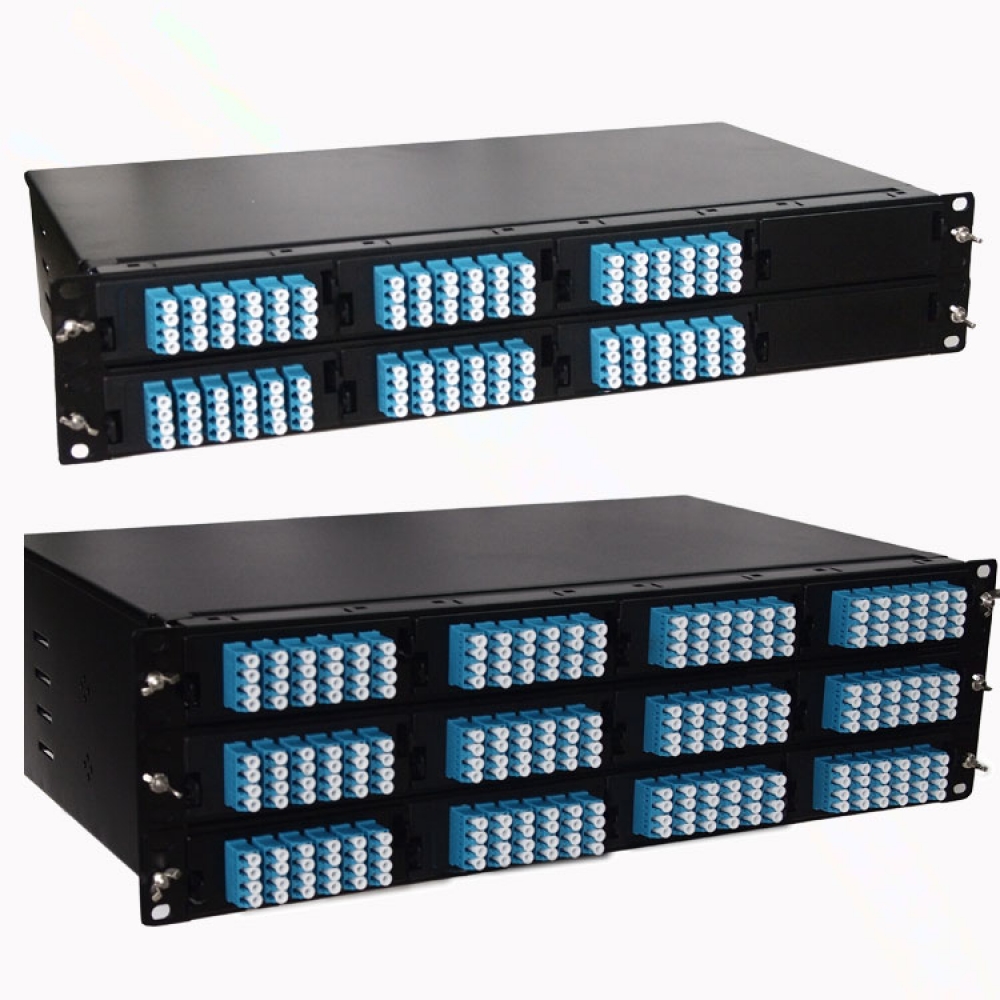

- LS Simple™ MPO/MTP Fiber Distribution Frame is case which is installed for MPO/MTP cassette modules and MPO/MTP adapter panels. This product includes the metallic case,
cable protective guide, cable management and other necessary materials to array MPO/MTP cable.
The MPO/MTP Modular Panel is installed on the international standard (ETSI 19*) equipment rack or cabinet rack.
- Part Lists
- . LS-FDF-MC1U-EP4M-O (MPO/MTP Empty Modular Panel, 4 Module Outer type (LS-FDF-1U-EP-O + LS-FDP-BK-4M)
. LS-FDF-MC1U-EP4M-D (MPO/MTP Empty Modular Panel, 4 Module Drawer type (LS-FDF-1U-EP-D + LS-FDP-BK-4M)
. LS-FDF-MC2U-EP8M-O (MPO/MTP Empty Modular Panel, 8 Module Outer type (LS-FDF-2U-EP-O + 2pcs LS-LS-FDP-BK-4M)
. LS-FDF-MC3U-EP12M-O (MPO/MTP Empty Modular Panel, 12 Module Outer type (LS-FDF-3U-EP-O + 3pcs LS-FDP-BK-4M)
. LS-FDF-MC4U-EP16M-O (MPO/MTP Empty Modular Panel, 16 Module Outer type (LS-FDF-4U-EP-O + 4pcs LS-FDP-BK-4M)
- Application
- . Telecommunication network, Data Center
. Data Processing Systems
. LAN and WAN (IEEE 802.3ba, 100BASE-FX, 10GBASE-LX4, 10GBASE-ER/EW, 40GBASE-LR4, 100GBASE-ER4 etc.)
. Fiber Optic Test & Measurement System
