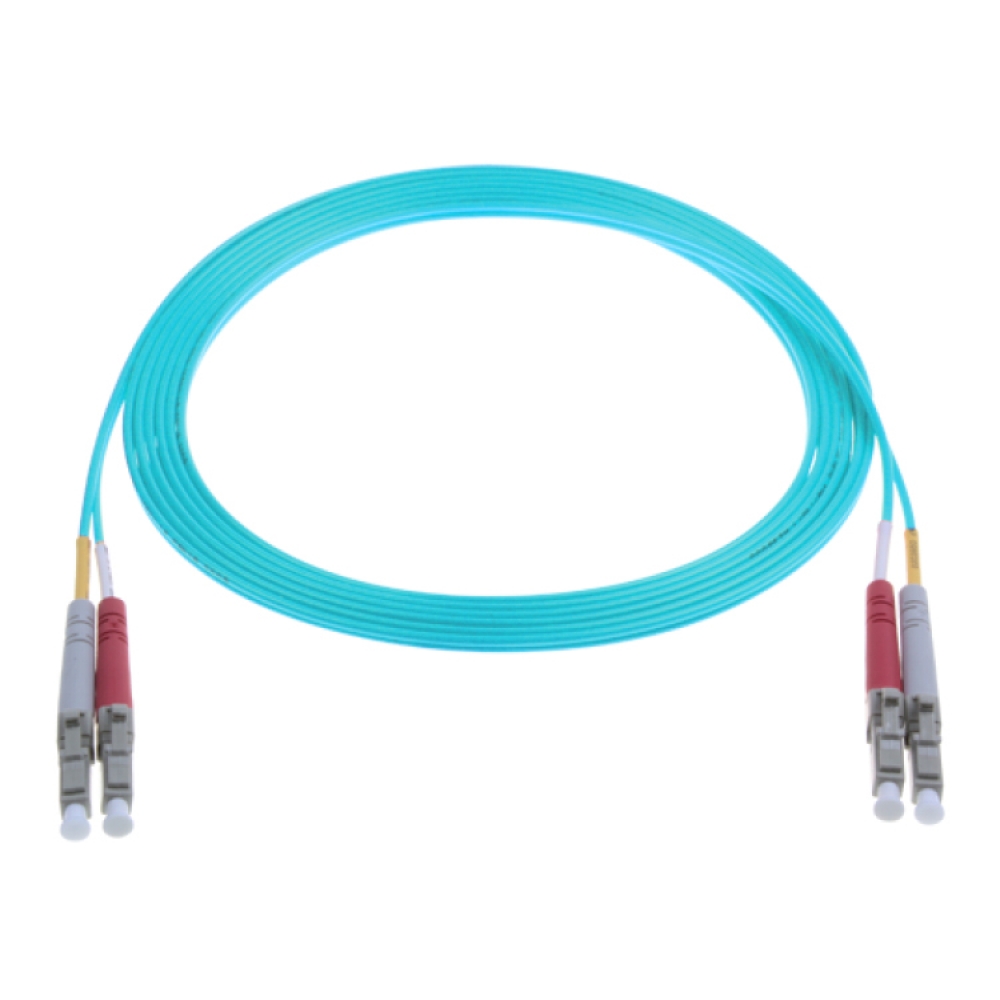

Fiber Patch Cord
Description
• Various type of connectors (SC, LC, ST, FC, MPO, etc...)
• Optimum optical performance through high quality ferrules
• 100% Factory tested for Insertion & Return Loss
• Ferrule inspection data sheet included with all shipments
• Small Form Factor for high density applications
Application
• Telecommunication network
• Data Processing Systems (Data Center)
• Horizontal Distribution & Backbone Cabling
• LAN and WAN (10/100/1000 BASE-FX ,155Mbps, 100Mbps,1Gbps, 10Gbps) ISDN, ADSL
• Fiber Optic Test & Measurement System
• RoHS Compliant
• Various type of connectors (SC, LC, ST, FC, MPO, etc...)
• Optimum optical performance through high quality ferrules
• 100% Factory tested for Insertion & Return Loss
• Ferrule inspection data sheet included with all shipments
• Small Form Factor for high density applications
Application
• Telecommunication network
• Data Processing Systems (Data Center)
• Horizontal Distribution & Backbone Cabling
• LAN and WAN (10/100/1000 BASE-FX ,155Mbps, 100Mbps,1Gbps, 10Gbps) ISDN, ADSL
• Fiber Optic Test & Measurement System
• RoHS Compliant
Fiber Patch Cord

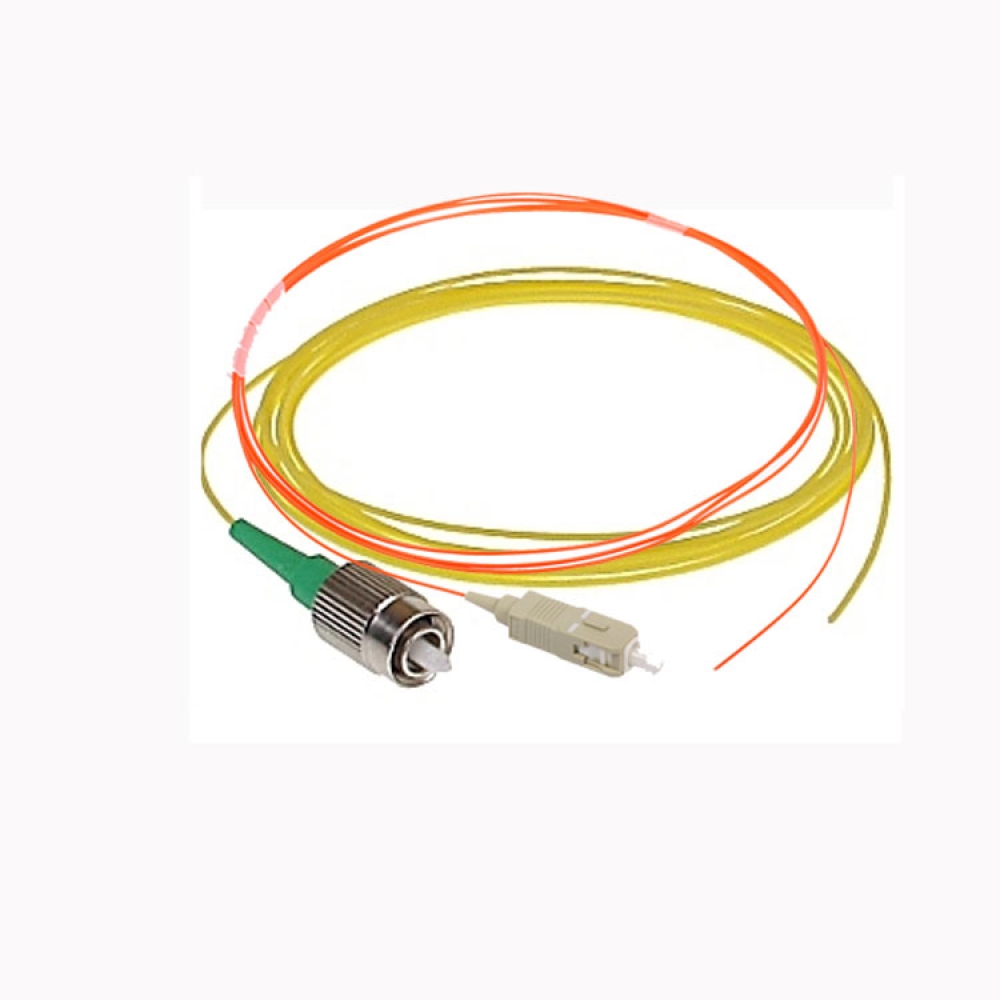

Fiber Pig tail
Fiber Jumper Cord & Cable with One Side Connector
- Description
- LS Simple™ Fiber Optic Cord & Cable with One side Connector
. Various type of connectors (SC, LC, ST, FC, MT-RJ)
. Optimal optical performance through high quality ferrules
. 100% factory tested for Insertion Loss & Return Loss
- Part Lists
Item
Part Number Scheme
Jumper Cord
LS-JC-AB/AB-C-DEF-G
Cable with One Side Connector
LS-PIG-AB-C-DEF-G
A Connector type B Polishing C Fiber type D Cable Diameter E Connector type F Cable Jacket G Length (M) SC SC Connector - PC type SM Single mode(SM), G.652 09 0.9mm SP Simplex Cord V PVC 005 0.5m FC FC Connector AC APC type S5 Single mode(SM), G.655 20 2.0mm DP Duplex Zip Cord Z LSZH 010 1m ST ST Connector S7 Single mode(SM), G.657 24 2.4mm 100 10m LC LC Connector M1 Multi mode (OM1) 30 3.0mm MTRJ MTRJ Connector M2 Multi mode (OM2) M3 Multi mode (OM3) M4 Multi mode (OM4)
- Technical Details
- • Insertion Loss and Return Loss is based on ANSI/TIA-568-C-3 requirements
• Fiber types : SM (OS1/2)-9/125um & MM(OM1~OM4)-62.5/125um, 50/125um
• Cable Diameter : Jumper Cord (1.8~3.0mm), Cable with One Side Connector (0.9~3.0mm) available
• Link Length up to 300m (OM3), 550m (OM4) with 850nm source for 10Gbps systems (IEEE802.3ae)
• Material of Ferrules : Ceramic (Zirconia)
• IEC 61754 & EN 50377 Standards compliant
• TIA-604 (FOCIS) Standards compliant
• ANSI/TIA/EIA-604-3 (SC type), ANS/TIA/EIA-604-10 (LC type), ANSI/TIA/EIA-604-12 (MT-RJ type)
Electrical / Mechanical Characteristics (except for MT-RJ connector)
Fiber Mode
SM
MM
Polishing type
PC
APC
PC
Insertion Loss
≤0.3dB (Typ. 0.2dB)
Return Loss
≥50dB
≥60dB
≥20dB
Durability
Max. 0.2dB increase after 500-cycle
Retention Force
Insertion Loss Increment ≤0.2dB after 3.4kgf/10sec.
Temperature
-20°C~70°C ( -4°F~158°F )
Materials
Ferrule : Ceramic (Zirconia) for Single/Multi mode
Sleeve : Ceramic (Zirconia) for Single/Multi mode, Phosphor Bronze for Multimode
Housing : High Impact Flame Retardant Plastic, UL 94V-0~2 Rated
Cable Jacket : PVC or LSZH
Strength member : Aramid Yarn
- Application
- . Telecommunication Network
. Data Processing Systems (Data Center)
. Horizontal Distribution & Backbone Cabling
. LAN & WAN
(IEEE 802.3ba, 100BASE-FX, 10GBASE-LX4, 10GBASE-ER/EW etc.)
. ISDN, ADSL
. Fiber Optic Test & Measurement System
. FTTx
