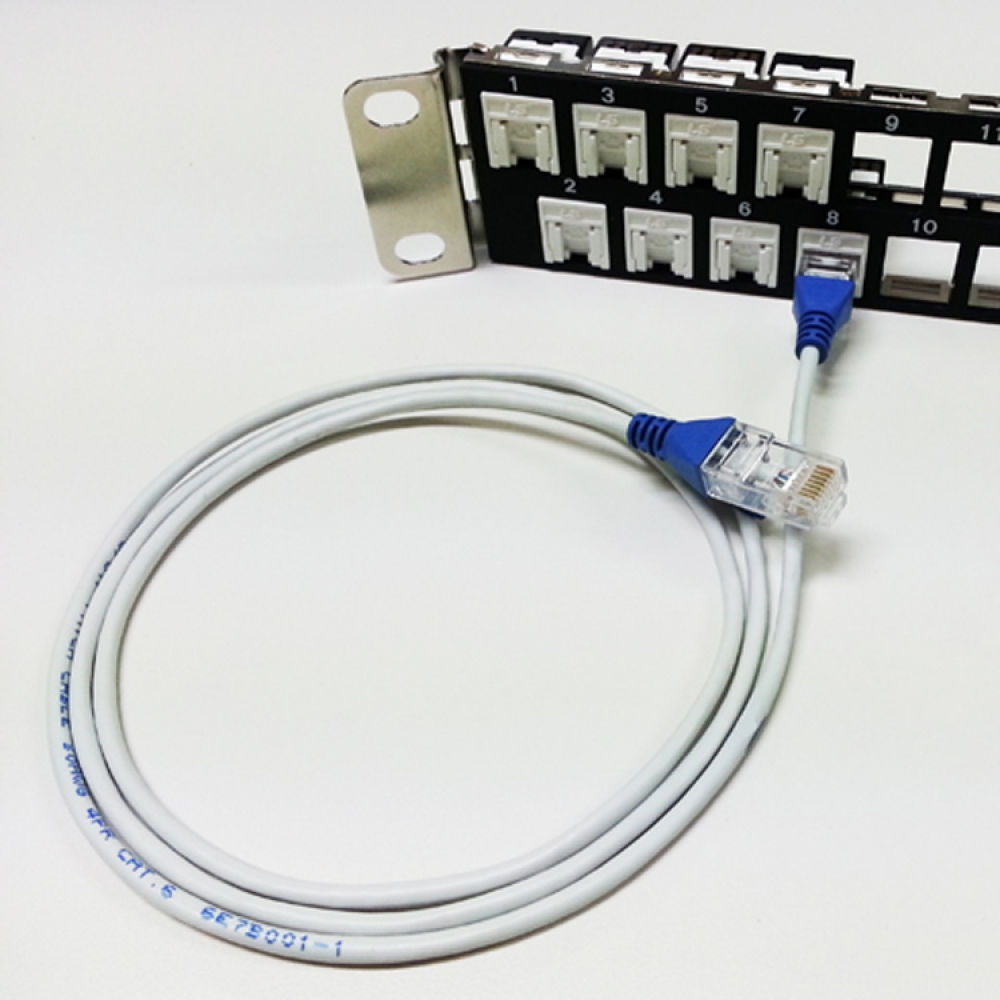

LS Simple™ Slim Category 6 Patch Cord

Description

LS Simple™ Slim(3.3mm) Category 6 Patch Cord

• Comply with ANSI/TIA-568-c.2 performance levels
• Cable consists of 30AWG stranded wire, each four pair twisted at a different lay length.
• Comply with 47 CFR part 68 specification for RJ45 8-pin modular plug
• T568A or T568B wiring
• Various color & various length supported
• Optimized for high-density patching configuration

Part Number

LS-PCU-UC6-xx-yyy

Application

• 4/16 Mbps Token Ring (IEEE 802.5)
• 10/100/1000 BASE-T (IEEE 802.3)
• ATM 155.52 Mbps
• 1.2G
• Data Center MDA/HDA/EDA zone patching
• 100Mbps TP-PMD
• ISDN, ADSL
• Analog & digital voice(VoIP) and video
• Full broadband and baseband video

Learn more

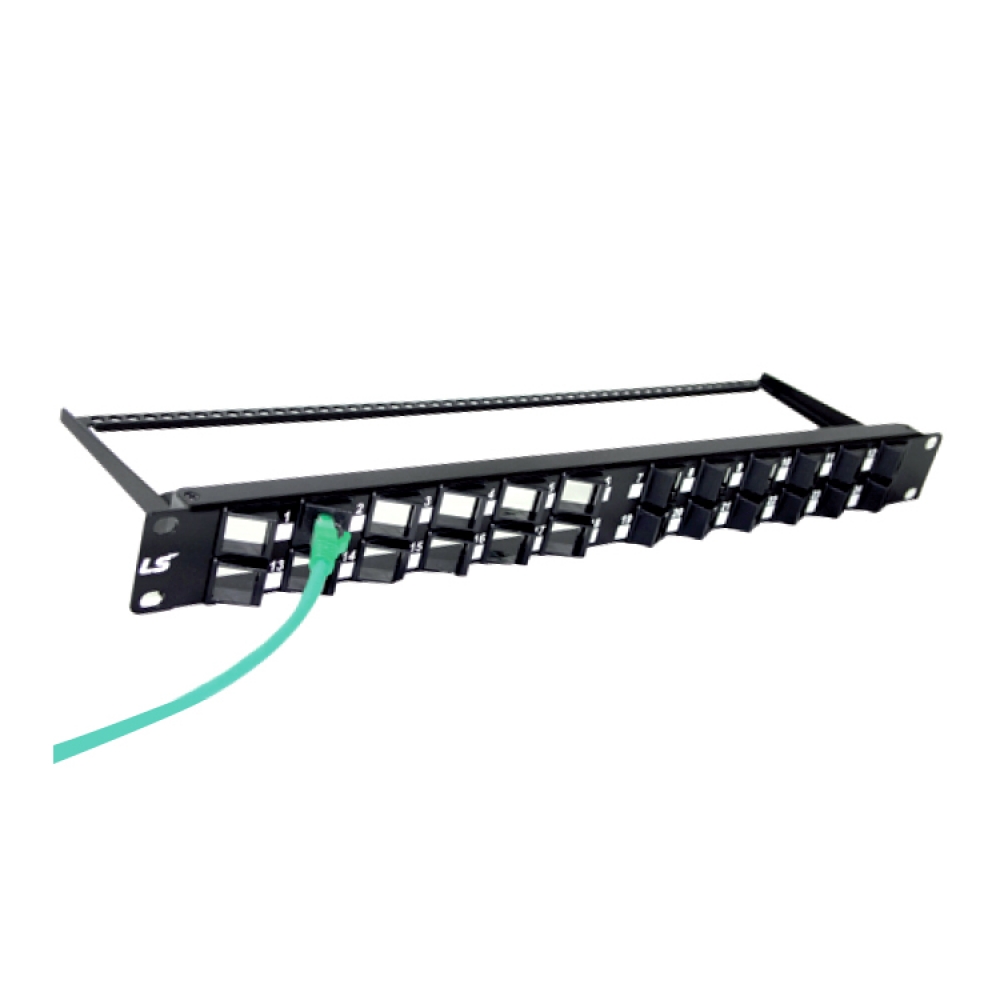

LS-PP-48P-E-WM-1U

Description

LS simple™ flat 48port /1U panels are ideal for high density patching applications on rack, as well as offer easy installation tool with modular jack
LS Simple™ 48Port/1U panel is ideally solution for data center applications and installations because that give benefit rack space for patching more as well as offers exceptional high density with the ability to accommodate up to 48 port RJ45 Modules.

Part Number

Flat 48Port /1U panel with wire management: LS-PP-48P-E-WM-1U

Application

High density patching

Learn more

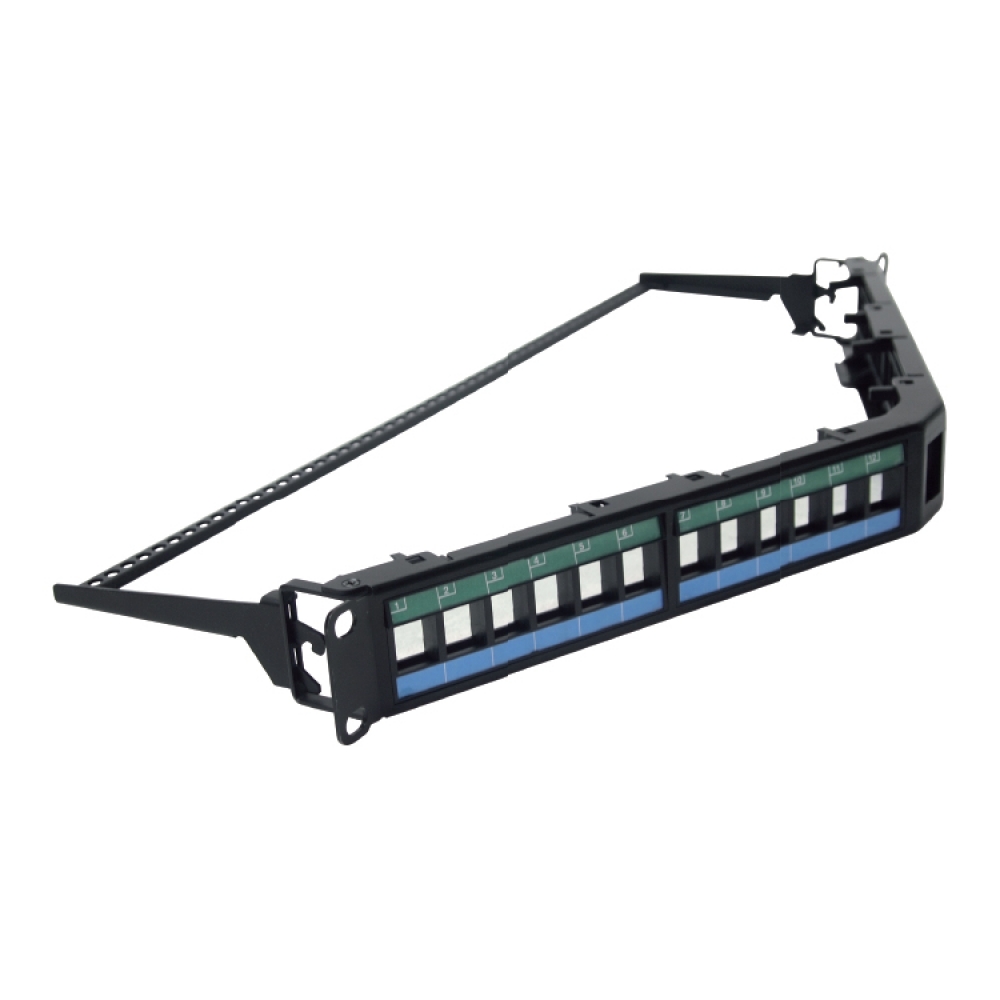

LS-APP-24P

Description

LS Simple™ angled panels can attach and detach the Six one module on the panel for using Fast-Net™ solution easily,
LS Simple™ angled panels are ideal for 19" rack applications, offering easy termination and improved patch cord routing in front of patching area.

Part Number

Angled panel for unshield: LS-APP-UC-24P-E4-C
Angled panel for shielded: LS-APP-SC-24P-E4-C
Algled Panel with Wire Management: unshield: LS-APP-UC-24P-E4-WM-C
Algled Panel with Wire Management: shielded: LS-APP-SC-24P-E4-WM-C

Application

Data Center
Pre-terrminated solution (LS simple Fast-Net™ )

Learn more

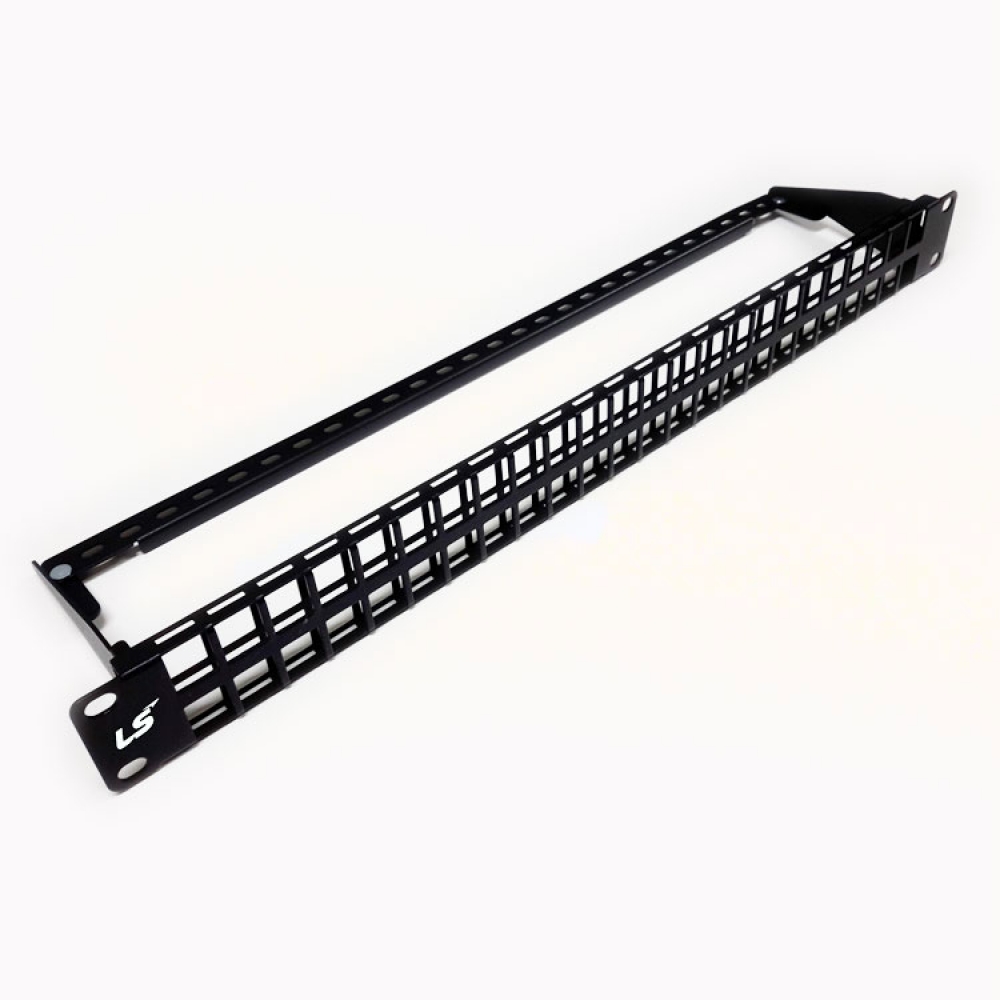

Empty Panel (PPP, APP, LWM, E-WM etc)

Description

· For Category 5e~6A Unshielded and fiber bezel etc.
· Mounted on 19" standard rack
· Inserting hole fully complies with RJ-45 of 47 CFR part 68
· Easy managing & wiring by using the double hook's structure between panel and manager bar
· Easy handling by hinged wire management
· RoHS compliant

Part Lists

LS-PP-24P-E-LWM
LS-PP-24P-E-WM
LS-PP-48P-E-WM
LS-PP-MD-12P-E
LS-PP-MD-24P-E
LS-PP-MD-24P-E-WM
LS-APP-48P-E
LS-APP-24P-E-WM
LS-APP-48P-E-WM
LS-APP-UC-24P-E4-WM-C
LS-PPP-UC-24P-E4-WM-C
LS-APP-SC-24P-E4-C
LS-PPP-SC-24P-E4-WM-C

Learn more

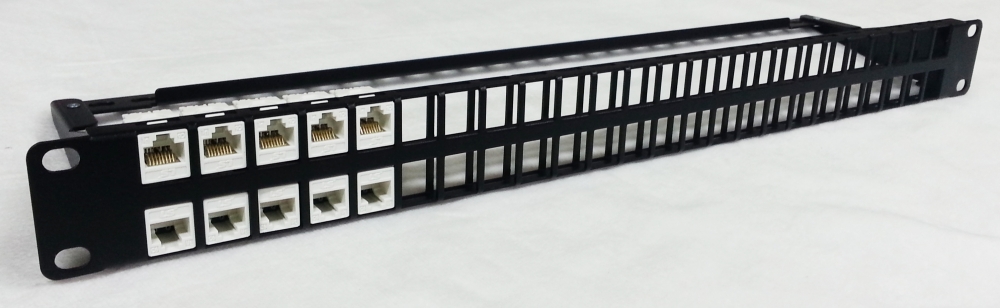

Empty Patch Panel - - LWM, E-WM, PPP, APP

Description

LS Simple™ Empty panels offer high performance and special functions and a range of installation options for unshielded & shielded Cat5e, Cat.6, Cat.6A cabling as well as offer easy installation with modular jacks and fast installation using the snap-in type RJ45 connections.
LS simple™ offer high density panels(Angled 24 or 48Port panel /1 U ) for each customer. Also, offer complete flexibility offering general 24port/1U, 48Port/1U panel.

Part Number

LS-PP-24P series (24Port empty panel )
LS-APP-24P series (Angled Panel 24Port)
