Patch Cord
Category 6 LS Simple™ Cat.6 Plus & Cat.6
■ Support maximum 1Gbit TX and high performance Category 6
■ Transmit full broadband and baseband video signals ANSI/TIA-586-C.2
■ Provides 1.2Gbit high performance transmission that complies with international standards ISO/IEC 11801 and ANSI/TIA-568-C.2 from equipment room to outlet
■ Possible to provide high speed with free extension up to 250MHz Category 6/Class E
■ Connector designed for customer convenience, cabling with high density available at outlet and equipment room
■ Shielded and unshielded solutions are supported
■ All components have high flame retardent properties
■ Support maximum 1Gbit TX and high performance Category 6
■ Transmit full broadband and baseband video signals ANSI/TIA-586-C.2
■ Provides 1.2Gbit high performance transmission that complies with international standards ISO/IEC 11801 and ANSI/TIA-568-C.2 from equipment room to outlet
■ Possible to provide high speed with free extension up to 250MHz Category 6/Class E
■ Connector designed for customer convenience, cabling with high density available at outlet and equipment room
■ Shielded and unshielded solutions are supported
■ All components have high flame retardent properties
Patch Cord

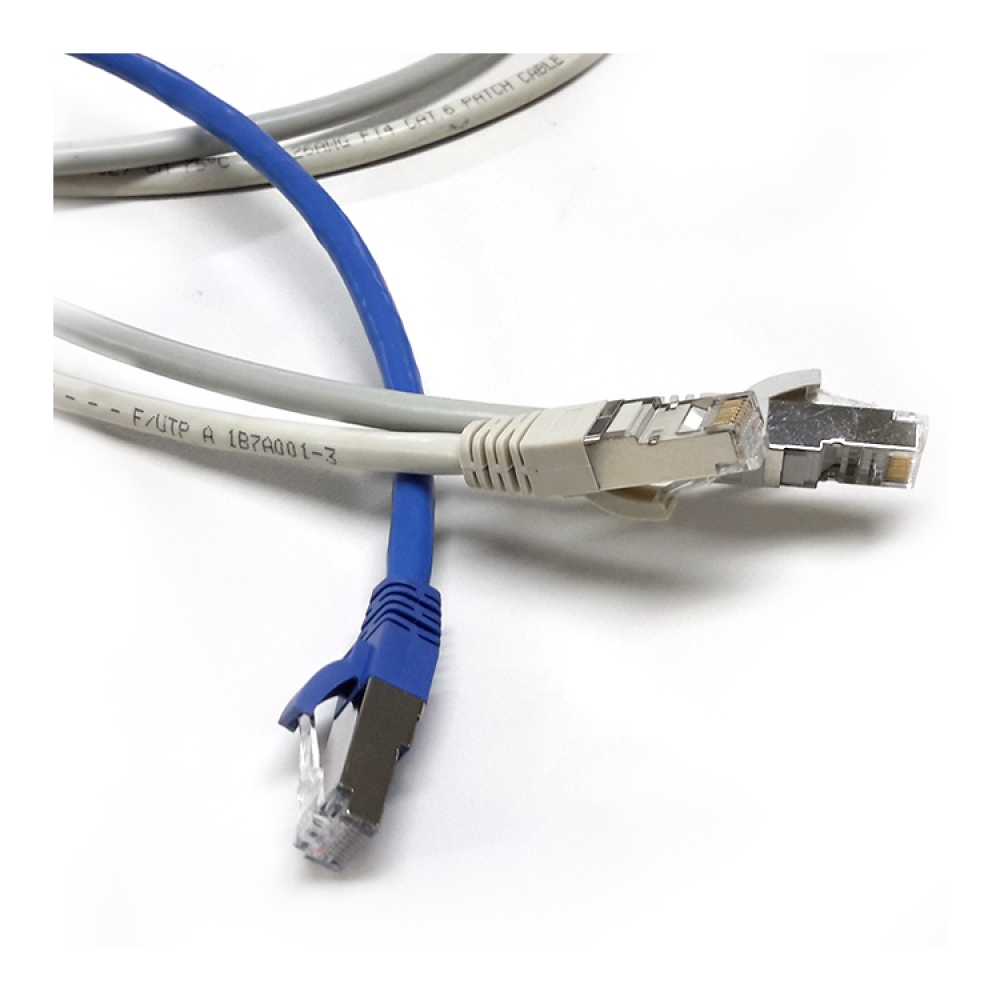

Shielded Patch Cord
- Description
- · Factory terminated, providing the quality required to support your channel requirements.
· It's fully booted and have clip protection for simple removal.
· It offers a high performance alternative to satin modular line cords where crosstalk, EMI or distance may be considerations.
· Cable consists of 24 AWG (0.51mm) wire, each four pair twisted at a different lay length.
- Part Lists
- LS-PC-SC6-xx-yyy (PVC Jacket)
LS-PC-SC6L-xx-yyy (LSZH Jacket)
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps
· 100Mbps TP-PMD
· ISDN, ADSL
· Analog & digital voice (VoIP) and video
· Full broadband & baseband video
· RoHS compliant
· ATM LAN 1.2Gbit/s

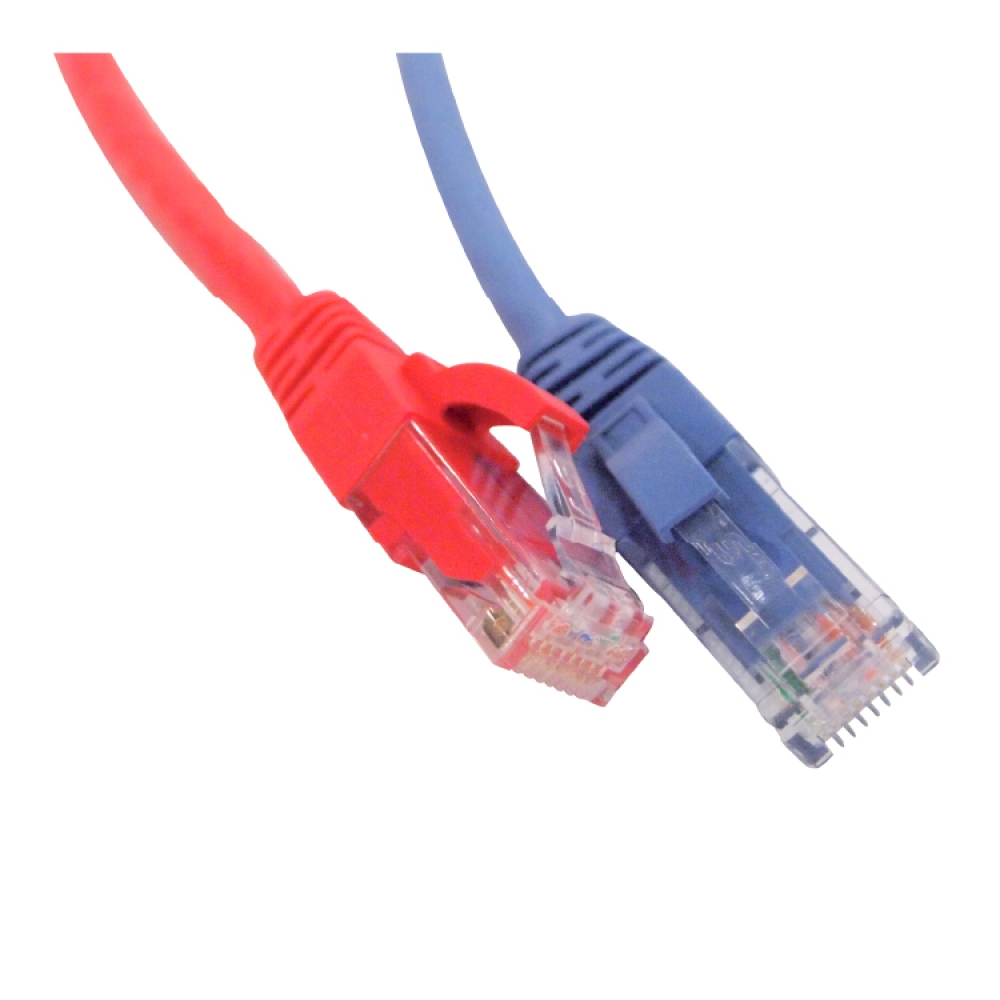

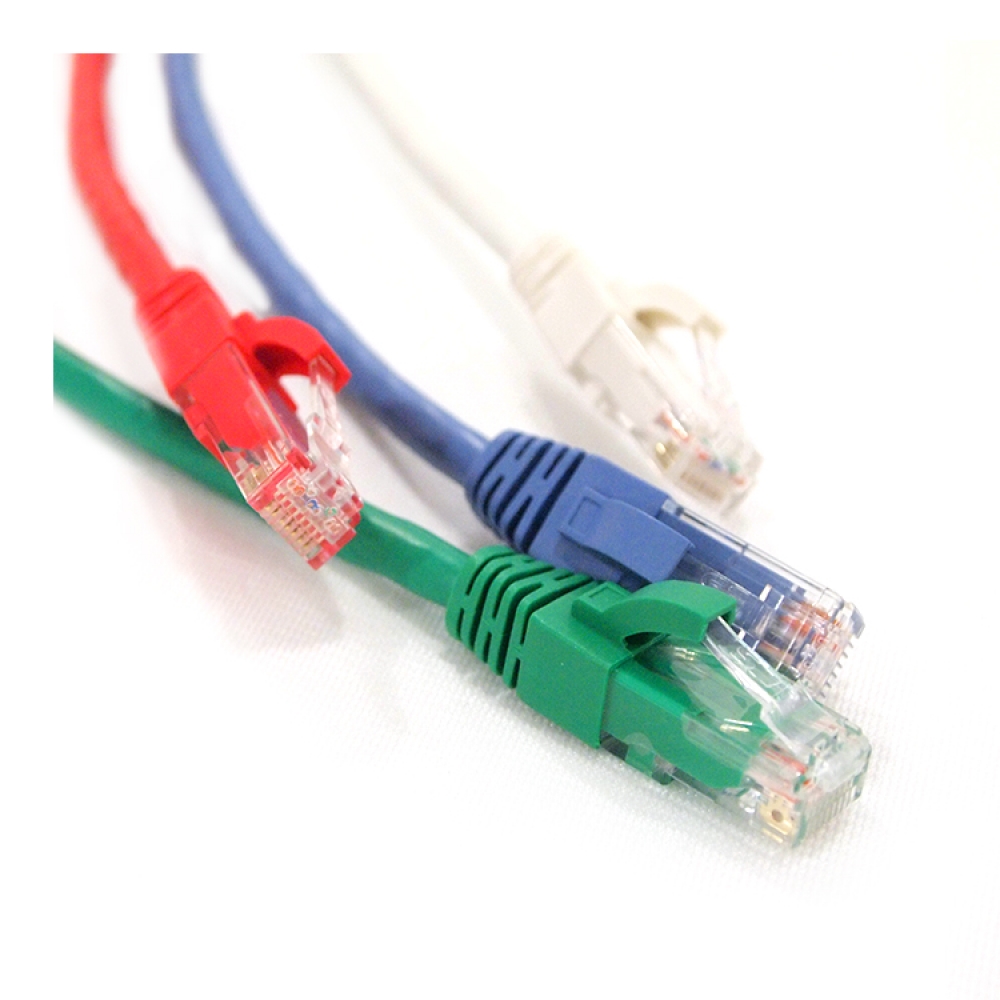

Unshielded Patch Cord
- Description
- · Factory terminated, providing the quality required to support your channel requirements.
· It's fully booted and have clip protection for simple removal.
· It offers a high performance alternative to satin modular line cords where crosstalk, EMI or distance may be considerations.
· Cable consists of 24 AWG (0.51mm) wire, each four pair twisted at a different lay length.
- Part Lists
- LS-PC-UC6-xx-yyy (PVC Jacket)
LS-PC-UC6L-xx-yyy (LSZH Jacket)
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps
· 100Mbps TP-PMD
· ISDN, ADSL
· Analog & digital voice (VoIP) and video
· Full broadband & baseband video
· RoHS compliant
· ATM LAN 1.2Gbit/s
