Patch Cord
Category 5e LS Simple™ Cat.5e 4&25 Pair Cable, Solution
■ Supports Fast Ethernet, Gigabit Ethernet, 155 Mb/s, Multimedia
■ All accepted design for global commercial network installation
■ Qualifies for LS 25-Year Extended Product Warranty and Applications Assurance when included as part of a registered LS Category 5e Channel
■ Electrical perfomance complies with ANSI/TIA-586-C.2
■ RoHS Compliant
■ Simplified structured cabling solution preserving long-term network investment
■ Supports Fast Ethernet, Gigabit Ethernet, 155 Mb/s, Multimedia
■ All accepted design for global commercial network installation
■ Qualifies for LS 25-Year Extended Product Warranty and Applications Assurance when included as part of a registered LS Category 5e Channel
■ Electrical perfomance complies with ANSI/TIA-586-C.2
■ RoHS Compliant
■ Simplified structured cabling solution preserving long-term network investment
Patch Cord

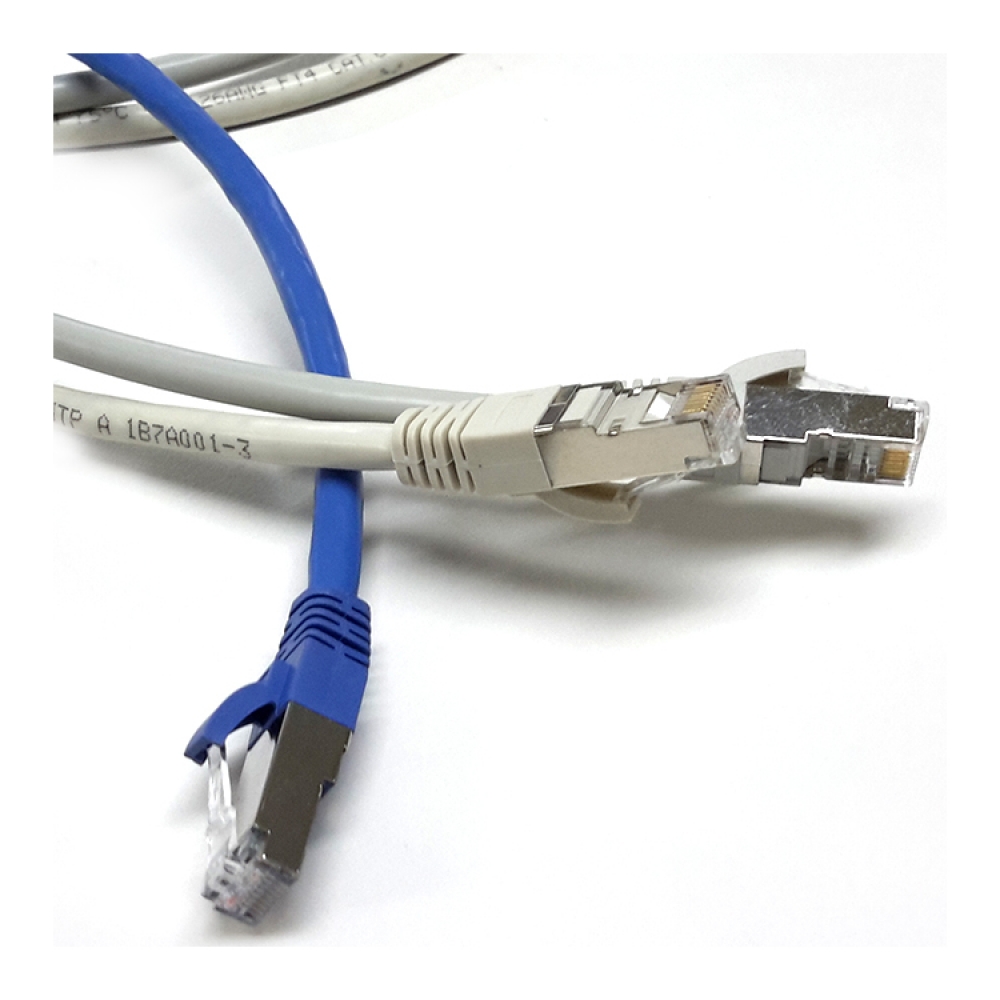

Shielded Patch Cord
- Description
- · Factory terminated, providing the quality required to support your channel requirements.
· It's fully booted and have clip protection for simple removal.
· It offers a high performance alternative to satin modular line cords where crosstalk, EMI or distance may be considerations.
· Cable consists of 24 AWG (0.51mm) wire, each four pair twisted at a different lay length.
- Part Lists
- LS-PC-SC5E-xx-yyy (PVC Jacket)
LS-PC-SC5EL-xx-yyy (LSZH Jacket)
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps
· 100Mbps TP-PMD
· ISDN, ADSL
· Analog & digital voice (VoIP) and video
· Full broadband & baseband video
· RoHS compliant

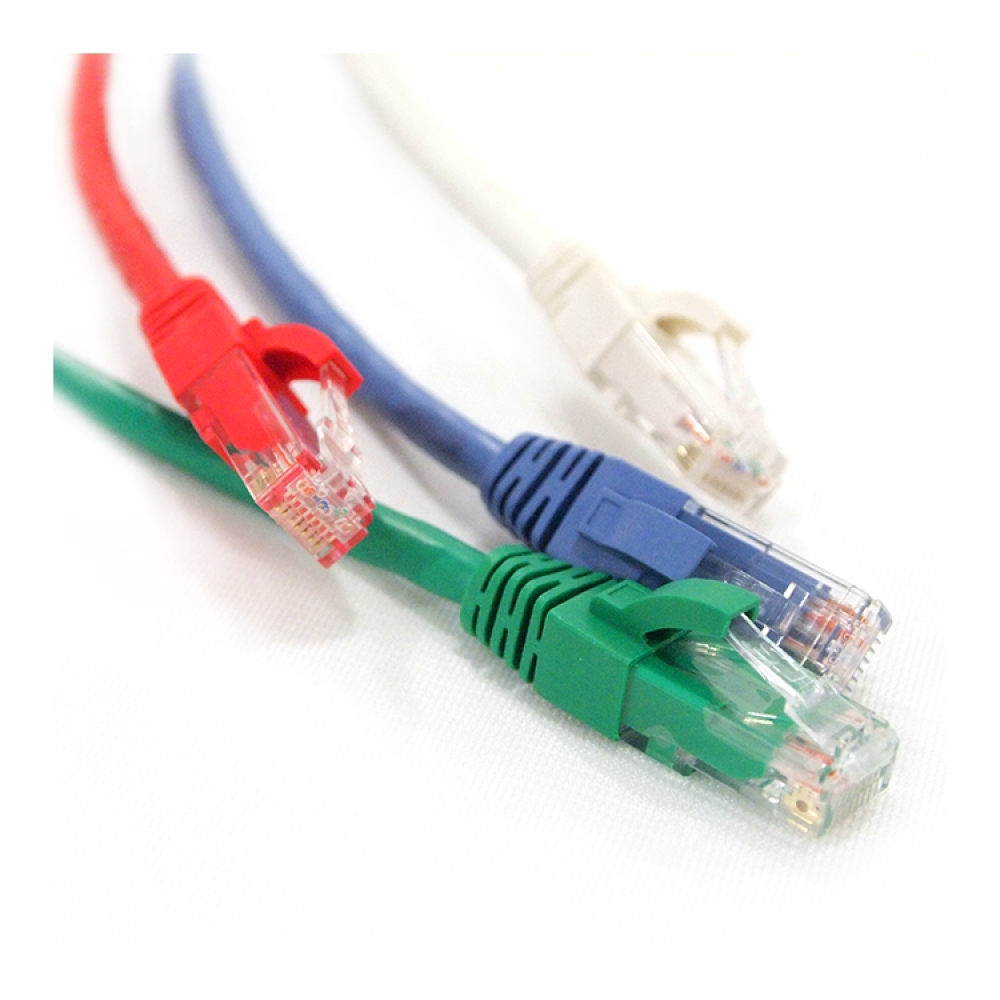

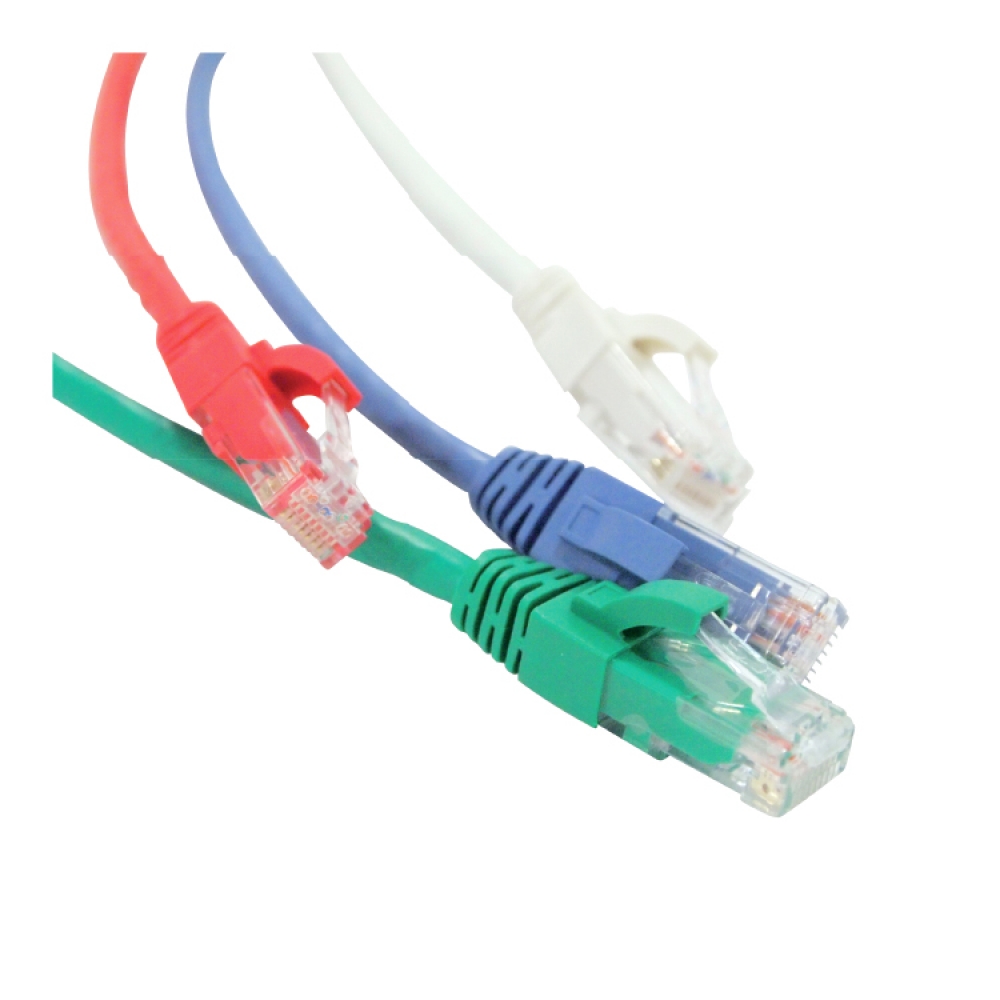

Unshielded Patch Cord
- Description
- · Factory terminated, providing the quality required to support your channel requirements.
· It's fully booted and have clip protection for simple removal.
· It offers a high performance alternative to satin modular line cords where crosstalk, EMI or distance may be considerations.
· Cable consists of 24 AWG (0.51mm) wire, each four pair twisted at a different lay length.
- Part Lists
- LS-PC-UC5E-xx-yyy (PVC Jacket)
LS-PC-UC5EL-xx-yyy (LSZH Jacket)
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps
· 100Mbps TP-PMD
· ISDN, ADSL
· Analog & digital voice (VoIP) and video
· Full broadband & baseband video
· RoHS compliant
