Patch Panel
Category 6A LS Simple™ 10Gbps Cable 4 Pair
LS Cable & System provide highest performance of unshielded and shielded solution, and we offer maximum 6 connection channel performance meets.
■ Up to 10Gb/s and Beyond Shielded/Unshielded
■ Capable of handling full broadband and baseband video signals
■ Qualifies for LS 25-Year Extended Product Warranty and Applications Assurance
■ High flame retardent grade to protect from fire
■ Electrical performance complies with ANSI/TIA-586-C.2
■ Addition of balance requirements to improve cable performance
LS offers superior performance and user friendly installation features to allow for simple and speedy deployment. Electrical parameters stability at high frequencies is the key to allow for comfortable network access.
LS Cable & System provide highest performance of unshielded and shielded solution, and we offer maximum 6 connection channel performance meets.
■ Up to 10Gb/s and Beyond Shielded/Unshielded
■ Capable of handling full broadband and baseband video signals
■ Qualifies for LS 25-Year Extended Product Warranty and Applications Assurance
■ High flame retardent grade to protect from fire
■ Electrical performance complies with ANSI/TIA-586-C.2
■ Addition of balance requirements to improve cable performance
LS offers superior performance and user friendly installation features to allow for simple and speedy deployment. Electrical parameters stability at high frequencies is the key to allow for comfortable network access.
Patch Panel

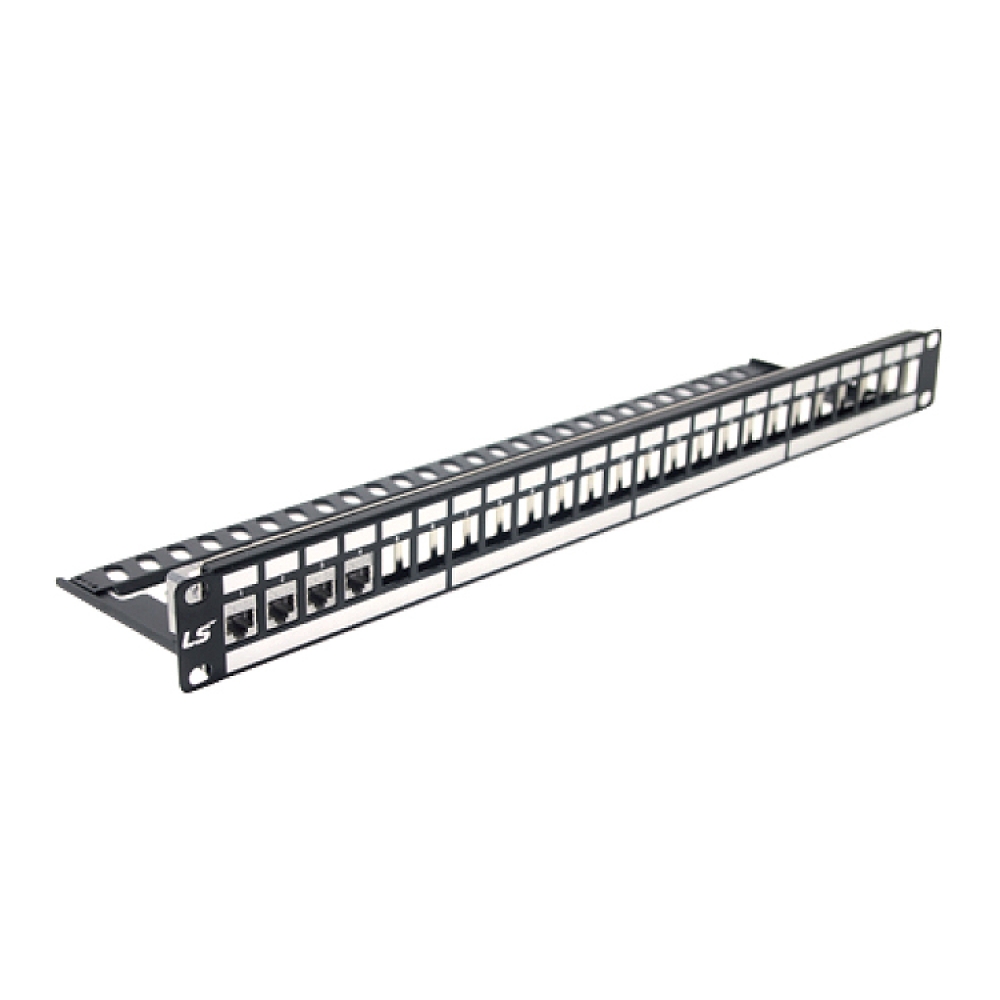

Shielded Patch Panel (LS-PP-SC6-24P)
- Description
- · Comes complete with cable management, accessories and full installation instructions
· Fully comply with the requirements set out in ANSI/TIA-568-C.2
· Architectural design and flexibility - Support max. 6 connection channels
· Easy cable routing and bundling through improved rear cable management
· Qualifies for the LS-Year Extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6A Channel
- Part Lists
- LS-PP-SC6A-24P-WM-ERI
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16 Mbps Token Ring (IEEE 802.5)
· 10/100/1000/10G BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
· ATM LAN 1.2G

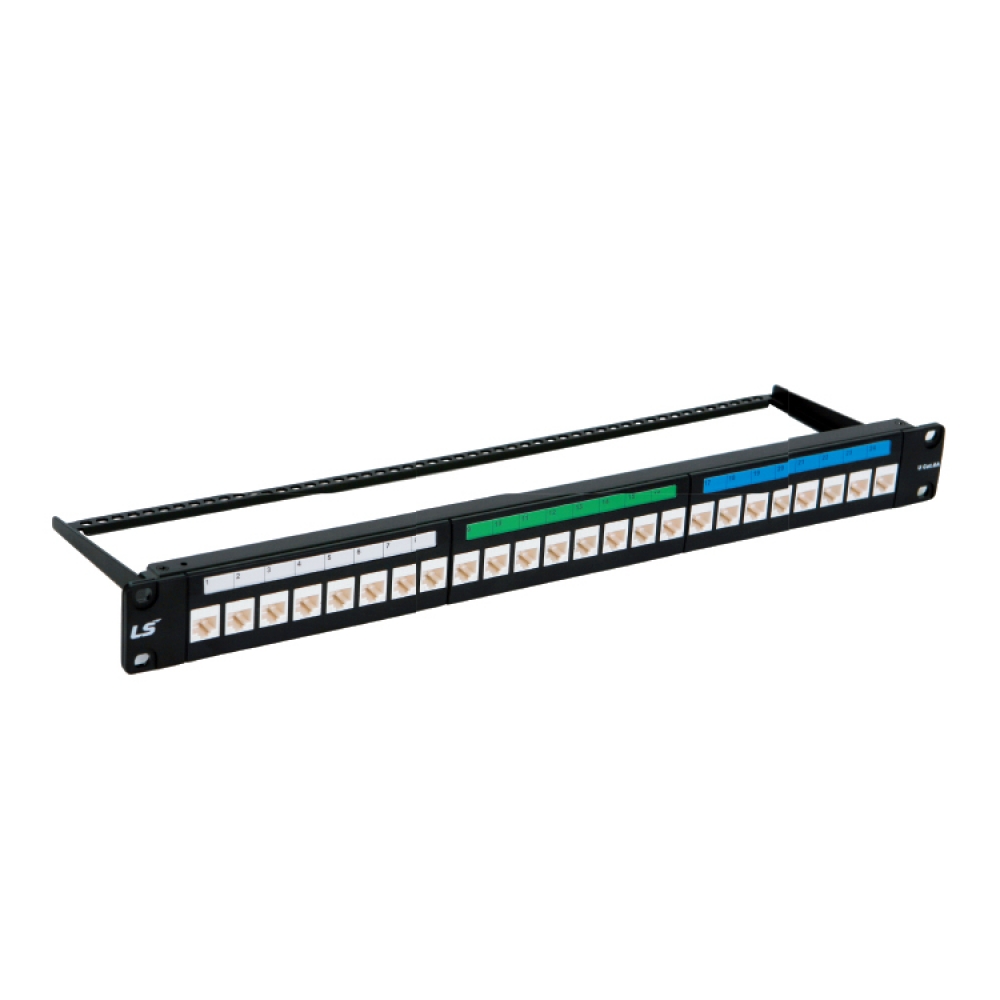

Unshielded Patch Panel (LS-PP-UC6A-24P-WM-ERI)
- Description
- · Comes complete with cable management, accessories and full installation instructions
· Fully comply with the requirements set out in ANSI/TIA-568-C.2
· Architectural design and flexibility - Support max. 6 connection channels
· Easy cable routing and bundling through improved rear cable management
· Qualifies for the LS-Year Extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6A Channel
- Part Lists
- LS-PP-UC6A-24P-WM-ERI
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16 Mbps Token Ring (IEEE 802.5)
· 10/100/1000/10G BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
· ATM LAN 1.2G

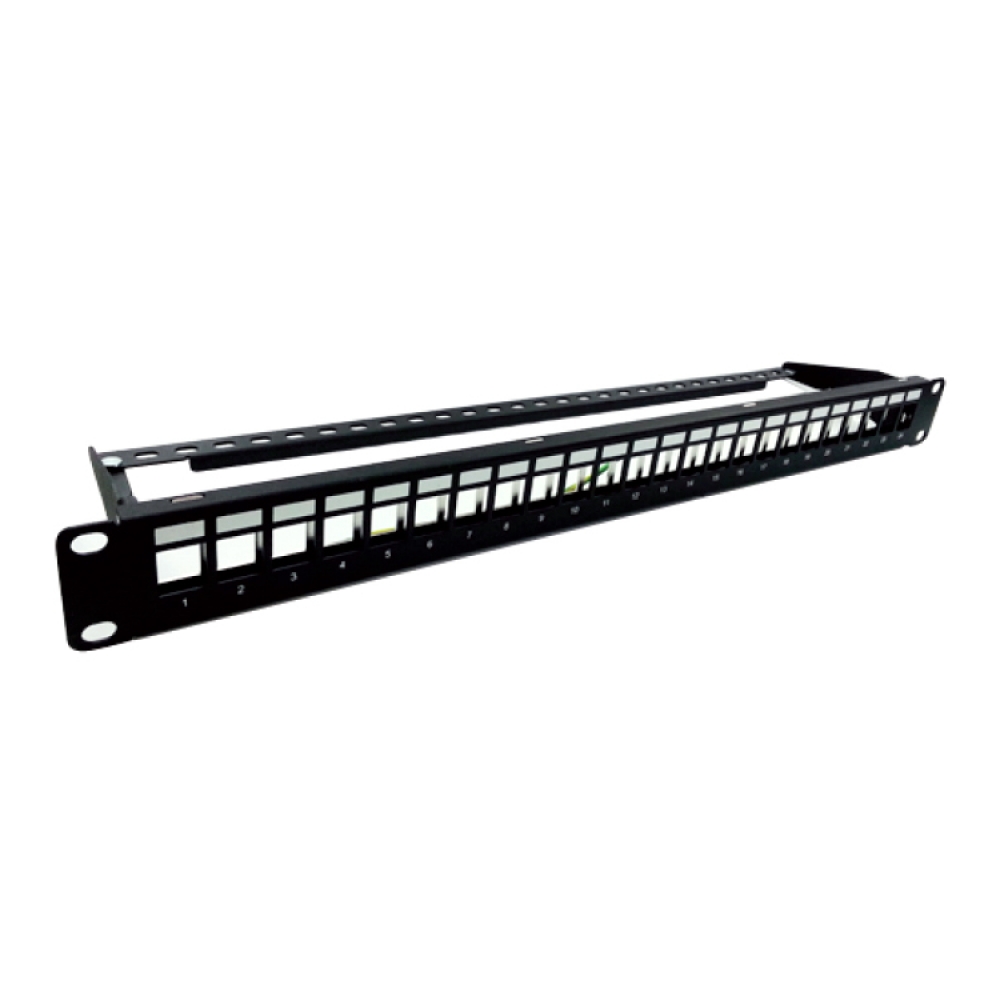

Empty Panel (PPP, APP, LWM, E-WM etc)
- Description
- · For Category 5e~6A Unshielded and fiber bezel etc.
· Mounted on 19" standard rack
· Inserting hole fully complies with RJ-45 of 47 CFR part 68
· Easy managing & wiring by using the double hook's structure between panel and manager bar
· Easy handling by hinged wire management
· RoHS compliant
- Part Lists
