Patch Panel
Category 6 LS Simple™ Cat.6 Plus & Cat.6
■ Support maximum 1Gbit TX and high performance Category 6
■ Transmit full broadband and baseband video signals ANSI/TIA-586-C.2
■ Provides 1.2Gbit high performance transmission that complies with international standards ISO/IEC 11801 and ANSI/TIA-568-C.2 from equipment room to outlet
■ Possible to provide high speed with free extension up to 250MHz Category 6/Class E
■ Connector designed for customer convenience, cabling with high density available at outlet and equipment room
■ Shielded and unshielded solutions are supported
■ All components have high flame retardent properties
■ Support maximum 1Gbit TX and high performance Category 6
■ Transmit full broadband and baseband video signals ANSI/TIA-586-C.2
■ Provides 1.2Gbit high performance transmission that complies with international standards ISO/IEC 11801 and ANSI/TIA-568-C.2 from equipment room to outlet
■ Possible to provide high speed with free extension up to 250MHz Category 6/Class E
■ Connector designed for customer convenience, cabling with high density available at outlet and equipment room
■ Shielded and unshielded solutions are supported
■ All components have high flame retardent properties
Patch Panel

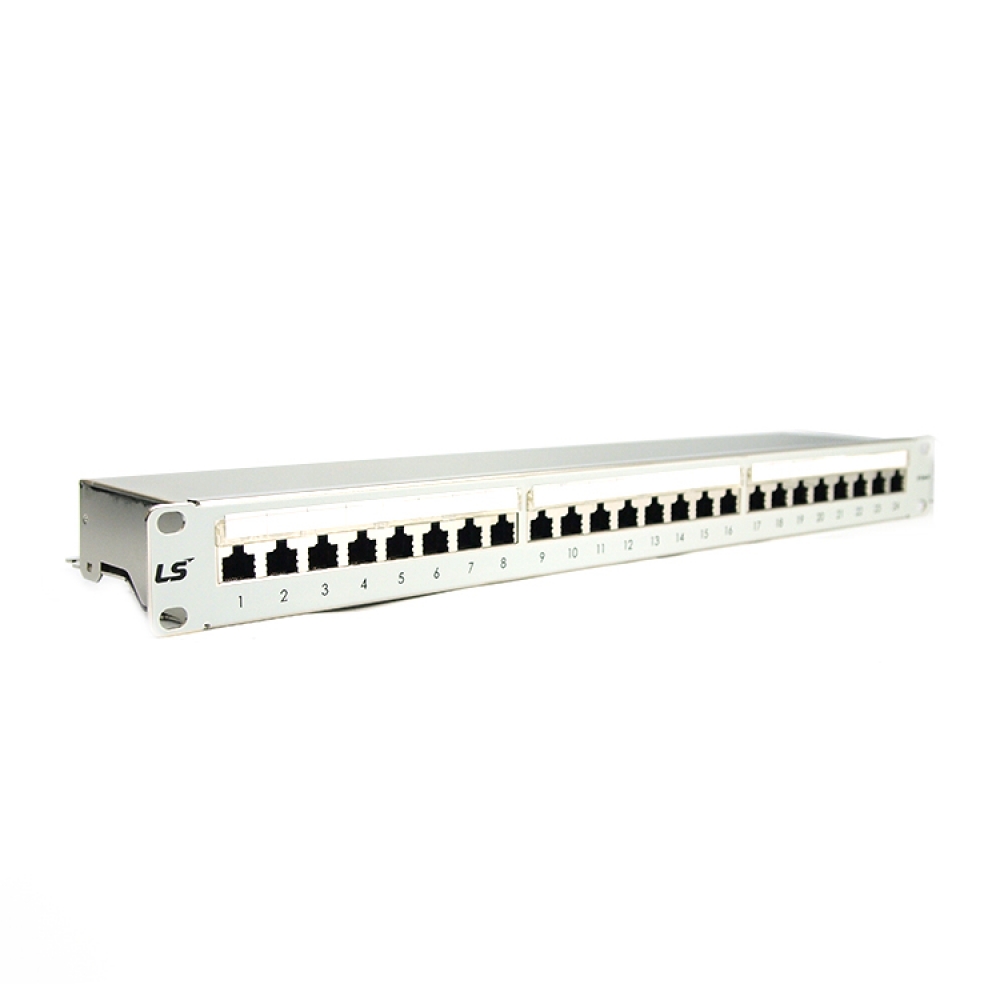

Shielded Patch Panel (LS-PP-SC6-24P)
- Description
- · UL Listed
· Architectural design and flexibility - Support max. 4-connection channels
· Individually terminated using 90-degree IDC (Insulation Displacement Connectors)
· Easy cable routing and bundling through improved rear cable management
· Electrical performances comply with ANSI/TIA-568-C.2 (Category 6 / Class E)
· Qualifies for the LS 25-Year Extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6 Channel
· Mounting on 19inch standard rack (EIA-310-D)
- Part Lists
- LS-PP-SC6-24P
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16 Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
· 1.2Gbit LAN

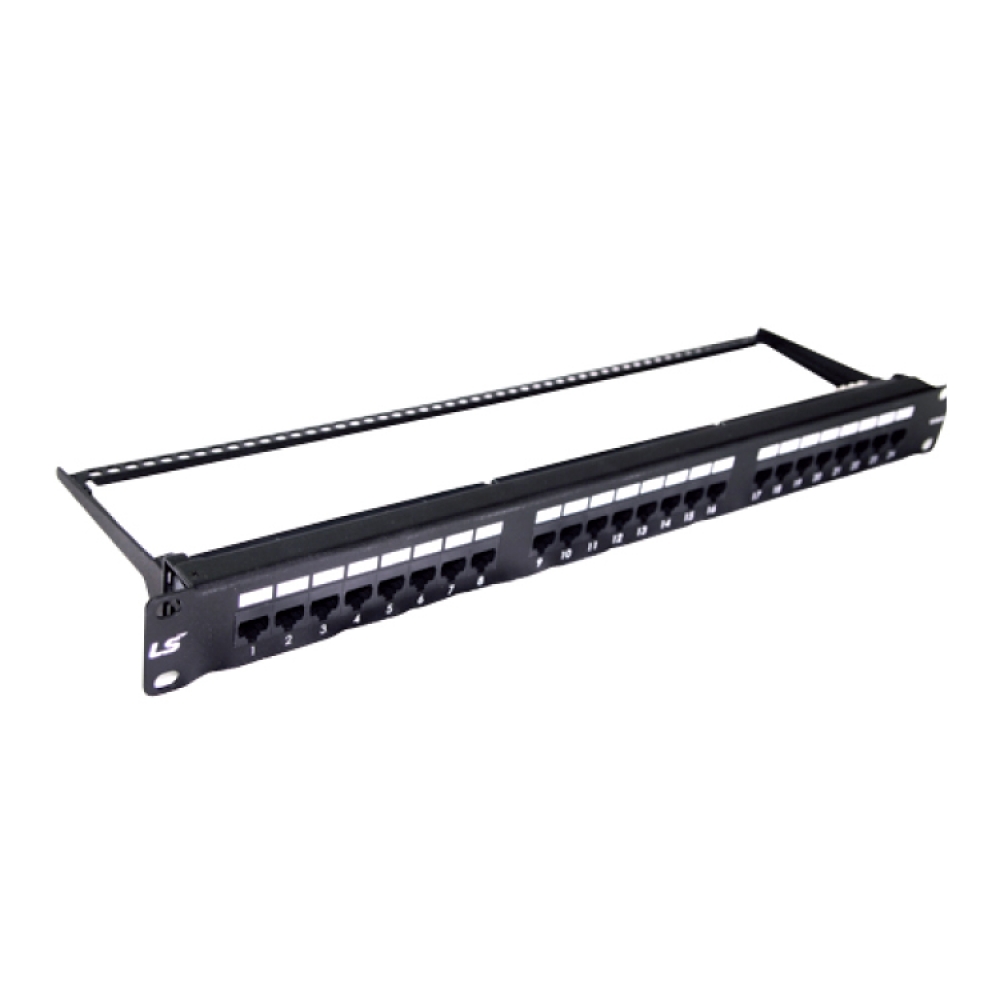

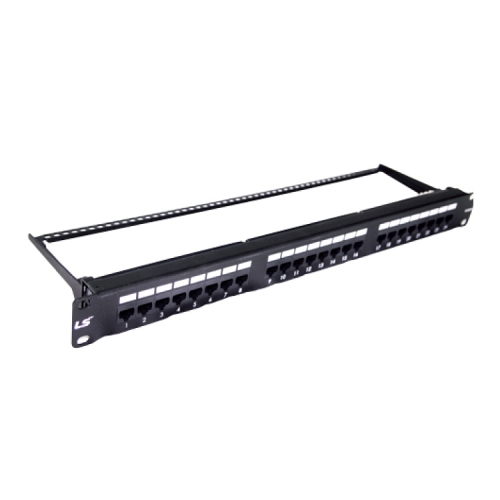

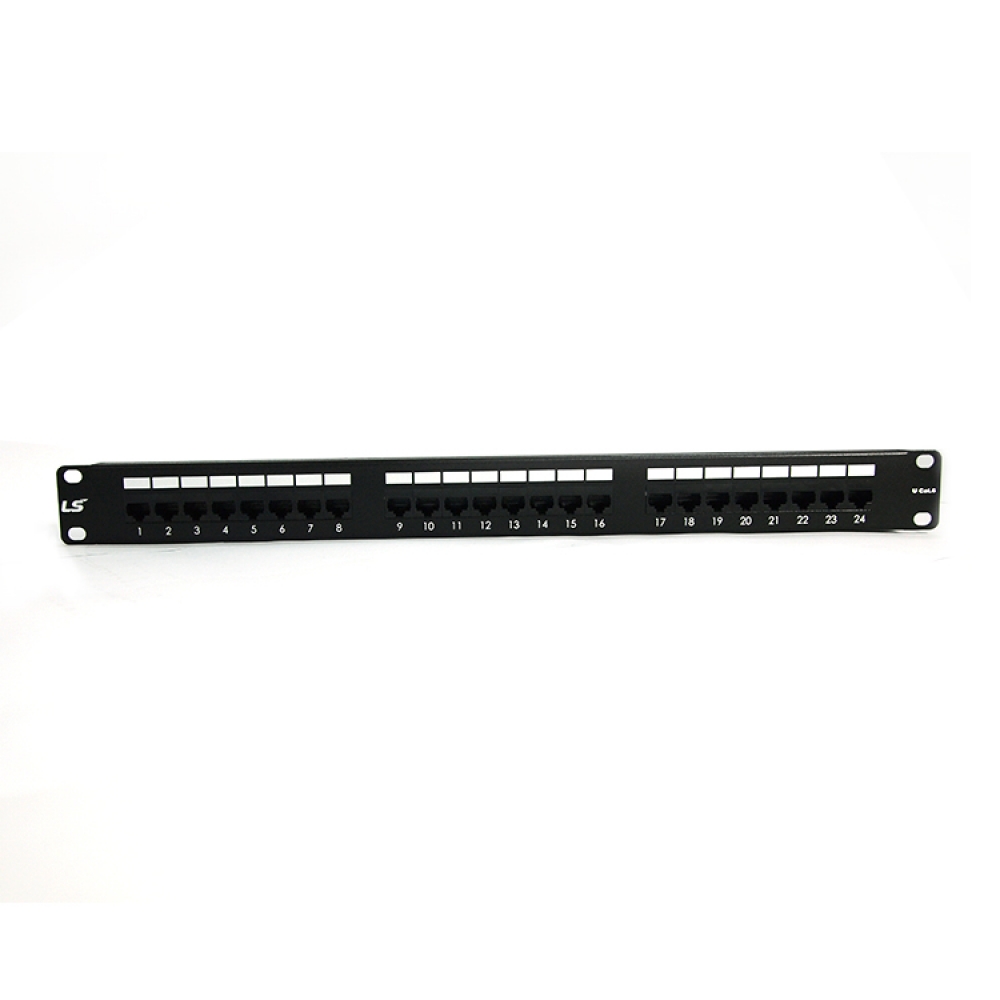

Unshielded Patch Panel (LS-PP-UC6-24P-WM)
- Description
- · UL Listed & ETL Verified (4-connection)
· Architectural design and flexibility - Support max. 4-connection channels
· Easy cable routing and bundling through improved rear cable management
· Electrical performances comply with ANSI/TIA-568-C.2 (Category 6 / Class E)
· Qualifies for the LS 25-Year Extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6 Channel
- Part Lists
- LS-PP-UC6-24P-WM
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16 Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
· 1.2Gbit LAN

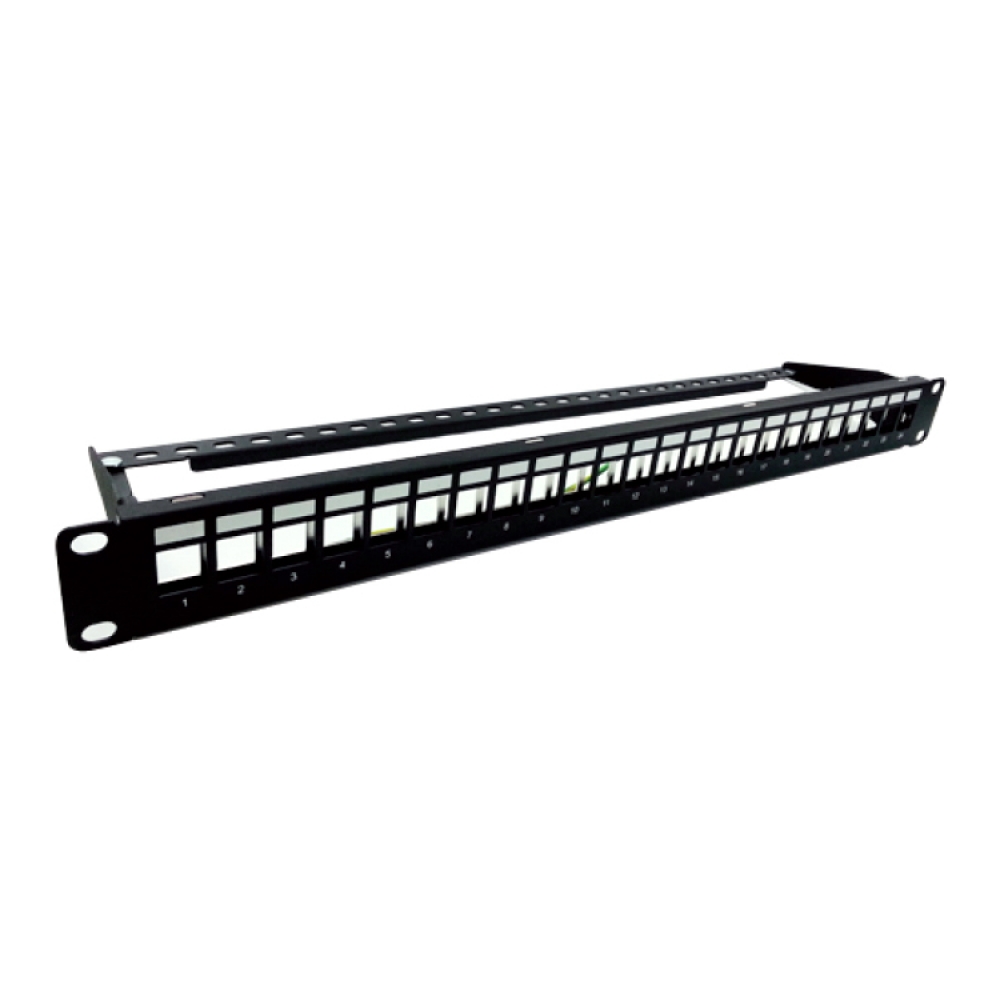

Empty Panel (PPP, APP, LWM, E-WM etc)
- Description
- · For Category 5e~6A Unshielded and fiber bezel etc.
· Mounted on 19" standard rack
· Inserting hole fully complies with RJ-45 of 47 CFR part 68
· Easy managing & wiring by using the double hook's structure between panel and manager bar
· Easy handling by hinged wire management
· RoHS compliant
- Part Lists
- LS-PP-24P-E-LWM
LS-PP-24P-E-WM
LS-PP-48P-E-WM
LS-PP-MD-12P-E
LS-PP-MD-24P-E
LS-PP-MD-24P-E-WM
LS-APP-48P-E
LS-APP-24P-E-WM
LS-APP-48P-E-WM
LS-APP-UC-24P-E4-WM-C
LS-PPP-UC-24P-E4-WM-C
LS-APP-SC-24P-E4-C
LS-PPP-SC-24P-E4-WM-C
