Patch Panel
Category 5e LS Simple™ Cat.5e 4&25 Pair Cable, Solution
■ Supports Fast Ethernet, Gigabit Ethernet, 155 Mb/s, Multimedia
■ All accepted design for global commercial network installation
■ Qualifies for LS 25-Year Extended Product Warranty and Applications Assurance when included as part of a registered LS Category 5e Channel
■ Electrical perfomance complies with ANSI/TIA-586-C.2
■ RoHS Compliant
■ Simplified structured cabling solution preserving long-term network investment
■ Supports Fast Ethernet, Gigabit Ethernet, 155 Mb/s, Multimedia
■ All accepted design for global commercial network installation
■ Qualifies for LS 25-Year Extended Product Warranty and Applications Assurance when included as part of a registered LS Category 5e Channel
■ Electrical perfomance complies with ANSI/TIA-586-C.2
■ RoHS Compliant
■ Simplified structured cabling solution preserving long-term network investment
Patch Panel

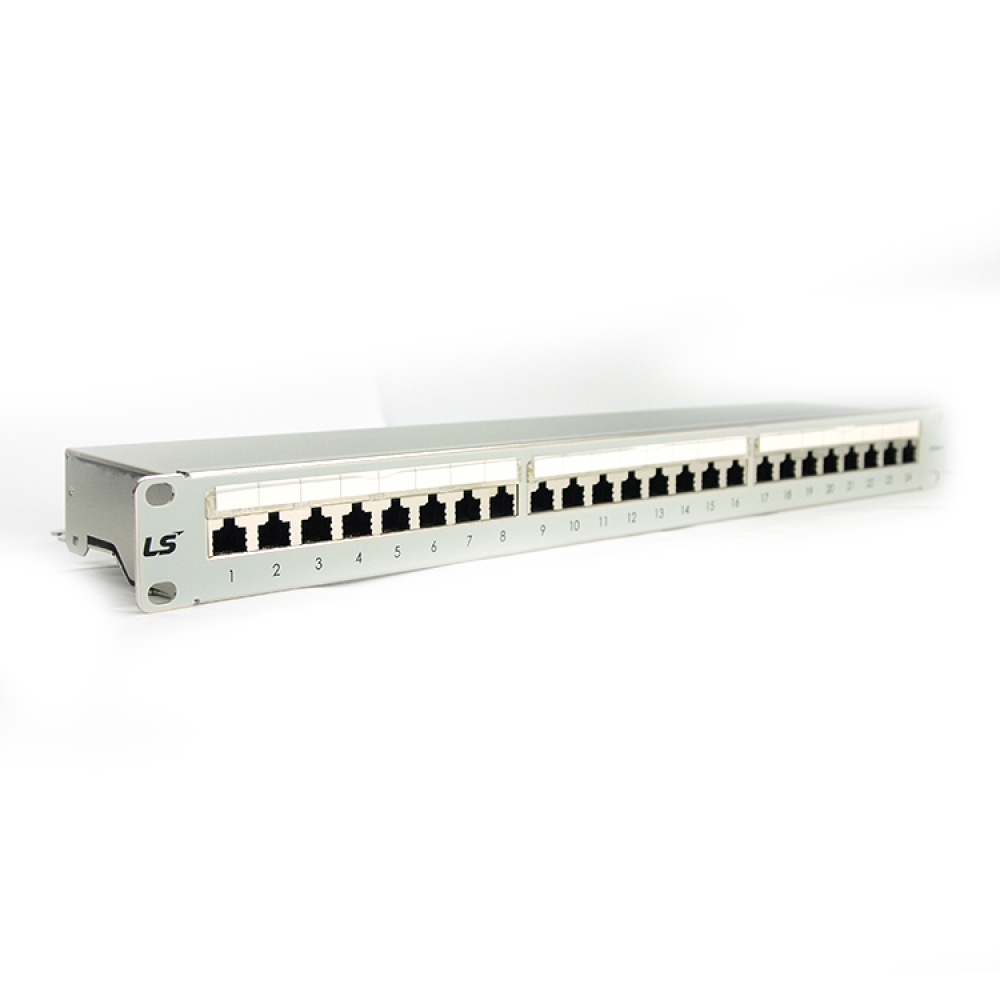

Shielded Patch Panel (LS-PP-SC5E-24P)
- Description
- · UL Listed
· Architectural design and flexibility - Support max. 4-connection channels
· Individually terminated using 90-degree IDC (Insulation Displacement Connectors)
· Easy cable routing and bundling through improved rear cable management
· Electrical performances comply with ANSI/TIA-568-C.2 (Category 5e / Class E)
· Qualifies for the LS 25-Year Extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6 Channel
· Mounting on 19inch standard rack (EIA-310-D)
- Part Lists
- LS-PP-SC5E-24P
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16 Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL

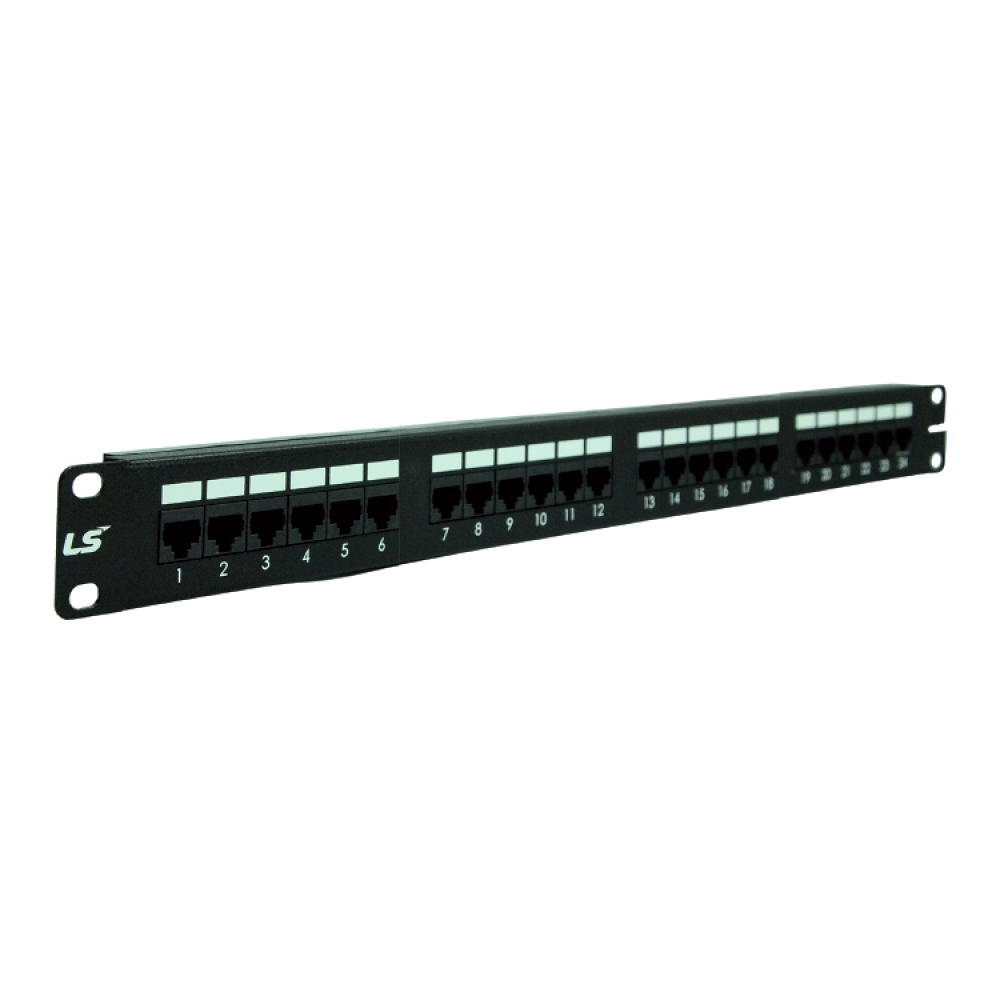

Unshielded Patch Panel (LS-PP-UC5E-24P)
- Description
- · Meet Category 5e / Class D performance levels
· Architectural design and flexibility - Support max. 4 connection channels
· Easy cable routing and bundling through improved rear cable management
· Qualifies for the LS 25-Year Extended Product Warranty and Applications Assurance when included as part of a registered LS Category 5e Channel
- Part Lists
- LS-PP-UC5E-24P
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16 Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
Empty Panel (PPP, APP, LWM, E-WM etc)
- Description
- · For Category 5e~6A Unshielded and fiber bezel etc.
· Mounted on 19" standard rack
· Inserting hole fully complies with RJ-45 of 47 CFR part 68
· Easy managing & wiring by using the double hook's structure between panel and manager bar
· Easy handling by hinged wire management
· RoHS compliant
- Part Lists
- LS-PP-24P-E-LWM LS-PP-24P-E-WM LS-PP-48P-E-WM
LS-PP-MD-12P-E
LS-PP-MD-24P-E
LS-PP-MD-24P-E-WM
LS-APP-48P-E
LS-APP-24P-E-WM
LS-APP-48P-E-WM
LS-APP-UC-24P-E4-WM-C
LS-PPP-UC-24P-E4-WM-C
LS-APP-SC-24P-E4-C
LS-PPP-SC-24P-E4-WM-C
