Rack Solution
LS Cable & System Rack solutions are designed to provide maximum efficiency for space optimization as possible while providing high quality durable parts that will last.
The LS Simple Closet™ is built to withstand tough conditions with reinforced materials allowing for unsurpassed strength and durability. The high density rack is ideal for supporting FDF (Fiber Distribution Frame), Patch Panels, High Density Blocks, Cabling and other telecommunication equipment. Built-in thermal management features provide optimal air-circulation with a perforation ration of over 70%.
The LS Simple Closet™ simplifies cable management by providing Dedicated Cabling Highways, Cable Management Trays, ABS Material Fingers and other features to create a well organized and efficient space within racks. The LS standard racks conform to the general standards of IEC 297-Part1/2/3, EIA RS-310-C,
The LS Simple Closet™ is built to withstand tough conditions with reinforced materials allowing for unsurpassed strength and durability. The high density rack is ideal for supporting FDF (Fiber Distribution Frame), Patch Panels, High Density Blocks, Cabling and other telecommunication equipment. Built-in thermal management features provide optimal air-circulation with a perforation ration of over 70%.
The LS Simple Closet™ simplifies cable management by providing Dedicated Cabling Highways, Cable Management Trays, ABS Material Fingers and other features to create a well organized and efficient space within racks. The LS standard racks conform to the general standards of IEC 297-Part1/2/3, EIA RS-310-C,
Rack Solution

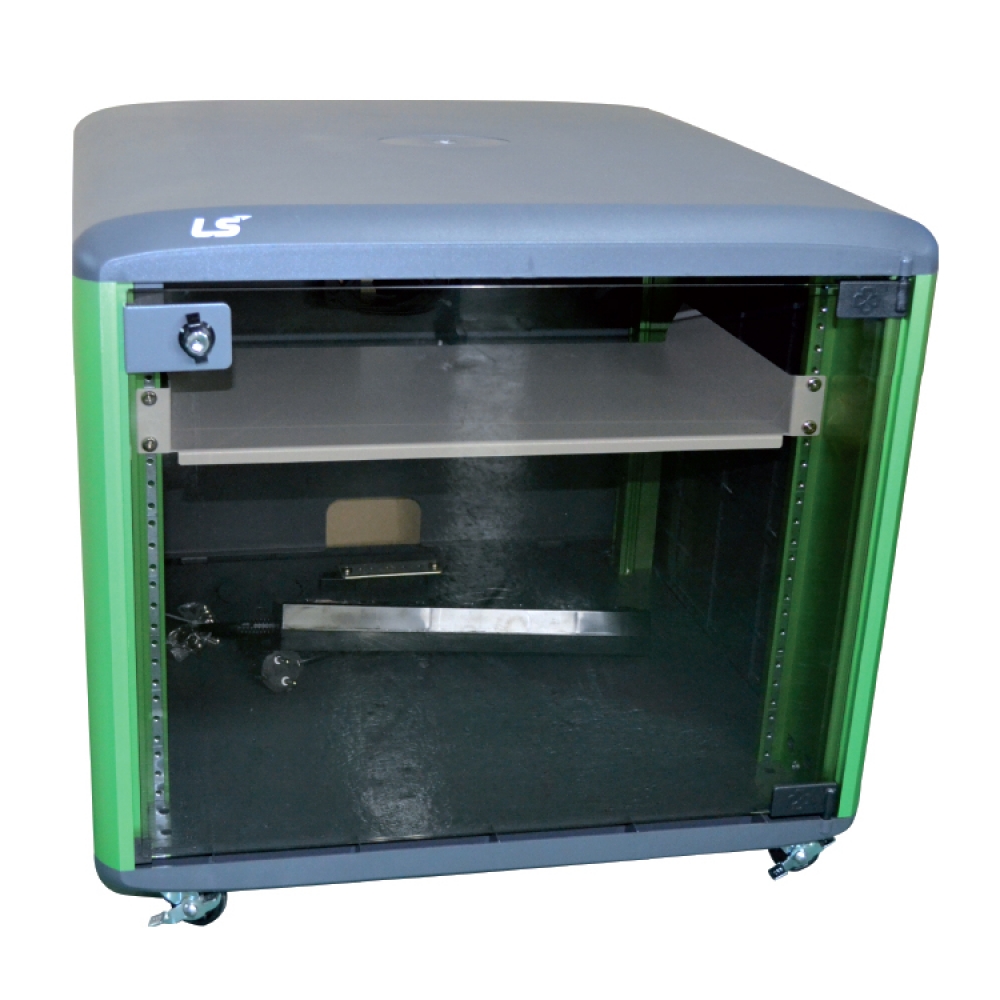

Mini Rack
- Description
- LS Simple Closet™ MWR(Mini Wall Mountable Rack) can be mounted on the wall easily for copper or fiber patching in the telecommunication room.
- Part Number
- Mini Cabinet Rack 19" (6U) : LS-MWR-6U-EX
Mini Cabinet Rack 19" (9U): LS-MWR-9U-EX
Mini Cabinet Rack 19" (11U): LS-MWR-11U-EX
Mini Cabinet Rack 19" (13U): LS-MWR-13U-EX
Mini Cabinet Rack 19" (15U): LS-MWR-15U-EX
- Application
- Small telecommunication distribution

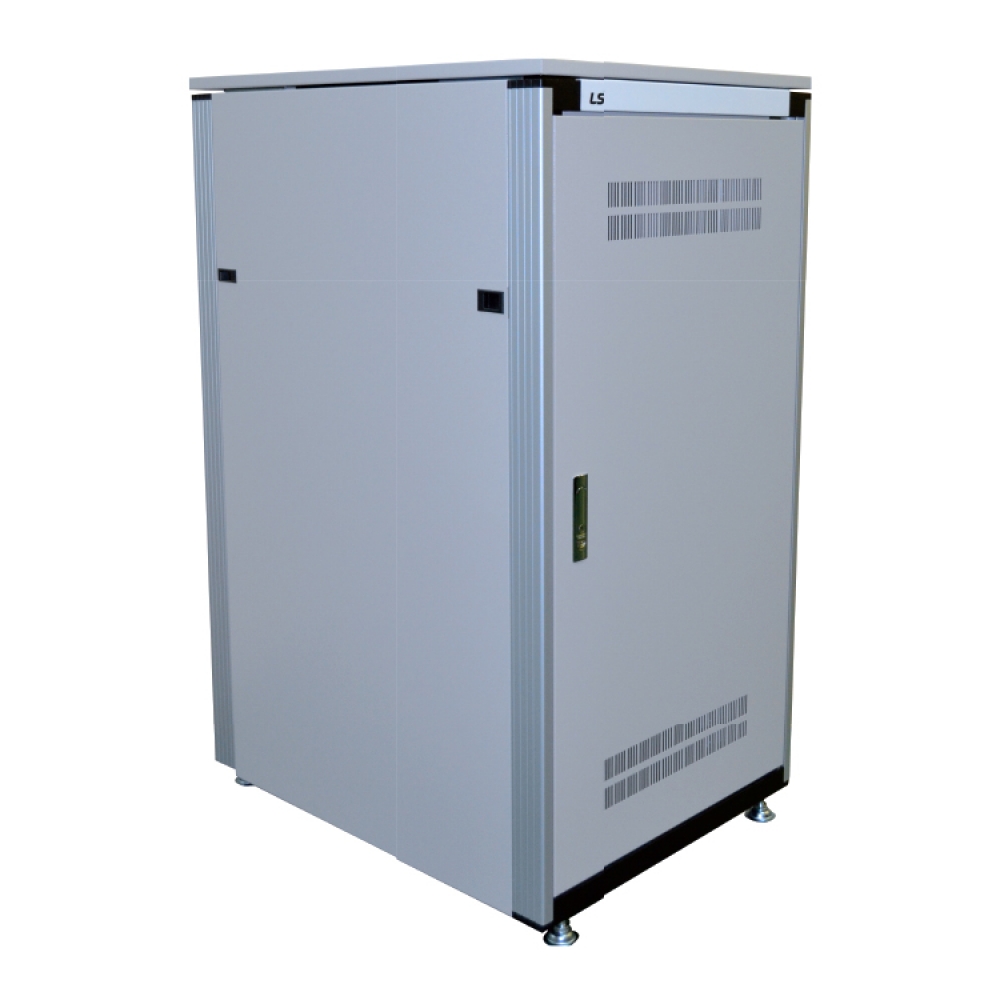

Cabinet Rack
- Description
- LS Simple Closet™ provides unsurpassed strength, stability and durability for supporting FDF, patch panel, high-density blocks, cabling and other telecommunication equipments.
LS Cabinet Racks also provide low cost mounting means for rack-mount equipment for ideal data center or IBS telecommunication rooms. As well as If additional function which are fan, shelf are needed, optional latches can be added more. Also, This economical switch (L2, L3) cabinet is ideally suited for the most common types of switch deployments
- Part Number
- CABINET RACK 19" (22U): LS-CR-22-2430-EX
CABINET RACK 19" (27U): LS-CR-27-2430-EX
CABINET RACK 19" (31U): LS-CR-31-2430-EX
CABINET RACK 19" (36U): LS-CR-36-2430-EX
CABINET RACK 19" (40U): LS-CR-40-2430-EX
CABINET RACK 19" (45U): LS-CR-45-2430-EX
- Application
- Patching in telecommunication Room

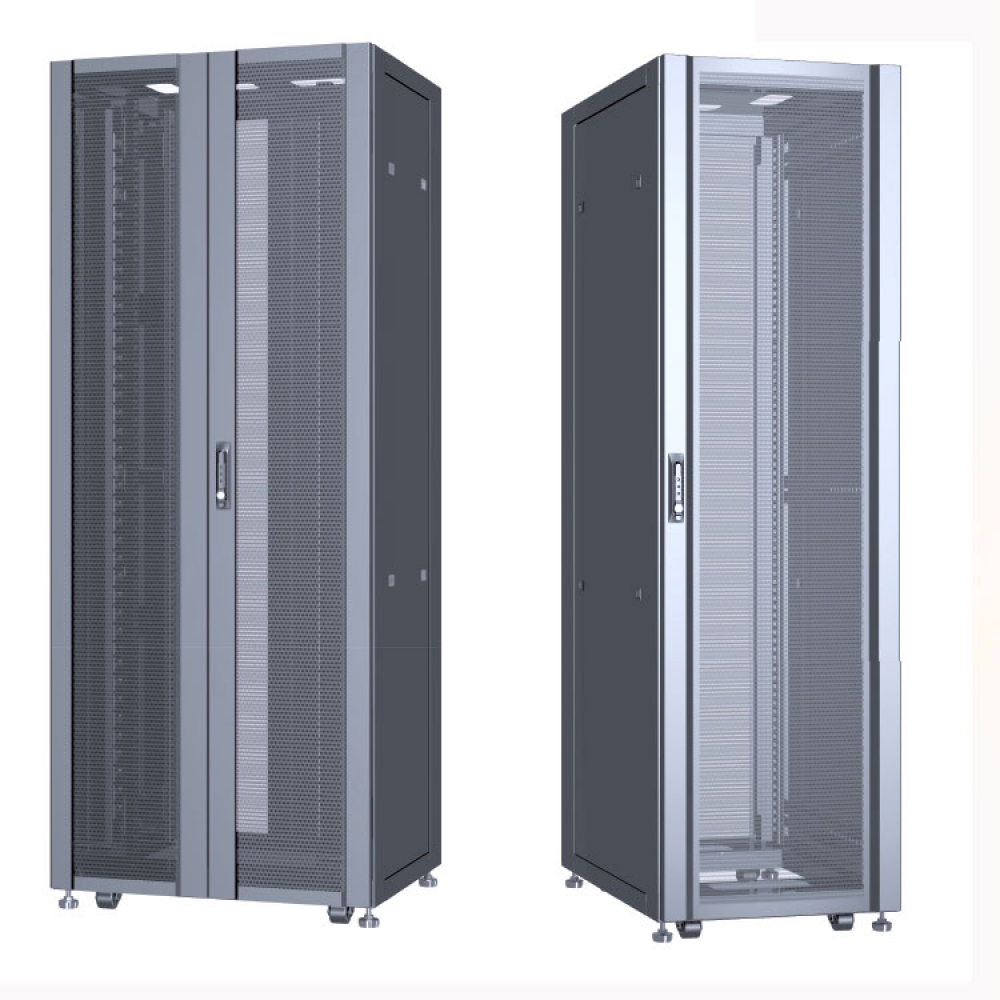

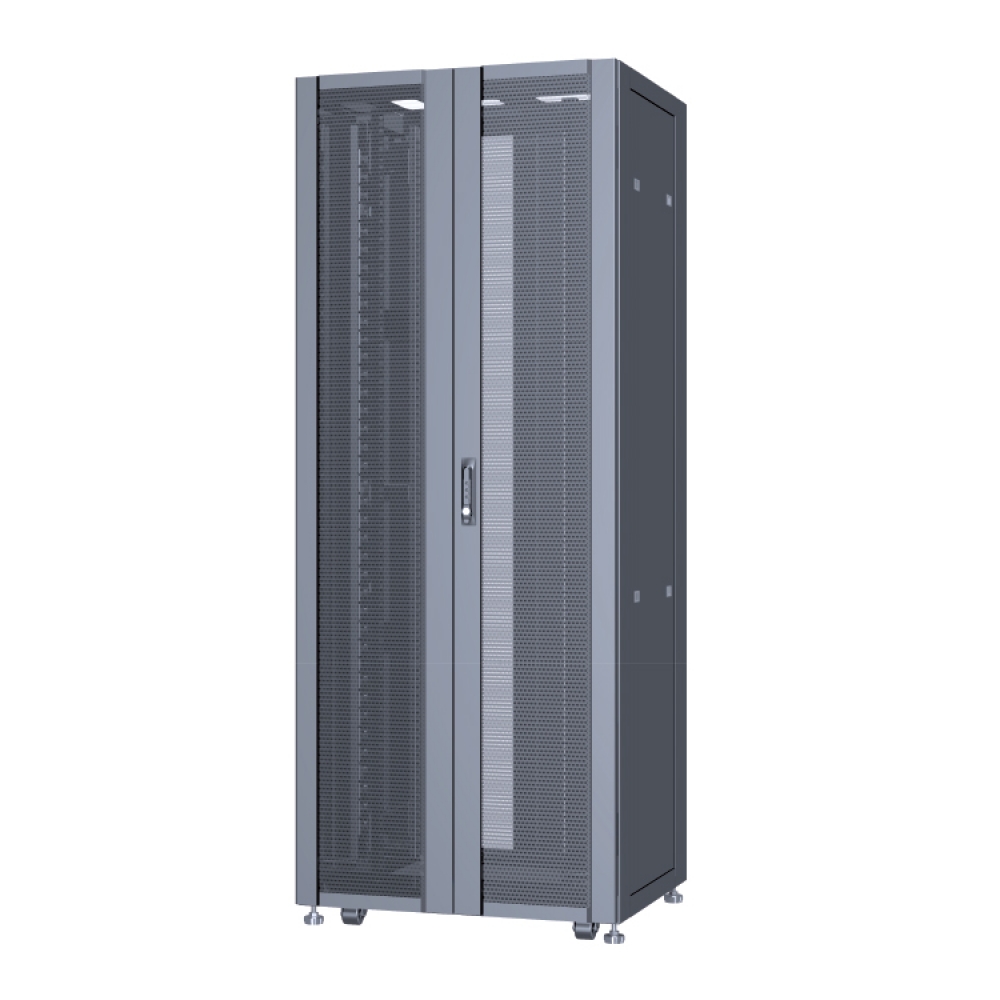

HD (High Desity) Rack
- Description
- LS Simple Closet™ provides unsurpassed strength, stability and durability for supporting FDF, patch panel, high-density blocks, cabling and other telecommunication equipments
The HDR(High-Density Rack) of 4Post server provides low cost mounting means for rack-mount equipment for data center of serve room and provides ideal solution for your data center system & can provide open frame only to flow hot or cold air quickly. It included the cooling fans on Top panel & Plinth panel. And It can remove side, front panel & rear panel form main frame to offer easy & fast access to installed equipment & cabling.
- Part Number
- Server Rack(31U): LS-HDR-SVR31A-EX
Server Rack(36U): LS-HDR-SVR36A-EX
Server Rack(40U): LS-HDR-SVR40A-EX
Server Rack(42U): LS-HDR-SVR42A-EX
Server Rack(45U): LS-HDR-SVR45A-EX
Server Rack(45U): LS-HDR-SVR45D-EX (Depth 1100mm)
Network Rack(36U):LS-HDR-NWK36A-EX
Network Rack(40U):LS-HDR-NWK40A-EX
Network Rack(42U):LS-HDR-NWK42A-EX
Network Rack(45U):LS-HDR-NWK45A-EX
- Application
- Cabling patching or equipment loading and Data Center in ER

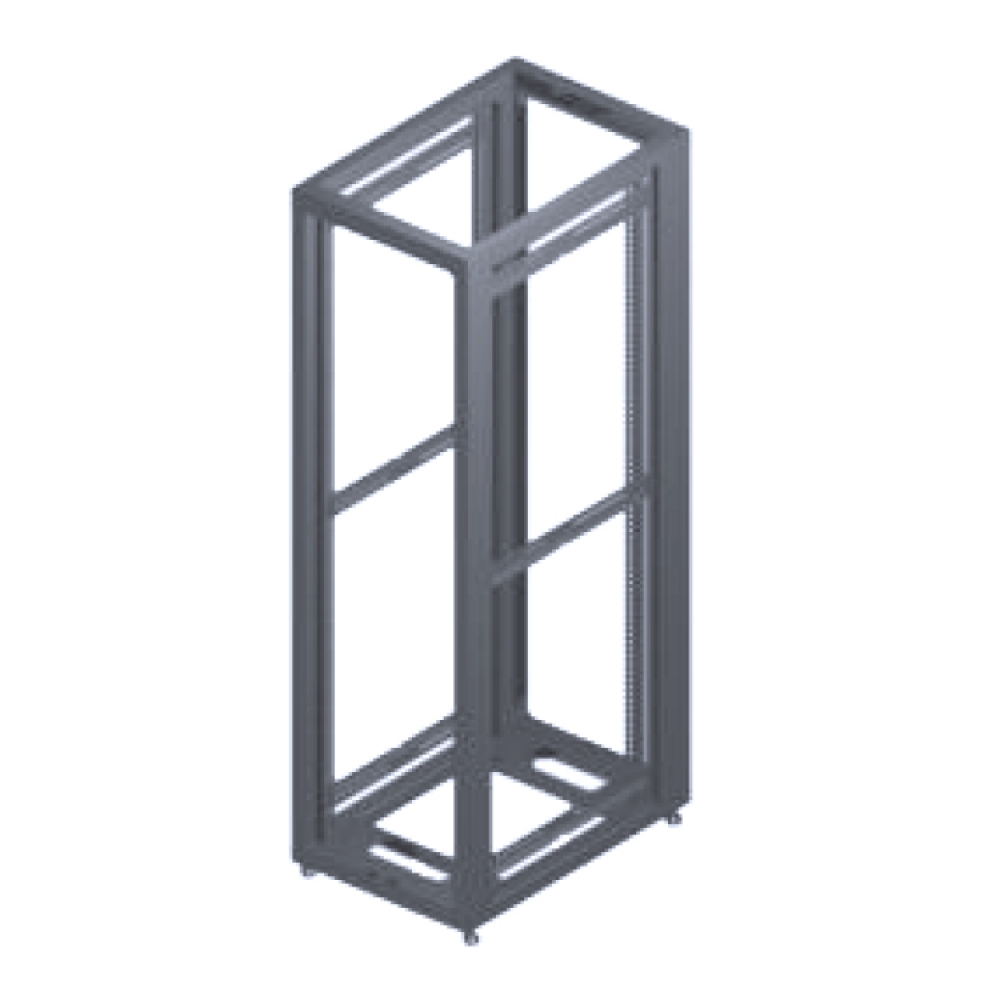

Separate Rack
- Description
- LS Simple Closet™ HVF provides unsurpassed strength, stability and durability for supporting FDF, patch panel, high-density blocks, cabling and other telecommunication equipments
- provide Rack Frame & VCM(Vertical Cable Management), side panel and door individualy
- Part Number
- 4 Post Rack Frame, 19", (36U): LS-HVF-36S-EX
4 Post Rack Frame, 19", (42U): LS-HVF-42S-EX
4 Post Rack Frame, 19", (45U): LS-HVF-45S-EX
Built in vertical cable management for (36U): LS-VCM-36S-EX
Built in vertical cable management for (42U) LS-VCM-42S-EX
Built in vertical cable management for (45U) LS-VCM-45S-EX
Side cover for (36U): LS-SD-36S-EX
Side cover for (42U): LS-SD-42S-EX
Side cover for (45U): LS-SD-45S-EX and so on.
- Application
- Cabling patching or equipment loading and Data Center in ER

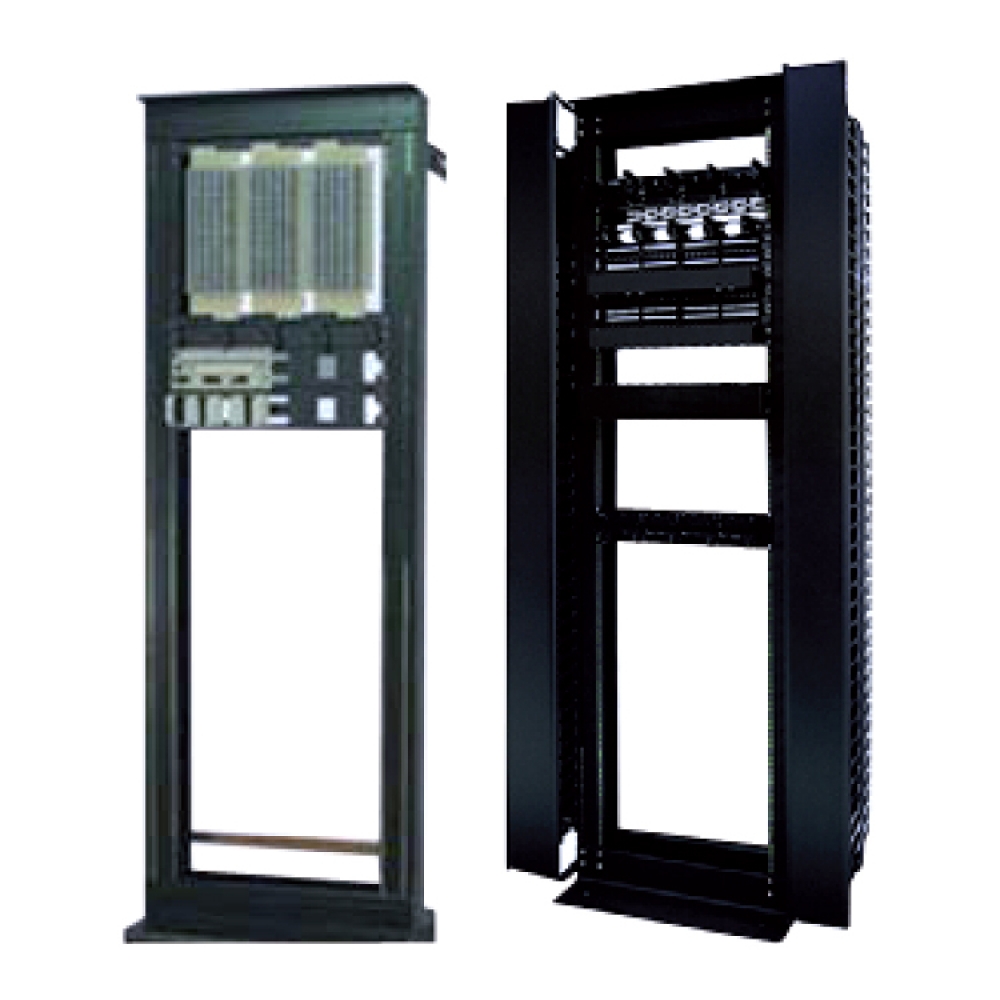

Open Rack
- Description
- LS Simple Closet™ provides unsurpassed strength, stability and durability for supporting FDF, patch panel, blocks, cabling in TR or ER and offer high quality, costeffective solution for patch panels and network switches, save floor space than a 4post cabinet or Rack.
• 19inch rack standard cabinet rack
• TIA/EIA 310-D compliant 2post rack, RoHS compliant
• Detachable side VCM(Vertical cable management)(option)
• Load capability: Max. 1000kg
• Black color
• M5 Slim-Nut & bolt included
- Part Number
- Part Numbers
2Post open rack(36U) LS-OR-PAT-36A-EX
2Post Open Rack (40U) LS-OR-PAT-40A-EX
2Post Open Rack (44U) LS-OR-PAT-44A-EX
Vertical management for (36U) LS-OR-PATV36A-EX
Vertical management for (40U) LS-OR-PATV40A-EX
Vertical management for (44U) LS-OR-PATV44A-EX
Plinth of under floor base 4post supporter LS-OR-PATP-30A-EX
Acccessory Rack Holder on the wall LS-OR-PATS-A-EX
- Application
- Cable patching or equipment loading
