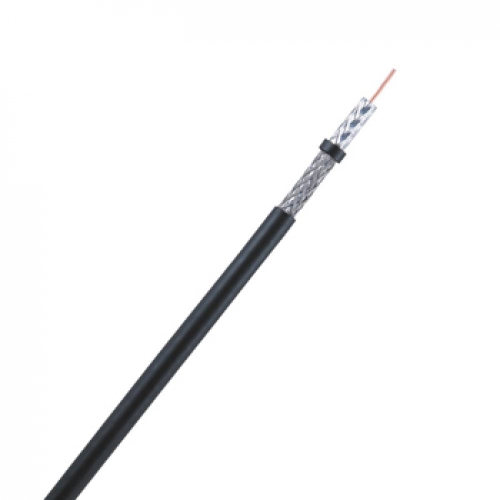

RG 59 Cable
- Description
- . Electrical and mechanical properties of flexible braided 75 ohm coaxial drop cable
. Transmission of optimal signals and power for voice, data and video applications and indoor cable application for CCTV camera
- Lists
- . RG-59 60%
. RG-59 80%
. RG-59 80% Siamese
- Cable Construction
ITEM DESCRIPTION RG59 60% RG59 80% RG59 Siamese Inner conductor Copper Clad Steel Copper Clad Steel Copper Clad Steel Diameter[mm] 0.81±0.008 0.81±0.008 0.81±0.008 Dielectric Foamed PE Foamed PE Foamed PE Diameter[mm] Nom. 3.45 Nom. 3.45 Nom. 3.45 Outer conductor
1st shield Bonded Al foil Bonded Al foil Bonded Al foil Thick[mm] 0.04724~0.08128 0.04724~0.08128 0.04724~0.08128 Diameter[mm] 3.60±0.13 3.60±0.13 3.60±0.13 2nd shield Aluminum Braid Aluminum Braid Aluminum Braid Diameter[mm] 0.120±0.01 0.120±0.01 0.120±0.01 Coverage Min. 59% Min. 79% Min. 79% Jacket PVC PVC PVC Diameter[mm] 5.80±0.20 5.80±0.20 5.90±0.20 Thickness[mm] Nom. 0.80 Nom. 0.80 Nom. 0.90 Power Wire
2/18AWGConductor - - Stranded CCA Diameter[mm] - - 15*0.25mm Insulation - - PE Diameter[mm] - - 2.0±0.10 Jacket - - PVC Diameter[mm] - - 4.95±0.2 Thickness[mm] - - Nom. 0.50
- Technical Details
- Electrical Characteristic
ITEM UNIT RG59 DC Resistance Inner Ω/km ≤140 DC Loop Ω/km ≤199.7 Capacitance(pF/m) pF/m 50±3 Relative Propagation Velocity % ≥82
SRL(dB)
5MHz-1000MHz dB ≥20 1000MHz-3000MHz dB 15 Impedance Ω 75±3
AttenuationFrequency (MHz) Max. (dB/100m) 5 2.85 55 6.73 211 12.47 250 13.45 270 13.85 300 14.60 330 15.29 350 15.75 400 16.73 450 17.72 500 18.70 550 19.52 600 20.34 750 22.87 870 24.85 1000 26.64
Mechanical and Envrionmental PerformanceMinimum Braid Wire Tensile Strength ( AL ) 43,000 psi Center Conductor Minimum Break Strength ( CCS ) 91 lbf Corrosion Resistance No signs of corrosion Cold Bend Test No visible damage to jacket Cold Impact Test No visible damage to jacket Maximum Jacket Longitudinal Shrinkage 5% of initial length under test Minimum Center Conductor Bond to Dielectric 5 lbs
