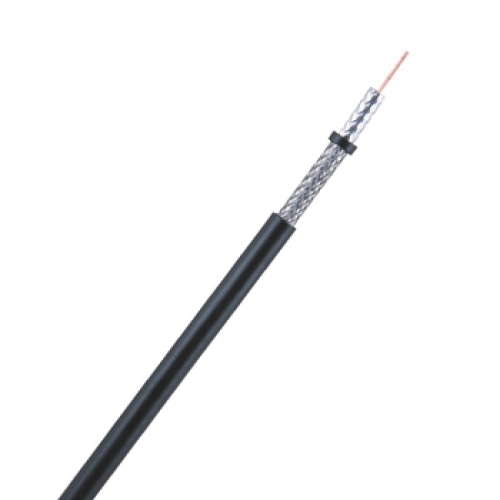

RG 6 Cable
- Description
- . Flexible braided 75 ohm coaxial drop cable
. Transmission of RF signals and power for voice, data and video applications and CATV/Internet
- Lists
- . RG-6 60%, 80%, 90%
. RG-6 60% Tri-shielded
. RG-6 60% with messenger
. RG-6 60% Tri-shielded with messenger
- Cable Construction
ITEM DESCRIPTION RG6 60% RG6 80% RG6 90% RG6 60% TRI RG6 60%
MRG6 60%
TRI MInner conductor CCS CCS CCS CCS CCS CCS Diameter[mm] 1.02±0.01 1.02±0.01 1.02±0.01 1.02±0.01 1.02±0.01 1.02±0.01 Dielectric Foamed PE Foamed PE Foamed PE Foamed PE Foamed PE Foamed PE Diameter[mm] Nom. 4.57 Nom. 4.57 Nom. 4.57 Nom. 4.57 Nom. 4.57 Nom. 4.57 Outer conductor 1st shield Bonded Al foil Bonded Al foil Bonded Al foil Bonded Al foil Bonded Al foil Bonded Al foil Thick[mm] 0.04724
~ 0.081280.04724
~ 0.081280.04724
~ 0.081280.04724
~ 0.081280.04724
~ 0.081280.04724
~ 0.08128Dia.[mm] 4.78±0.13 4.78±0.13 4.78±0.13 4.78±0.13 4.78±0.13 4.78±0.13 2nd shield Aluminum
BraidAluminum
BraidAluminum
BraidAluminum
BraidAluminum
BraidAluminum
BraidDia.[mm] 0.120±0.01 0.120±0.01 0.120±0.01 0.120±0.01 0.120±0.01 0.120±0.01 Coverage Min. 59% Min. 79% Min. 89% Min. 59% Min. 59% Min. 59% 3rd shield - - - Al foil - Al foil Jacket PVC PVC PVC PVC PVC PVC Diameter[mm] 6.90±0.20 6.90±0.20 6.90±0.20 6.93±0.20 6.90±0.20 6.90±0.20 Thickness[mm] Nom. 0.80 Nom. 0.80 Nom. 0.80 Nom. 0.80 Nom. 0.80 Nom. 0.80 Messenger Conductor - - - Galvanized steel Galvanized steel Dia.[mm] - - - 1.30±0.05 1.30±0.05
- Characteristics
- Electrical Characteristic
ITEM UNIT RG6 (Single Tape & Braid ) RG6 (Tri-shield ) DC Resistance Inner Ω/km ≤102 DC Loop Ω/km ≤135 for 0.16mm AL Braiding
≤150 for 0.12mm AL Braiding≤121.1 for 0.16mm AL Braiding
≤145 for 0.12mm AL BraidingCapacitance(pF/m) pF/m 50±3 Relative Propagation Velocity % ≥82
SRL(dB)
5MHz-1000MHz dB 20 1000MHz-3000MHz dB 15 Impedance Ω 75±3
AttenuationFrequency (MHz) Max. (dB/100m) 5 2.60 55 5.25 211 10.00 250 10.82 270 11.04 300 11.64 330 12.26 350 12.63 400 13.61 450 14.43 500 15.29 550 16.08 600 16.73 750 18.54 870 20.04 1000 21.49
Mechanical and Environmental PerformanceMininum Braid Wire Tensile Strength ( AL ) 43,000 psi for 0.16mm
31,900 psi for 0.12mmCenter Conductor Minimum Break Strengh ( CCS ) 144 lbf Corrosion Resistance No signs of corrosion Cold Bend Test No visible damage to jacket Cold Impact Test No visible damage to jacket Maximum Jacket Longitudinal Shrinkage 5% of initial length under test Minimum Center Conductor Bond to Dielectric 5 lbs
