SF/UTP Cat.6

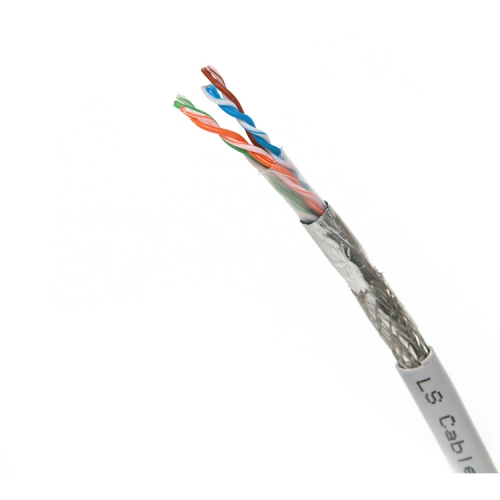

SF/UTP Cat.6

Description: · Cable diameter: 0.295in. (7.5mm)
· Capable of handling full broadband and baseband video signals
· High flame retardant grade of the cable is protected propagation of fire
· Comply with ANSI/TIA-568-C.2
· Specialized print legend contains footage or metric or dual marking
· Wooden reel is standard, so wire pulls through reel for easy access
· RoHS compliant
· Qualifies for the LS 25-year extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6 Channel
· Copper cable design & process technology electrical performance simulation by using internal coding program based on transmission line theory process improvement and facility maintain with internal production technology R&D center.

Part Lists

Description	Part Number
Category 6 SF/UTP 4Pair CMX	SFP-G-C6G-E1VN-X 0.5X004P/xx
Category 6 SF/UTP 4Pair CM	SFP-G-C6G-E1VN-M 0.5X004P/xx
Category 6 SF/UTP 4Pair LSZH 332-1	SFP-G-C6G-E1ZN-X 0.5X004P/xx
Category 6 SF/UTP 4Pair LSZH 332-3	SFP-G-C6G-E1ZN-M 0.5X004P/xx

Application: · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL

Technical Details

Characteristics	units	Specification
DC Resistance	Ω/100m	≤ 9.5
DC Resistance Unbalance	%	≤ 2.00
Capacitance Unbalance (Pair to Ground)	pF/km (800~1000Hz)	≤ 1600
Insulation Resistance	MΩ·m	≥ 5000
Dielectric Strength	DC kV/sec	2.5 / 2
Impedance (Characteristic mean)	Ω	100 ± 5% (at 100MHz)
Return Loss	dB/100m	≥ 20 + 5 * log(freq) , 4 ≤ f ＜ 10MHz ≥ 25 , 10 ≤ f ＜ 20MHz ≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 250MHz
Attenuation (Insertion Loss)	dB/100m	≤ 1.82√(freq) + 0.0169(freq) + 0.25/√(freq) , 4 ~ 250 MHz
NEXT Loss	dB/100m	≥ 75.3 – 15*log(freq) ,4 ~ 250MHz
Power sum NEXT Loss	dB/100m	≥ 72.3 – 15*log(freq) ,4 ~ 250MHz
ELFEXT Loss	dB/100m	≥ 68 – 20*log(freq) ,4 ~ 250MHz
Power sum ELFEXT Loss	dB/100m	≥ 65 – 20*log(freq) ,4 ~ 250MHz
Propagation Delay	ns/100m	≤ 534 + 36 / √ (Freq) ,4 ~ 250MHz
Propagation Delay Skew	ns/100m	≤ 45, 4 ~ 250MHz
