Specialty Cable (Armor, Moving)

LS Cable & System Cat.5e & Cat.6 U/UTP Outdoor Cable for high-speed data transmission in global commercial networks. Simplified structuring cable solution that preserves long-term network investment. Provides UV resistance for enhanced durability.

Specialty Cable (Armor, Moving)

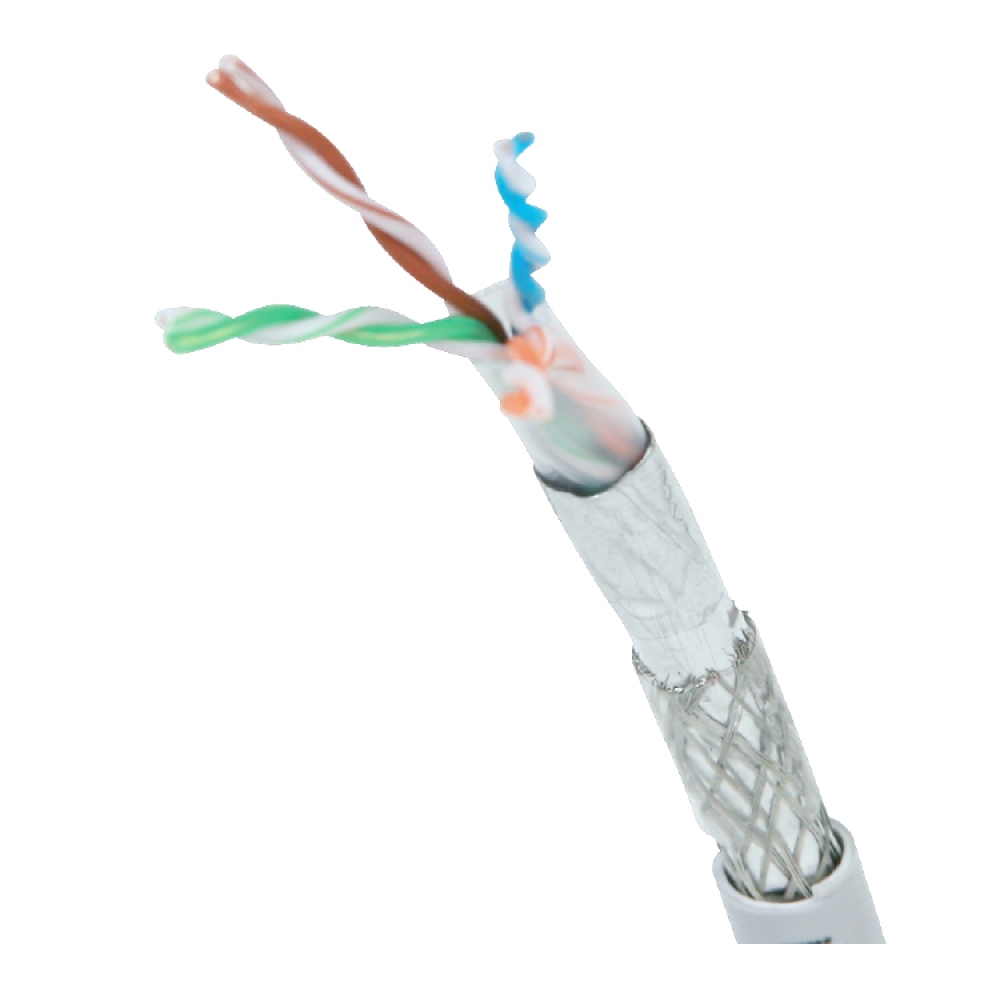

Stranded SF/UTP Cat.5E 4P Cable

DESCRIPTION: . Performance & Structure : ISO/IEC 11801, SF/UTP Stranded Cable
. Fire Retardant : ISO/IEC 61156-5, UL444, IEC 60332-1 or IEC 60332-3
. Adpated Application : Elevator, Train Etc that need moving durability

TECHNICAL DETAILS: dd

Learn more

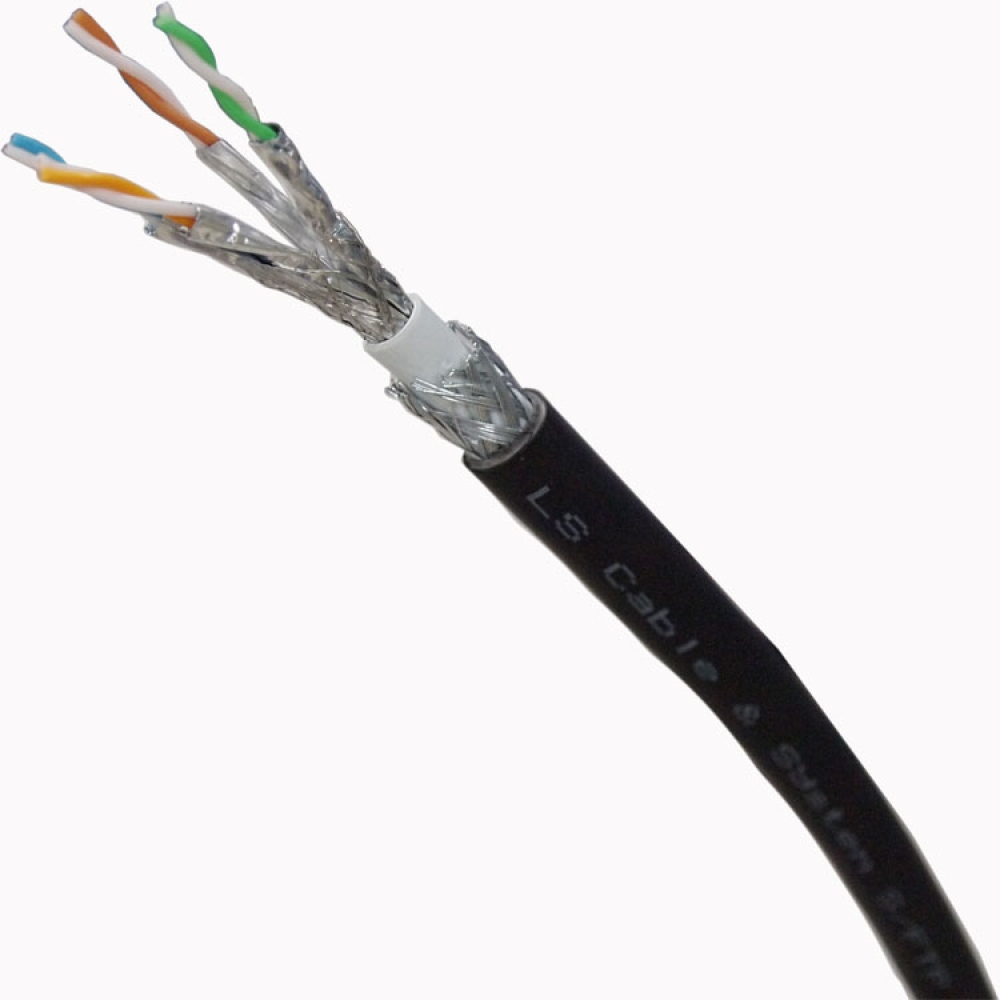

GSWB S/FTP Category 6 Cable

Description: • Galvanized Steel Wire Braid S/FTP Category 6 LSZH Cable
• Adequate for industrial use environment such as marine, offshore etc.
• Meet electrical performance based on ISO/IEC 11801, IEC 61156-5
• Meet flame retardant of IEC 60332-1 & 3(Category A)

Part Lists

Description	Part Number
Category 6 S/FTP Galvanized Steel Wire Braid Armored Cable, IEC 60332-1	SSP-G-C6G-E2ZG-X 0.5X004P/BK
Category 6 S/FTP Galvanized Steel Wire Braid Armored Cable, IEC 60332-3A	SSP-G-C6G-E2ZG-M 0.5X004P/BK

Technical Details

Thickness of sheath and cable diameter

Inner sheath thickness (mm)	Bedding diameter (mm)	Outer sheath Thickness (mm)	Cable diameter (mm)
0.8 ± 0.1	8.2 ± 0.3	1.5± 0.2	12.5 ± 0.5

Electrical Performance

Characteristics	units	Specification
DC Resistance	Ω/100m	≤ 9.5
DC Resistance Unbalance	%	≤ 2.00
Capacitance Unbalance (Pair to Ground)	pF/km (800~1000Hz)	≤ 1600
Insulation Resistance	MΩ·m	≥ 5000
Dielectric Strength	DC kV/sec	2.5 / 2
Impedance (Characteristic mean)	Ω	100 ± 5% (at 100MHz)
Return Loss	dB/100m	≥ 20 + 5 * log(freq) , 4 ≤ f ＜ 10MHz ≥ 25 , 10 ≤ f ＜ 20MHz ≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 250MHz
Attenuation (Insertion Loss)	dB/100m	≤ 1.82√(freq) + 0.0169(freq) + 0.25/√(freq) , 4 ~ 250 MHz
NEXT Loss	dB/100m	≥ 75.3 – 15*log(freq) ,4 ~ 250MHz
Power sum NEXT Loss	dB/100m	≥ 72.3 – 15*log(freq) ,4 ~ 250MHz
ELFEXT Loss	dB/100m	≥ 68 – 20*log(freq) ,4 ~ 250MHz
Power sum ELFEXT Loss	dB/100m	≥ 65 – 20*log(freq) ,4 ~ 250MHz
Propagation Delay	ns/100m	≤ 534 + 36 / √ (Freq) ,4 ~ 250MHz
Propagation Delay Skew	ns/100m	≤ 45, 4 ~ 250MHz

DATA SHEET
Download Copy URL
ORDERING GUIDE
Download Copy URL

Q&A

Welcome to LS Simple Web site. LS Cable & System will become a company always listen to your voice.
If you have any questions regarding this product please leave this place. We will handle as much as possible in a short time.

legend * Mandatory


Subject
writer
E-mail
Phone Number
Mobile Phone
Contents
attach	Attachement

Consent to collect and use personal information.

LS cable & system., Ltd. (the "Company") collects minimum personal information in order to provide accurate and sincere response to your request.

1. Purpose
The Company utilized for the purpose of consultation, the answer replies, inquiries handling personal information collected.
2. Information Collected
The Company has collected personal information as below for consultation.
- Name, email, phone number, cell phone number
3. Processing and Retention Period for Personal Information
The company holds personal information until the processing of personal data to achieve the purpose, and after destroying without purpose has been achieved or exceeded for more than one year delay. However, if there is a need for preservation If you have received a prior agreement or by applicable law, it may be preserved.
4. Right to Refuse Consent/Disadvantages
Customers have the right to refuse to accept the collection and use of personal information. However, there may be a limit to the agreed upon denial of service.

Agree

List

Share by email

Share by email
Share page

Share page
Recipient	E-mail If you want to send to multiple recipients e-mail address semicolon(;) delimited please (up to 5 people )
Send message(0/200 Byte)	E-mail
Sender	name E-mail

Send Cancel

closed

Technical Details

Thickness of sheath and cable diameter

Inner sheath thickness (mm)	Bedding diameter (mm)	Outer sheath Thickness (mm)	Cable diameter (mm)
0.8 ± 0.1	8.2 ± 0.3	1.5± 0.2	12.5 ± 0.5

Electrical Performance

Characteristics	units	Specification
DC Resistance	Ω/100m	≤ 9.5
DC Resistance Unbalance	%	≤ 2.00
Capacitance Unbalance (Pair to Ground)	pF/km (800~1000Hz)	≤ 1600
Insulation Resistance	MΩ·m	≥ 5000
Dielectric Strength	DC kV/sec	2.5 / 2
Impedance (Characteristic mean)	Ω	100 ± 5% (at 100MHz)
Return Loss	dB/100m	≥ 20 + 5 * log(freq) , 4 ≤ f ＜ 10MHz ≥ 25 , 10 ≤ f ＜ 20MHz ≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 250MHz
Attenuation (Insertion Loss)	dB/100m	≤ 1.82√(freq) + 0.0169(freq) + 0.25/√(freq) , 4 ~ 250 MHz
NEXT Loss	dB/100m	≥ 75.3 – 15*log(freq) ,4 ~ 250MHz
Power sum NEXT Loss	dB/100m	≥ 72.3 – 15*log(freq) ,4 ~ 250MHz
ELFEXT Loss	dB/100m	≥ 68 – 20*log(freq) ,4 ~ 250MHz
Power sum ELFEXT Loss	dB/100m	≥ 65 – 20*log(freq) ,4 ~ 250MHz
Propagation Delay	ns/100m	≤ 534 + 36 / √ (Freq) ,4 ~ 250MHz
Propagation Delay Skew	ns/100m	≤ 45, 4 ~ 250MHz

DATA SHEET
Download Copy URL
ORDERING GUIDE
Download Copy URL

Q&A

legend * Mandatory


Subject
writer
E-mail
Phone Number
Mobile Phone
Contents
attach	Attachement

Consent to collect and use personal information.

LS cable & system., Ltd. (the "Company") collects minimum personal information in order to provide accurate and sincere response to your request.

1. Purpose
The Company utilized for the purpose of consultation, the answer replies, inquiries handling personal information collected.
2. Information Collected
The Company has collected personal information as below for consultation.
- Name, email, phone number, cell phone number
3. Processing and Retention Period for Personal Information
The company holds personal information until the processing of personal data to achieve the purpose, and after destroying without purpose has been achieved or exceeded for more than one year delay. However, if there is a need for preservation If you have received a prior agreement or by applicable law, it may be preserved.
4. Right to Refuse Consent/Disadvantages
Customers have the right to refuse to accept the collection and use of personal information. However, there may be a limit to the agreed upon denial of service.

Agree

List

Learn more

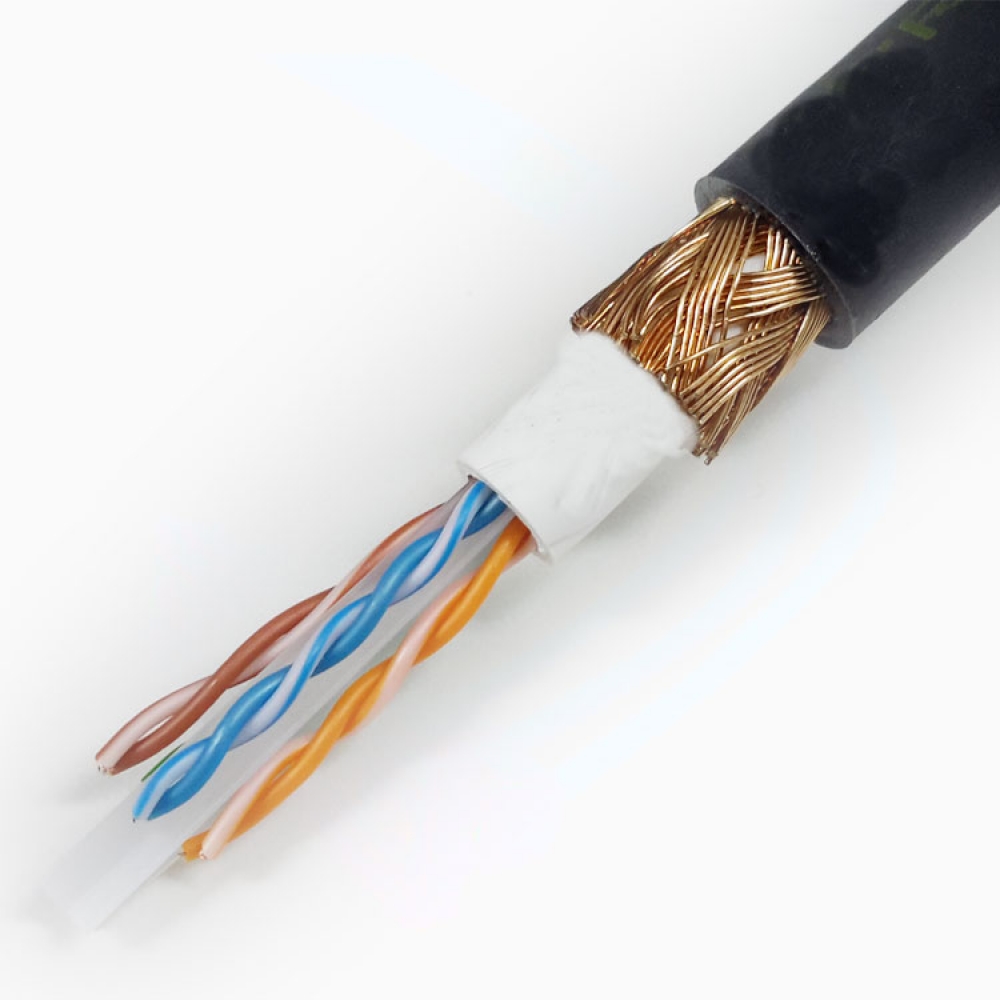

GSWB S/FTP Category 6A Cable

Description: • Galvanized Steel Wire Braid S/FTP Category 6A LSZH Cable
• Adequate for industrial use environment such as marine, offshore etc.
• Meet electrical performance based on ISO/IEC 11801, IEC 61156-5
• Meet flame retardant of IEC 60332-1 & 3(Category A)

Part Lists

Description	Part Number
Category 6A S/FTP Galvanized Steel Wire Braid Armored Cable, IEC 60332-1	SSP-A-C6G-E2ZG-X 0.5X004P/BK
Category 6A S/FTP Galvanized Steel Wire Braid Armored Cable, IEC 60332-3A	SSP-A-C6G-E2ZG-M 0.5X004P/BK

Technical Details

Thickness of sheath and cable diameter

Inner sheath thickness (mm)	Bedding diameter (mm)	Outer sheath Thickness (mm)	Cable diameter (mm)
0.8 ± 0.1	8.2 ± 0.3	1.5± 0.2	12.5 ± 0.5

Electrical Performances

Characteristics	units	Specification
DC Resistance	Ω/100m	≤ 9.5
DC Resistance Unbalance	%	≤ 2.00
Capacitance Unbalance (Pair to Ground)	pF/km (800~1000Hz)	≤ 1600
Insulation Resistance	MΩ·m	≥ 5000
Dielectric Strength	DC kV/sec	2.5 / 2
Impedance (Characteristic mean)	Ω	100 ± 5% (at 100MHz)
Return Loss	dB/100m	≥ 20 + 5 * log(freq) , 4 ≤ f ＜ 10MHz ≥ 25 , 10 ≤ f ＜ 20MHz ≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 500MHz (min. 17.3dB)
Attenuation (Insertion Loss)	dB/100m	≤ 1.82√(freq) + 0.0091(freq) + 0.25/√(freq) , 4 ~ 500 MHz
NEXT Loss	dB/100m	≥ 75.3 – 15*log(freq) , 4 ~ 500MHz
Power sum NEXT Loss	dB/100m	≥ 72.3 – 15*log(freq) , 4 ~ 500MHz
ELFEXT Loss	dB/100m	≥ 68 – 20*log(freq) , 4 ~ 500MHz
Power sum ELFEXT Loss	dB/100m	≥ 65 – 20*log(freq) , 4 ~ 500MHz
Propagation Delay	ns/100m	≤ 534 + 36 / √ (Freq) , 4 ~ 500MHz
Propagation Delay Skew	ns/100m	≤ 45, 4~500MHz
