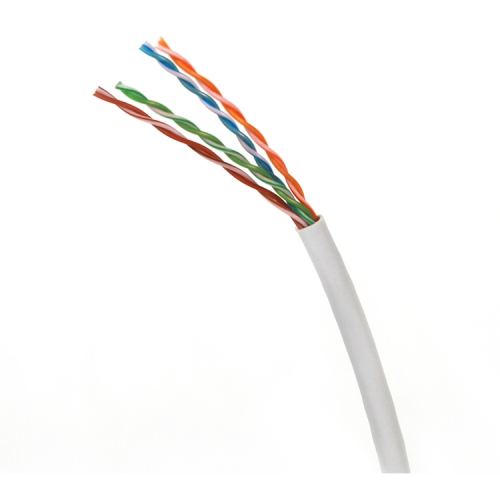

U/UTP Cat.5e

U/UTP Cat.5e

Description: · Cable diameter : 0.193inch (4.9mm)
· ETL, EC Verified
· Supports Fast Ehternet, Gigabit Ethernet, 155 Mb/s, Multimedia
· All accepted design for global commercial network installation
· Simplified structured cabling solution preserving long-term network investment
· High flame retardant grade of the cable (Plenum Cable)
· Comply with ANSI/TIA-568-C.2
· Specialized print legend contains footage or metric or dual marking
· RoHS compliant
· Qualifies for the LS 25-year extended Product Warranty and Applications Assurance when included as part of a registered LS Category 5e Channel

Part Lists

Description	Part Number
Category 5e U/UTP 4Pair CMX	UTP-E-C5G-E1VN-X 0.5X004P/xx
Category 5e U/UTP 4Pair CM	UTP-E-C5G-E1VN-M 0.5X004P/xx
Category 5e U/UTP 4Pair CMR	UTP-E-C5G-E1VN-R 0.5X004P/xx
Category 5e U/UTP 4Pair CMP	UTP-E-C5G-F1VN-P 0.5X004P/xx
Category 5e U/UTP 4Pair LSZH 332-1	UTP-E-C5G-E1ZN-X 0.5X004P/xx
Category 5e U/UTP 4Pair LSZH 332-3	UTP-E-C5G-E1ZN-M 0.5X004P/xx

Application: · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL

Technical Details

Characteristics	units	Cat.5e
DC Resistance	Ω/100m	≤ 9.38
DC Resistance Unbalance	%	≤ 5.00
Mutual Capacitance	nF/100m	≤ 5.60
Capacitance Unbalance (Pair to Ground)	pF/100m	≤ 330
Insulation Resistance	MΩ-100m	≥ 500
Dielectric Strength	DC kV/sec	2.5 / 2
Impedance (Characteristic mean)	Ω	100 ± 15% (1 ≤ f ≤ 100MHz)
Return Loss	dB/100m	≥ 20 + 5 * log(freq) 1 ≤ f < 10MHz ≥ 25 10 ≤ f < 20MHz ≥ 25 – 7 * log(freq/20) 20 ≤ f ≤ 100MHz
Attenuation (Insertion Loss)	dB/100m	≤ 1.967√(freq) + 0.023(freq) + 0.05/√(freq) 1 ~ 100 MHz
NEXT Loss	dB/100m	≥ 35.3 – 15*log(freq/100) , 1 < f ≤ 100MHz
Power sum NEXT Loss	dB/100m	≥ 32.3 – 15*log(freq/100) , 1 < f ≤ 100MHz
ELFEXT Loss	dB/100m	≥ 23.8 – 20*log(freq/100) , 1 ~ 100MHz
Power sum ELFEXT Loss	dB/100m	≥ 20.8 – 20*log(freq/100) , 1 ~ 100MHz
Propagation Delay	ns/100m	≤ 534 + 36 / √ (Freq) , 1 ~ 100MHz
Propagation Delay Skew	ns/100m	≤ 45

DATA SHEET
Download Copy URL
ORDERING GUIDE
Download Copy URL
