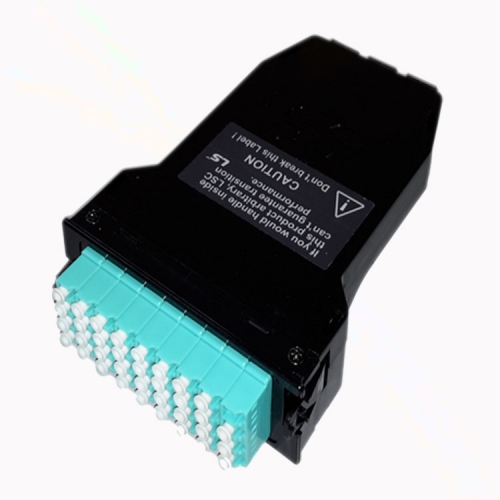

Cassette Module (MCM)

Description: The MPO/MTP Cassette Modules are installed with terminated MPO/MTP trunk cables and patch cords. The cassette includes the plastic case, adaptor plate, MPO/MTP fan-out cord and other necessary materials for the arrangement of optical fiber cables. It is installed on LS Simple Fast-NetTM Empty Panel(PPP-) and Modular FDF.
They are pre-terminated and pre-tested in the factory with MPO/MTP fan-out cords, which guarantee the high performances.

Part Lists: . LS-MCM-SC-DP-12-xx (SC Duplex 12-core to 1 MTP Pre-term. Cassette)
. LS-MCM-LC-DP-12-xx (LC Duplex 12-core to 1 MTP Pre-term. Cassette)
. LS-MCM-LC-4M-24-xx (LC Quad 24-core to 2 MTP Pre-term. Cassette)
. LS-MCM-LC-4M-36-xx (LC Quad 36-core to 3 MTP Pre-temr. Cassette)
. LS-MCM-MCC6 (MPO/MTP Adaptor Panel, 6-ports, cross-connection)

Application: . Telecommunication network, Data Center
. Data Processing Systems
. LAN and WAN (IEEE 802.3ba, 100BASE-FX, 10GBASE-LX4, 10GBASE-ER/EW, 40GBASE-LR4, 100GBASE-ER4 etc.)
. Fiber Optic Test & Measurement System

Technical: . Based on IEC 61754-7 MPO/MTP type Connector
. Fiber types : Single-mode & Multi-mode
. Insertion Loss & Return Loss is based on ANSI/TIA-568-C.3
. MPO/MTP connector insertion loss ≤ 0.35dB(low-loss)
. LC connector insertion loss ≤ 0.2dB(SM), 0.3dB(MM)
. Class OF-300 channel support
. Operating temperature : 0℃~70℃
. Material : Plastic UL 94 V-2 above
. Dimension : 112 x 149 x 37mm
. Connection Polarity is based on ANSI/TIA-568-C.3
