10G/40G/100G Fiber Solution
LS Cable & System high speed cables are built to handle current transmission speeds of 10Gb/s and are built to support next generation Ethernet standards for up to 40Gb/s and 100Gb/s. All massive parallel fibers utilize MPO/MPT connectors as standardized by IEC-61754-7 and EIA/TIA-604-5.

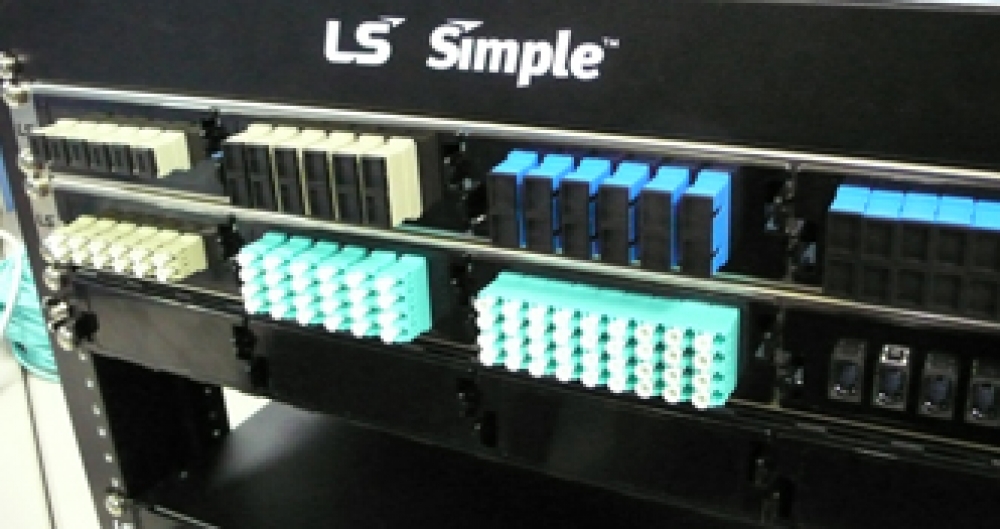

LS Simple recommend MTP-based connectivity using OM3 and OM4 fiber is the ideal solution in the data center. With inherent modularity and optimization for a flexible, Our MTP fiber solution comply with TIA-942- structured cabling installation for to future high-speed technologies such as 40G and 100G Ethernet.
LS Simple recommend MTP-based connectivity using OM3 and OM4 fiber is the ideal solution in the data center. With inherent modularity and optimization for a flexible, Our MTP fiber solution comply with TIA-942- structured cabling installation for to future high-speed technologies such as 40G and 100G Ethernet.
10G/40G/100G Fiber Solution

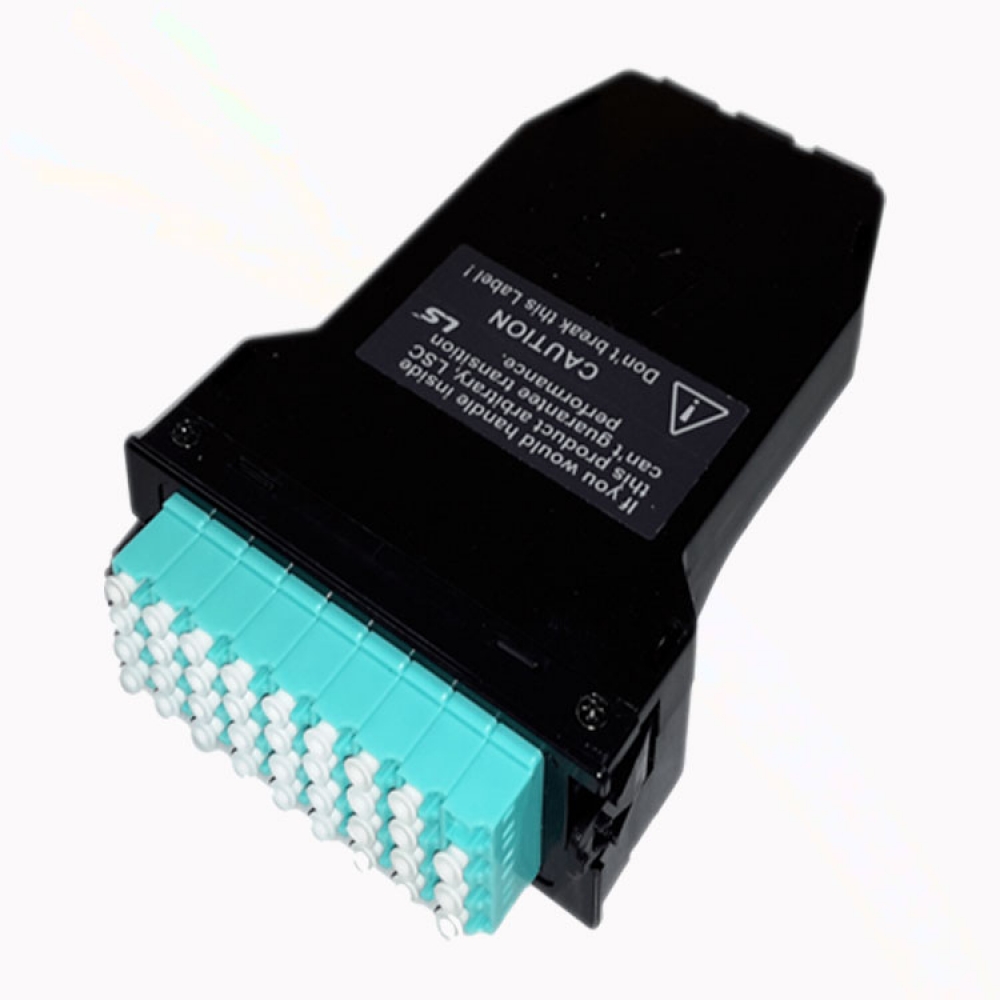

Cassette Module (MCM)
- Description
- The MPO/MTP Cassette Modules are installed with terminated MPO/MTP trunk cables and patch cords. The cassette includes the plastic case, adaptor plate, MPO/MTP fan-out cord and other necessary materials for the arrangement of optical fiber cables. It is installed on LS Simple Fast-NetTM Empty Panel(PPP-) and Modular FDF.
They are pre-terminated and pre-tested in the factory with MPO/MTP fan-out cords, which guarantee the high performances.
- Part Lists
- . LS-MCM-SC-DP-12-xx (SC Duplex 12-core to 1 MTP Pre-term. Cassette)
. LS-MCM-LC-DP-12-xx (LC Duplex 12-core to 1 MTP Pre-term. Cassette)
. LS-MCM-LC-4M-24-xx (LC Quad 24-core to 2 MTP Pre-term. Cassette)
. LS-MCM-LC-4M-36-xx (LC Quad 36-core to 3 MTP Pre-temr. Cassette)
. LS-MCM-MCC6 (MPO/MTP Adaptor Panel, 6-ports, cross-connection)
- Application
- . Telecommunication network, Data Center
. Data Processing Systems
. LAN and WAN (IEEE 802.3ba, 100BASE-FX, 10GBASE-LX4, 10GBASE-ER/EW, 40GBASE-LR4, 100GBASE-ER4 etc.)
. Fiber Optic Test & Measurement System
- Technical
- . Based on IEC 61754-7 MPO/MTP type Connector
. Fiber types : Single-mode & Multi-mode
. Insertion Loss & Return Loss is based on ANSI/TIA-568-C.3
. MPO/MTP connector insertion loss ≤ 0.35dB(low-loss)
. LC connector insertion loss ≤ 0.2dB(SM), 0.3dB(MM)
. Class OF-300 channel support
. Operating temperature : 0℃~70℃
. Material : Plastic UL 94 V-2 above
. Dimension : 112 x 149 x 37mm
. Connection Polarity is based on ANSI/TIA-568-C.3

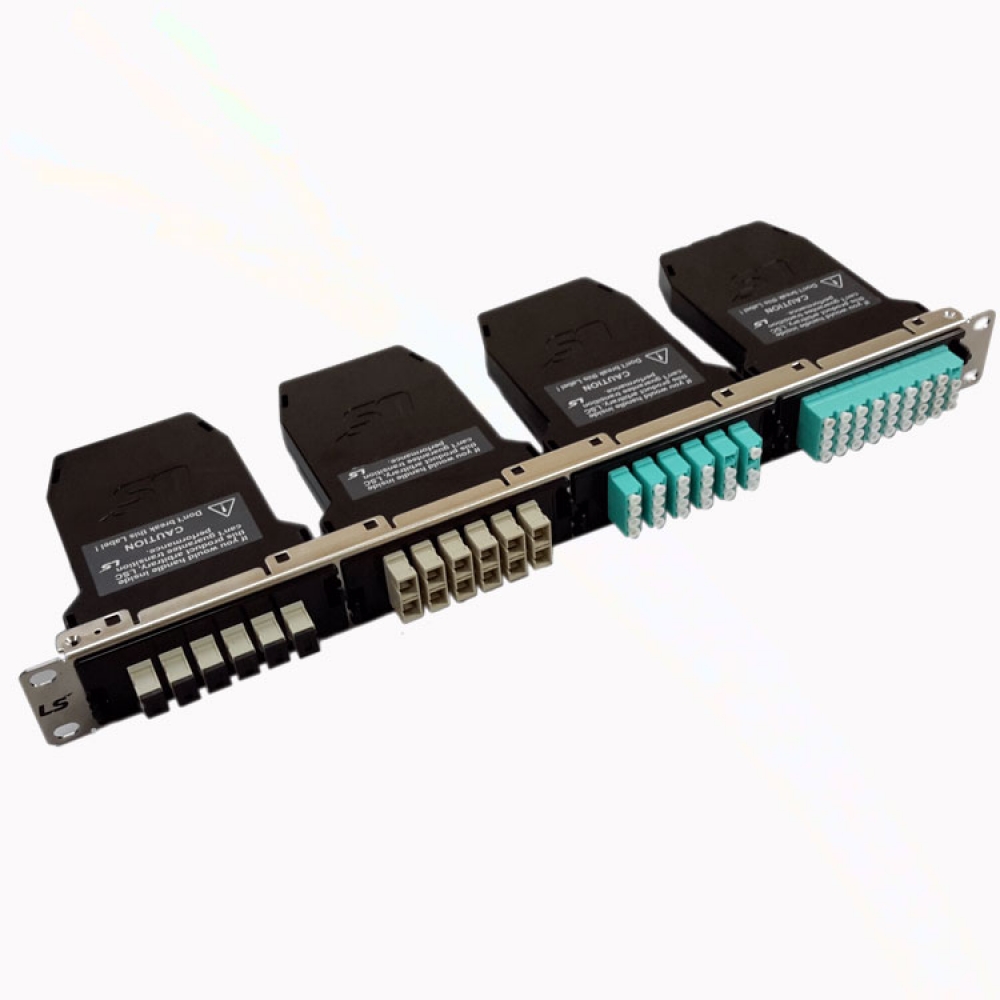

Non-Closure type FDF - PPP type panel
- Description
- LS Simple™ MPO/MTP non-closure type Fiber Distribution Frame is case which is installed for MPO/MTP cassette module and MPO/MTP to MPO/MTP cross-connection adaptor panels.
This is installed on the international standard (ETSI 19*) equipment rack or cabinet rack. also hybrid configuration with copper pre-terminated cabling is possible.
- Part Lists
- . LS-PPP-UC-24P-EP4-WM-C (Fast-Net™ Unshielded 24-port 4-entry Patch Panel without plastic module)
. LS-PPP-SC-24P-EP4-WM-C (Fast-Net™ Shielded 24-port 4-entry Patch Panel without plastic module)
. LS-APP-UC-24P-EP4-WM-C (Fast-Net™ Angled Unshielded 24-port 4-entry Patch Panel without plastic module)
. LS-APP-SC-24P-EP4-WM-C (Fast-Net™ Angled Shielded 24-port 4-entry Patch Panel without plastic module)
. LS-MCM-SC-DP-12-xx (SC Duplex 12-core to 1 MTP Pre-term. Cassette)
. LS-MCM-LC-DP-12-xx (LC Duplex 12-core to 1 MTP Pre-term. Cassette)
. LS-MCM-LC-4M-24-xx (LC Quad 24-core to 2 MTP Pre-term. Cassette)
. LS-MCM-LC-4M-36-xx (LC Quad 36-core to 3 MTP Pre-temr. Cassette)
. LS-MCM-MCC6 (MPO/MTP Adaptor Panel, 6-ports, cross-connection)
- Application
- . Telecommunication network, Data Center
. Data Processing Systems
. LAN and WAN (IEEE 802.3ba, 100BASE-FX, 10GBASE-LX4, 10GBASE-ER/EW, 40GBASE-LR4, 100GBASE-ER4 etc.)
. Fiber Optic Test & Measurement System

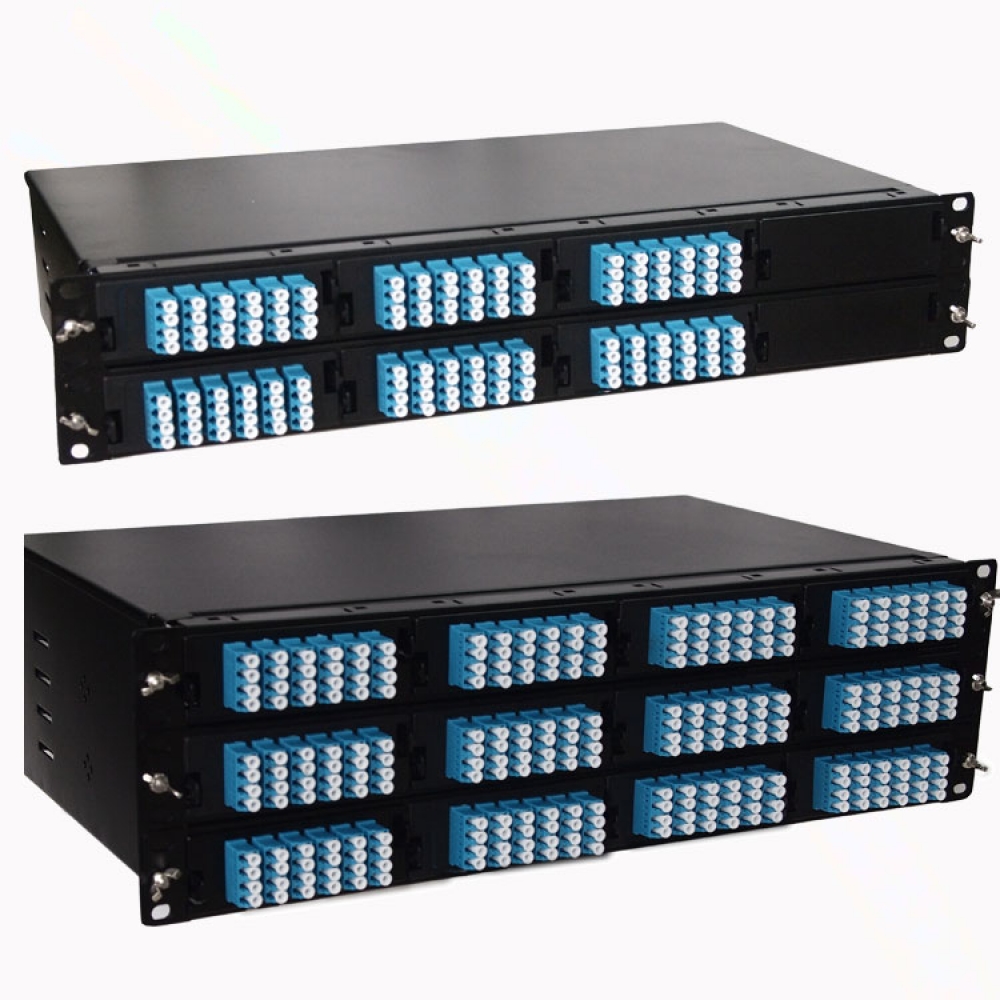

Closure type FDF
- Description
- LS Simple™ MPO/MTP Fiber Distribution Frame is case which is installed for MPO/MTP cassette modules and MPO/MTP adapter panels. This product includes the metallic case,
cable protective guide, cable management and other necessary materials to array MPO/MTP cable. The MPO/MTP Modular Panel is installed on the international standard (ETSI 19*) equipment rack or cabinet rack.
- Part Lists
- . LS-FDF-MC1U-EP4M-O (MPO/MTP Empty Modular Panel, 4 Module Outer type (LS-FDF-1U-EP-O + LS-FDP-BK-4M)
. LS-FDF-MC1U-EP4M-D (MPO/MTP Empty Modular Panel, 4 Module Drawer type (LS-FDF-1U-EP-D + LS-FDP-BK-4M)
. LS-FDF-MC2U-EP8M-O (MPO/MTP Empty Modular Panel, 8 Module Outer type (LS-FDF-2U-EP-O + 2pcs LS-LS-FDP-BK-4M)
. LS-FDF-MC3U-EP12M-O (MPO/MTP Empty Modular Panel, 12 Module Outer type (LS-FDF-3U-EP-O + 3pcs LS-FDP-BK-4M)
. LS-FDF-MC4U-EP16M-O (MPO/MTP Empty Modular Panel, 16 Module Outer type (LS-FDF-4U-EP-O + 4pcs LS-FDP-BK-4M)
- Application
- . Telecommunication network, Data Center
. Data Processing Systems
. LAN and WAN (IEEE 802.3ba, 100BASE-FX, 10GBASE-LX4, 10GBASE-ER/EW, 40GBASE-LR4, 100GBASE-ER4 etc.)
. Fiber Optic Test & Measurement System
- Technical
- . Capacity : up to 144fiber core per 1U
. 4 spaces for MPO/MTP Cassette or MPO/MTP adapter panel
. Poly-carbonate (PC) material for front cable management
. 19" rack mountable 1U~4U
. Transport & Storage temperature : 0℃~70℃

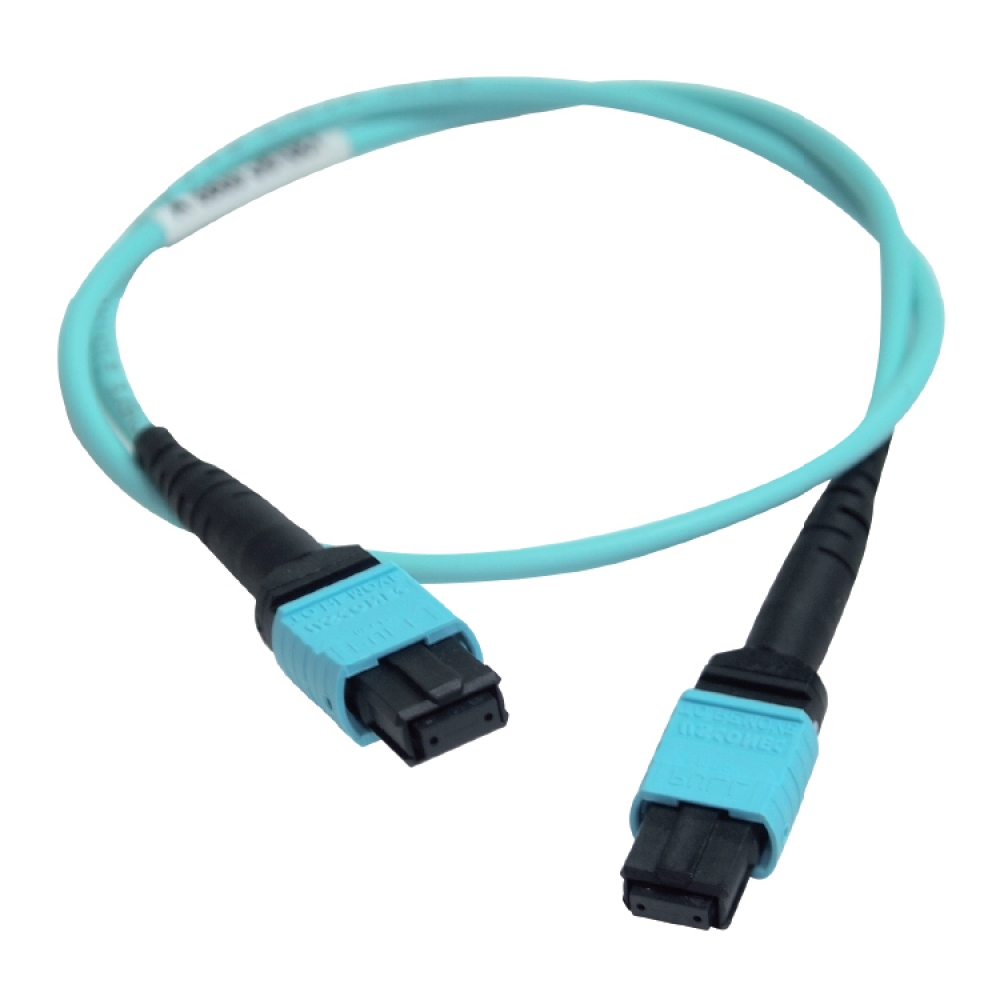

MPO/MTP Trunk & Fan-out Cord
- Description
- . Optimum optical performance through high quality MT ferrules
. High-density connection with multi-core (up to 24C) support
. Male an Female type classfication with Guide Pin
. Push-Pull type connecting for Easy & Fast Installation
. 40/100Gbps Parallel Transmission (IEEE 802.3ba) support solution
. Ferrule inspection data sheet included with all shipments
. Small form factor and high density applications
- Part Lists
- Trunk Cable
. LS-MTC-FF-xx-12Z-yyy (Female to Female MPO/MTP connector Trunk Cable with 12-core micro Distri. Cable (LSZH))
. LS-MTC-MF-xx-12Z-yyy (Male to Female MPO/MTP connector Trunk Cable with 12-core Micro Distri. Cable (LSZH))
. LS-MTC-FF-xx-24Z-yyy (Female to Female MPO/MTP connector Trunk Cable with 24-core micro Distri. Cable (LSZH))
. LS-MTC-MF-xx-24Z-yyy (Male to Female MPO/MTP connector Trunk Cable with 24-core Micro Distri. Cable (LSZH))
Fan-out Cord
. LS-MFC-FSC-xx-12Z-yyy (Female MPO/MTP to 12-core SC connector Fan-out Cord (LSZH))
. LS-MFC-FLC-xx-12Z-yyy (Female MPO/MTP to 12-core LC connector Fan-out Cord (LSZH))
. LS-MFC-MSC-xx-12Z-yyy (Male MPO/MTP to 12-core SC connector Fan-out Cord (LSZH))
. LS-MFC-MLC-xx-12Z-yyy (Male MPO/MTP to 12-core LC connector Fan-out Cord (LSZH))
. LS-MFC-FSC-xx-24Z-yyy (Female MPO/MTP to 24-core SC connector Fan-out Cord (LSZH))
. LS-MFC-FLC-xx-24Z-yyy (Female MPO/MTP to 24-core LC connector Fan-out Cord (LSZH))
. LS-MFC-MSC-xx-24Z-yyy (Male MPO/MTP to 24-core SC connector Fan-out Cord (LSZH))
. LS-MFC-MLC-xx-24Z-yyy (Male MPO/MTP to 24-core LC connector Fan-out Cord (LSZH))
- Application
- . Telecommunication network, Data Center
. Data Processing Systems
. LAN and WAN (IEEE 802.3ba, 100BASE-FX, 10GBASE-LX4, 10GBASE-ER/EW, 40GBASE-LR4, 100GBASE-ER4 etc.)
. Fiber Optic Test & Measurement System
- Technical
- . Based on IEC 61754-7 MPO/MTP type Connector
. Fiber types : SM & MM type
. Insertion Loss and Return Loss is based on ANSI/TIA-568-C.3
. Insertion Loss ≤ 0.35dB (Low-loss MPO/MTP)
. Connection polarity is based on ANSI/TIA-568-C.3
. Transport & Storage Temperature : 0℃~70℃
