Connectivity
LS Cable & System provide highest performance of unshielded and shielded solution, and we offer maximum 6 connection channel performance meets.
■ Up to 10Gb/s and Beyond Shielded/Unshielded
■ Capable of handling full broadband and baseband video signals
■ Qualifies for LS 25-Year Extended Product Warranty and Applications Assurance
■ High flame retardent grade to protect from fire
■ Electrical performance complies with ANSI/TIA-586-C.2
■ Addition of balance requirements to improve cable performance
LS offers superior performance and user friendly installation features to allow for simple and speedy deployment. Electrical parameters stability at high frequencies is the key to allow for comfortable network access.
■ Up to 10Gb/s and Beyond Shielded/Unshielded
■ Capable of handling full broadband and baseband video signals
■ Qualifies for LS 25-Year Extended Product Warranty and Applications Assurance
■ High flame retardent grade to protect from fire
■ Electrical performance complies with ANSI/TIA-586-C.2
■ Addition of balance requirements to improve cable performance
LS offers superior performance and user friendly installation features to allow for simple and speedy deployment. Electrical parameters stability at high frequencies is the key to allow for comfortable network access.
Connectivity

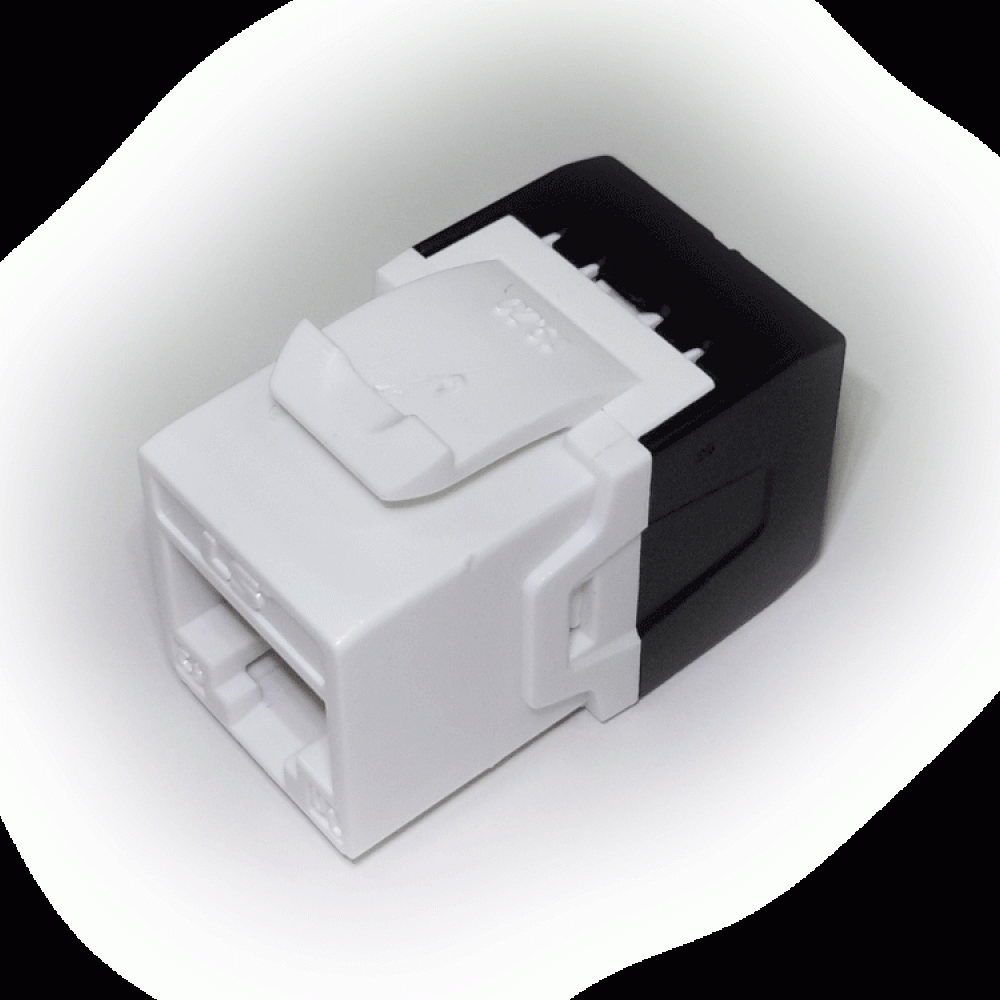

Unshielded Enhanced Rear IDC Cat.6A Modular Jack with Slide Door
- Description
- · LS Simple™ Unshielded Enhanced Rear IDC Category 6A RJ45 Modular Jack with Slide Door
· User instructions and basic wiring layout for standard configuration are included
· 180º slim Modular Jack
· Designed and manufactured to meet demanding of international standards
· Individually terminated using slim-IDC(Insulation Displacement Connectors)
· T568A or T568B configuration
· 47 CFR part 68 (RJ45), ANSI/TIA-568-C.2(Category 6A) and ISO/IEC 11801 compliant
· High impact flame retardant plastic housing
· Easy installation & smart cabling arrangement by dedicated termination tool (EZT-Tool)
· RoHS compliant
- Part Lists
- LS-MJ-UC6A-xx-ERD
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000/10G Base-T (IEEE 802.3)
· 155Mbps
· ATM 1.2G
· 100Mbps TP-PMD
· ISDN, ADSL
· Analog & digital voice (VoIP) and video
· Full broadband & baseband video

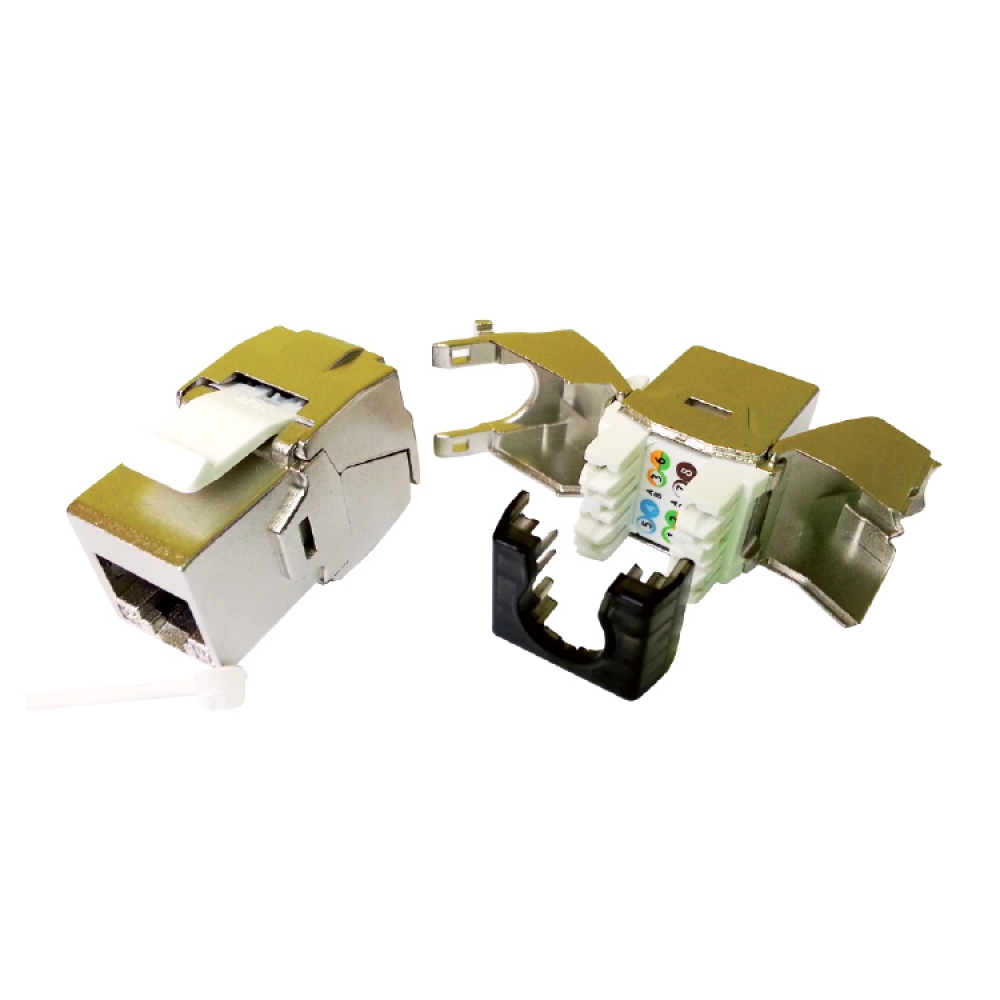

Shielded Enhanced Rear IDC Cat.6A Slim Modular Jack
- Description
- · LS Simple™ Shielded Modular Jack
· User instructions and basic wiring layout for standard configuration are included
· Optimized Category 6A Modular Jack design to mitigate the crosstalk noise
· Designed and manufactured to meet demanding of international standards
· Individually terminated using slim-IDC (Insulation Displacement Connectors)
· T568A or T568B configuration
· 47 CFR part 68 (RJ-45), ANSI/TIA-568-C.2 (Category 6A) and ISO/IEC 11801 compliant
· High impact flame retardant plastic housing
· Easy & Fast installation by using dedicated EZT (Easy Termination) Tool
· UL Listed & RoHS compliant
- Part Lists
- LS-MJ-SC6A-ERI
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16 Mbps Token Ring (IEEE 802.5)
· 10/100/1000/10G BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
· ATM LAN 1.2G
· Analog & digital voice (VoIP) and video
· Full broadband & baseband video

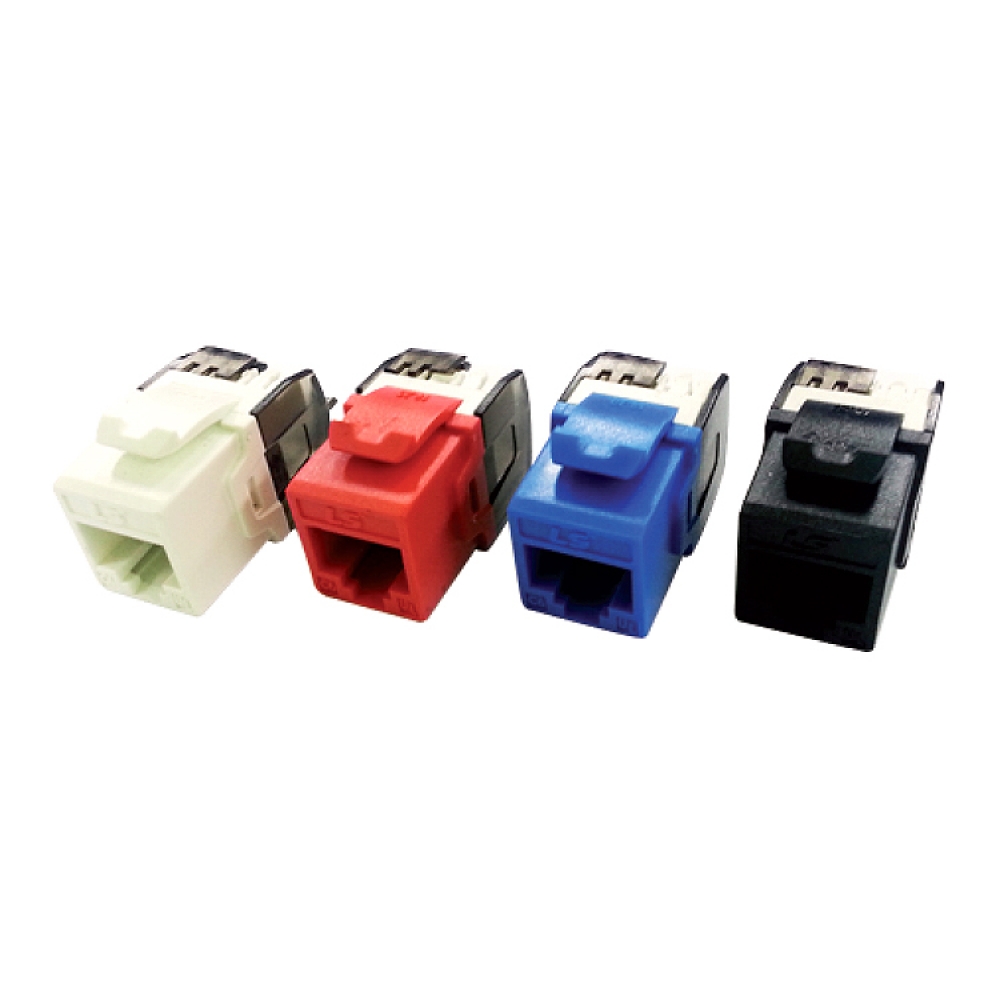

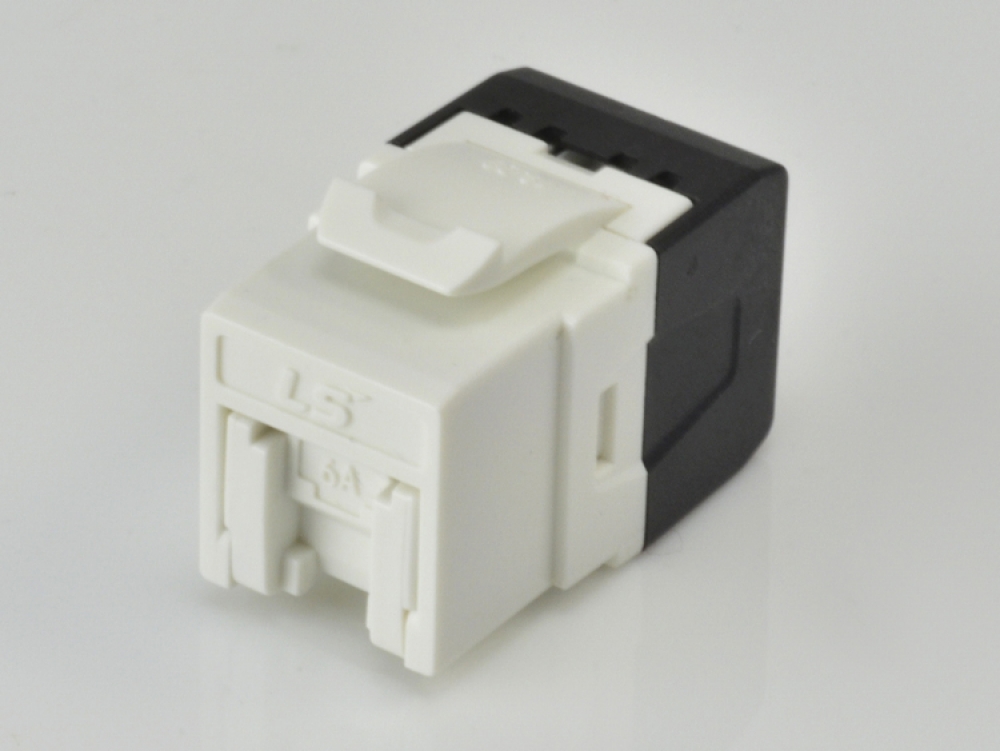

Unshielded ERI Cat.6A Slim
- Description
- · LS Simple™ Unshielded Modular Jack
· User instructions and basic wiring layout for standard configuration are included
· 180º slim Modular Jack
· Designed and manufactured to meet demanding of international standards
· Individually terminated using slim-IDC(Insulation Displacement Connectors)
· T568A or T568B configuration
· 47 CFR part 68 (RJ-45), ANSI/TIA-568-C.2(Category 6A) and ISO/IEC 11801 compliant
· High impact flame retardant plastic housing
· Easy installation & smart cabling arrangement by dedicated termination tool
· RoHS compliant
- Part Lists
- LS-MJ-UC6A-xx-ERI
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000/10G Base-T (IEEE 802.3)
· 155Mbps
· ATM 1.2G
· 100Mbps TP-PMD
· ISDN, ADSL
· Analog & digital voice (VoIP) and video
· Full broadband & baseband video
