Shielded Enhanced Rear IDC Cat.6A Slim Modular Jack
- Description

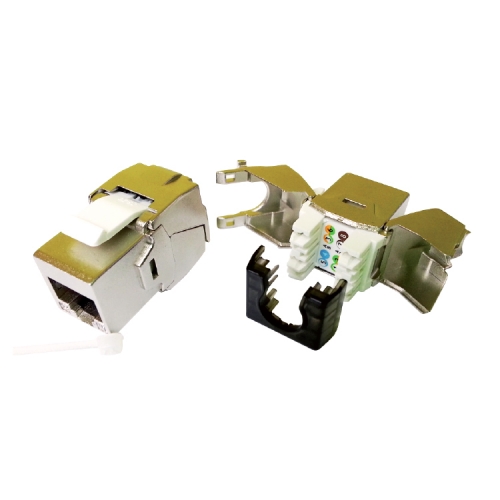

- · LS Simple™ Shielded Modular Jack
· User instructions and basic wiring layout for standard configuration are included
· Optimized Category 6A Modular Jack design to mitigate the crosstalk noise
· Designed and manufactured to meet demanding of international standards
· Individually terminated using slim-IDC (Insulation Displacement Connectors)
· T568A or T568B configuration
· 47 CFR part 68 (RJ-45), ANSI/TIA-568-C.2 (Category 6A) and ISO/IEC 11801 compliant
· High impact flame retardant plastic housing
· Easy & Fast installation by using dedicated EZT (Easy Termination) Tool
· UL Listed & RoHS compliant
- Part Lists
- LS-MJ-SC6A-ERI
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16 Mbps Token Ring (IEEE 802.5)
· 10/100/1000/10G BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
· ATM LAN 1.2G
· Analog & digital voice (VoIP) and video
· Full broadband & baseband video
