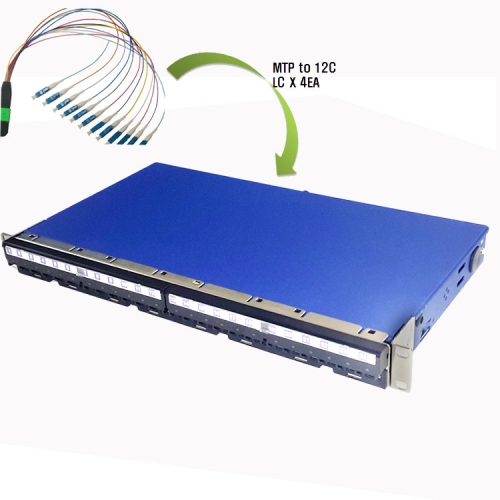

I2MS / Intelligent Fiber Distribution Frame LC 48-core (MTP Fan-out type)

Description: SimpleWin™ Intelligent Fiber Distribution Frame is used to connect between intelligent FDFs for Cross-connection system and MTP fanouts are included
- Mounted on 19” standard rack 1U
- Support LC type duplex 48core
- Support Single-mode & multi-mode (OM3, OM4)
- Support LED having a variety of color (exact monitoring & work order)
- Non splicing, MTP Fan-out included

Part Number: Intelligent Fiber Distribution Frame, LC duplex, sigle-mode, 48cores,drawer type 19inch rack 1U, with MPO Fan-out cord: LS-IFDC-LC/MPO-SM-C-048-DP-D
Intelligent Fiber Distribution Frame, LC duplex, multi-mode, 48cores, drawer type 19inch rack 1U, with MPO Fan-out cord: LS-IFDC-LC/MPO-MM-C-048-DP-D
Intelligent Fiber Distribution Frame, LC duplex, OM3, 48cores, drawer type 19inch rack 1U, with MPO Fan-out cord: LS-IFDC-LC/MPO-M3-C-048-DP-D
Intelligent Fiber Distribution Frame, LC duplex, OM4, 48cores, drawer type 19inch rack 1U, with MPO Fan-out cord: LS-IFDC-LC/MPO-M4-C-048-DP-D

Application: Telecommunication network
Data Center System
LAN and WAN (1000 BASE-T, 10G BASE-SR, 40G BASE-SR4/10, 1Gbps, 10Gbps, 40Gbps FX)
