Intelligent Fiber Distribution Frame
LS SimpleWin™ Intelligent Infrastructure Management System drastically speeds up and simplifies site planning and daily network provisioning, maintenance and security. It also provides comprehensive visibility into datacenter and work space facilities, keeping an accurate inventory of all assets-wherever located across a campus or an ocean.

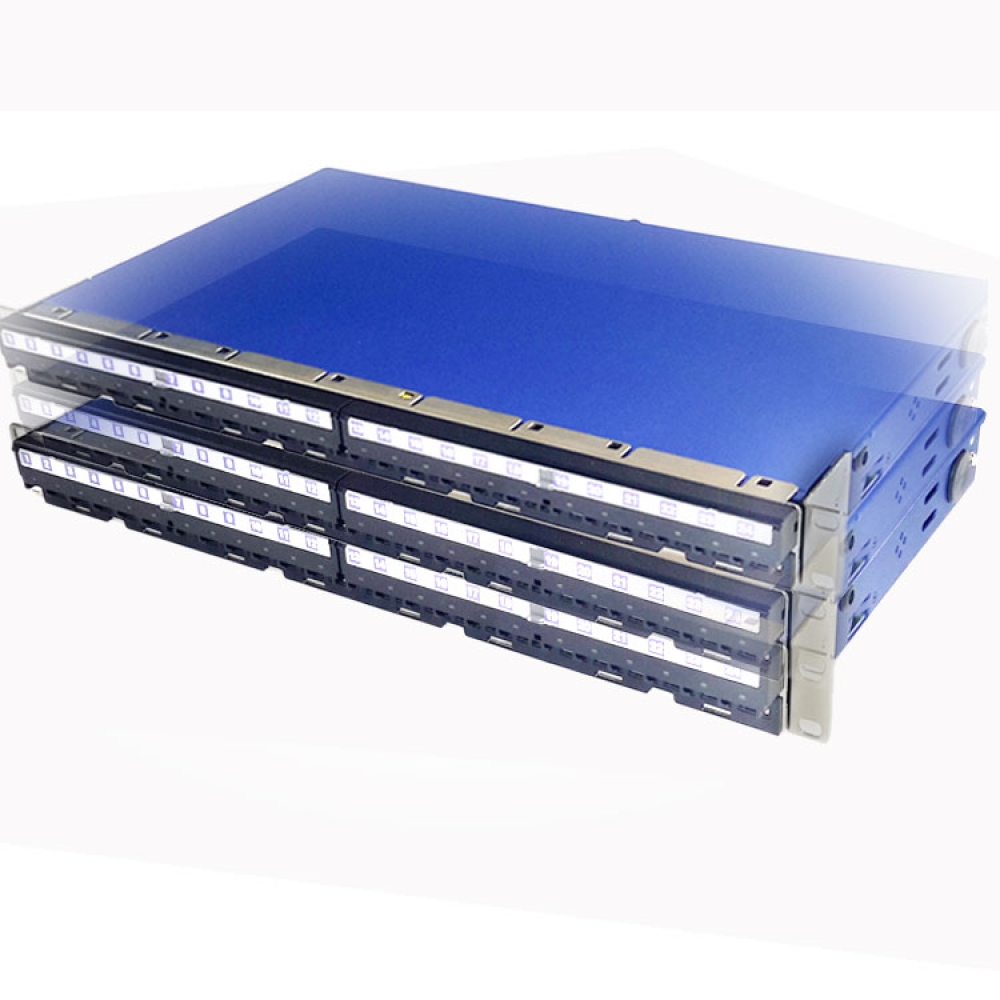

Intelligent Fiber Distribution Frame

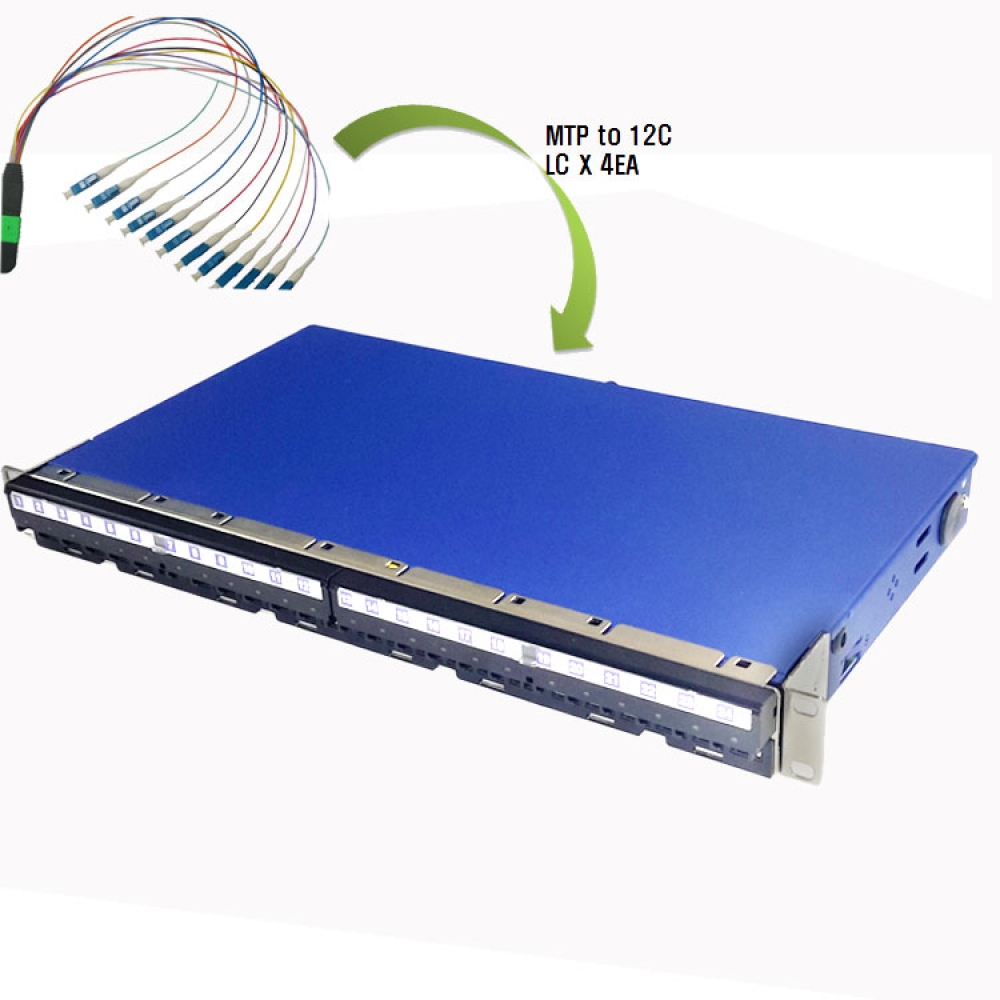

I2MS / Intelligent Fiber Distribution Frame LC 48-core (MTP Fan-out type)
- Description
- SimpleWin™ Intelligent Fiber Distribution Frame is used to connect between intelligent FDFs for Cross-connection system and MTP fanouts are included
- Mounted on 19” standard rack 1U
- Support LC type duplex 48core
- Support Single-mode & multi-mode (OM3, OM4)
- Support LED having a variety of color (exact monitoring & work order)
- Non splicing, MTP Fan-out included
- Part Number
- Intelligent Fiber Distribution Frame, LC duplex, sigle-mode, 48cores,drawer type 19inch rack 1U, with MPO Fan-out cord: LS-IFDC-LC/MPO-SM-C-048-DP-D
Intelligent Fiber Distribution Frame, LC duplex, multi-mode, 48cores, drawer type 19inch rack 1U, with MPO Fan-out cord: LS-IFDC-LC/MPO-MM-C-048-DP-D
Intelligent Fiber Distribution Frame, LC duplex, OM3, 48cores, drawer type 19inch rack 1U, with MPO Fan-out cord: LS-IFDC-LC/MPO-M3-C-048-DP-D
Intelligent Fiber Distribution Frame, LC duplex, OM4, 48cores, drawer type 19inch rack 1U, with MPO Fan-out cord: LS-IFDC-LC/MPO-M4-C-048-DP-D
- Application
- Telecommunication network
Data Center System
LAN and WAN (1000 BASE-T, 10G BASE-SR, 40G BASE-SR4/10, 1Gbps, 10Gbps, 40Gbps FX)

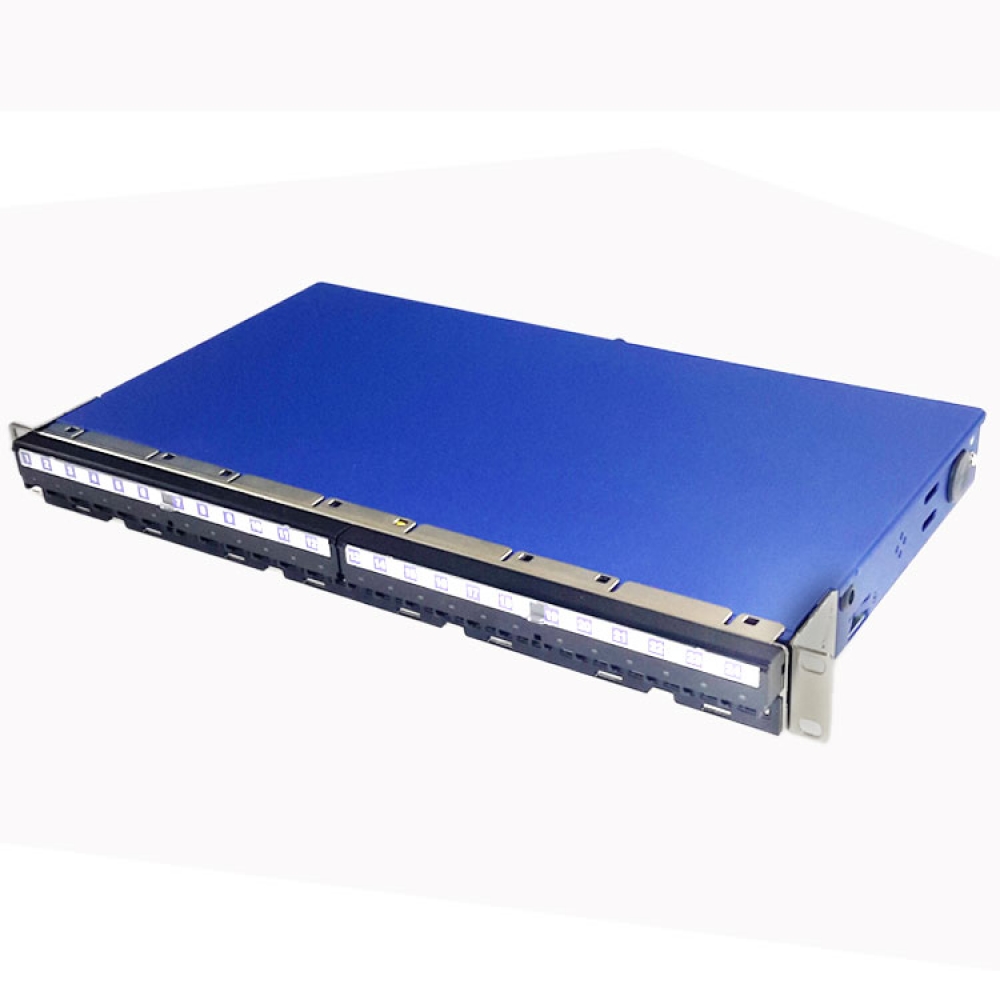

I2MS / Intelligent Fiber Distribution Frame LC 48-core
- Description
- SimpleWin™ Intelligent Fiber Distribution Frame is used to connect between intelligent FDFs for Cross-connection system.
- Mounted on 19” standard rack 1U
- Support LC type duplex 48core
- Support Single-mode & multi-mode (OM3, OM4)
- Panel material SPCC 1T or 1,2T
- usable with RJ45 Modular Jack
- Factory completed product with 100% outgoing inspection
- Support LED having a variety of color (exact monitoring & work order)
- Part Number
- Intelligent Fiber Distribution Frame, LC duplex, sigle-mode, 48cores, drawer type 19inch rack 1U : LS-IFDC-LC-SM-C-048-DP-D
Intelligent Fiber Distribution Frame, LC duplex, multi-mode, 48cores, drawer type 19inch rack 1U: LS-IFDC-LC-MM-C-048-DP-D
Intelligent Fiber Distribution Frame, LC duplex, OM3, 48cores, drawer type 19inch rack 1U: LS-IFDC-LC-M3-C-048-DP-D
Intelligent Fiber Distribution Frame, LC duplex, OM4, 48cores, drawer type 19inch rack 1U: LS-IFDC-LC-M4-C-048-DP-D
- Application
- Telecommunication network
Data Center System
LAN and WAN (1000 BASE-T, 10G BASE-SR, 40G BASE-SR4/10, 1Gbps, 10Gbps, 40Gbps FX)
