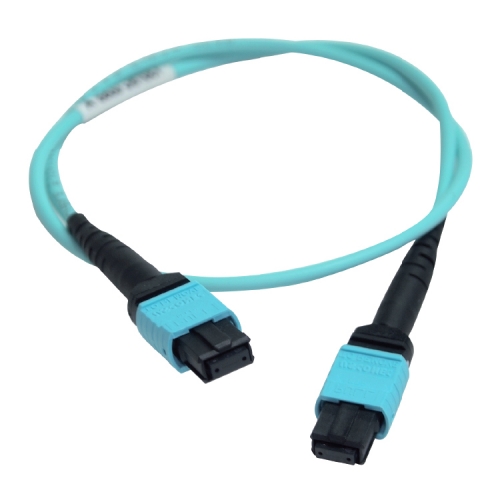

MPO/MTP Trunk & Fan-out Cord

Main windows

Description
. Optimum optical performance through high quality MT ferrules
. High-density connection with multi-core (up to 24C) support
. Male an Female type classfication with Guide Pin
. Push-Pull type connecting for Easy & Fast Installation
. 40/100Gbps Parallel Transmission (IEEE 802.3ba) support solution
. Ferrule inspection data sheet included with all shipments
. Small form factor and high density applications
Part Lists
Trunk Cable
. LS-MTC-FF-xx-12Z-yyy (Female to Female MPO/MTP connector Trunk Cable with 12-core micro Distri. Cable (LSZH))
. LS-MTC-MF-xx-12Z-yyy (Male to Female MPO/MTP connector Trunk Cable with 12-core Micro Distri. Cable (LSZH))
. LS-MTC-FF-xx-24Z-yyy (Female to Female MPO/MTP connector Trunk Cable with 24-core micro Distri. Cable (LSZH))
. LS-MTC-MF-xx-24Z-yyy (Male to Female MPO/MTP connector Trunk Cable with 24-core Micro Distri. Cable (LSZH))

Fan-out Cord
. LS-MFC-FSC-xx-12Z-yyy (Female MPO/MTP to 12-core SC connector Fan-out Cord (LSZH))
. LS-MFC-FLC-xx-12Z-yyy (Female MPO/MTP to 12-core LC connector Fan-out Cord (LSZH))
. LS-MFC-MSC-xx-12Z-yyy (Male MPO/MTP to 12-core SC connector Fan-out Cord (LSZH))
. LS-MFC-MLC-xx-12Z-yyy (Male MPO/MTP to 12-core LC connector Fan-out Cord (LSZH))
. LS-MFC-FSC-xx-24Z-yyy (Female MPO/MTP to 24-core SC connector Fan-out Cord (LSZH))
. LS-MFC-FLC-xx-24Z-yyy (Female MPO/MTP to 24-core LC connector Fan-out Cord (LSZH))
. LS-MFC-MSC-xx-24Z-yyy (Male MPO/MTP to 24-core SC connector Fan-out Cord (LSZH))
. LS-MFC-MLC-xx-24Z-yyy (Male MPO/MTP to 24-core LC connector Fan-out Cord (LSZH))
Application
. Telecommunication network, Data Center
. Data Processing Systems
. LAN and WAN (IEEE 802.3ba, 100BASE-FX, 10GBASE-LX4, 10GBASE-ER/EW, 40GBASE-LR4, 100GBASE-ER4 etc.)
. Fiber Optic Test & Measurement System
Technical
. Based on IEC 61754-7 MPO/MTP type Connector
. Fiber types : SM & MM type
. Insertion Loss and Return Loss is based on ANSI/TIA-568-C.3
. Insertion Loss ≤ 0.35dB (Low-loss MPO/MTP)
. Connection polarity is based on ANSI/TIA-568-C.3
. Transport & Storage Temperature : 0℃~70℃
