Outlet Connectivity
LS Cable & System Work Area solutions are designed and manufactured to propvide our customers with a wide variety of products to satisfy a variety of network needs:
■ Empty Panels & Outlets to hold shielded/unshielded Modular Jacks, Fiber Adaptors, Couples, etc...
■ Faceplates to attractively house Keystone Jacks that you can select and snap in accordance to your needs
■ Back Boxes to mount onto a variety of surfaces to accommodate copper or optical fiber cables
■ Outlet Modules used for installing "F" NTSC-V connectors or LC, SC, ST fiber optic connectors
■ Surface Mount boxes
■ Modular Plugs
■ Consolidation Boxes & Mini Panels
■ Empty Panels & Outlets to hold shielded/unshielded Modular Jacks, Fiber Adaptors, Couples, etc...
■ Faceplates to attractively house Keystone Jacks that you can select and snap in accordance to your needs
■ Back Boxes to mount onto a variety of surfaces to accommodate copper or optical fiber cables
■ Outlet Modules used for installing "F" NTSC-V connectors or LC, SC, ST fiber optic connectors
■ Surface Mount boxes
■ Modular Plugs
■ Consolidation Boxes & Mini Panels
Outlet Connectivity
Work Area Modular Plug Transparent Blue
- Description
- . Unshielded Category 5e
. Field Patch Cord Installable 8P8C(8-Position,8-Conductor) RJ45 Module
. Easy Installation by Crimping Tool
. 50μ inch gold plating, KC Certification (high-reliability in Contact)
. elegant transparent blue design
- Part Number
- . LS-MP-UC5E-RJ45

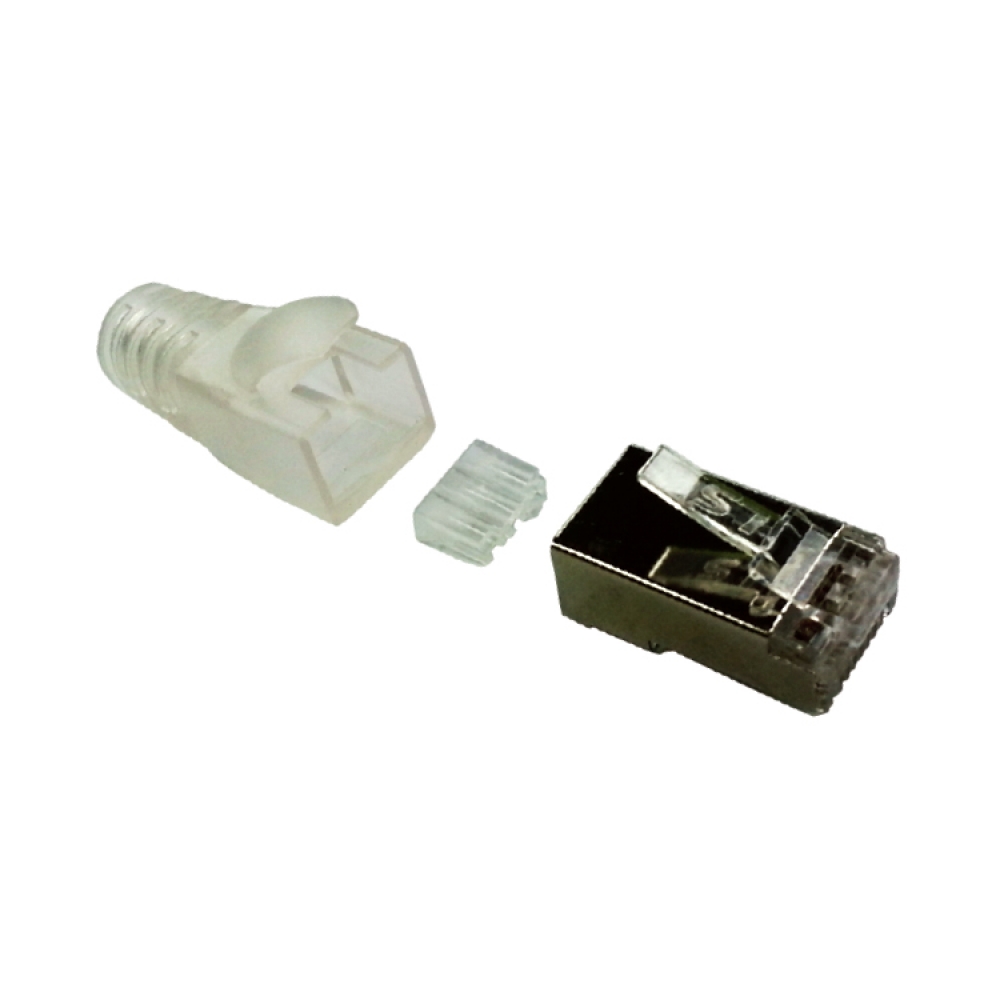

Shielded RJ45 Modular Plug
- Description
- LS SimpleTM Shielded Modular Plug (8P8C RJ45) has compatibility with shielded cable in various form, and offers superior system characteristics by complying with the specification of CFR title 47 part 68.5. Also It ensures the high-reliability in assembly process by offering the Wire Guider and Transparent Boot Accessory.
- Part Lists
- LS-MP-SC-RJ45-TR-D1 ( 8P8C Category 5e shielded modular plug suitable stranded & solid wire, 50μ-inch gold coating with transparent boot )
LS-MP-SC-RJ45-TR-B1 ( 8P8C Category 6 above shielded modular plug suitable stranded & solid wire, 50μ-inch gold coating with transparent boot )
LS-MP-SC-RJ45-TR-B2 ( 8P8C S/FTP Cable shielded modular plug suitable stranded & solid wire, 50μ-inch gold coating with transparent boot )
- Technical
- Electrical / Mechanical Characteristics
. Rated Voltage : 250VAC max. at 2A
. Insulation Resistance : 500 Mega-ohm min
. Contact Resistance : 20 milli-ohm Max
. Dielectric Strength : 1000Vac (RMS)
. Insertion Life : 2000 mating cycle min.
. Pull Force(Cable to Plug) : 20lbs (89N) min
. Temperature : -40℃~125℃ (-40℉~257℉)
. Humidity : 10~90% (RH)
Physical
. Plug Housing, Insulation Wire Guider, Separator : Transparent High-impact Polycarbonate (PC), UL 94V-2 rated
. Contact Blade : 3-prong IDC Structure, High Reliability
. Overall Shield : SUS
. Boot : Transparent Polyvinyl Chloride (PVC), UL 94 V-2 rated
Feature
. Approvals : UL
. Category : ANSI/TIA-568-C.2 (Category 5e~7)
. Wiring scheme : CFR title 47 part 68.5 and IEC 60603-7
. Configuration : T568A/T568B

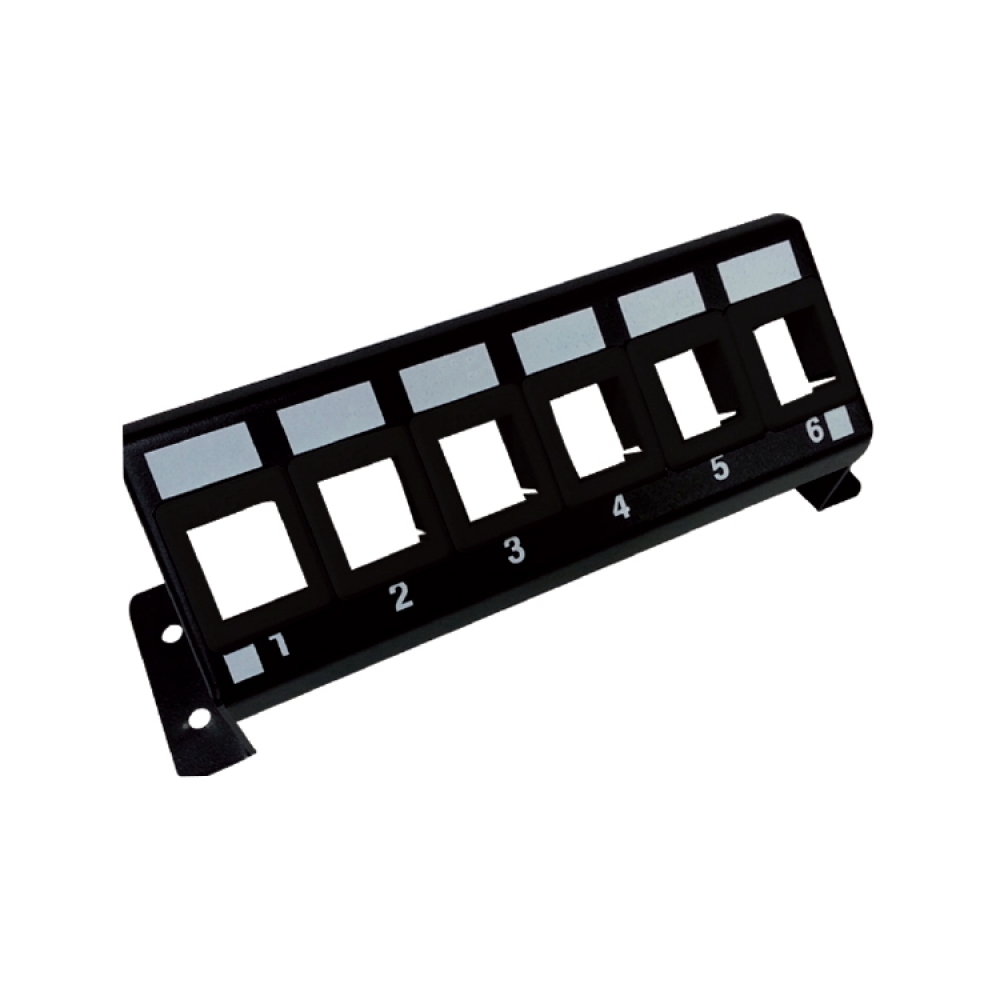

Mini Panel
- Description
- . LS simple™ Mini Panel
. 6-port Module Type Blank Patch Panel for SOHO Box
. CATV, 110 Patching
- Part Lists
- . LS-PPM-MD-6P : 6-Port Empty Mini Module type panel, 6 module in 1 plastic
. LS-PPM-EP-6P : 6-Port Empty Mini Modular type panel
. LS-PPM-MD-12P-E-WM : 12-Port Empty Mini Module type panel with Wire manager guide
. LS-PPM-MD-12P-E : 12-Port Empty Mini Module type panel
. LS-PPM-UC5E-12P-WM : Category 5e 12-Port Mini Module type panel with Wire manager guide
. LS-PPM-UC6-12P-WM : Category 6 12-Port Mini Module type panel with Wire manager guide
Consolidation Box
- Description
- SOHO multimedia enclosures are the primary elements of telecommunication cabling for residential market. The enclosures are designed in compliance with TIA-570-B Residential Telecommunication Infrastructure Standard and the EIA-600 Consumer Electronics(CEBus). They can hold all distribution modules you need from voice/telephone, data/computer networks, CATV, satellite TV to in-house broadcasting audio/video systems, and can be flush mounted during the rough-in phase of installation.
- Part Lists
Description Part Number Consolidation Box 14" x 14" with Cover LS-CB-1414-C Consolidation Box 14" x 28" with Cover LS-CB-1428-C Consolidation Box 14" x 14" with Hinged Door LS-CB-1414-H Consolidation Box 14" x 28" with Hinged Door LS-CB-1428-H
Modular Plug
- Description
- LS Simple™ Modular Plug Solutions ensure the high-reliability and superior transmission performance with 50μ-inch gold coating without degradation of channel performance. Also, They supply the benefit of easy installation for customers with cable wire and pair separator components according to plug type.
- Part Lists
- . LS-MP-UC5E-RJ45 (8P8C Category 5e unshielded modular plug for suitable stranded & solid wire, 50μ-inch gold coating)
. LS-MP-UC6-RJ45 (8P8C Category 6 unshielded modular plug for suitable stranded & solid wire, 50μ-inch gold coating with boot of transparent white color, separator of pairs)
. LS-MP-SC5E-RJ45-TRBOOT (8P8C Category 5e shielded modular plug suitable stranded & solid wire, 50μ-inch gold coating with transparent boot)
. LS-MP-SC6-RJ45-TRBOOT-A (8P8C Category 6 above shielded modular plug suitable stranded & solid wire, 50μ-inch gold coating with transparent boot)
. LS-MP-6P6C-R (6P6C Unshielded modular plug, suitable for stranded wire, 50μ-inch gold coating, round type cable)
. LS-MP-6P4C-F (6P4C Unshielded modular plug, suitable for stranded wire, 50μ-inch gold coating, flat type cable)
. LS-MP-4P4C-R (4P4C Unshielded modular plug, suitable for stranded wire, 50μ-inch gold coating, round type cable)
. LS-MP-4P4C-F (4P4C Unshielded modular plug, suitable for stranded wire, 50μ-inch gold coating, flat type cable)
- Technical
- Electrical / Mechnical Characteristics
. Rating Voltage & Current : 30Vac at 1.5A
. Contact Resistance : 20 milli-ohm Max.
. Dielectric Strength : 1000Vac (RMS)
. Insulation Resistance : 500 Mega-ohm min.
. Cable-to-Plug, Tensile Strength : 20lbs (89N) min.
. Durability : 750 mating cycle min.
. Temperature : -20℃~80℃ (-4℉~176℉)
Materials
. Housing : Polycarbonate (PC)
. Contacts : Copper Alloy Selective Gold over Nickel plating
Compliance
. Meet FCC CFR 47 Part 68 and IEC 60603-7

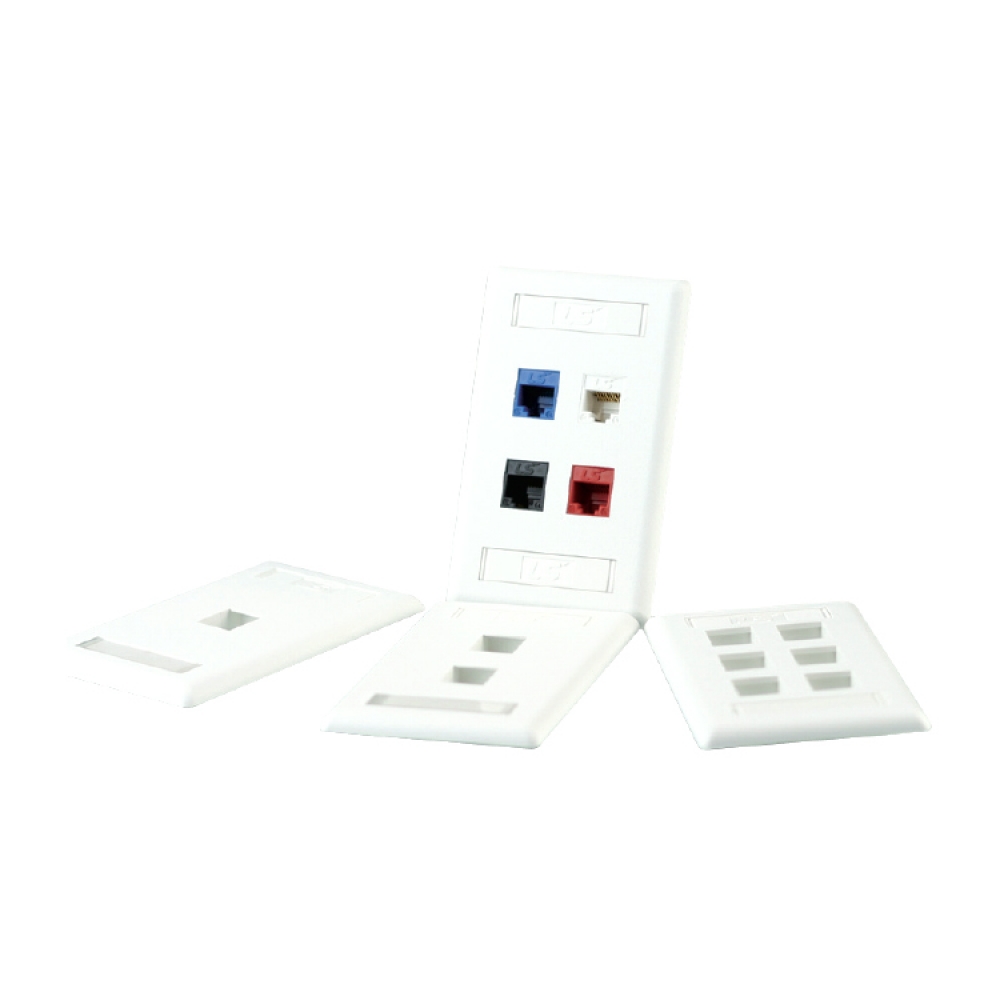

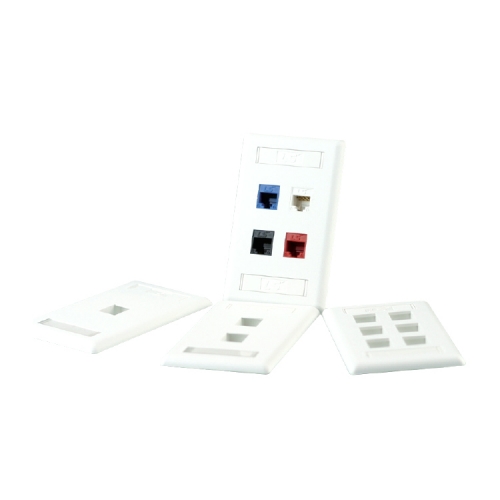

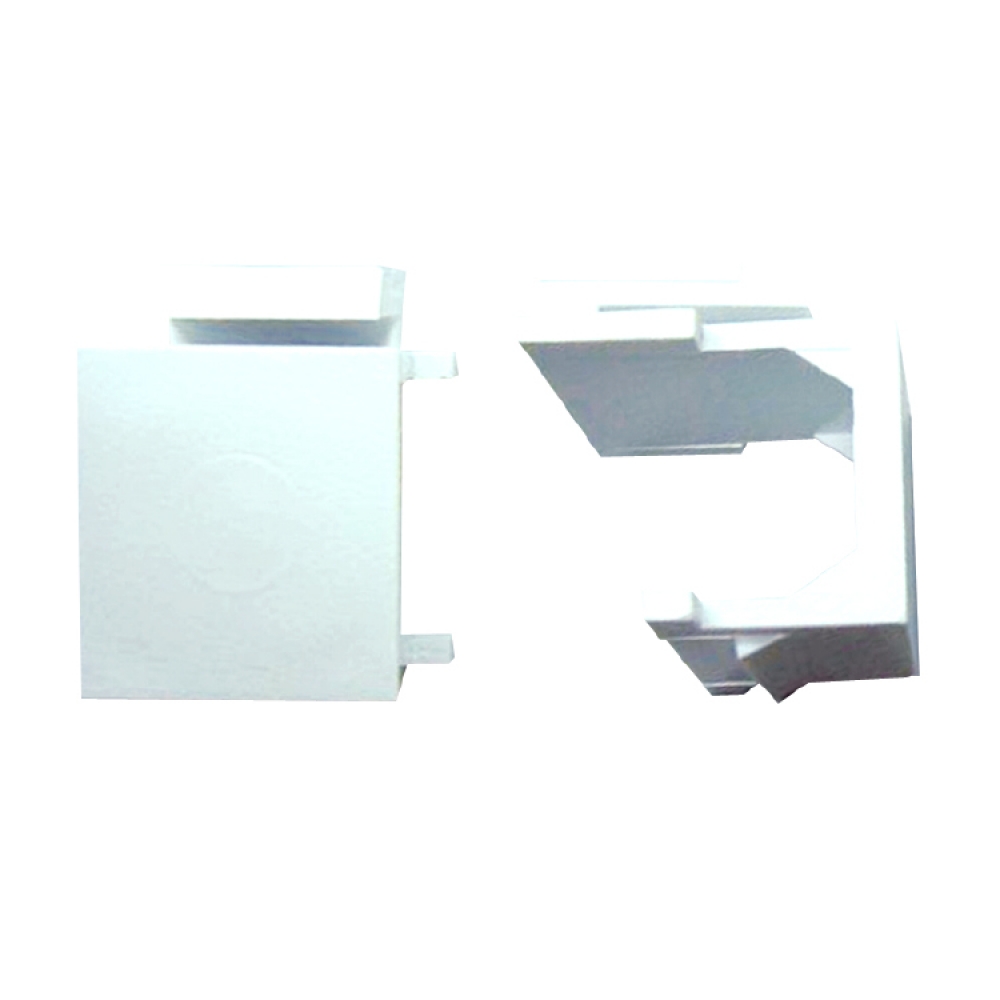

Work Area Outlet
- Description
- LS Simple™ faceplates attractively house keystone jacks that you can select and snap in according to your needs.
- Part Lists
- . LS-FP-SF-x (British type Faceplates with Shutter & Icon of Keystone Modular Jack)
. LS-FP-SA-x (Euro Mode Faceplate with Angled Shutter Bezel of Keystone Modular Jack)
. LS-FP-SU-x (Single Gang British Faceplate with Shutter)
. LS-FP-AUS-H-x (Australian Faceplate with Shutter & Icon of Keystone Modular Jack)
. LS-FP-US-xPORT (US type Single Gang Faceplate of Keystone Modular Jack)
. LS-FP-US-xP-S (US type Single Gang stainless Faceplate of Keystone Modular Jack)
. LS-SMB-xPORT (Surface mounted Box of keystone Modular Jack)
- Technical
- . High Impact Flame Retardant Plastic Housing, UL 94V-0 Rated.
