Shielded RJ45 Modular Plug
- Description

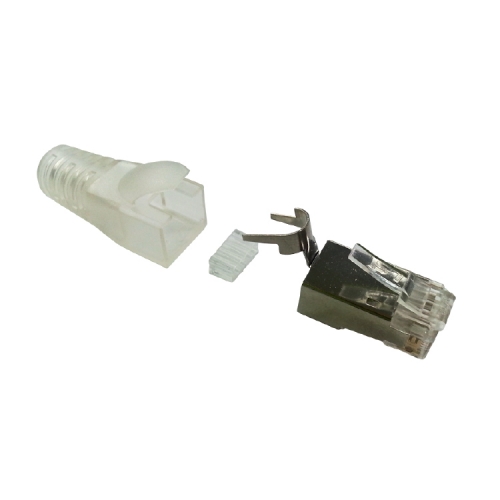

- LS SimpleTM Shielded Modular Plug (8P8C RJ45) has compatibility with shielded cable in various form, and offers superior system characteristics by complying with the specification of CFR title 47 part 68.5. Also It ensures the high-reliability in assembly process by offering the Wire Guider and Transparent Boot Accessory.
- Part Lists
- LS-MP-SC-RJ45-TR-D1 ( 8P8C Category 5e shielded modular plug suitable stranded & solid wire, 50μ-inch gold coating with transparent boot )
LS-MP-SC-RJ45-TR-B1 ( 8P8C Category 6 above shielded modular plug suitable stranded & solid wire, 50μ-inch gold coating with transparent boot )
LS-MP-SC-RJ45-TR-B2 ( 8P8C S/FTP Cable shielded modular plug suitable stranded & solid wire, 50μ-inch gold coating with transparent boot )
- Technical
- Electrical / Mechanical Characteristics
. Rated Voltage : 250VAC max. at 2A
. Insulation Resistance : 500 Mega-ohm min
. Contact Resistance : 20 milli-ohm Max
. Dielectric Strength : 1000Vac (RMS)
. Insertion Life : 2000 mating cycle min.
. Pull Force(Cable to Plug) : 20lbs (89N) min
. Temperature : -40℃~125℃ (-40℉~257℉)
. Humidity : 10~90% (RH)
Physical
. Plug Housing, Insulation Wire Guider, Separator : Transparent High-impact Polycarbonate (PC), UL 94V-2 rated
. Contact Blade : 3-prong IDC Structure, High Reliability
. Overall Shield : SUS
. Boot : Transparent Polyvinyl Chloride (PVC), UL 94 V-2 rated
Feature
. Approvals : UL
. Category : ANSI/TIA-568-C.2 (Category 5e~7)
. Wiring scheme : CFR title 47 part 68.5 and IEC 60603-7
. Configuration : T568A/T568B
