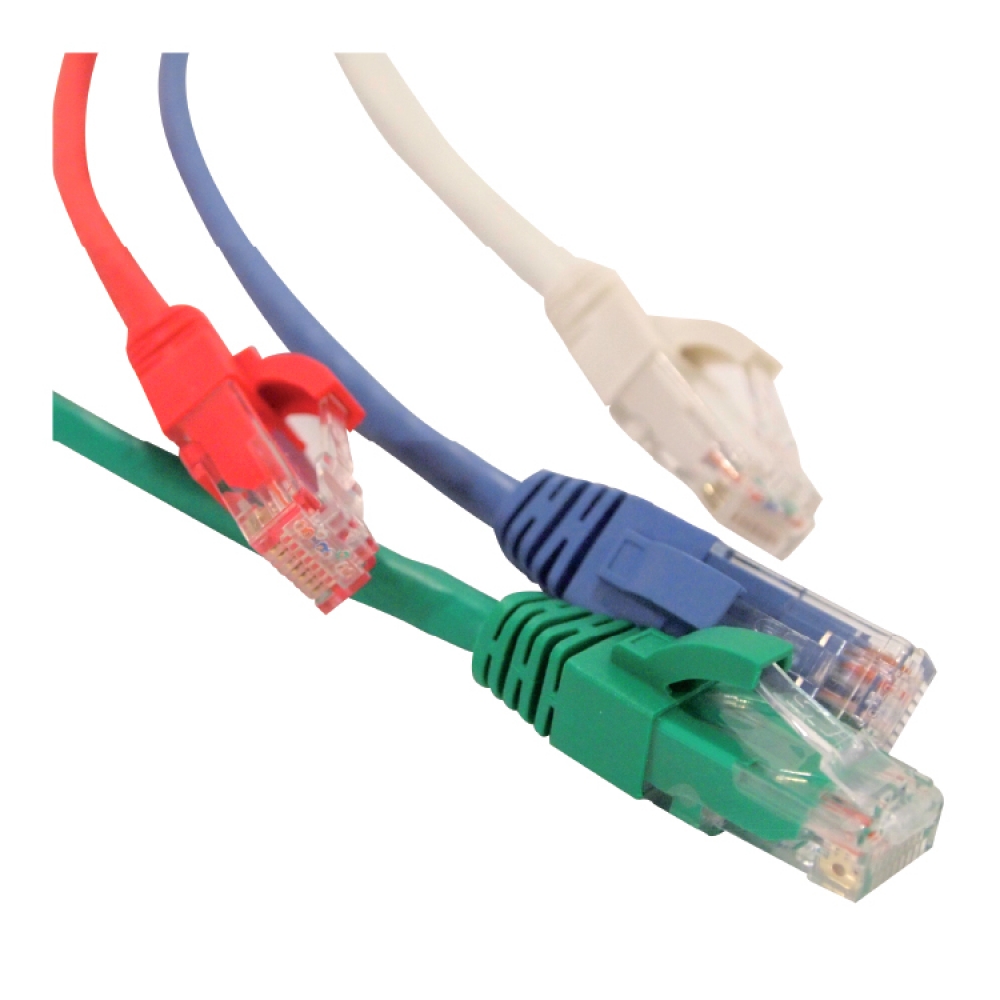

Patch Cord
Category 6A LS Simple™ 10Gbps Cable 4 Pair
LS Cable & System provide highest performance of unshielded and shielded solution, and we offer maximum 6 connection channel performance meets.
■ Up to 10Gb/s and Beyond Shielded/Unshielded
■ Capable of handling full broadband and baseband video signals
■ Qualifies for LS 25-Year Extended Product Warranty and Applications Assurance
■ High flame retardent grade to protect from fire
■ Electrical performance complies with ANSI/TIA-586-C.2
■ Addition of balance requirements to improve cable performance
LS offers superior performance and user friendly installation features to allow for simple and speedy deployment. Electrical parameters stability at high frequencies is the key to allow for comfortable network access.
LS Cable & System provide highest performance of unshielded and shielded solution, and we offer maximum 6 connection channel performance meets.
■ Up to 10Gb/s and Beyond Shielded/Unshielded
■ Capable of handling full broadband and baseband video signals
■ Qualifies for LS 25-Year Extended Product Warranty and Applications Assurance
■ High flame retardent grade to protect from fire
■ Electrical performance complies with ANSI/TIA-586-C.2
■ Addition of balance requirements to improve cable performance
LS offers superior performance and user friendly installation features to allow for simple and speedy deployment. Electrical parameters stability at high frequencies is the key to allow for comfortable network access.
Patch Cord
Shielded Patch Cord
- Description
- · Comply with ANSI/TIA-568-C.2 performance levels
· Architectural design and flexibility - support max. 6-connection channels
· Qualifies for the LS 25-Year Extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6A Channel
· Cable consists of 24AWG~26AWG wire, each four pair twisted at a different lay length.
· Wiring T568A or T568B
· Comply with plug specifications of 47 CFR part 68 for 8 Pin Modular Plug
· A various of color support
· RoHS compliant
- Part Lists
- LS-PC-SC6A-xx-yyy (PVC Jacket)
LS-PC-SC6AL-xx-yyy (LSZH Jacket)
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16 Mbps Token Ring (IEEE 802.5)
· 10/100/1000/10G BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
· ATM LAN 1.2G
· Analog & digital voice (VoIP) and video
· Full broadband & baseband video
Unshielded Patch Cord
- Description
- · Comply with ANSI/TIA-568-C.2 performance levels
· Architectural design and flexibility - support max. 6-connection channels
· Qualifies for the LS 25-Year Extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6A Channel
· Cable consists of 24AWG~26AWG wire, each four pair twisted at a different lay length.
· Wiring T568A or T568B
· Comply with plug specifications of 47 CFR part 68 for 8 Pin Modular Plug
· A various of color support
· RoHS compliant
- Part Lists
- LS-PC-UC6A-xx-yyy (PVC Jacket)
LS-PC-UC6AL-xx-yyy (LSZH Jacket)
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16 Mbps Token Ring (IEEE 802.5)
· 10/100/1000/10G BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
· ATM LAN 1.2G
· Analog & digital voice (VoIP) and video
· Full broadband & baseband video
